How to print the STRONGBACK-S1
If you want to save this How-To instruction as a pdf file (and print it out later if needed), simply copy the URL of this page and paste it to https://www.printfriendly.com/ . Printfriendly will generate a printer-friendly pdf of the page with all the texts and images for you.
Please consider joining Morethan3D community on our Discord channel to discuss 3D printing hints & tips, ask questions, and get help if you come across any printing issues.
The STL package of this model includes two “All-In-One” Print Profiles created for Bambu Lab. One is for H2 Series, and the other one is for X/P/A1 Series. If you don’t have these but any other printers from Bambu Lab, simply load the profile in Bambu Studio and change the printer setting to your printer. If you are new to 3D printing and never use a “All-In-One” Print Profile before, follow this instruction: How to use Bambu Studio’s All-In-One Print Profile
If you don’t have access to any Bambu Lab 3D printers. We recommend you to download Bambu Studio and load our Profile up so you can replicate the print settings that we use for each part of the model in your own slicer. Most parts of the model can be printed with a standard 0.4mm Nozzle. However, to achieve the optimum result for parts with small details, we strongly recommend using a 0.2mm (or 0.25mm) Nozzle
Please note: The STL for each part was saved in the recommended orientation to print on FDM printers. Hence, when you load the STL in your slicer software, you don’t need to orientate them again, unless you want to try to print them in a different orientation.
Below are some tips
-
There are two “All-In-One” Bambu Studio Profiles created for this model:
– STRONGBACK-S1 [MORETHAN3D – x Profile] – 0.4 Nozzle
This profile contains all parts that are recommended to print with a standard 0.4mm Nozzle– STRONGBACK-S1 [MORETHAN3D – x Profile] – 0.2 Nozzle
This profile contains all parts that are recommended to print with a 0.2mm NozzleIt is strongly recommended that you use the correct Nozzle size to print the parts to achieve the optimum result. You can print all parts with a 0.4mm Nozzle if you don’t have a 0.2mm, but some parts won’t look as good as they should
-
All magnet holes can be printed without support regardless of their positions/orientations on the model. Please don’t generate support for these holes (unless you really need to). Otherwise, you may struggle to remove support inside the holes due to restricted access.
-
This model is designed in such a way to allow you to assemble and disassemble the model into sub-assemblies, because almost every part is held together by magnets. However, if you prefer to glue everything, or some parts, together, that’s also fine – but please be aware that if you do, the model may not be as functional as the design intent, and it may be difficult to update the model later on.
If you decide to glue all parts (or some parts) together rather than using magnets, please print and use the Locating Pins for alignment.
-
There are several STL’s in folder ‘STEP 01
If you load these files in your slicer, you’ll see the fully assembled STRONGBACK-S1, and the main Sub-assemblies. This will help you understand where each and every part is fitted on the model. -
We highly recommend using “Support for PLA” for a number of selected parts for this model (see more details in the provided Print Profiles). This will ensure the best finish of the parts once support is removed.
-

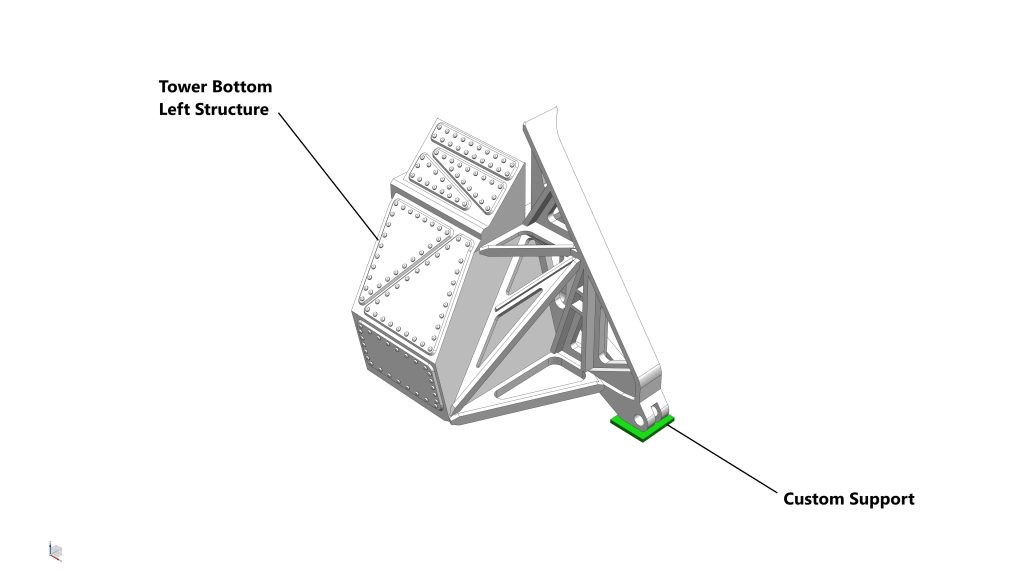

In STEP 06 – Assemble the Strongback Tower – Part 1, the Tower Bottom Left Structure and Tower Bottom Right Structure has built-in custom support.
Please remove these support once the part is printed.
-

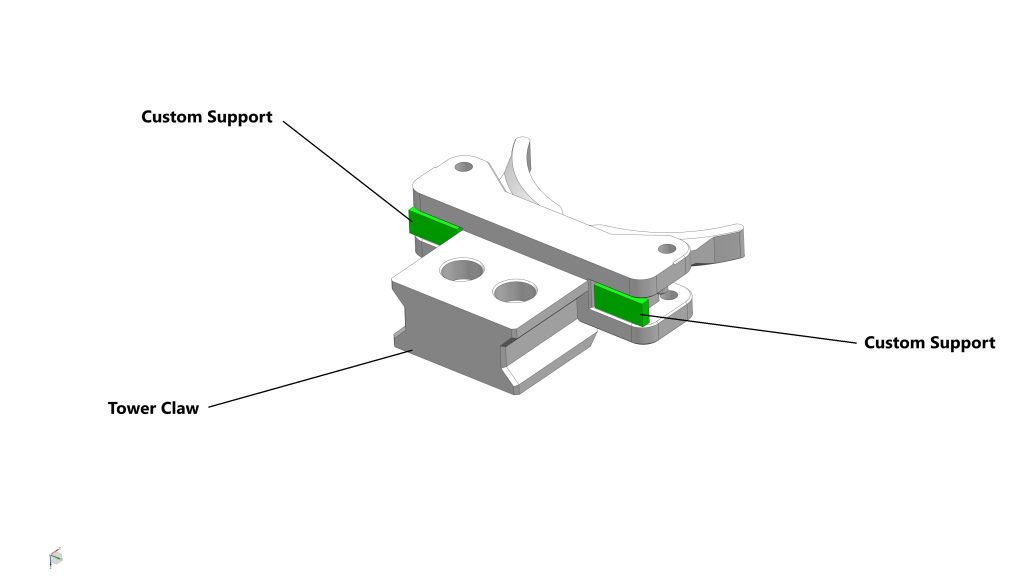

In STEP 08 – Assemble the Strongback Tower – Part 3, the Tower Claw has built-in custom support.
Please remove these support once the part is printed.
-
It is highly recommend that you purchase and use metal Dowel Pins (3mm Diameter x 20 mm Long) for this model. However, if you rather 3D print them instead, you can find the STL for these Dowel Pins in folder “STEP 99 – Optional Parts”
-
This model is designed at 1:96 scale, hence, it is recommend that you print at this scale to achieve the highest quality. However, if you decide to print the model at a smaller scale, please be aware that the magnets we selected for this model will no longer fit and you will have to find smaller magnets to fit, or glue the parts together.
How to assemble this model?
So now you’ve got all your parts printed? Great! Let’s assemble the model. I’ll take you through the assembly process step by step but before that, you need to purchase some items:

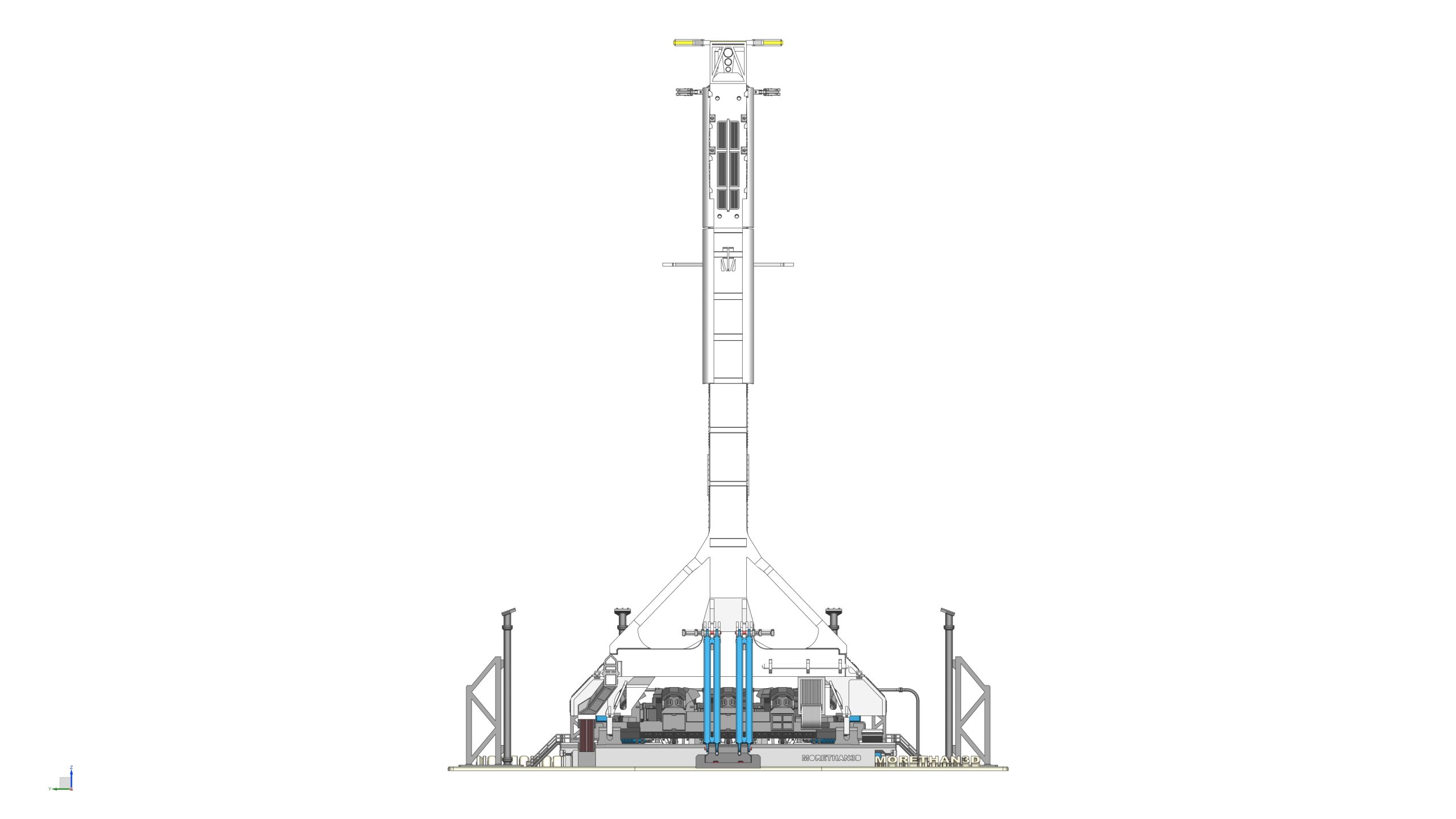

STEP 1: ‘Dry’ assemble the model

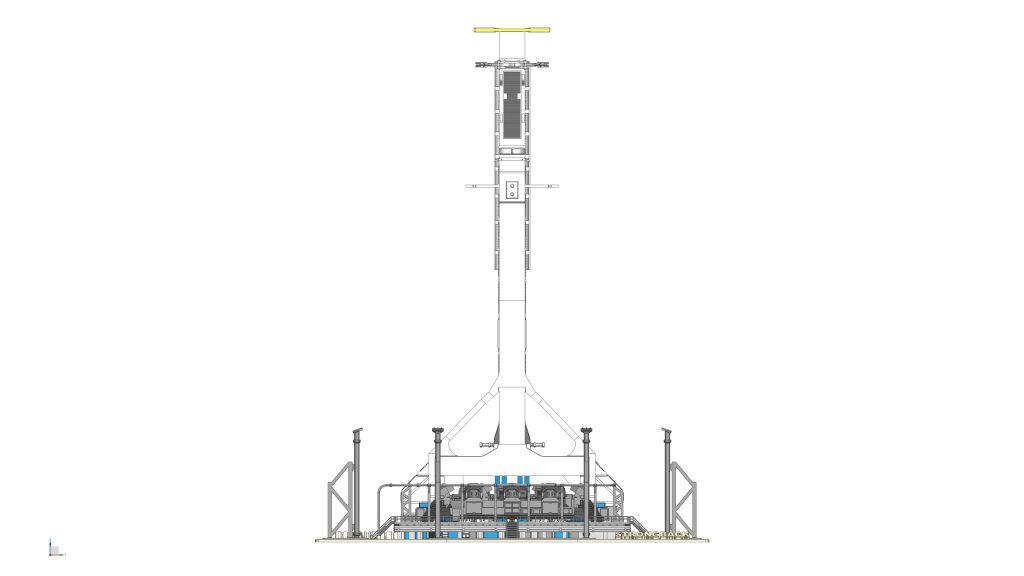

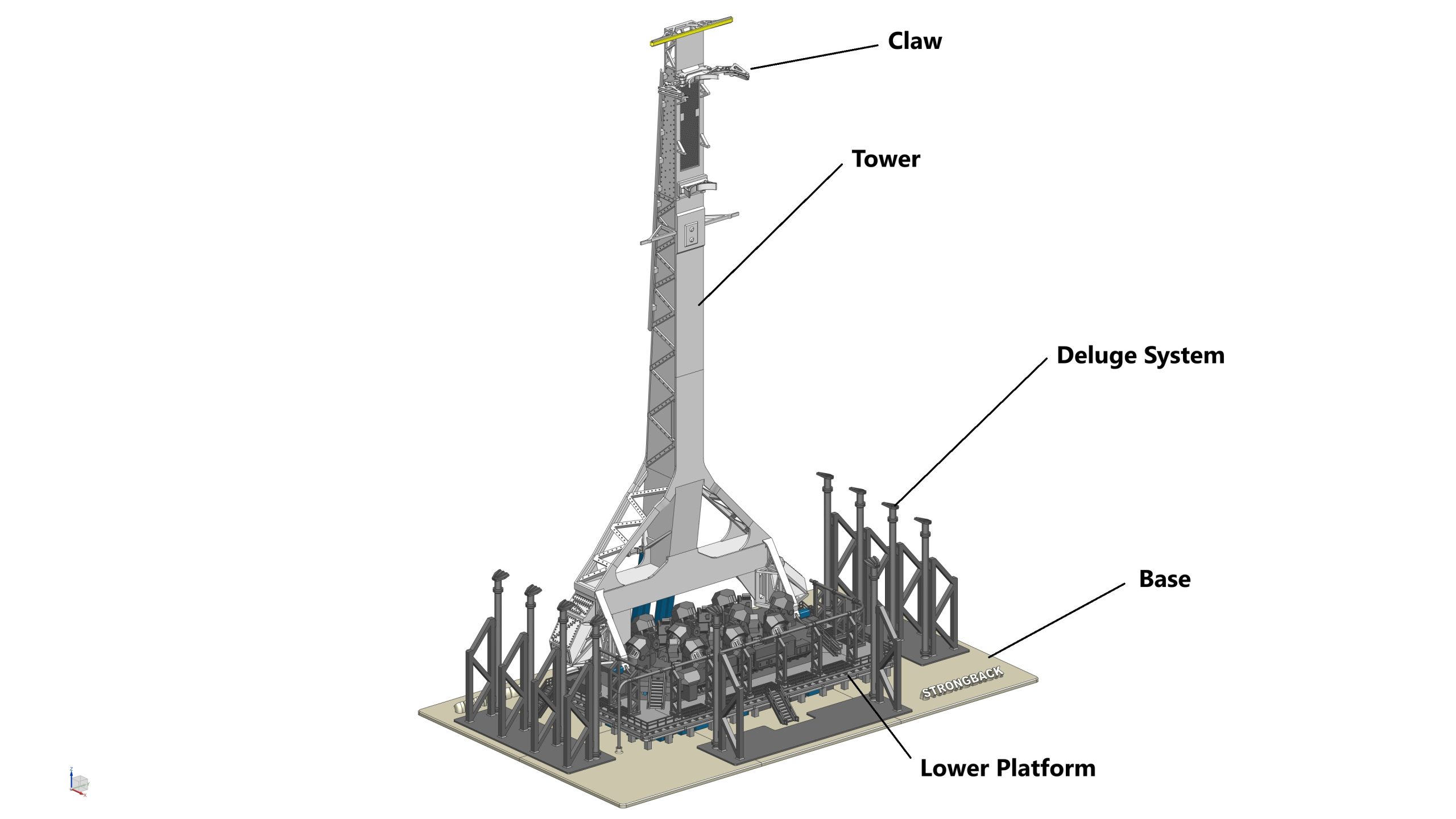

At this step, all I want you to do is try to stack all the parts together to get a good understanding of where they are located. Because there are a lot of magnets you need to fit during the assembly process, doing this first step will give you an idea of how to fit the magnets in each part correctly. Please use the files in STEP 01 folder, and the photos below if required.

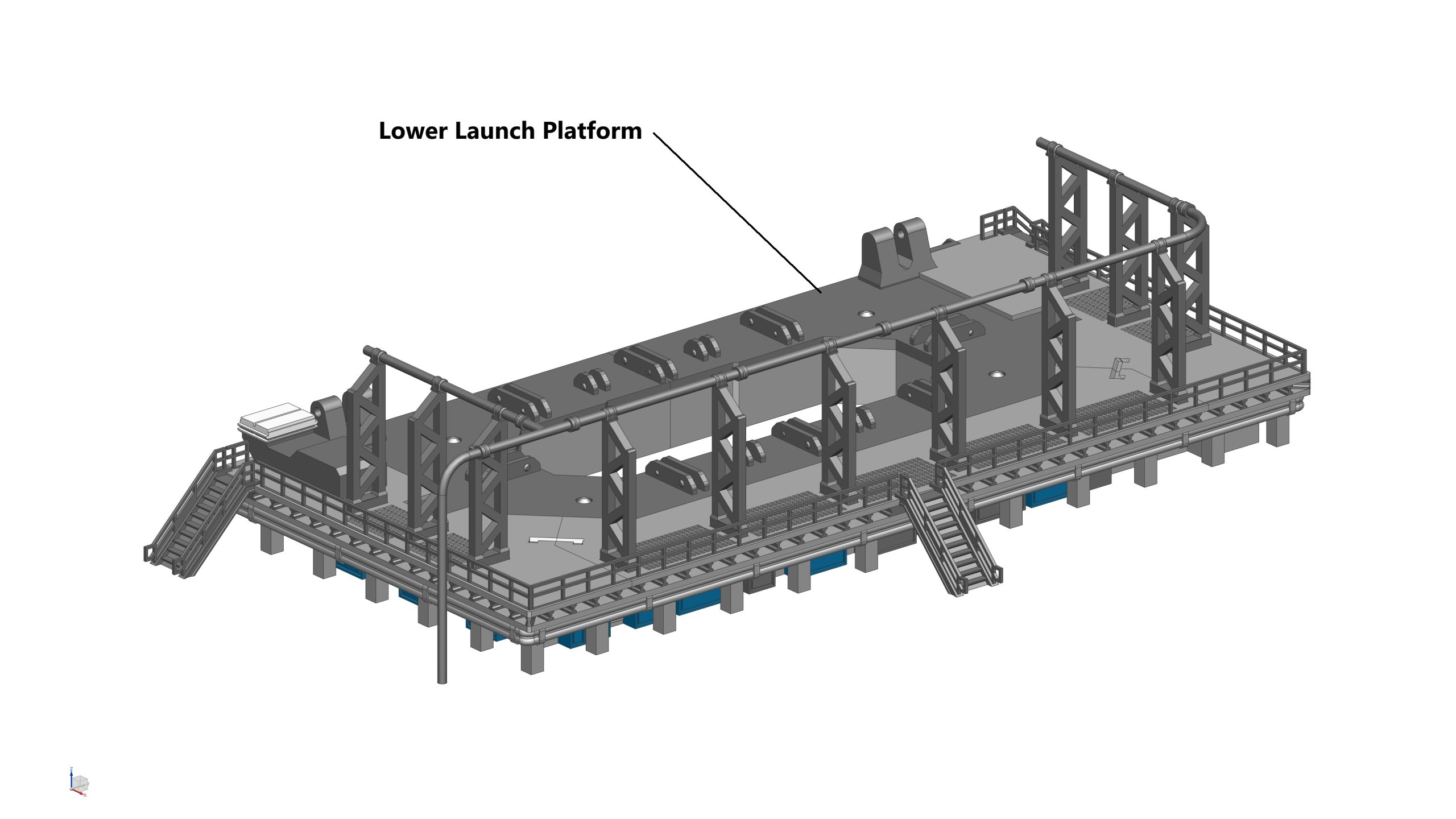

STEP 2: Assemble the Lower Launch Platform - Part 1
Parts required (refer to the photos below)

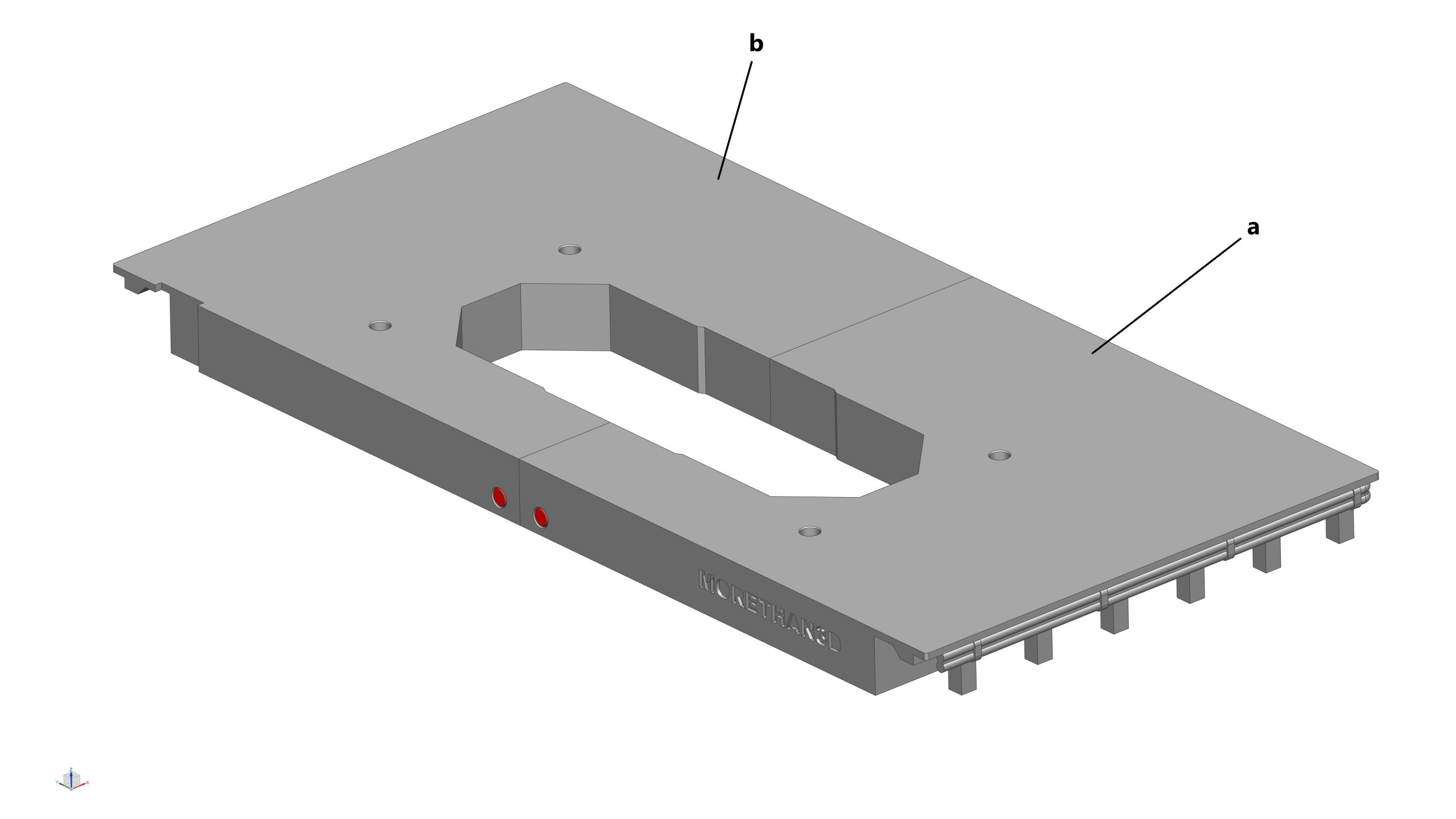

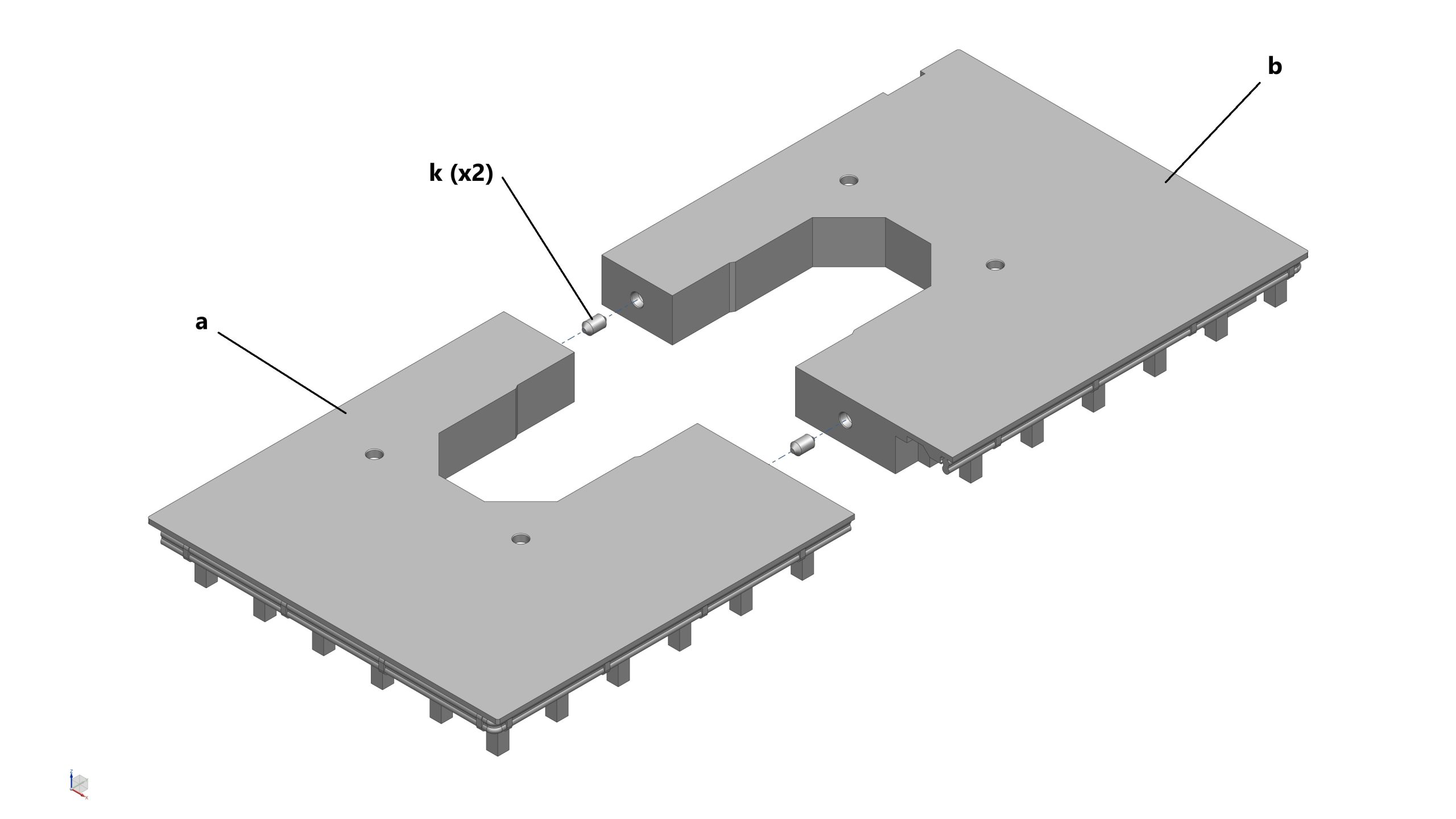

- 1x Lower Launch Platform (Bottom) 2-Piece (LH) (a)
- 1x Lower Launch Platform (Bottom) 2-Piece (RH) (b)
- 1x Lower Launch Platform (Middle) 2-Piece (LH) (c)
- 1x Lower Launch Platform (Middle) 2-Piece (RH) (d)

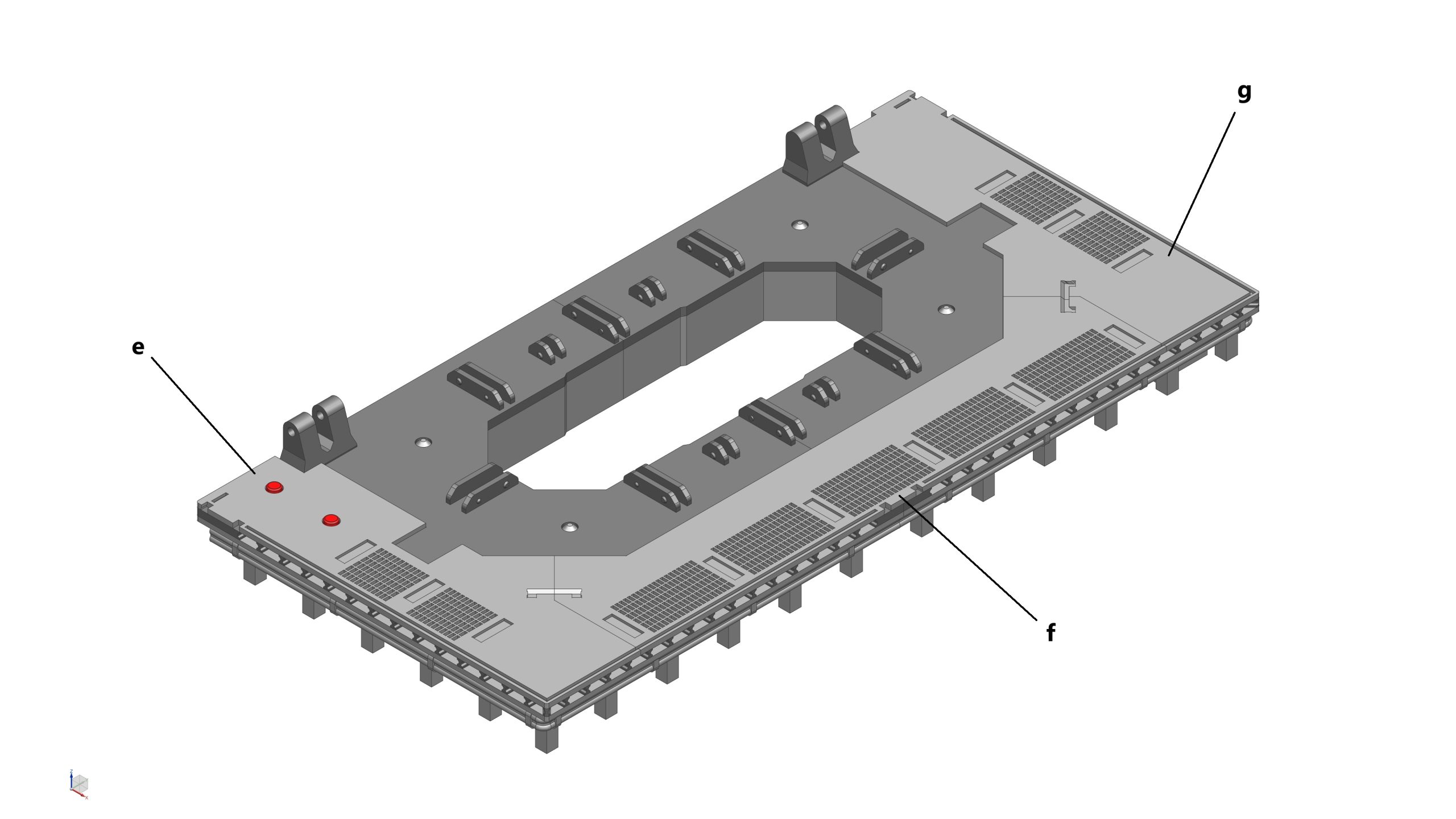

- 1x Lower Launch Platform (Top) 3-Piece (LH) (e)
- 1x Lower Launch Platform (Top) 3-Piece (Mid) (f)
- 1x Lower Launch Platform (Top) 3-Piece (RH) (g)
- 1x Electrical Boxes (from #1 to #14) (h)

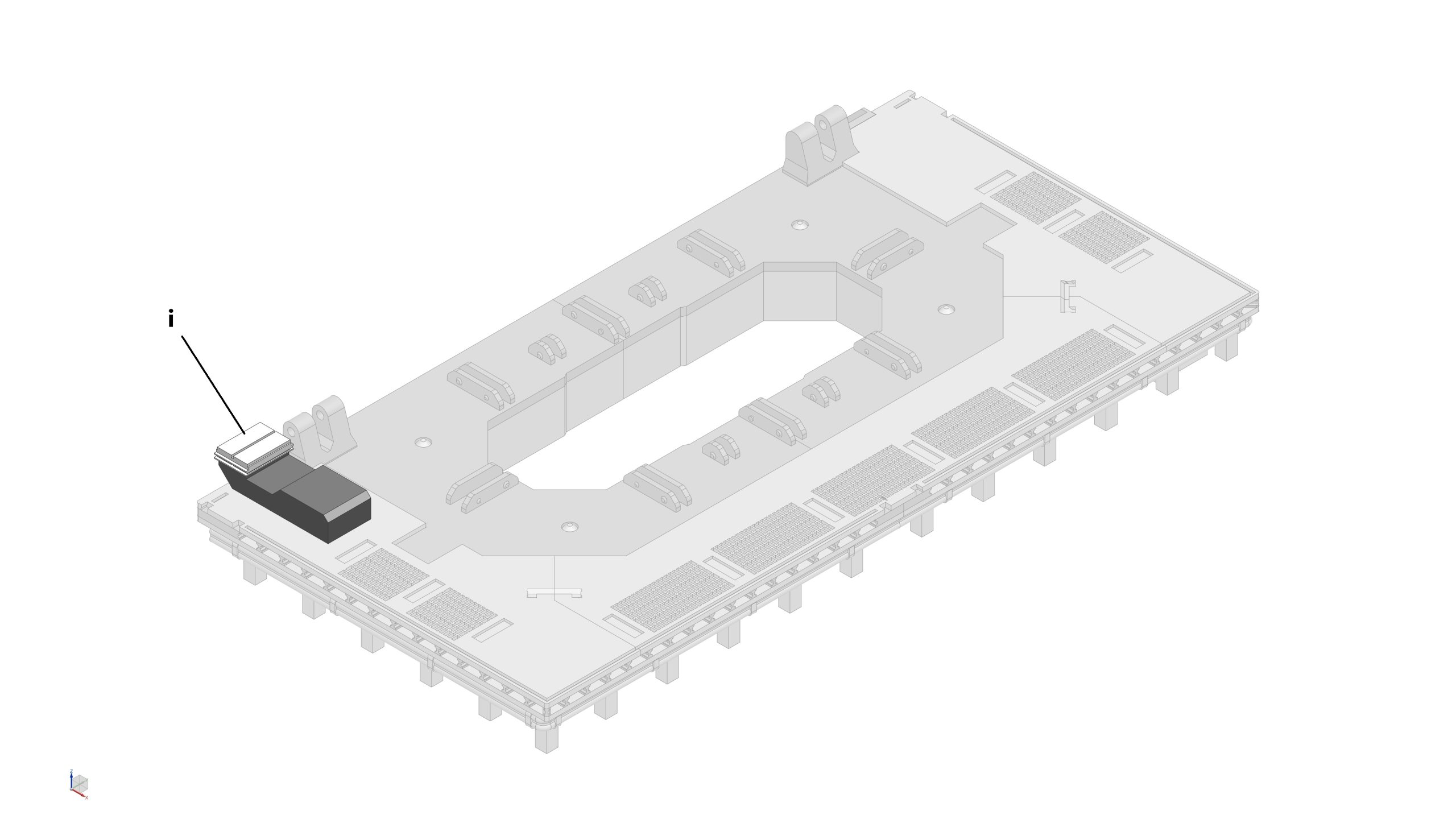

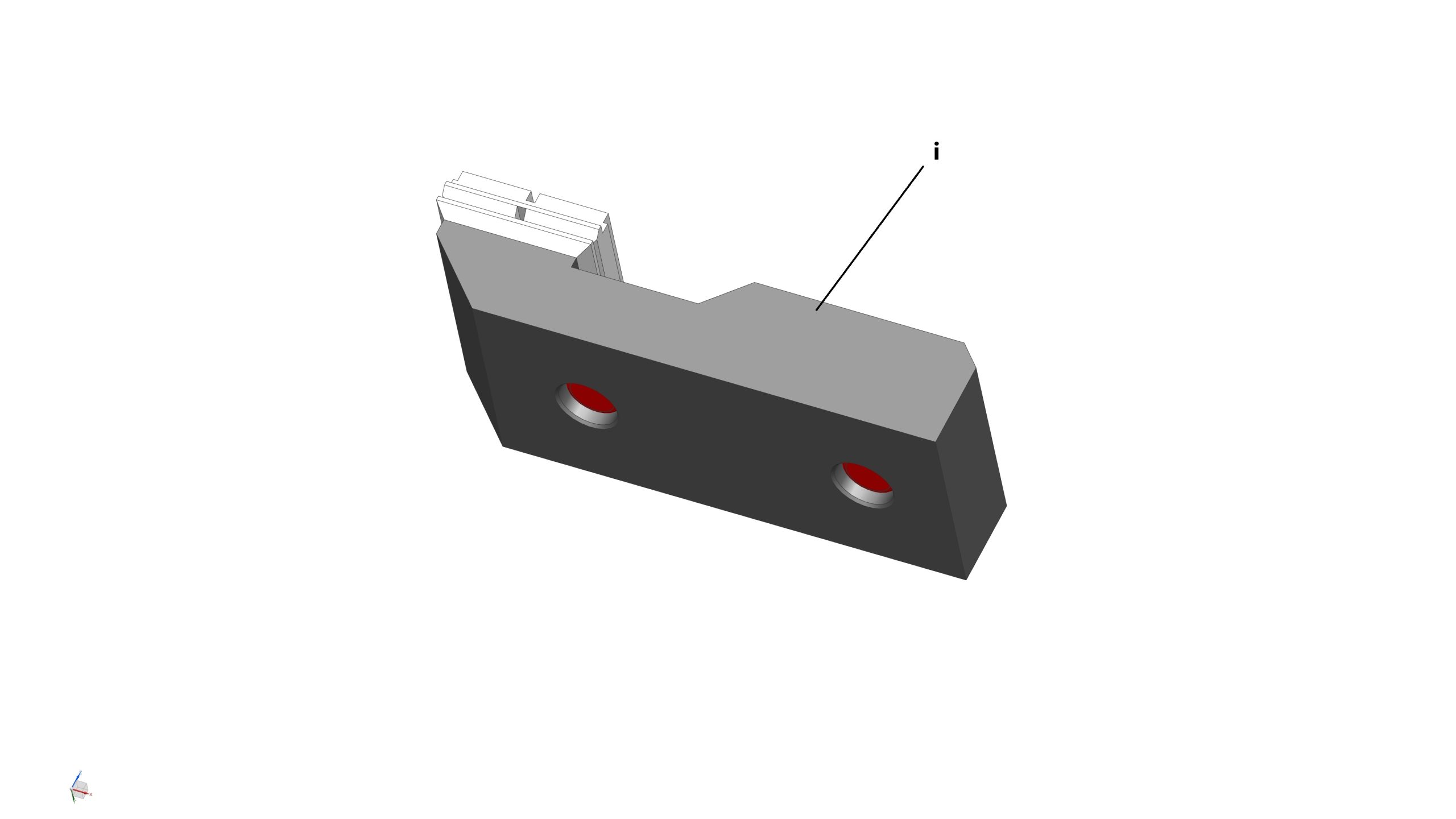

- 1x Electrical Junction Box (i)

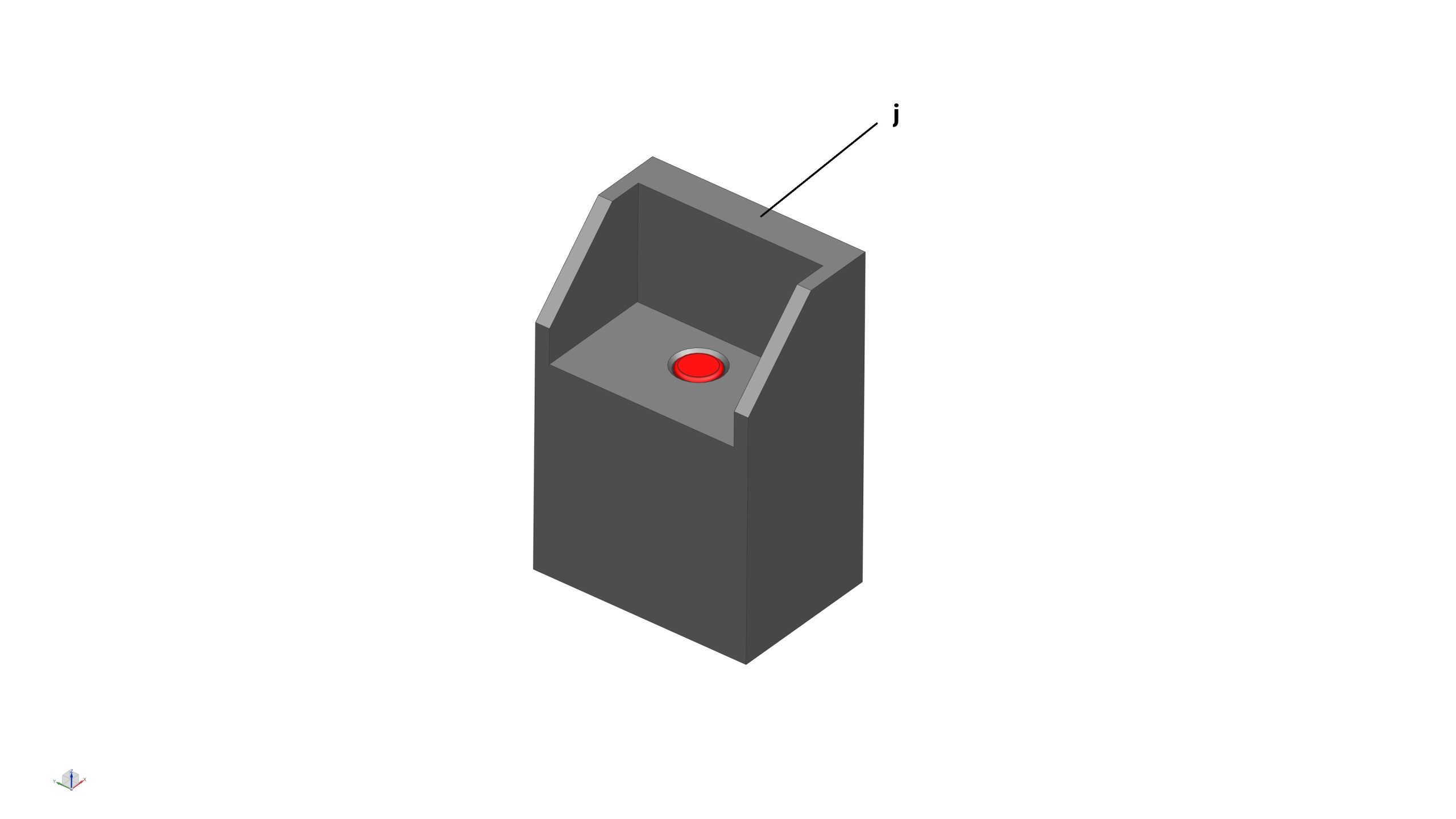

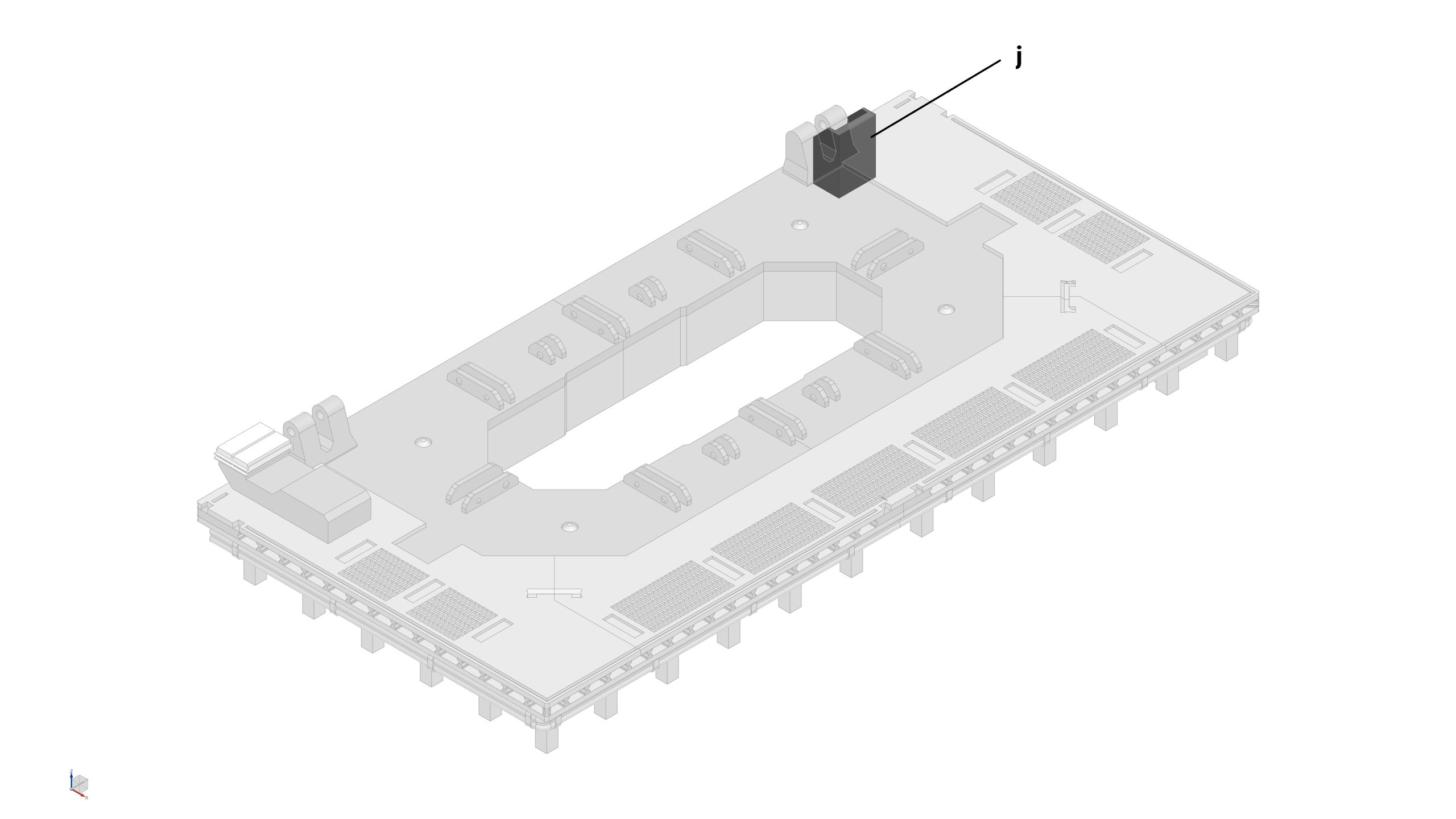

- 1x Lower Launch Platform Cable Box (j)
- 6x Locating Pin (k)
- 1x Magnet (3mm dia x 2mm thick) (highlighted in RED)
- 6x Magnets (5mm dia x 3mm thick) (highlighted in RED)
Assembly process

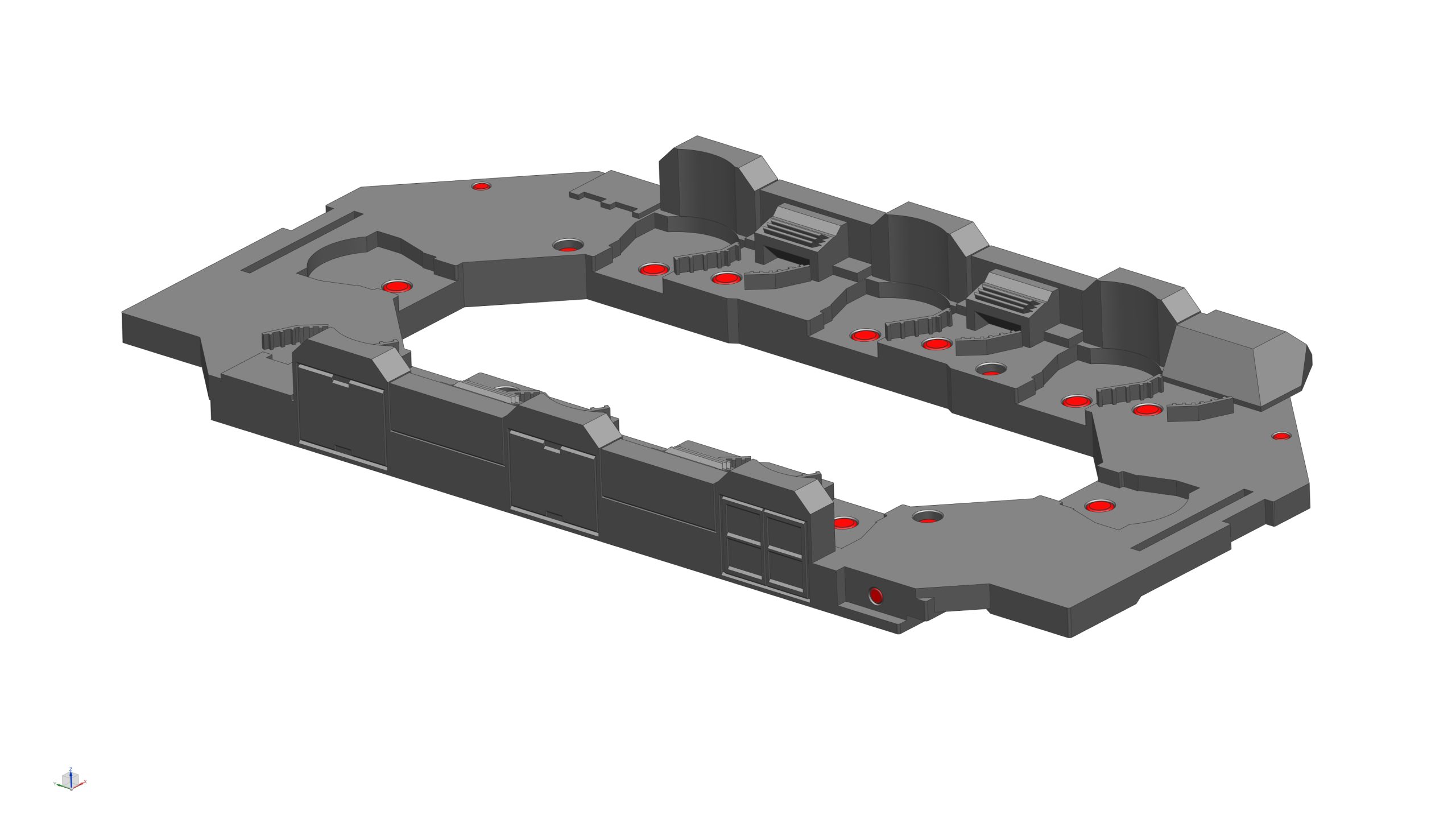

- STEP 2a: Glue 2 halves of the Lower Launch Platform (Bottom) together. Use 2x Locating Pin for alignment
- STEP 2b: Glue 2x magnets (5mm dia x 3mm thick) into their locations at the back of the Lower Launch Platform (Bottom)
- STEP 2c: Glue 2 halves of the Lower Launch Platform (Middle) to the Bottom section above. Use 4x Locating Pin for alignment
- STEP 2d: Glue 3 pieces of the Lower Launch Platform (Top) to the Middle section above. Then glue 2x magnets (5mm dia x 3mm thick) into their locations on the left section of the Lower Launch Platform (Top)

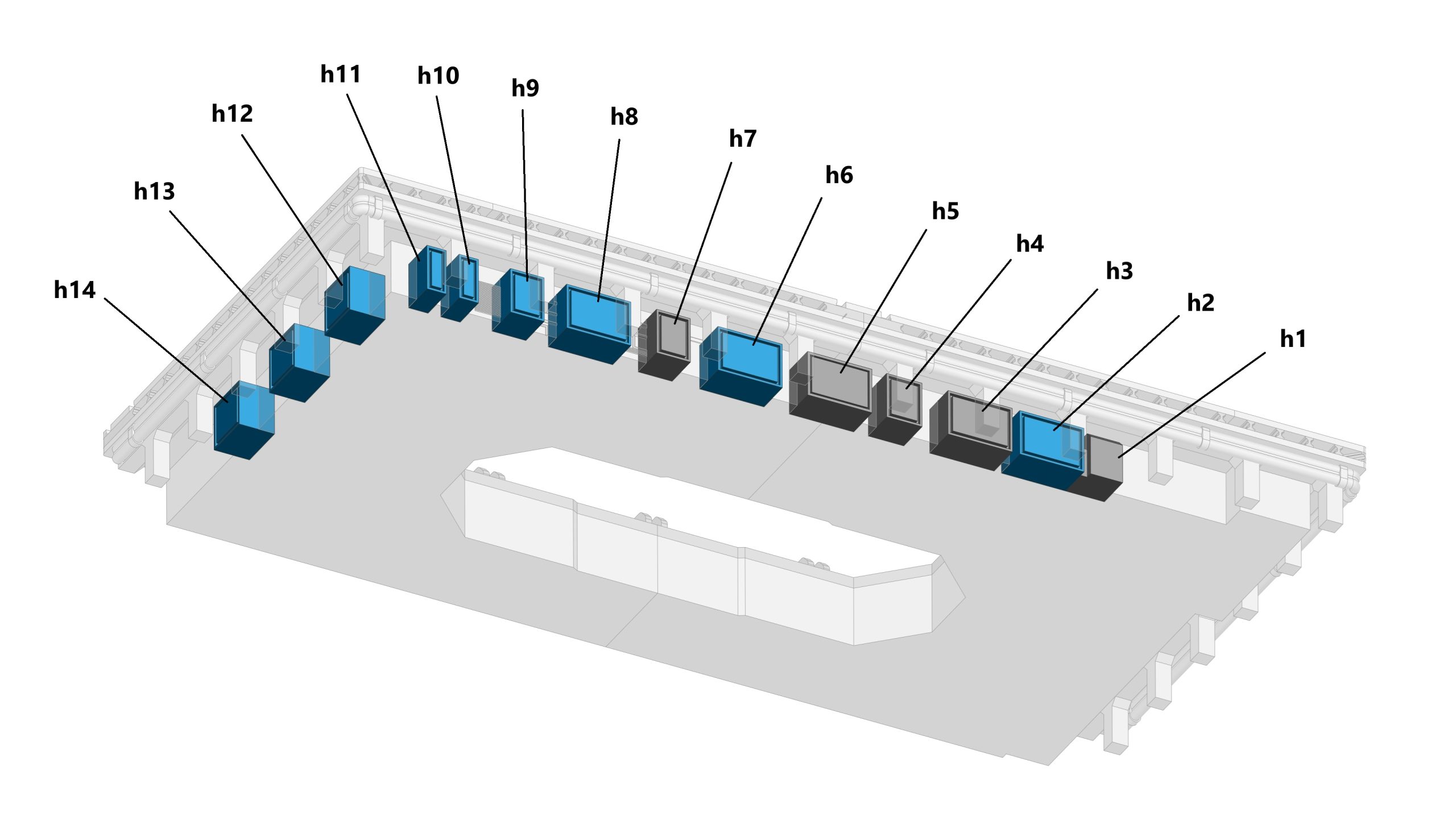

- STEP 2e: Glue all 14x Electrical Boxes (from #1 to #14) to the Lower Launch Platform (Bottom).
Please note: These boxes are numbered on their back side for easy identification
- STEP 2f: Glue 2x magnets (5mm dia x 3mm thick) into their locations at the bottom face of the Electrical Junction Box
IMPORTANT: These 2x magnets need to be pushed all the way in (see pics below). The top of each magnet should sit 1.5mm below the top of the hole.
- STEP 2g: Glue 1x magnet (3mm dia x 1mm thick) into the pocket at the top face of the Lower Launch Platform Cable Box

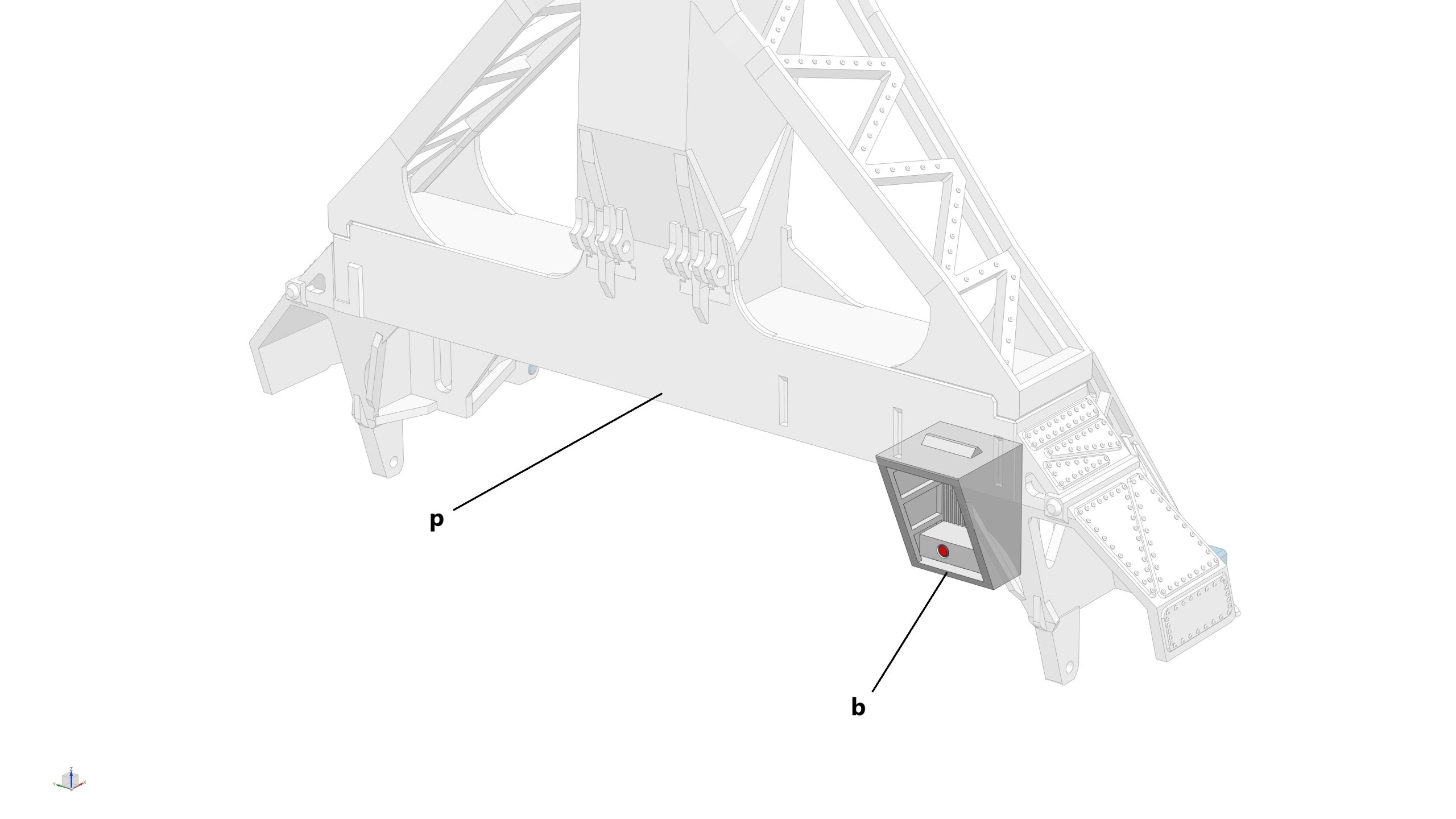

- STEP 2h: Install the Electrical Junction Box to the Lower Launch Platform
- STEP 2i: Glue the Lower Launch Platform Cable Box to the back side of the Lower Launch Platform
STEP 3: Assemble the Lower Launch Platform - Part 2
Parts required (refer to the photos below)

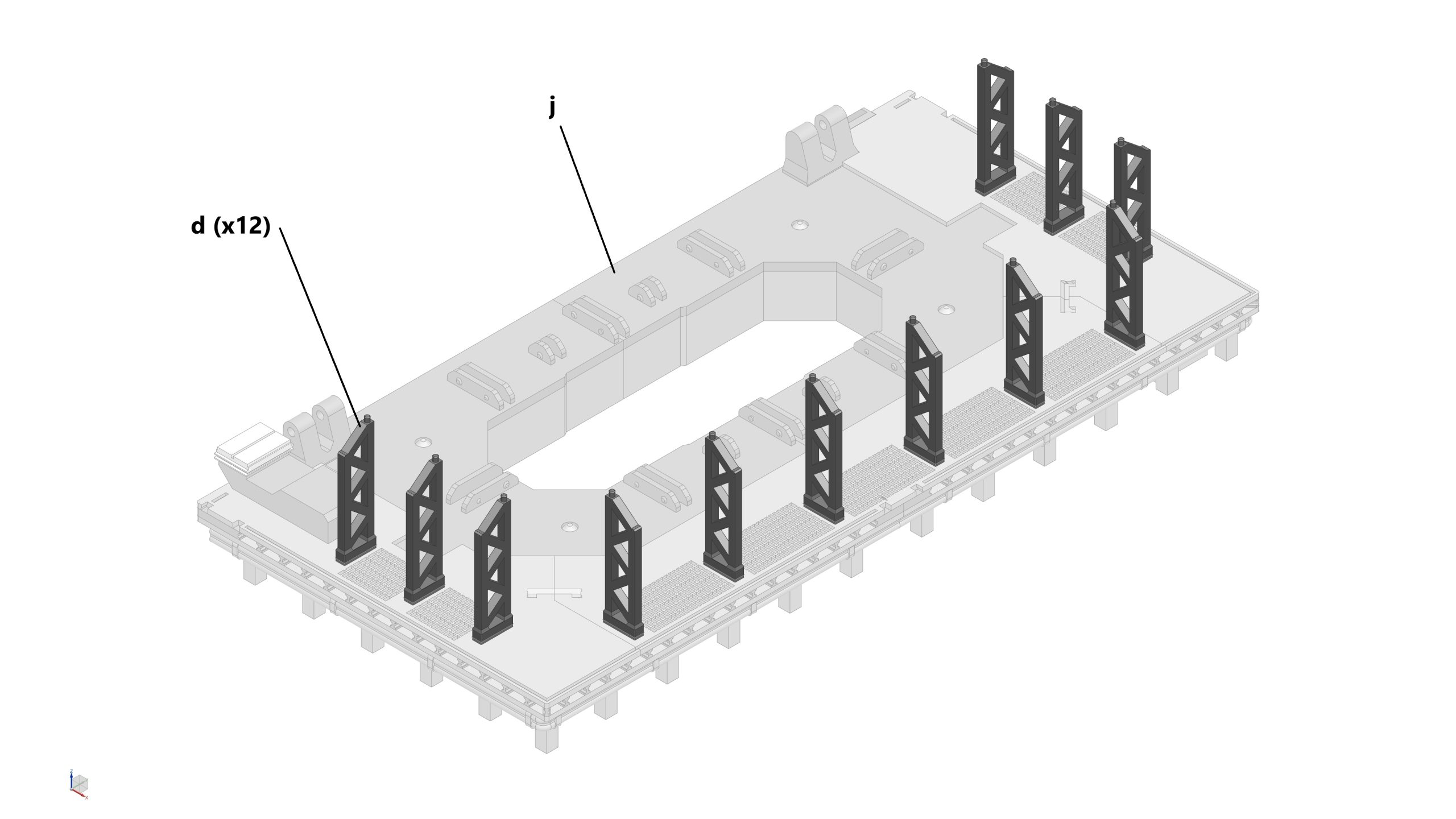

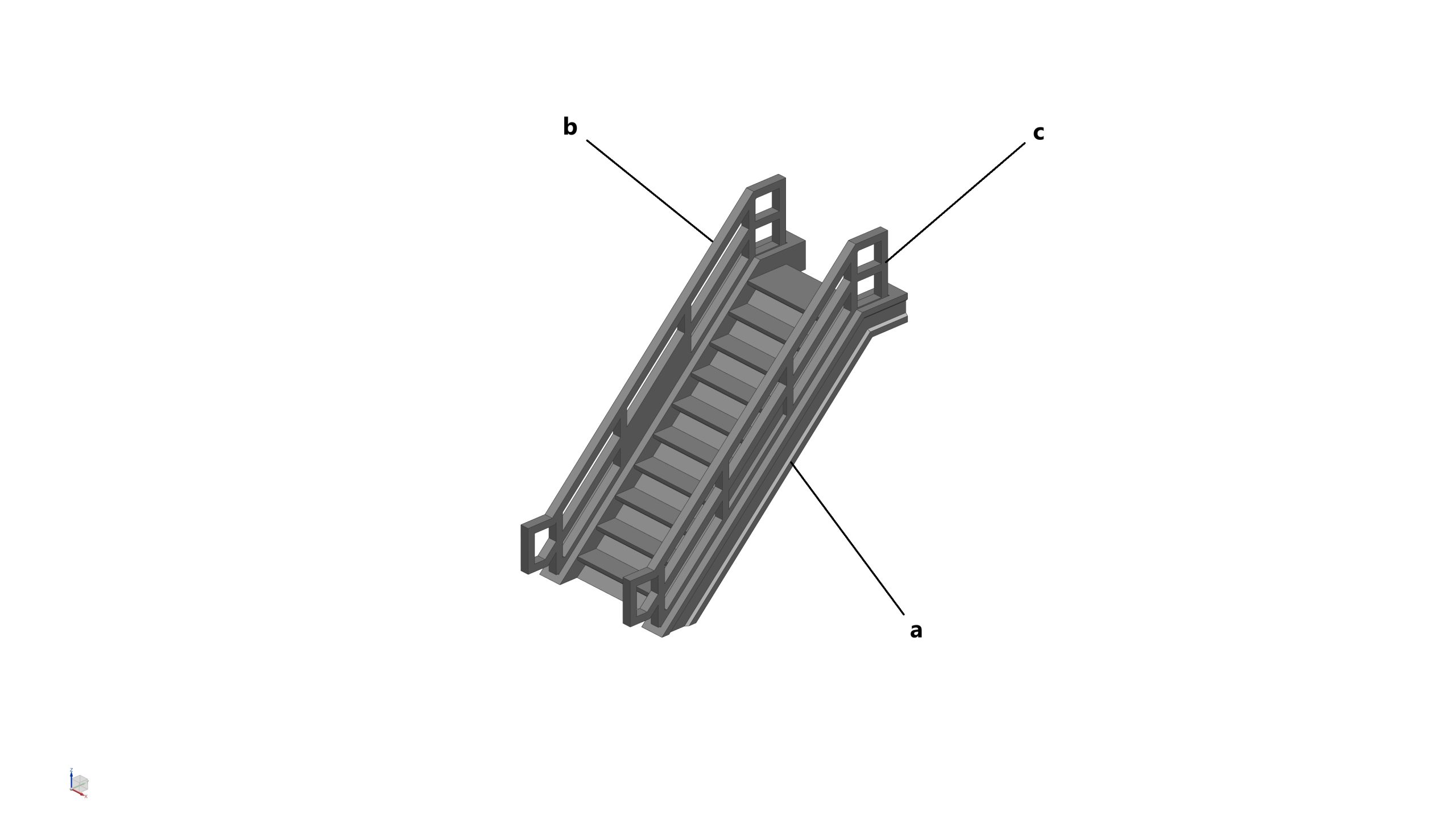

- 3x Staircase (Lower platform) (a)
- 3x Staircase Handrails (Lower platform)_LH (b)
- 3x Staircase Handrails (Lower platform)_RH (c)
- 12x Lower Launch Platform Deluge Tower (d)
- 1x Lower Launch Platform Deluge Pipe 1 (f)
- 1x Lower Launch Platform Deluge Pipe 2 (g)
- 1x Lower Launch Platform Deluge Pipe 3 (h)

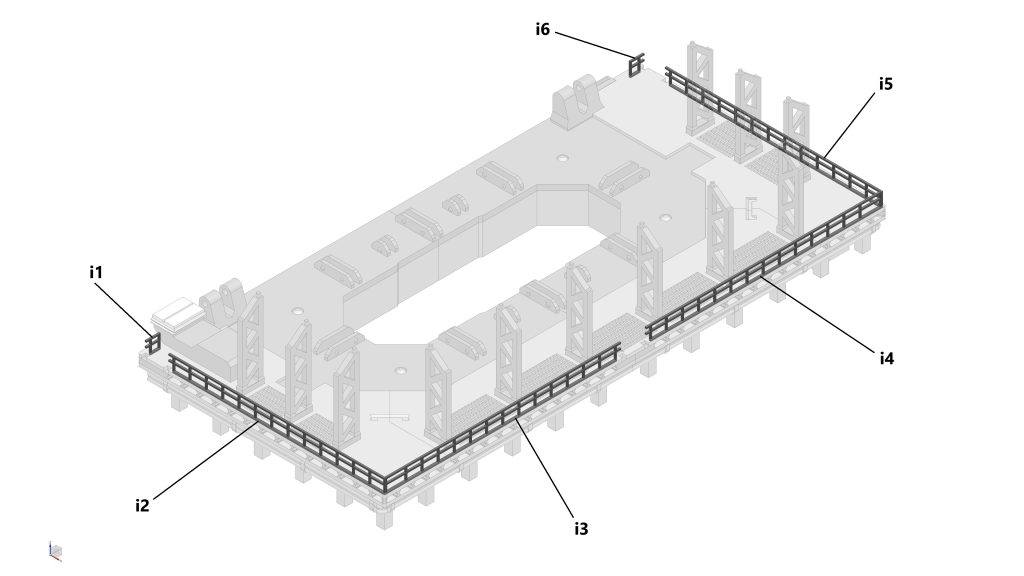

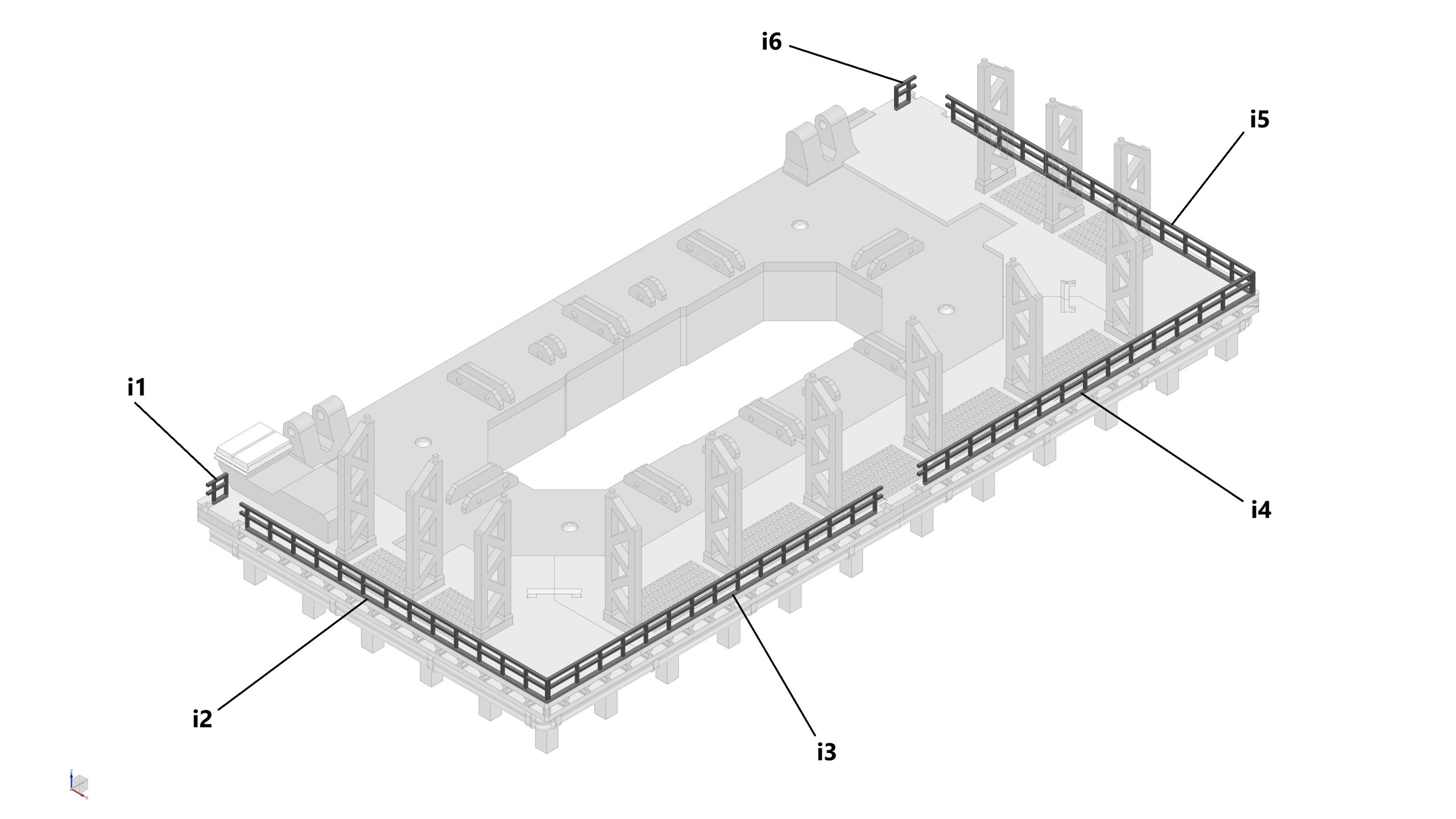

- 1x Launch Platform Handrails (from #1 to #6) (i)
- 1x Lower Launch Platform from STEP 2 (j)
Assembly process
- STEP 3a: Glue one set of Staircase Handrails LH & RH to each Staircase
- STEP 3b: Glue 12x Lower Launch Platform Deluge Tower to the Lower Launch Platform from STEP 2
- STEP 3c: Glue all Launch Platform Handrails (from #1 to #6) to the Lower Launch Platform from STEP 2

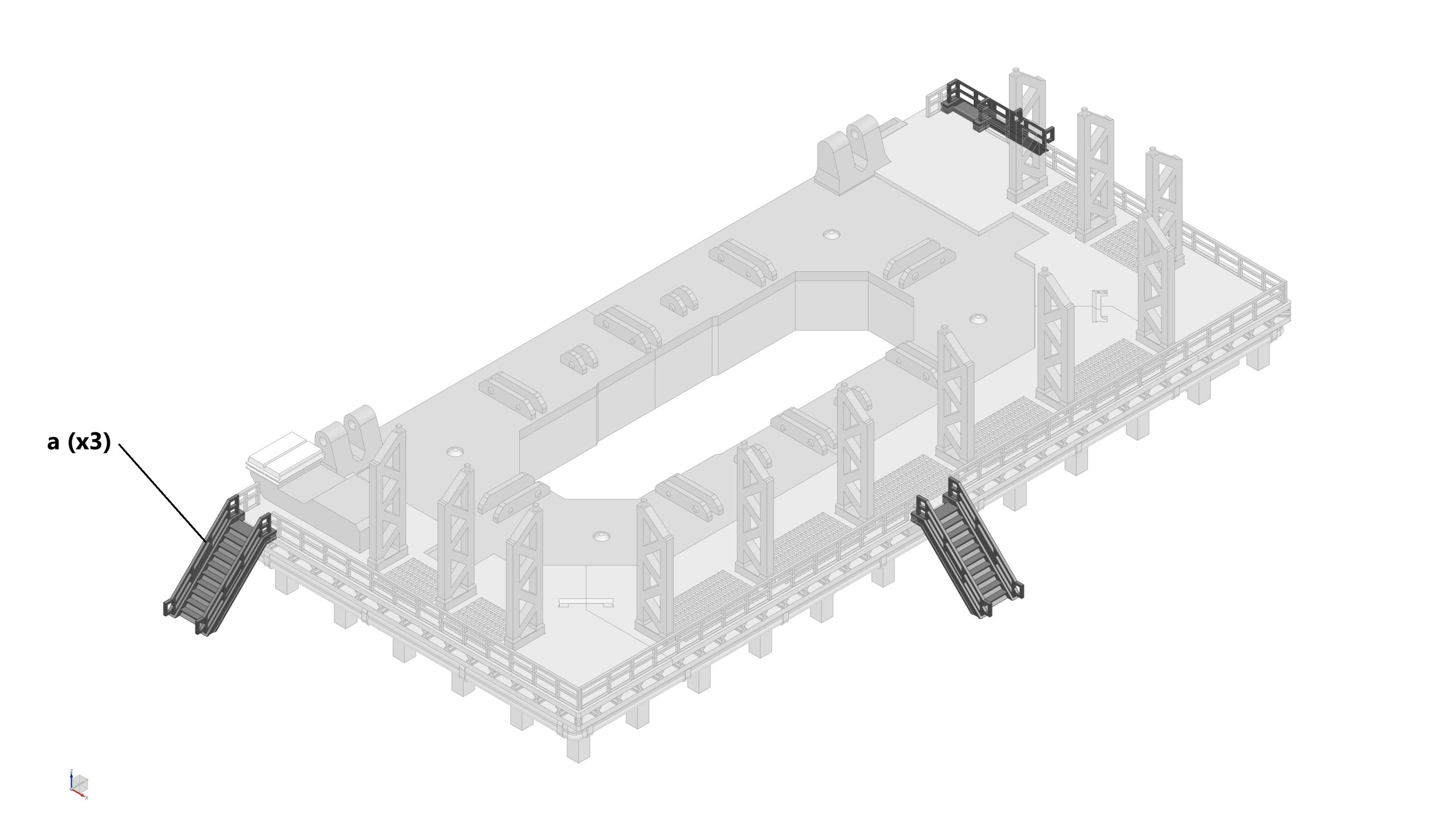

- STEP 3d: Insert 3x Staircase to the Lower Launch Platform from STEP 2
Please note: DO NOT glue the Staircases to the Lower Launch Platform at this STEP just yet. Wait until you assemble the Foundation at the end.

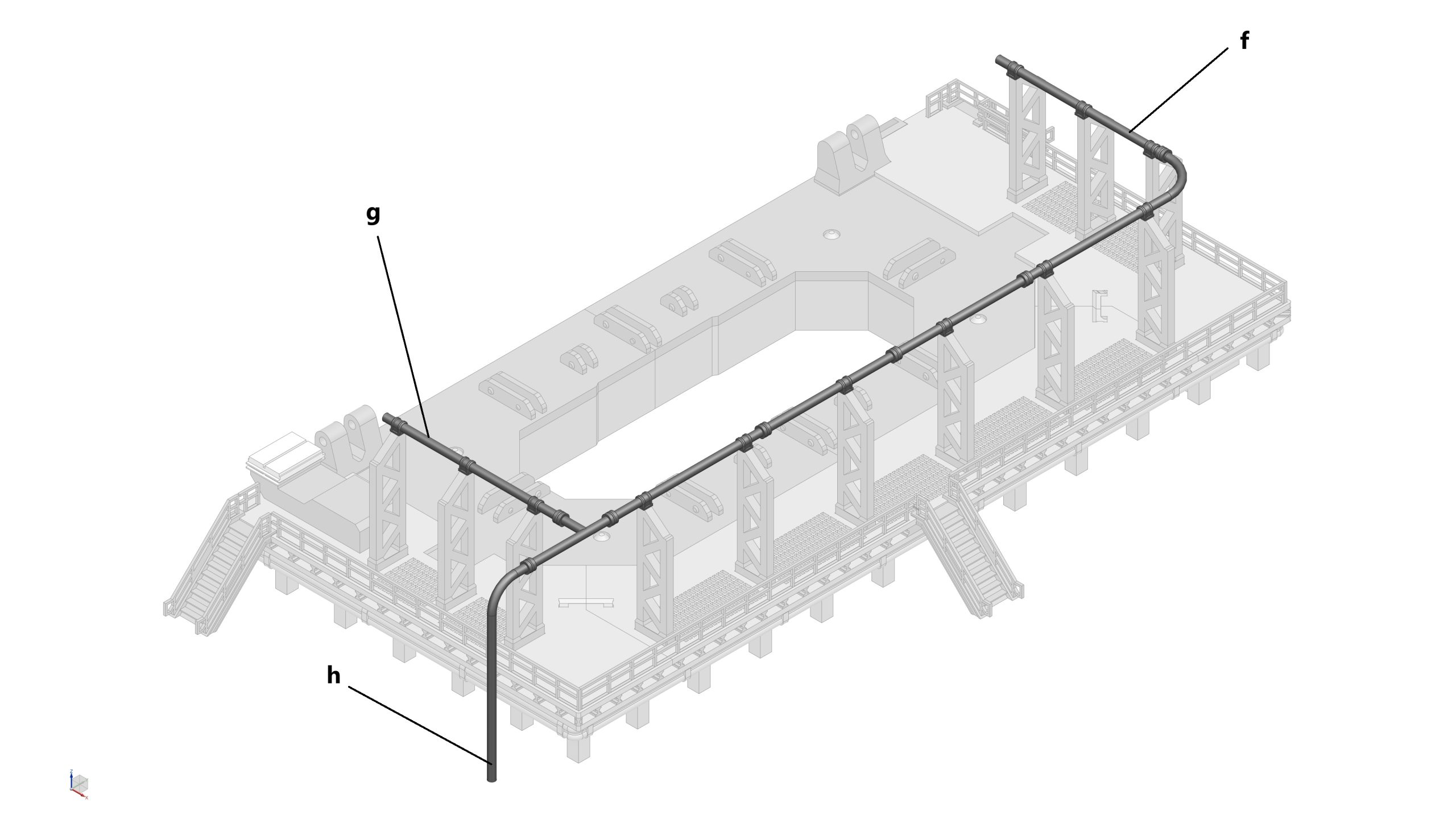

- STEP 3e: Install all three Deluge Pipe 1, 2, and 3 to Lower Launch Platform from STEP 2
Please note: Use short strands of filament (about 8mm in length) to join the pipes together
STEP 4: Assemble the Upper Launch Platform - Part 1
Parts required (refer to the photos below)

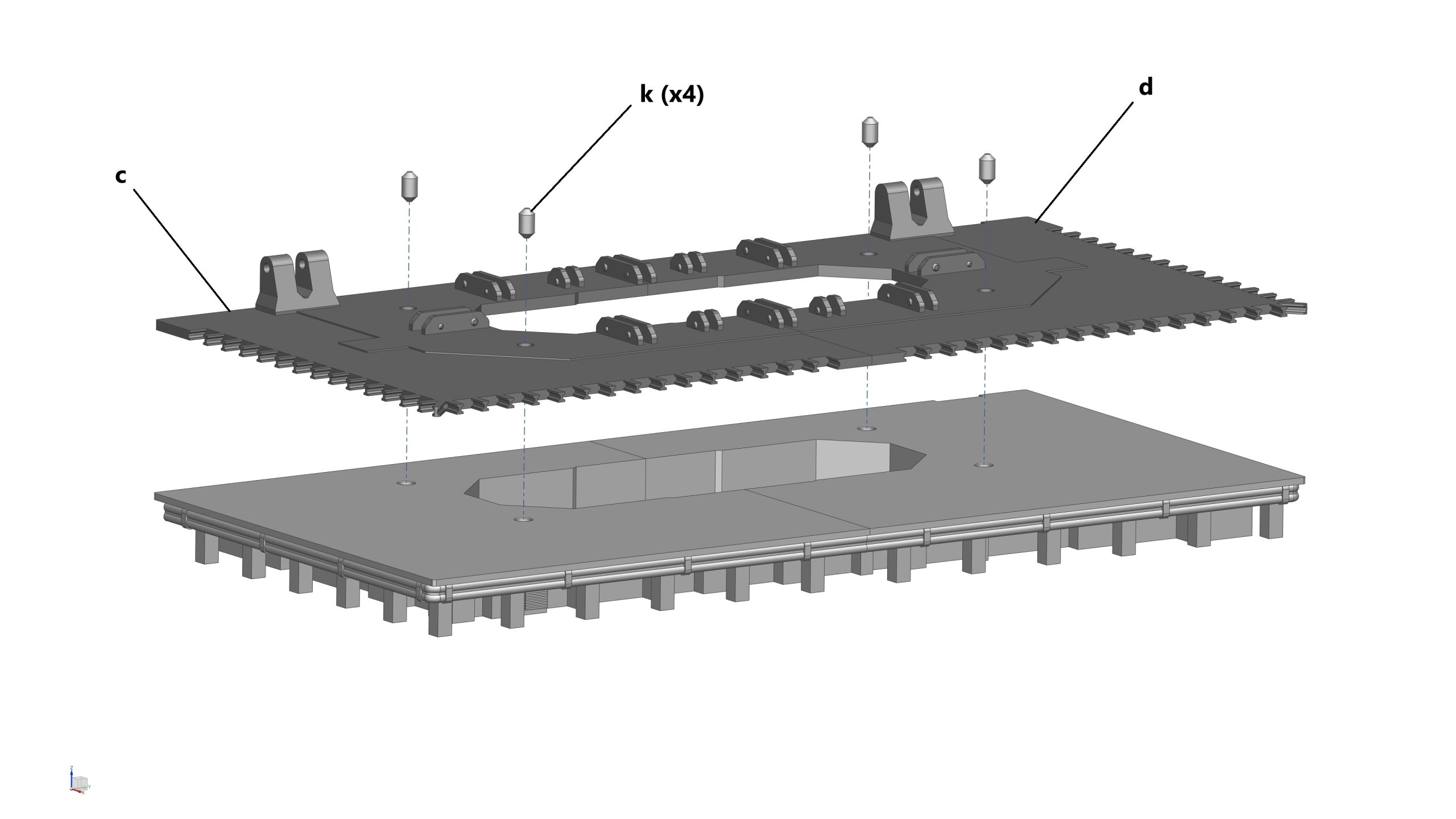

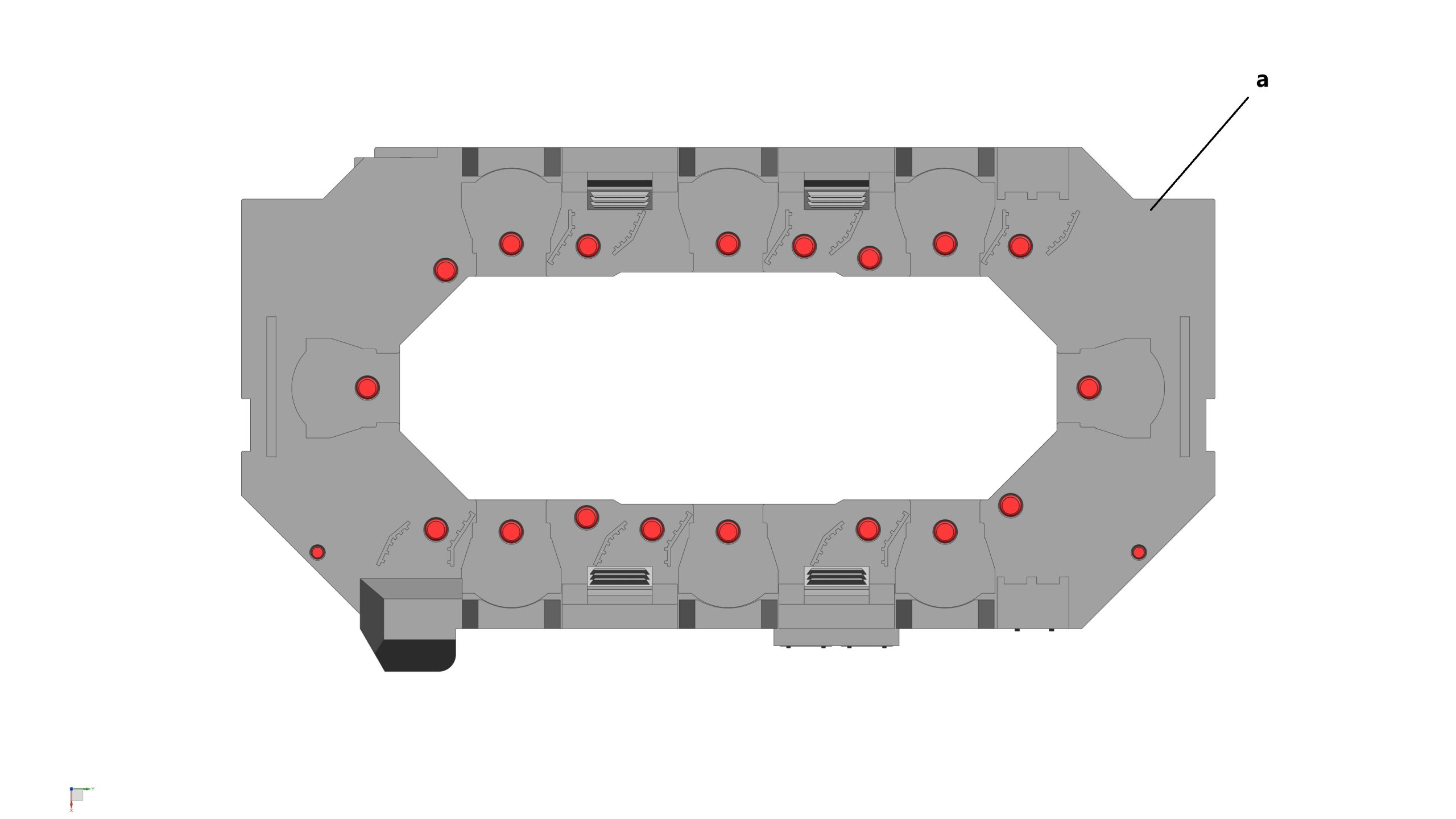

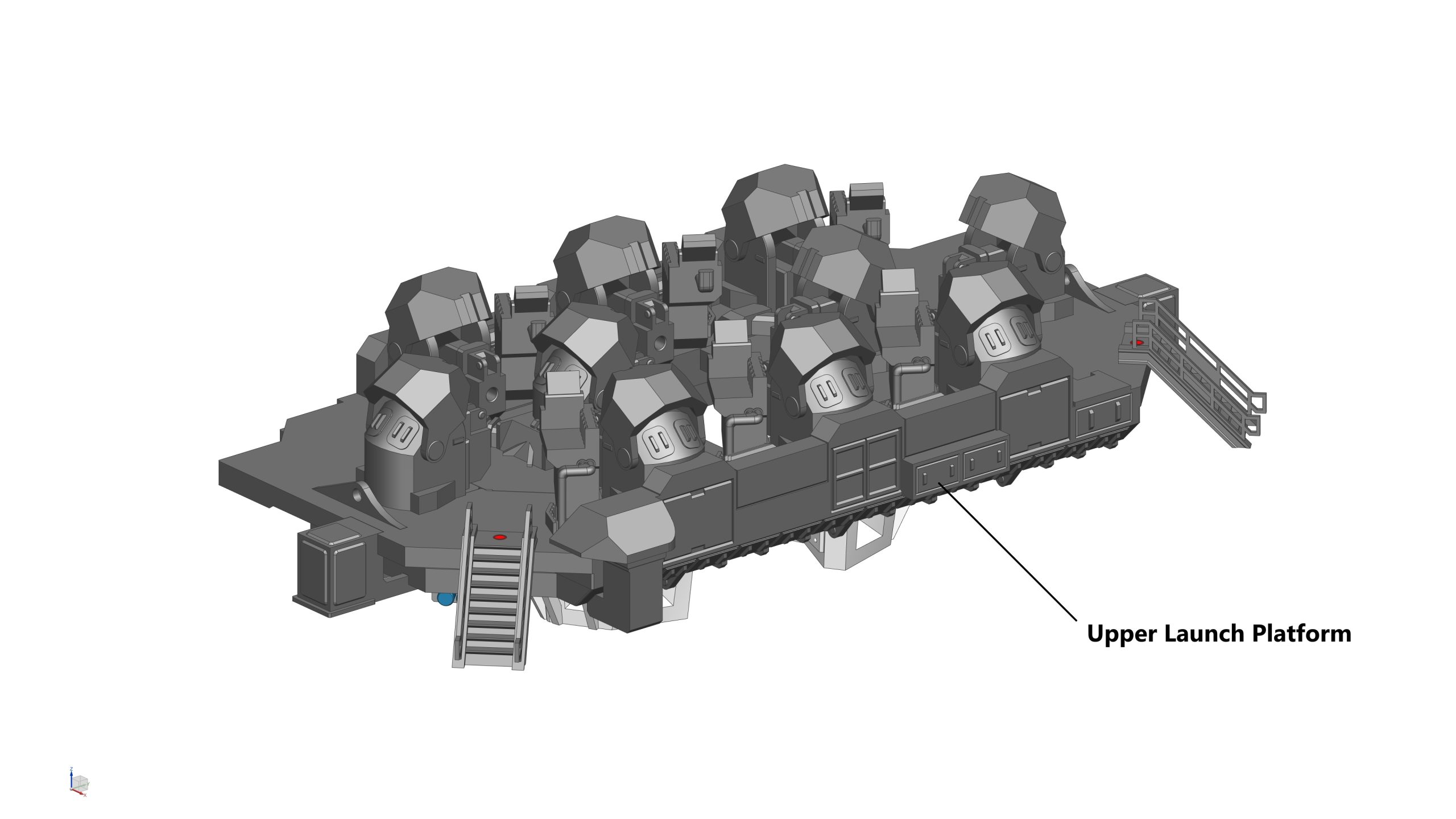

- 1x Upper Launch Platform (Top) (a)
- 1x Upper Launch Platform (Bottom) (b)
- 2x Upper Launch Platform Electrical Box (c)
- 1x Upper Launch Platform Cable Box (d)
- 2x Upper Launch Platform Lock Bracket (e)

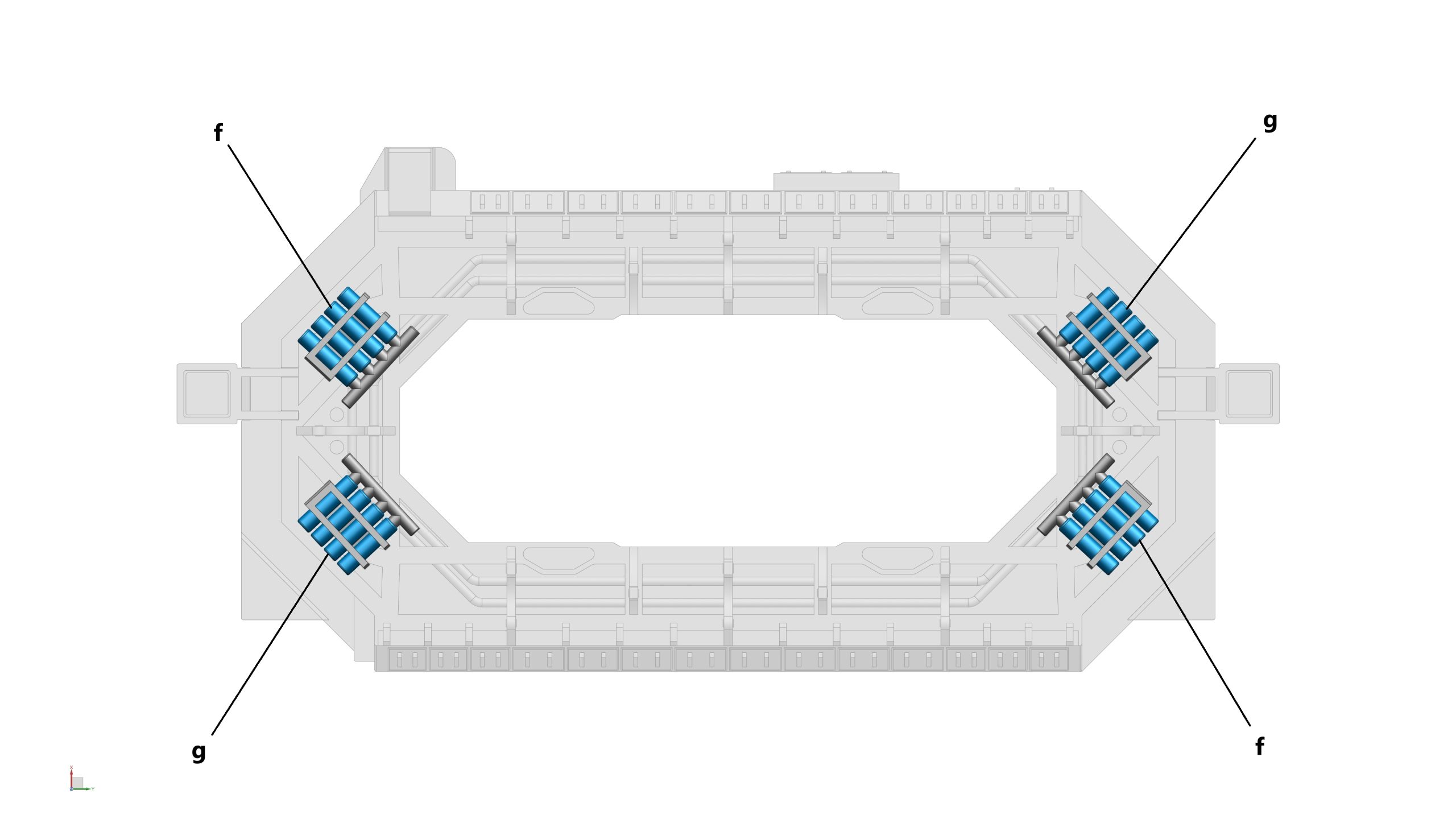

- 2x Upper Launch Platform Pneumatic System 1 (f)
- 2x Upper Launch Platform Pneumatic System 2 (g)
- 5x Locating Pin (h)
- 3x Magnets (3mm dia x 2mm thick) (highlighted in RED)
- 18x Magnets (5mm dia x 3mm thick) (highlighted in RED)
Assembly process

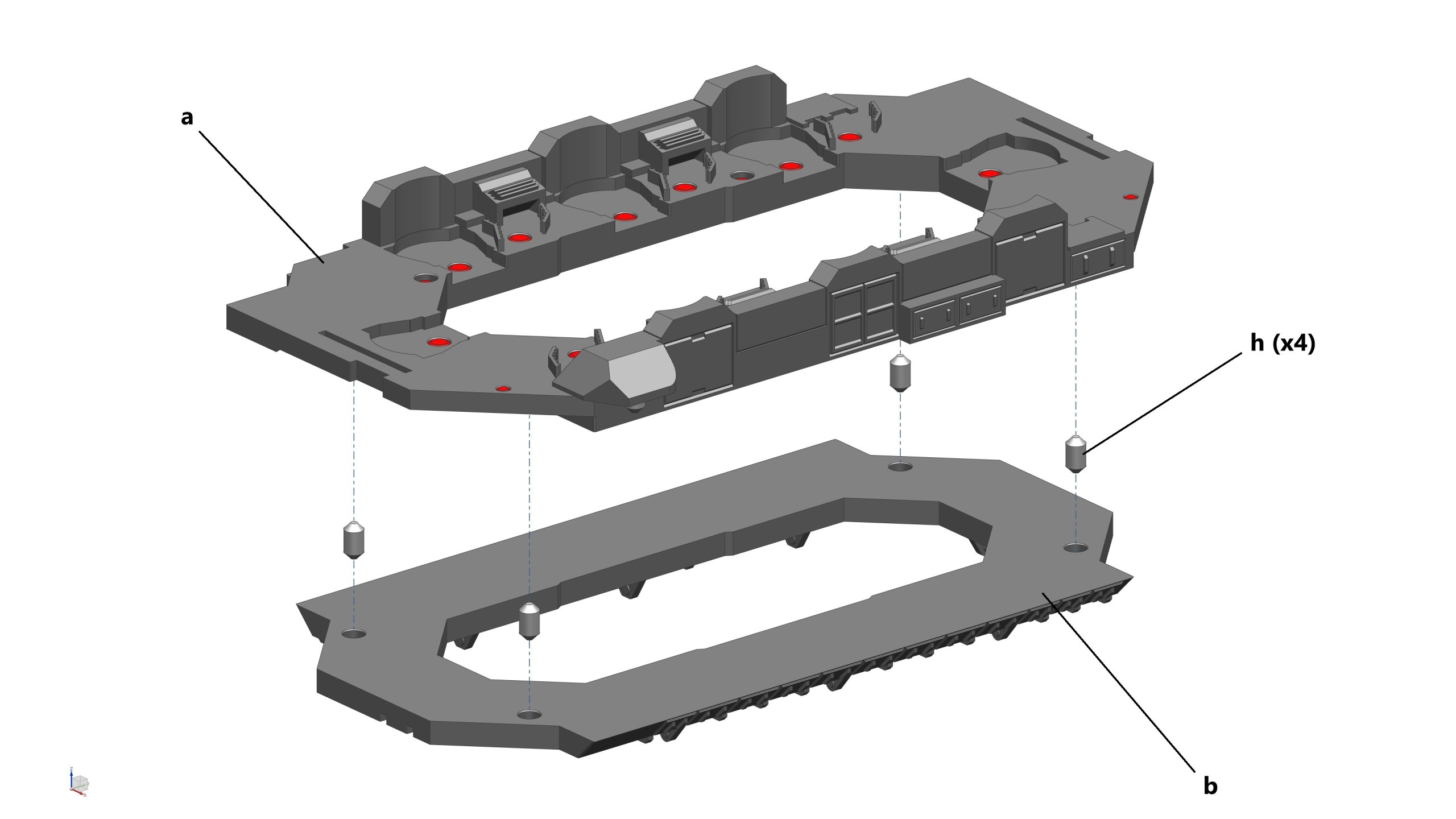

- STEP 4a: Glue 18x magnets (5mm dia x 3mm thick) and 3x magnets (3mm dia x 2mm thick) into their locations on the top and side faces of the Upper Launch Platform (Top).
Please note: There are 4x magnets located on the top face of the Upper Launch Platform (Top) that need to be pushed all the way in (see pics below). The top of each magnet should sit 1.5mm below the top of the hole.
- STEP 4b: Glue the Upper Launch Platform Top and Bottom together. Use 4x Locating Pin for alignment

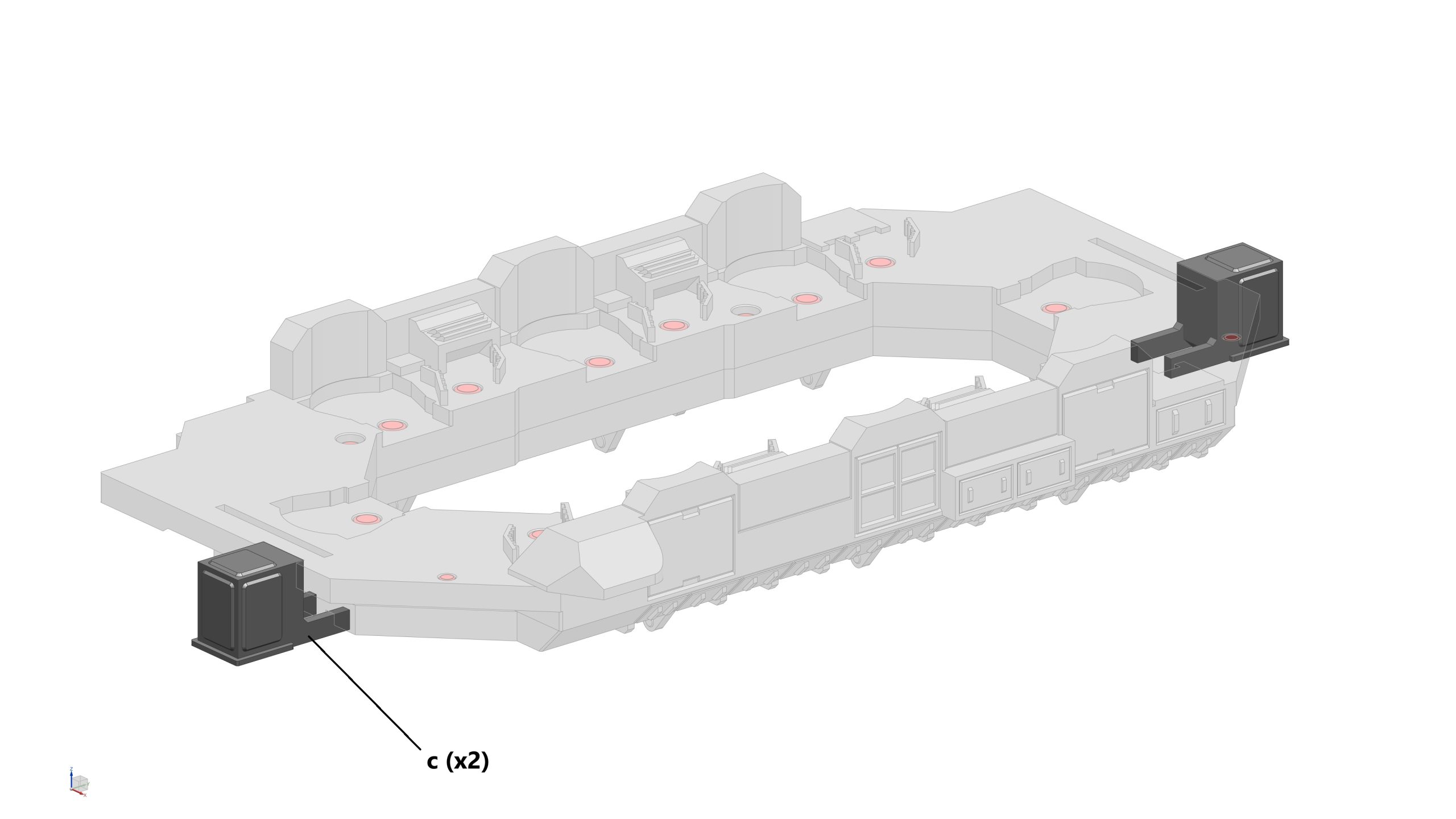

- STEP 4c: Glue 2x Electrical Boxes to the sides of the Upper Launch Platform

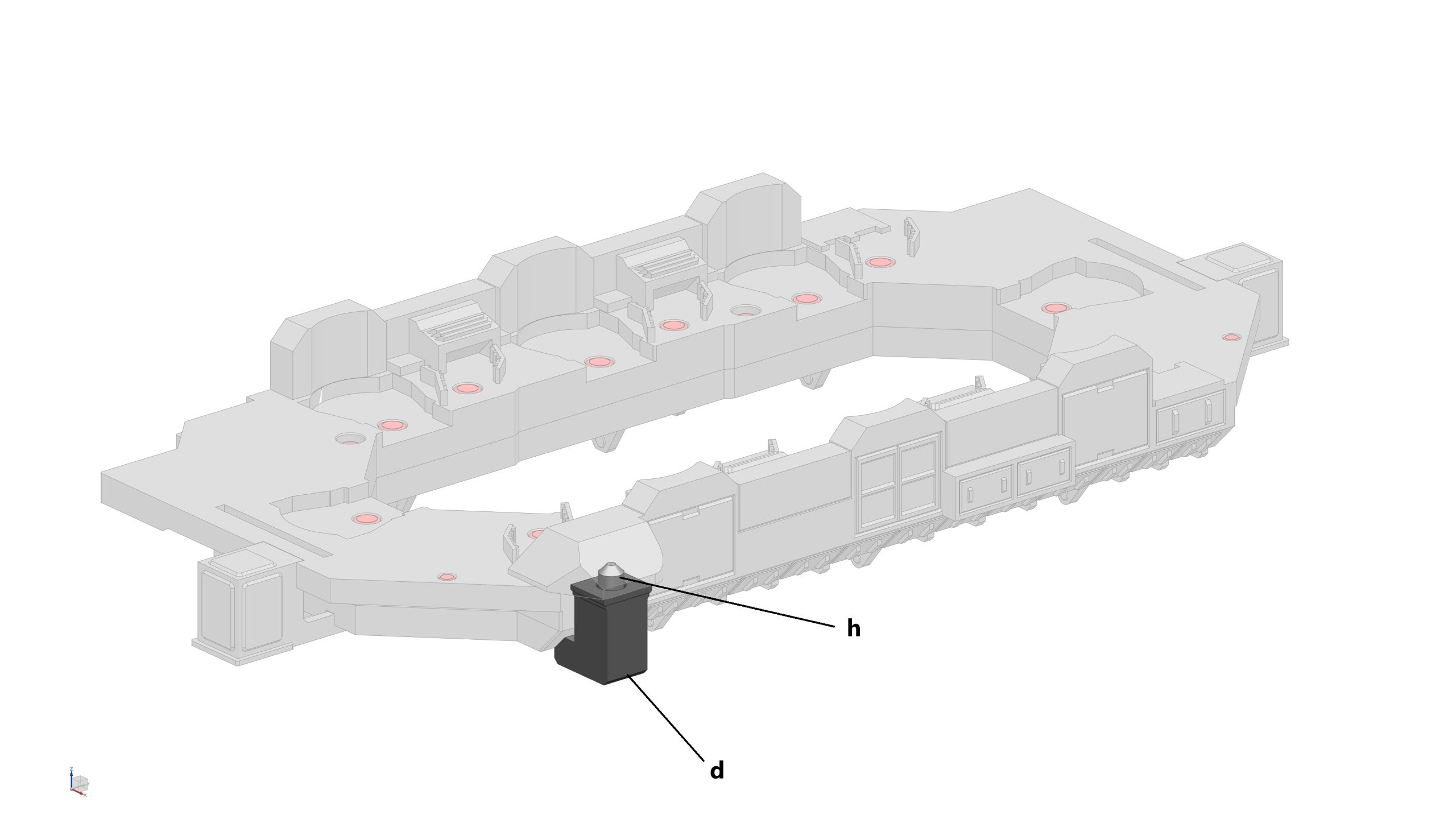

- STEP 4d: Glue the Cable Box to the front of the Upper Launch Platform. Use 1x Locating Pin for alignment

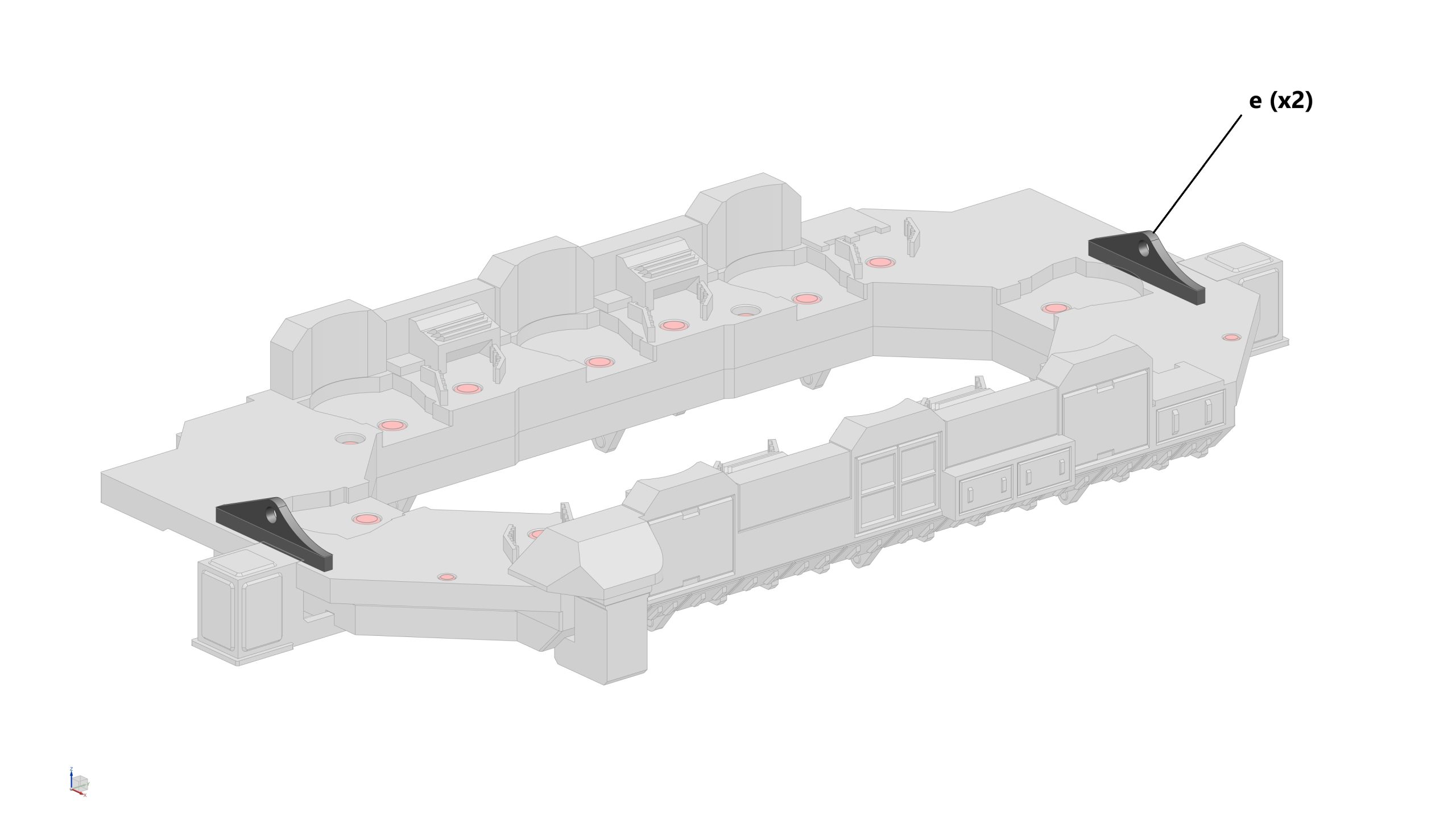

- STEP 4e: Glue 2x Lock Brackets to the Upper Launch Platform
Please note: Ensure that the orientation of the Lock Brackets are correct before gluing.
- STEP 4f: Glue all four Pneumatic Systems to the bottom of the Upper Launch Platform.
STEP 5: Assemble the Upper Launch Platform - Part 2
Parts required (refer to the photos below)
- 8x Clamp_Body (a)
- 10x Clamp_Lid (b)
- 10x Clamp_Arm (c)
- 2x Clamp_Body_F9 (d)
- 2x Clamp_Base_F9 (e)
- 6x Propellant Feed System (f)

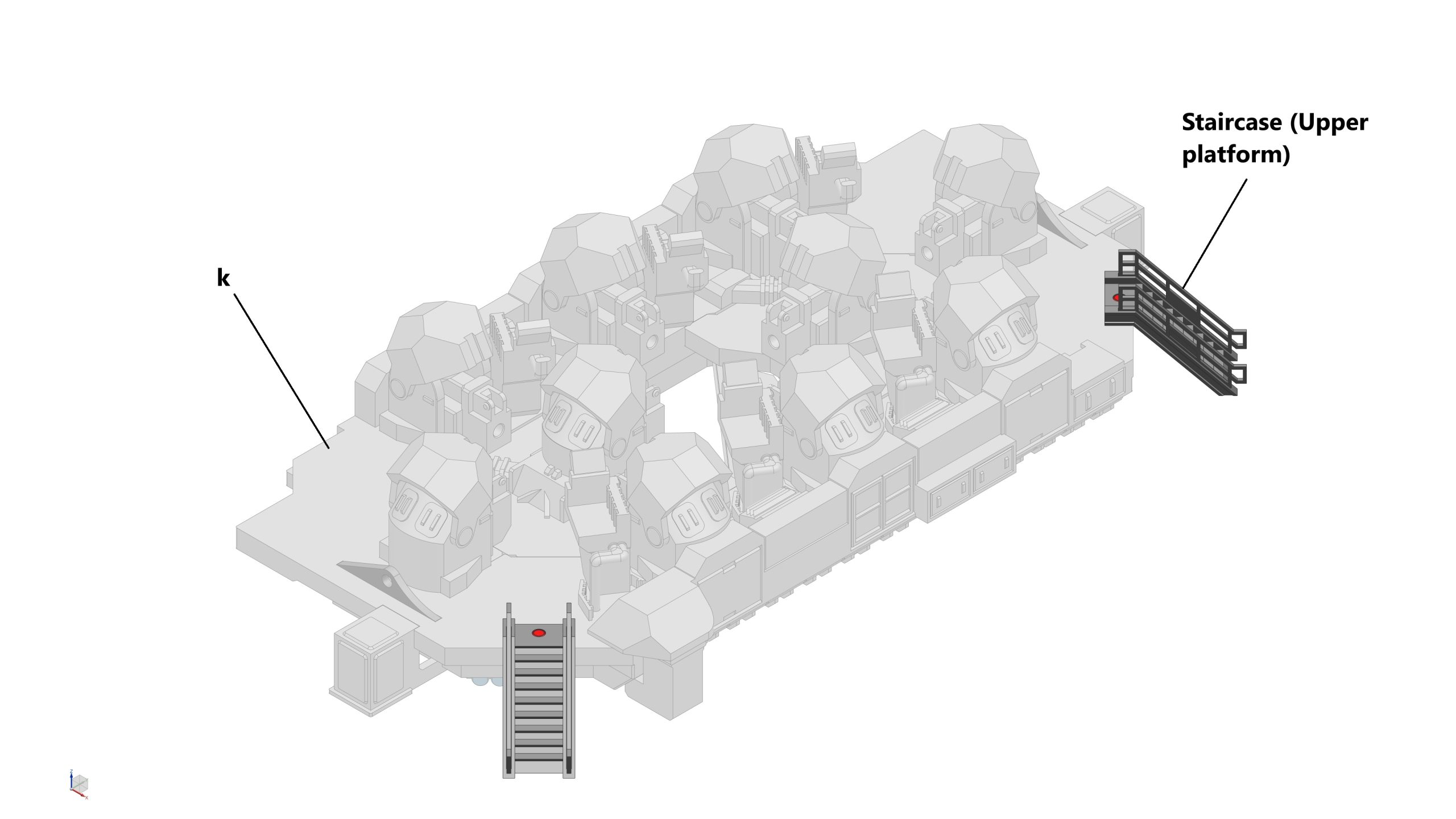

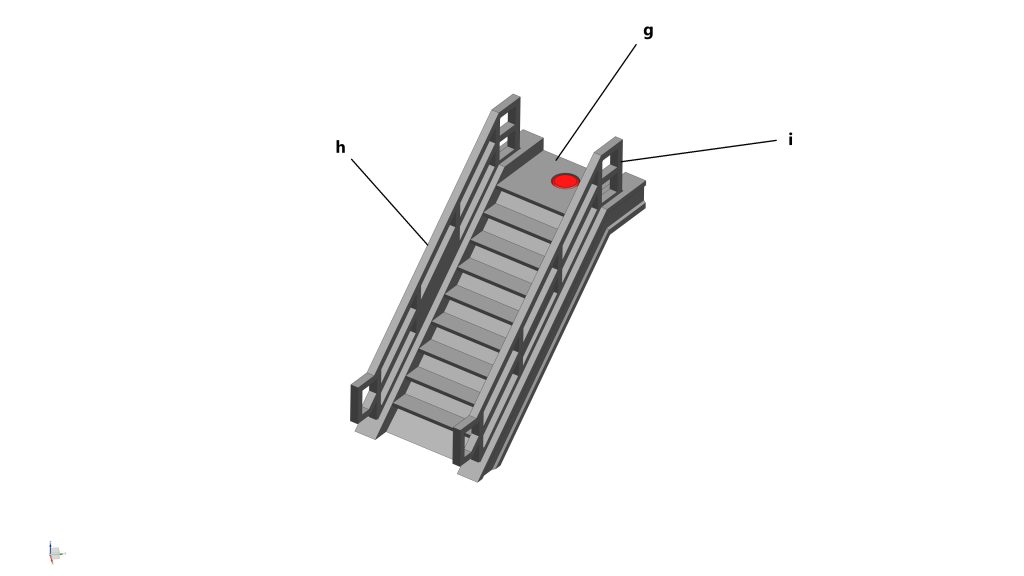

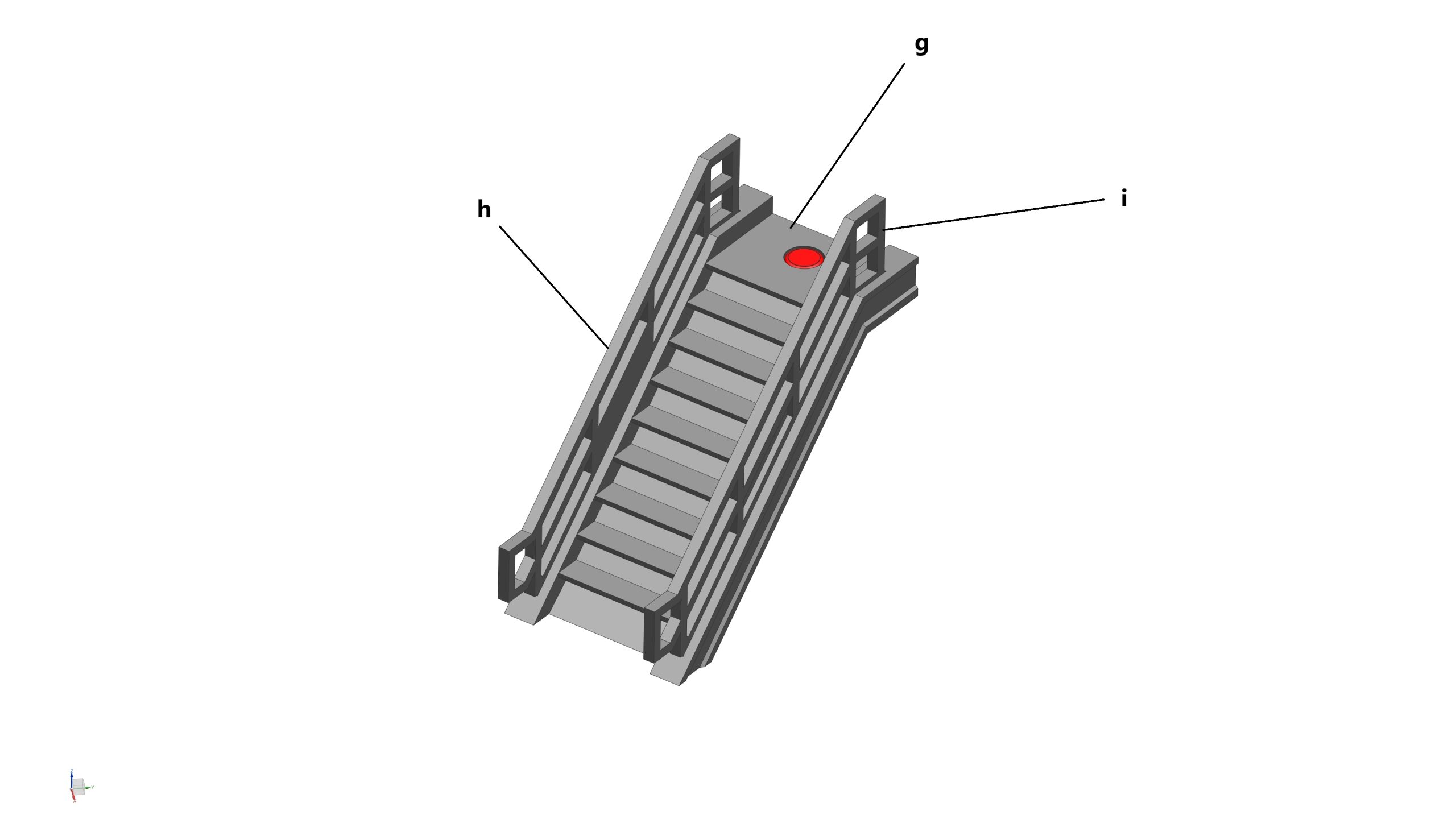

- 2x Staircase (Upper platform) (g)
- 2x Staircase Handrails (Upper platform)_LH (h)
- 2x Staircase Handrails (Upper platform)_RH (i)
- 6x Locating Pin (j)
- 1x Upper Launch Platform from STEP 4 (k)
- 2x Magnets (3mm dia x 2mm thick) (highlighted in RED)
- 30x Magnets (5mm dia x 3mm thick) (highlighted in RED)
Assembly process
- STEP 5a: Glue 1x magnet (5mm dia x 3mm thick) into its pocket at the bottom face of each Clamp_Body and Clamp_Arm. Then assemble 8x sets of Clamps (each contains one Clamp_Body, one Clamp_Lid, and one Clamp_Arm)

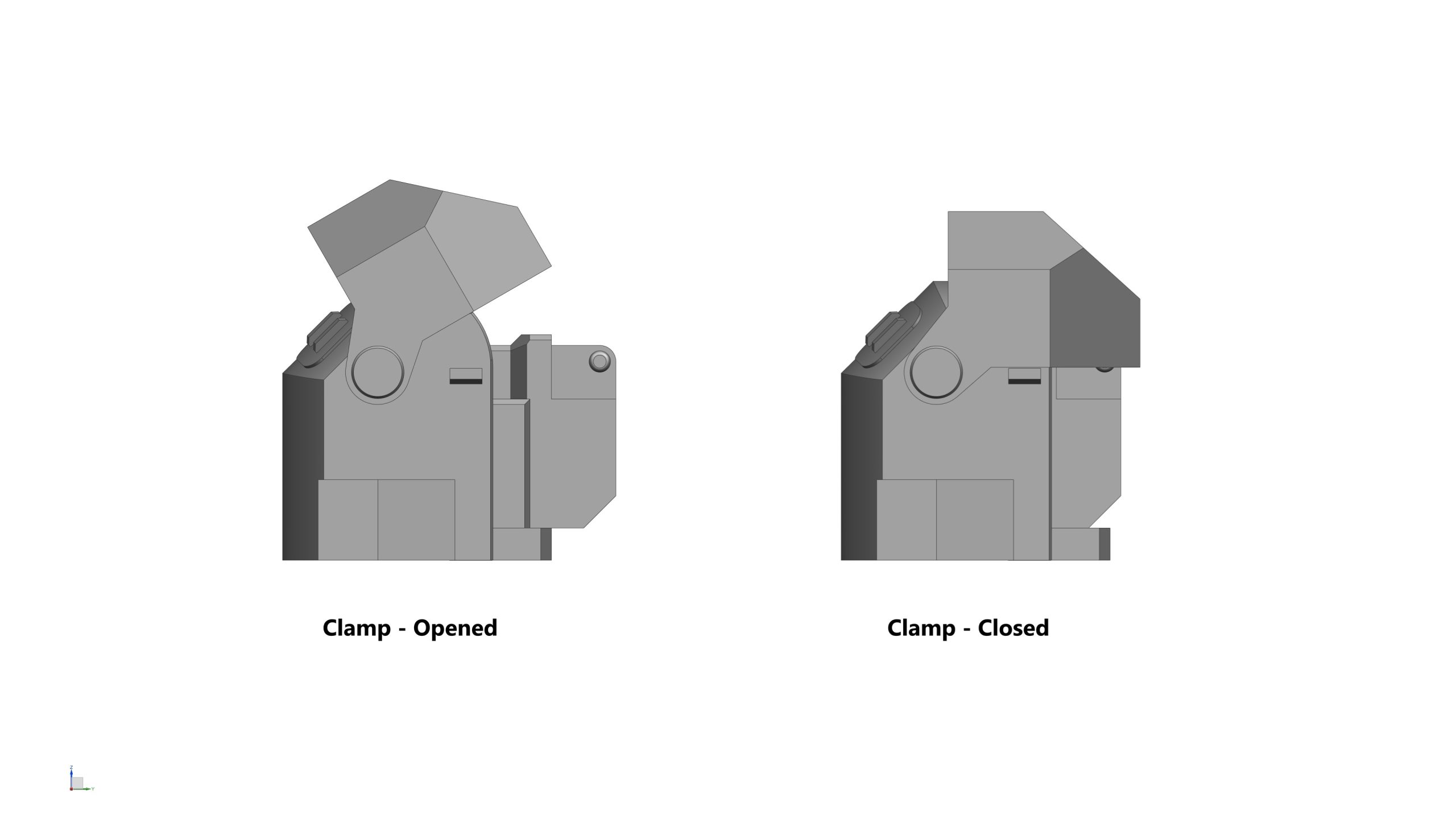

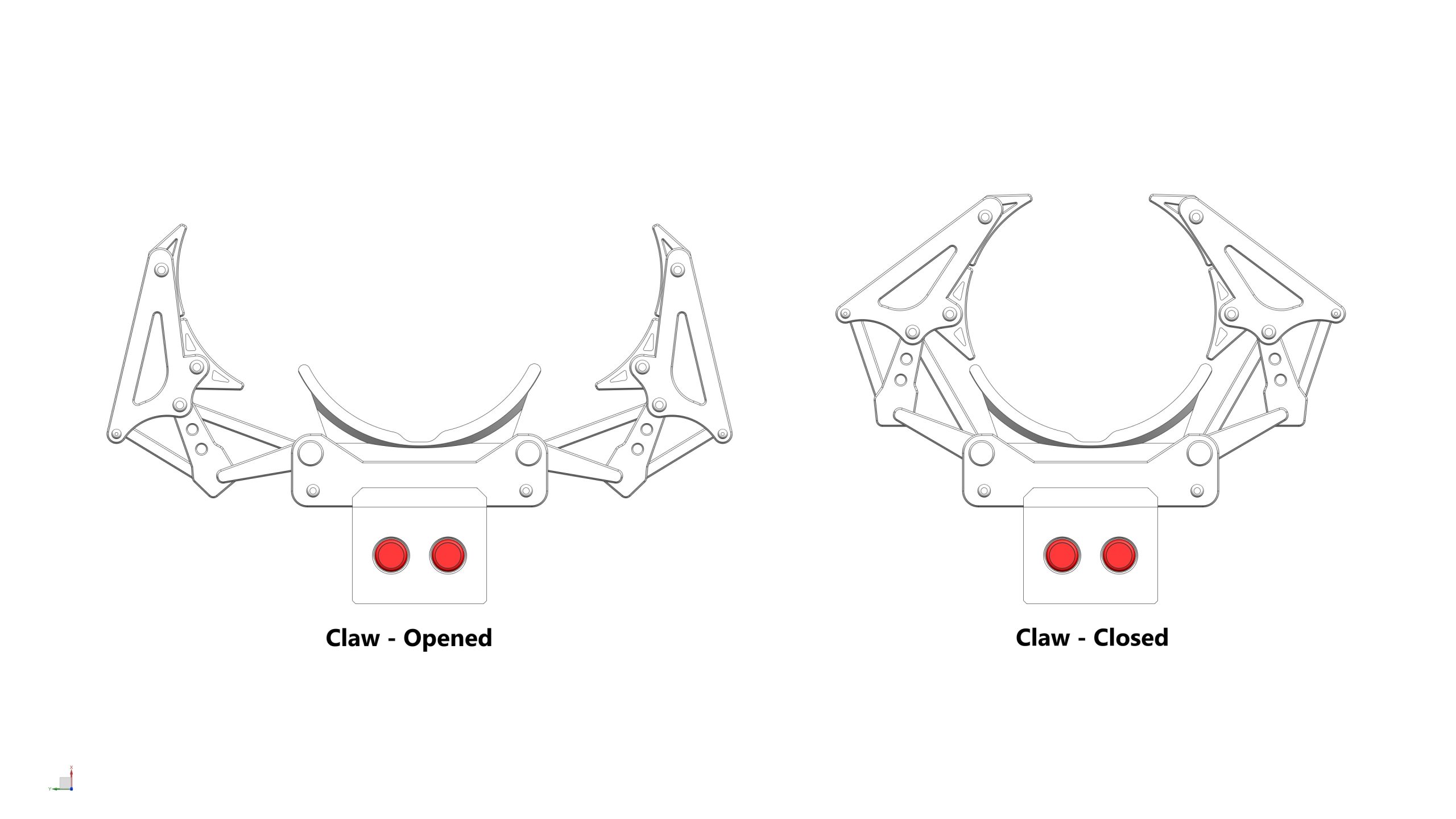

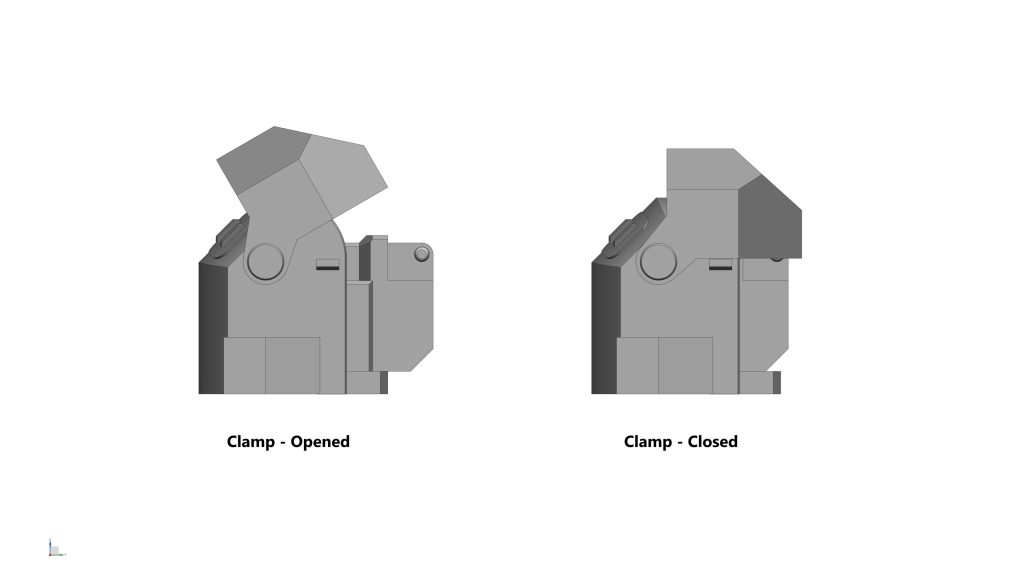

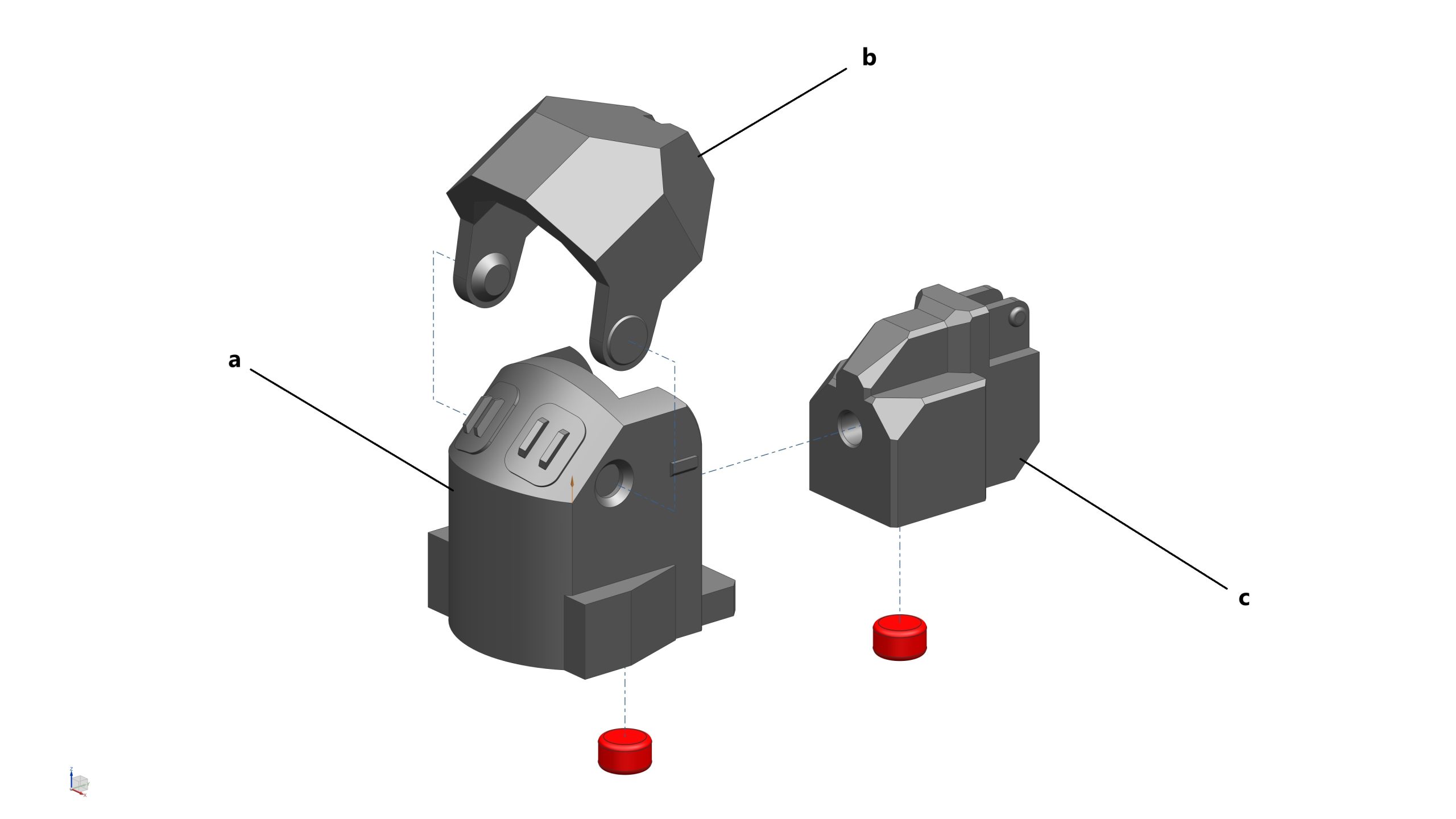

- STEP 5b: Test each Clamp to ensure it is fully functional. The pair of magnets used in each Clamp act as a “spring” mechanism which fully extends the Arm outwards to a defined position when the Lid is opened. The Arm can be retracted by pushing it back into the Body and the Lid is closed.

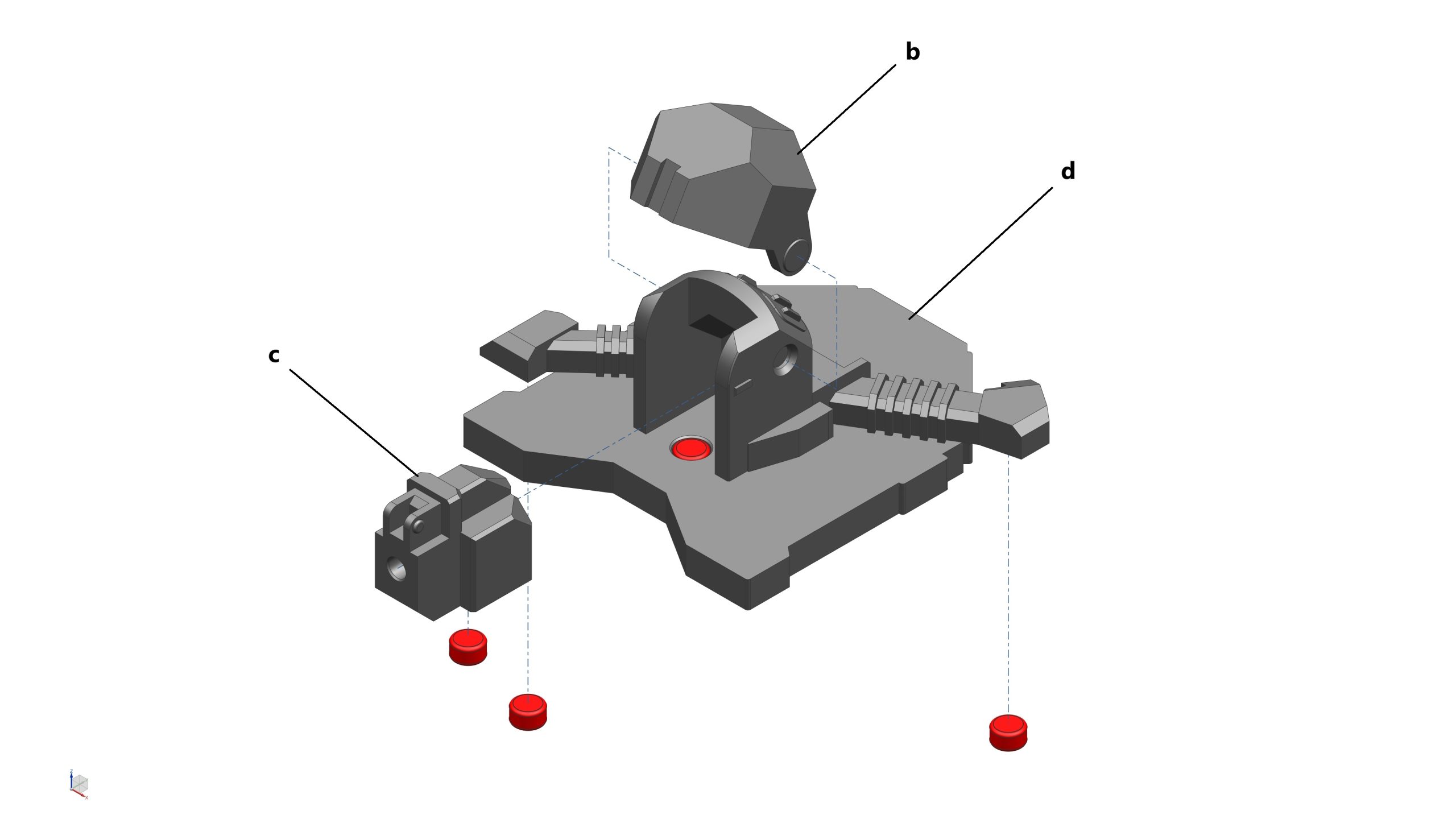

- STEP 5c: Glue 3x magnet (5mm dia x 3mm thick) into their locations at the top and bottom faces of each Clamp_Body_F9. Then install a Clamp_Body and a Clamp_Arm to each Clamp_Body_F9
Please note: The 2x magnets under each “wing” of the Clamp_Body_F9 protrude out about 1.5mm. These magnets will be in contact with the ones that sunk into the magnet holes from STEP 4a above.
- STEP 5d: Glue each Clamp_Body_F9 and Clamp_Base_F9 together. Use 3x Locating Pin for alignment

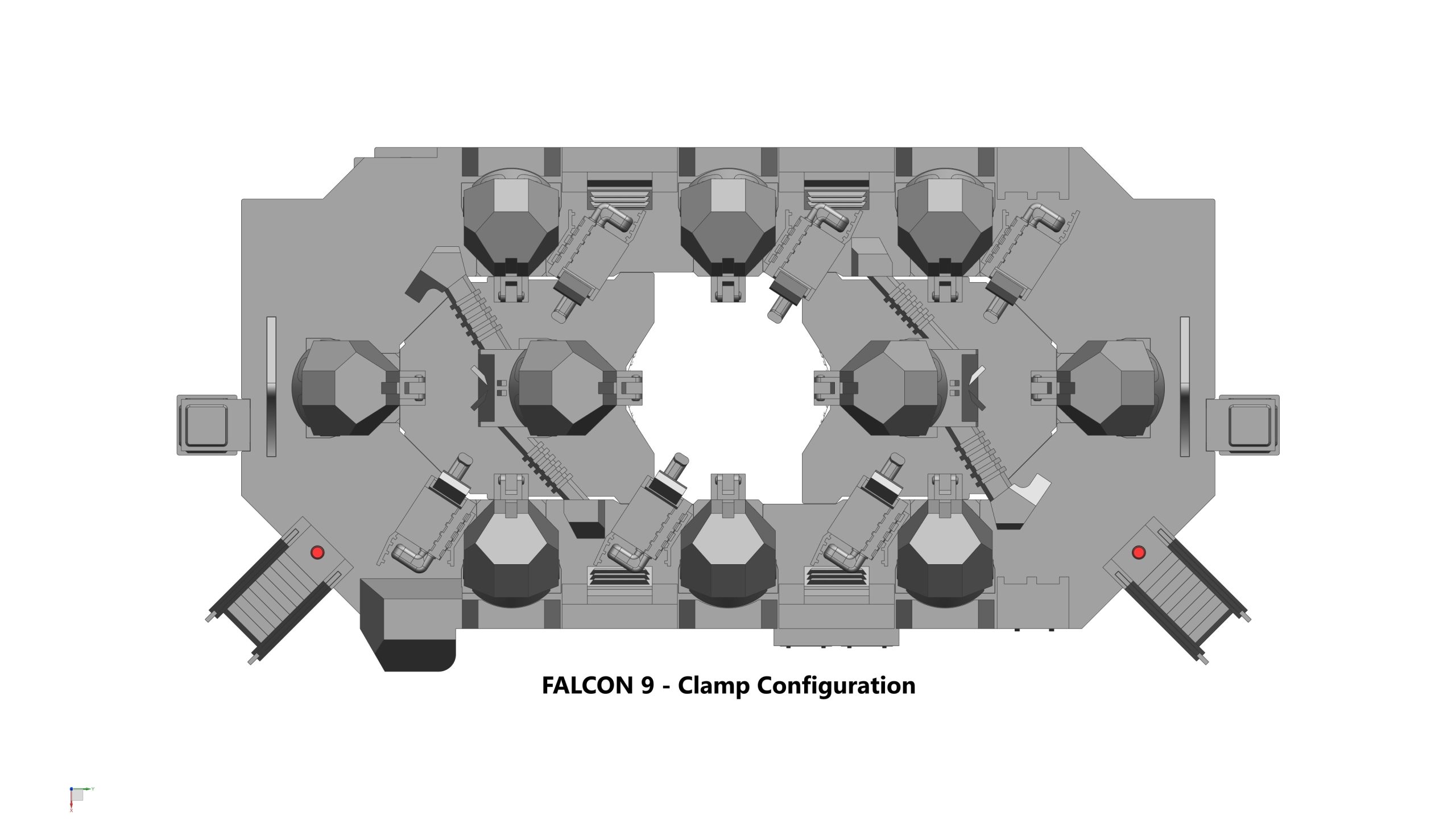

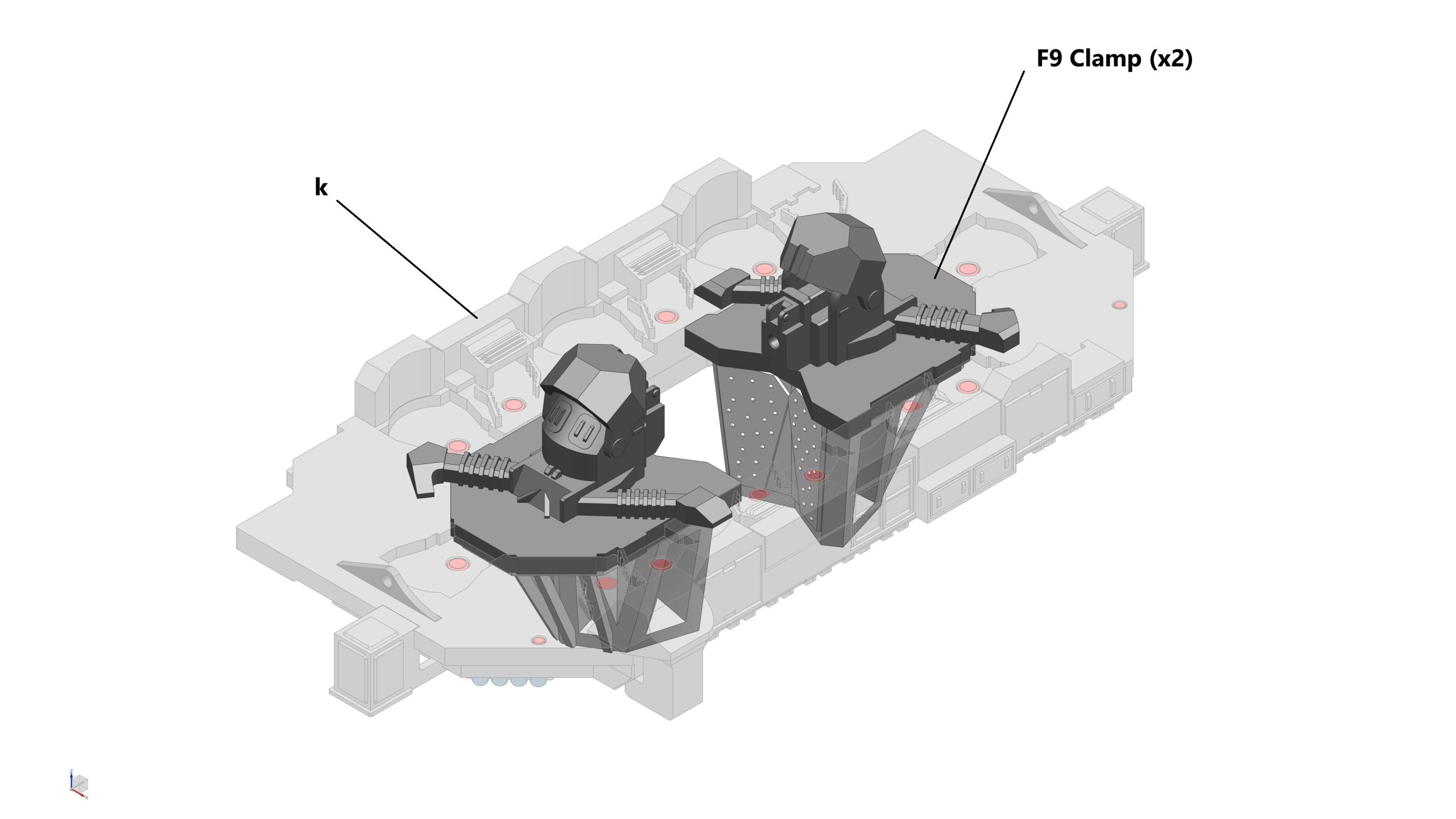

- STEP 5e: Install two F9 Clamps to the Upper Launch Platform from STEP 4

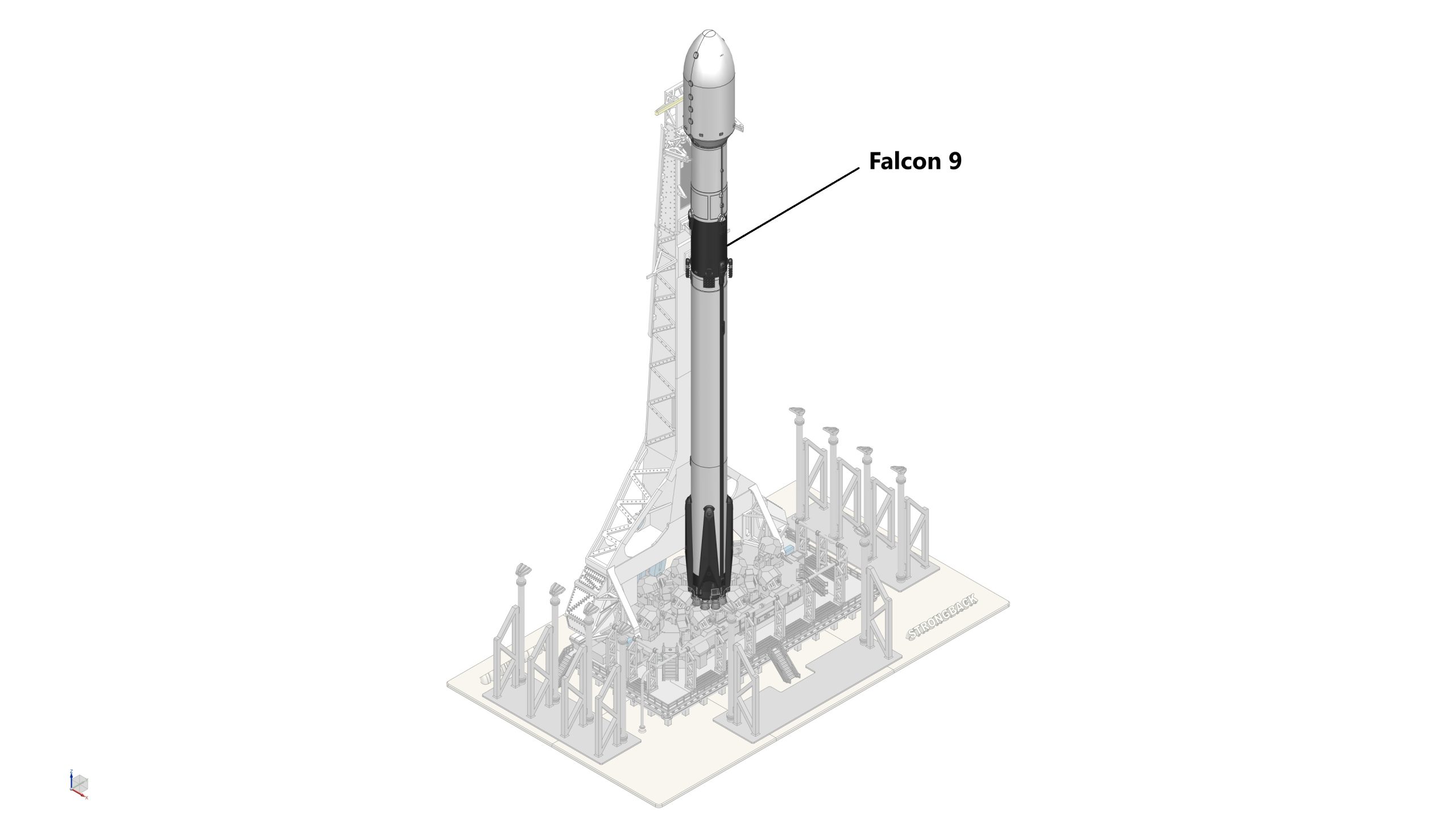

Please note: These two F9 Clamps are only used with a FALCON 9. When a FALCON HEAVY is used, these F9 Clamps must be removed.

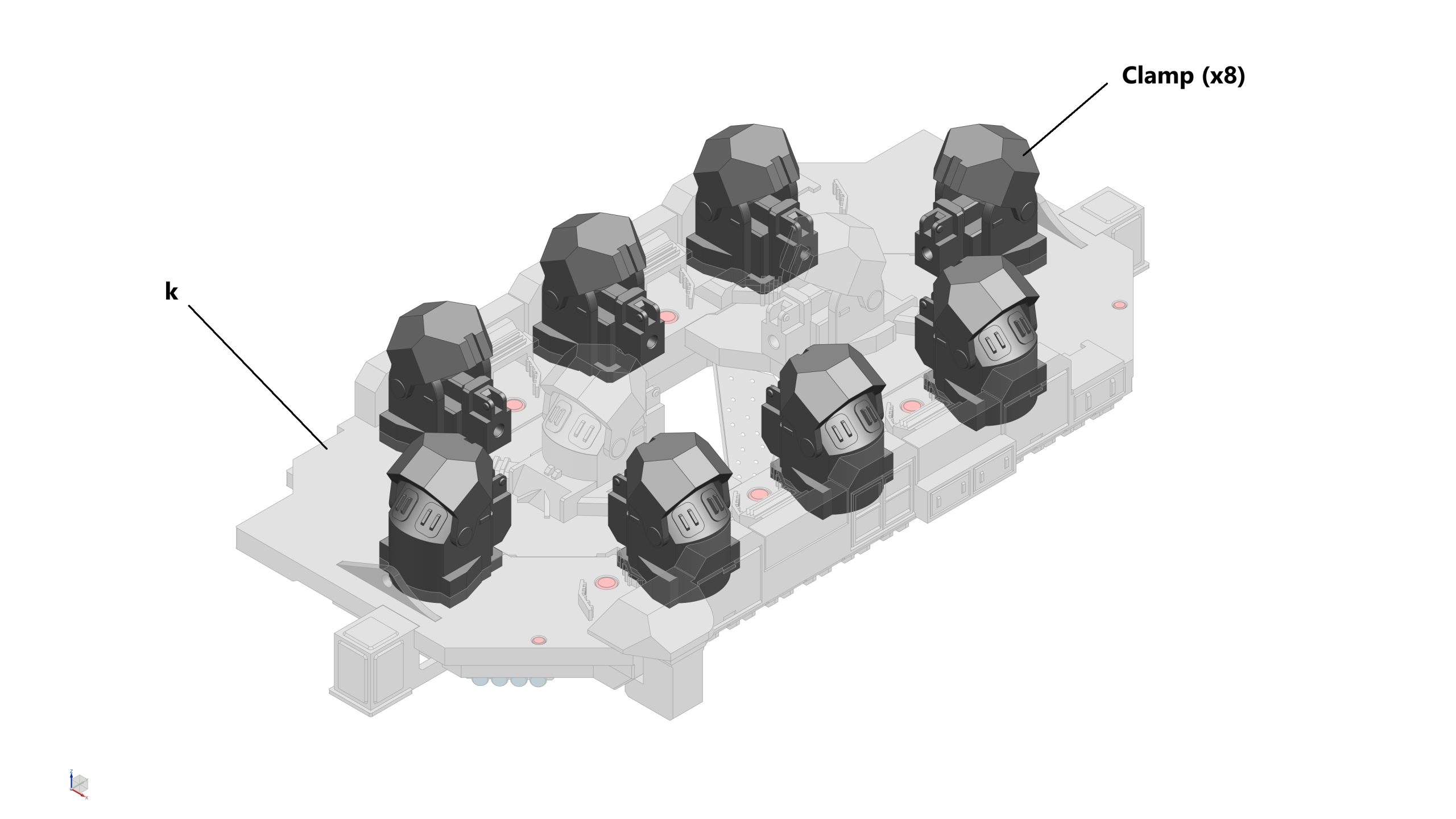

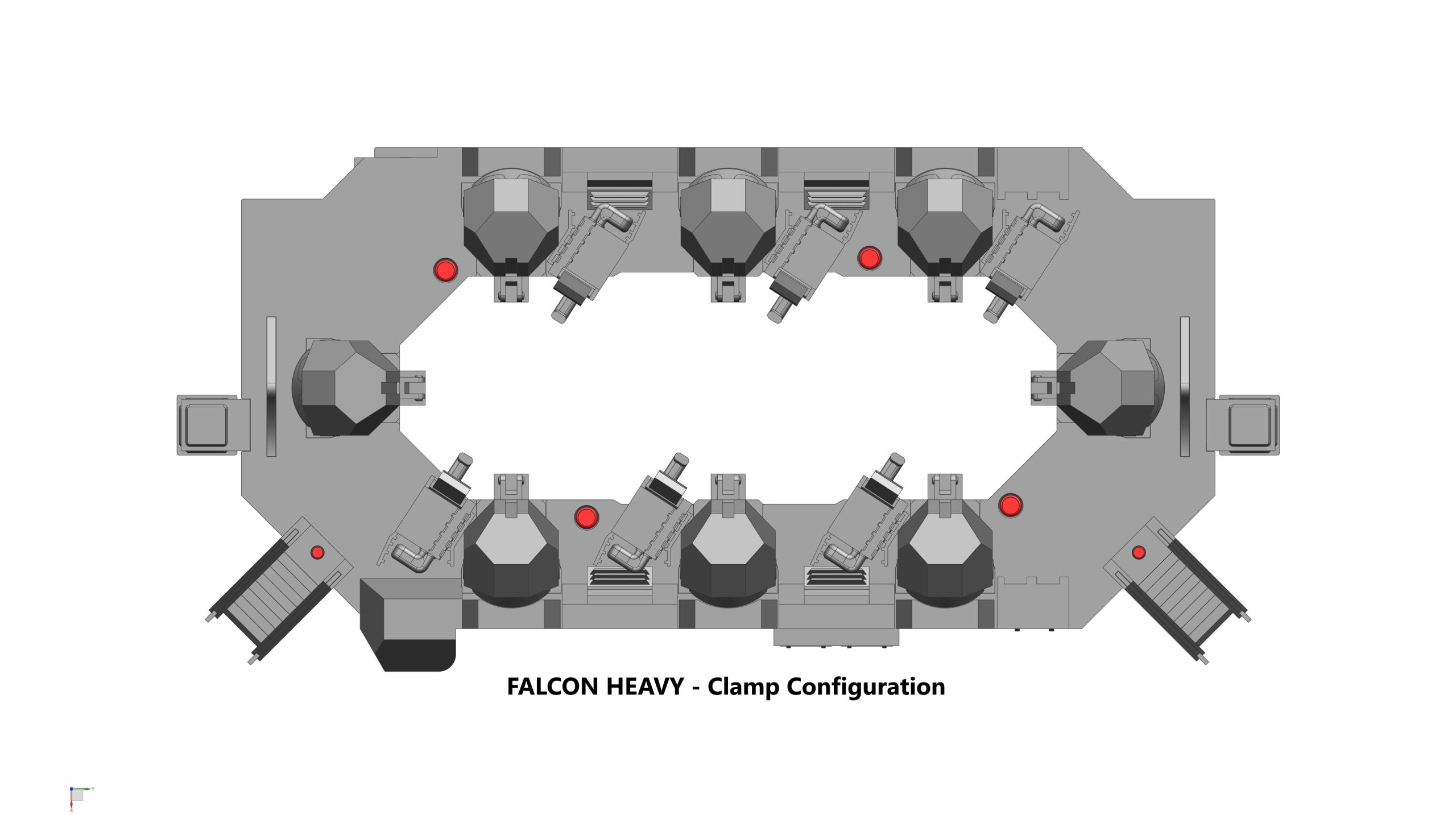

- STEP 5f: Install the remaining 8x Clamps to the Upper Launch Platform

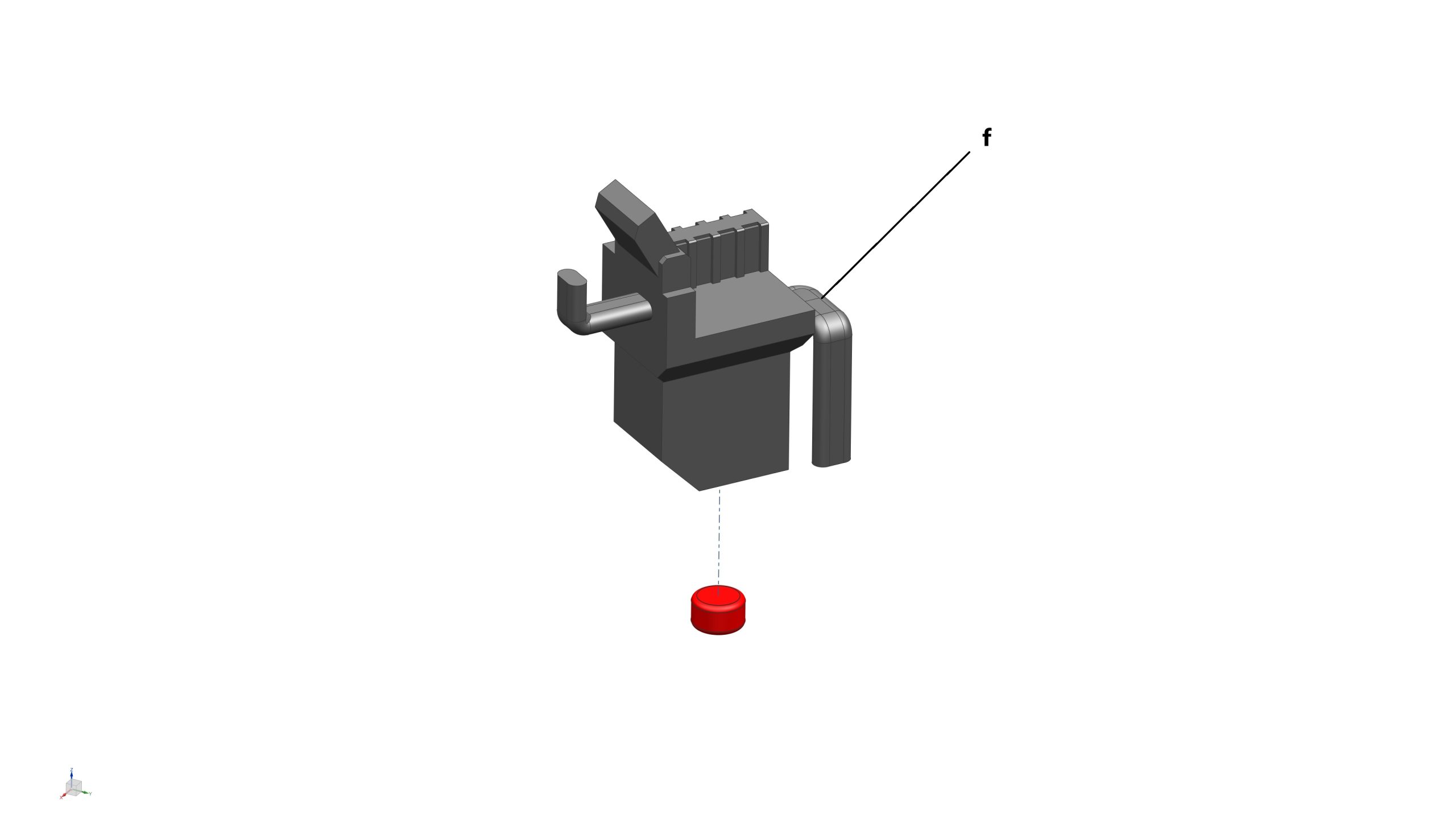

- STEP 5g: Glue 1x magnet (5mm dia x 3mm thick) into its pocket at the bottom face of each Propellant Feed System

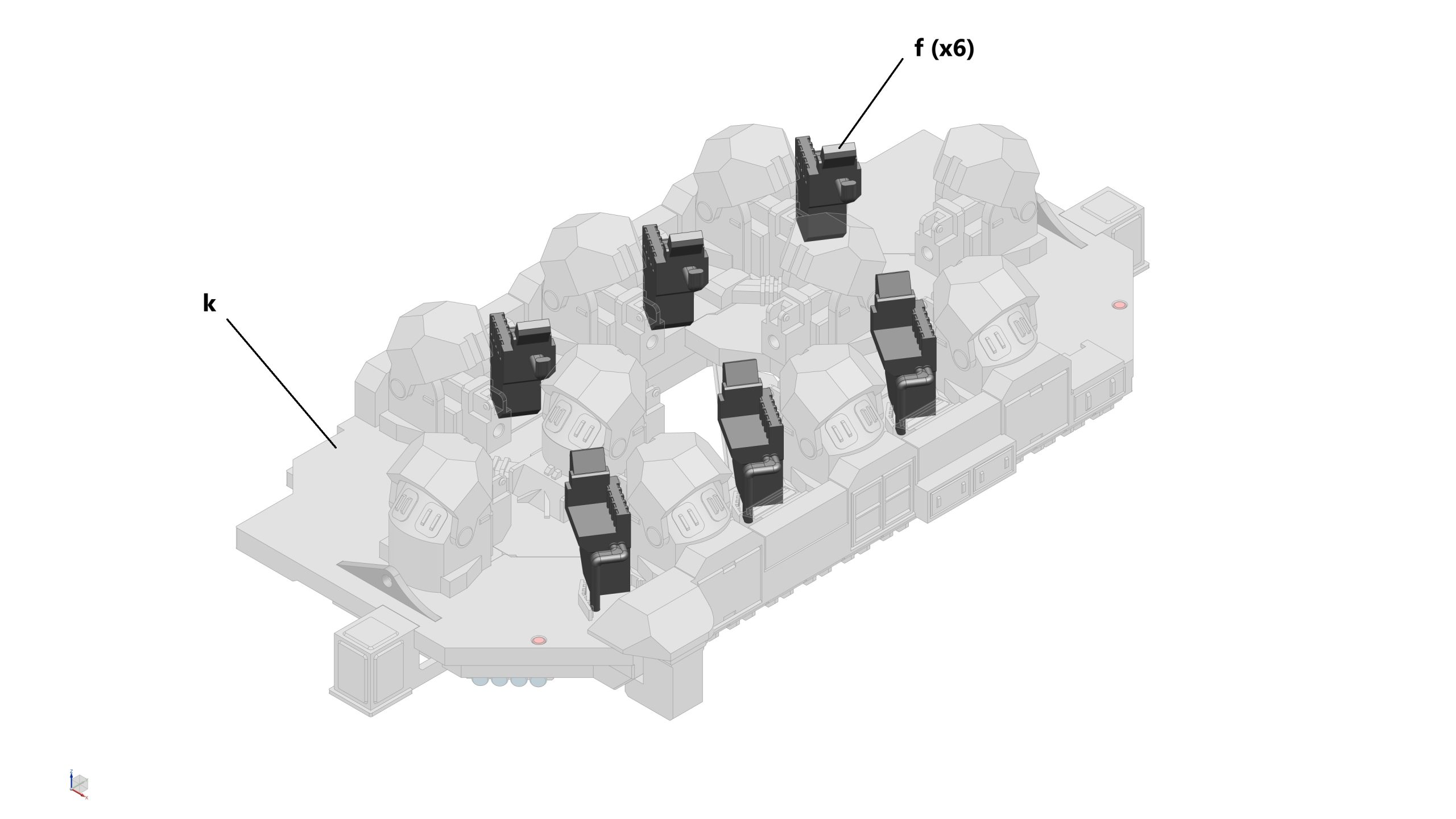

- STEP 5h: Install 6x Propellant Feed System to the Upper Launch Platform
- STEP 5i: Glue one set of Staircase (Upper platform) Handrails LH & RH to each Staircase (Upper platform). Then glue 1x magnet (3mm dia x 2mm thick) into its pocket at the top face of each Staircase (Upper platform)
- STEP 5j: Install 2x Staircase (Upper platform) to the Upper Launch Platform
STEP 6: Assemble the Strongback Tower - Part 1
Parts required (refer to the photos below)

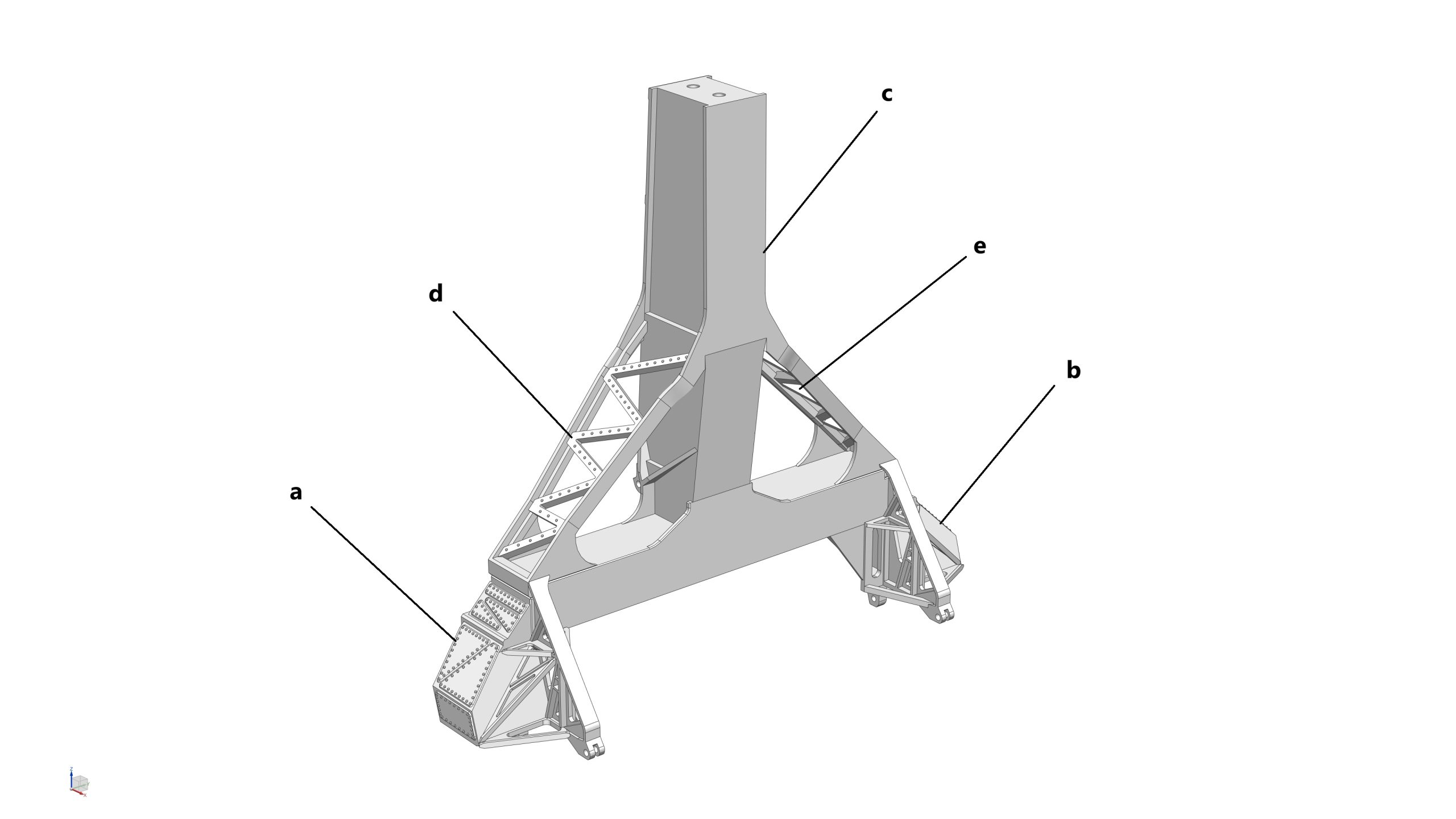

- 1x Tower Bottom Left Structure (a)
- 1x Tower Bottom Right Structure (b)
- 1x Tower Bottom Structure (c)
- 1x Tower Bottom Structure Bracing (LH) (d)
- 1x Tower Bottom Structure Bracing (RH) (e)
- 1x Tower Middle Structure (f)
- 1x Tower Top Structure (g)
- 4x Locating Pin (h)
- 2x Magnets (5mm dia x 3mm thick) (highlighted in RED)
Assembly process
- STEP 6a: Glue the Tower Bottom Structure Bracing LH and RH to Tower Bottom Structure. Then glue the Tower Bottom Left and Right Structures to the Tower Bottom Structure
- STEP 6b: Glue the Tower Middle Structure to the Tower Bottom Structure. Use 2x Locating Pin for alignment.
- STEP 6c: Glue 2x magnets (5mm dia x 3mm thick) into their locations on the top face of the Tower Top Structure

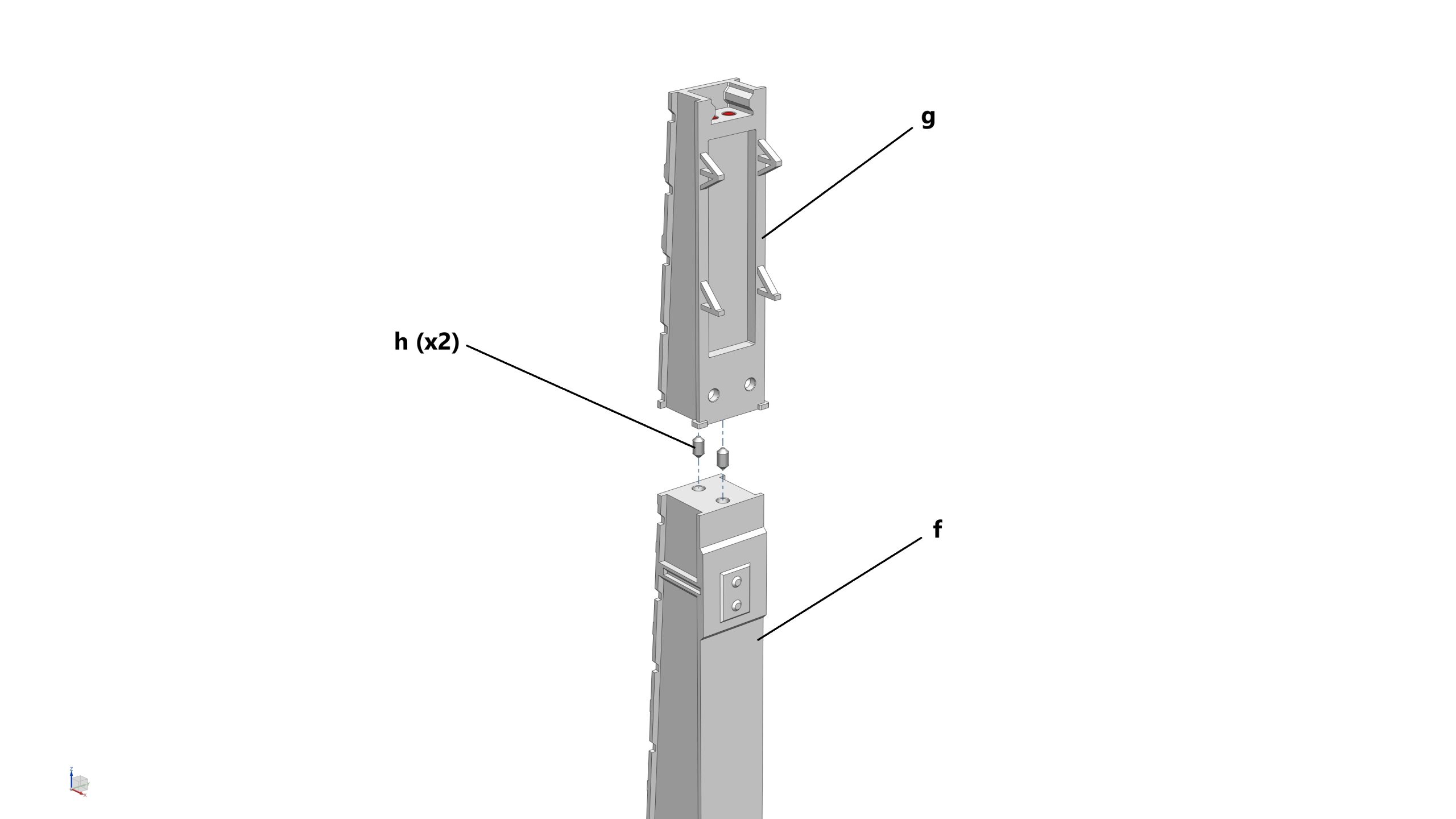

- STEP 6d: Glue the Tower Top Structure to the Tower Middle Structure. Use 2x Locating Pin for alignment.
STEP 7: Assemble the Strongback Tower - Part 2
Parts required (refer to the photos below)
- 1x Tower Cladding Bottom (LH) (a)
- 1x Tower Cladding Bottom (RH) (b)
- 1x Tower Cladding Middle (LH) (c)
- 1x Tower Cladding Middle (RH) (d)
- 1x Tower Cladding Top (LH) (e)
- 1x Tower Cladding Top (RH) (f)

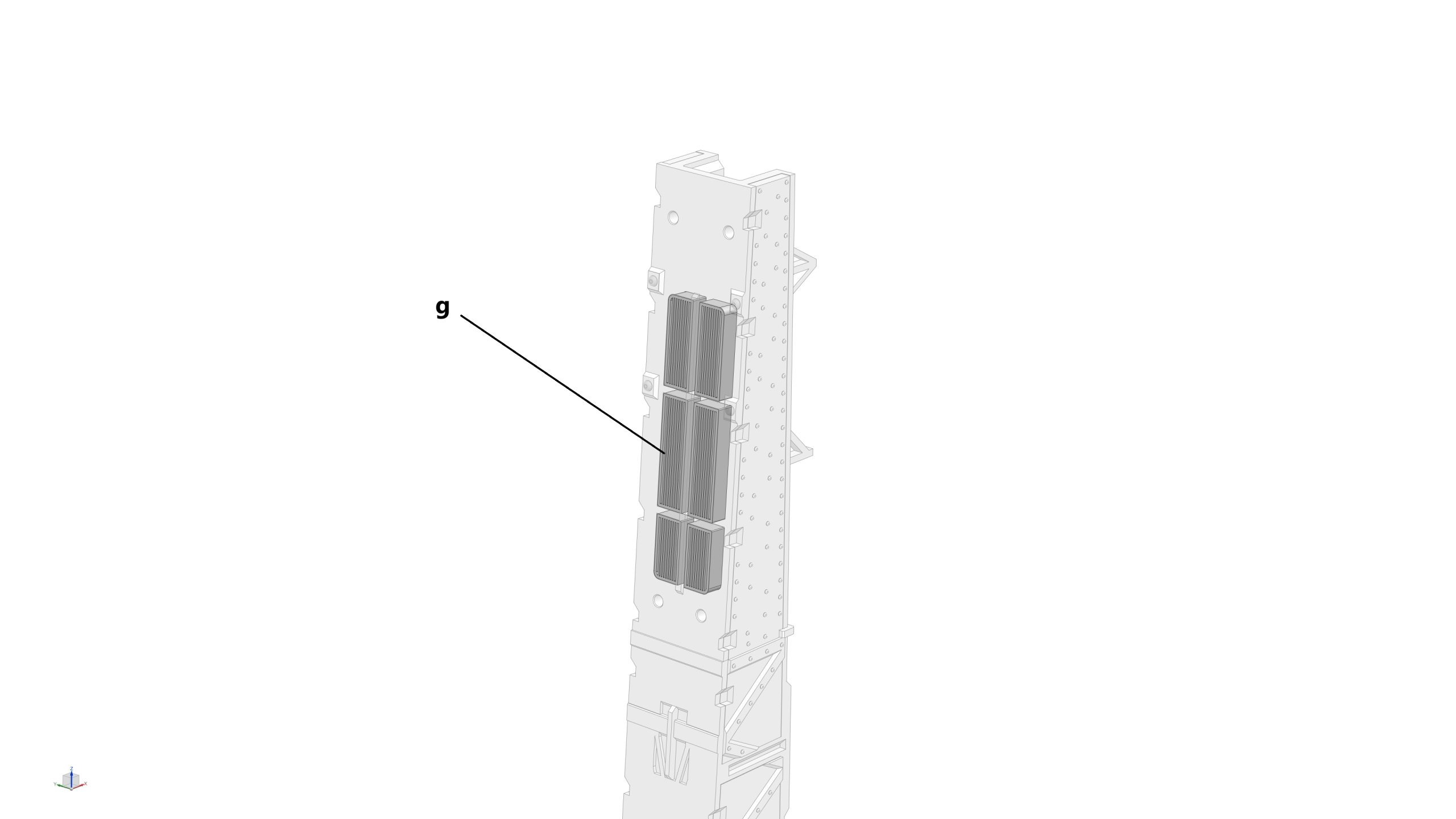

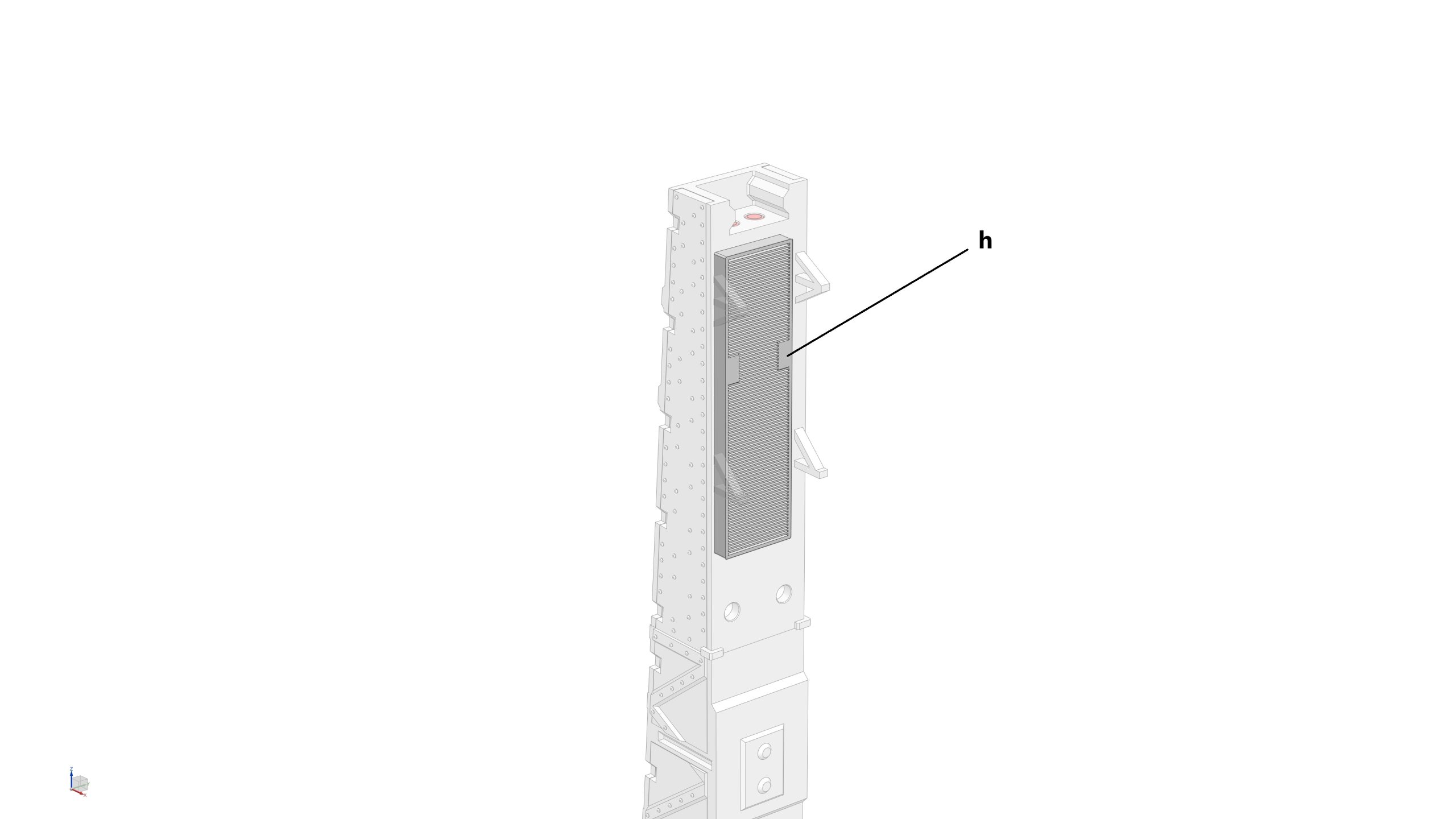

- 1x Tower Top Structure Rear Grills (g)
- 1x Tower Top Structure Front Grill (h)

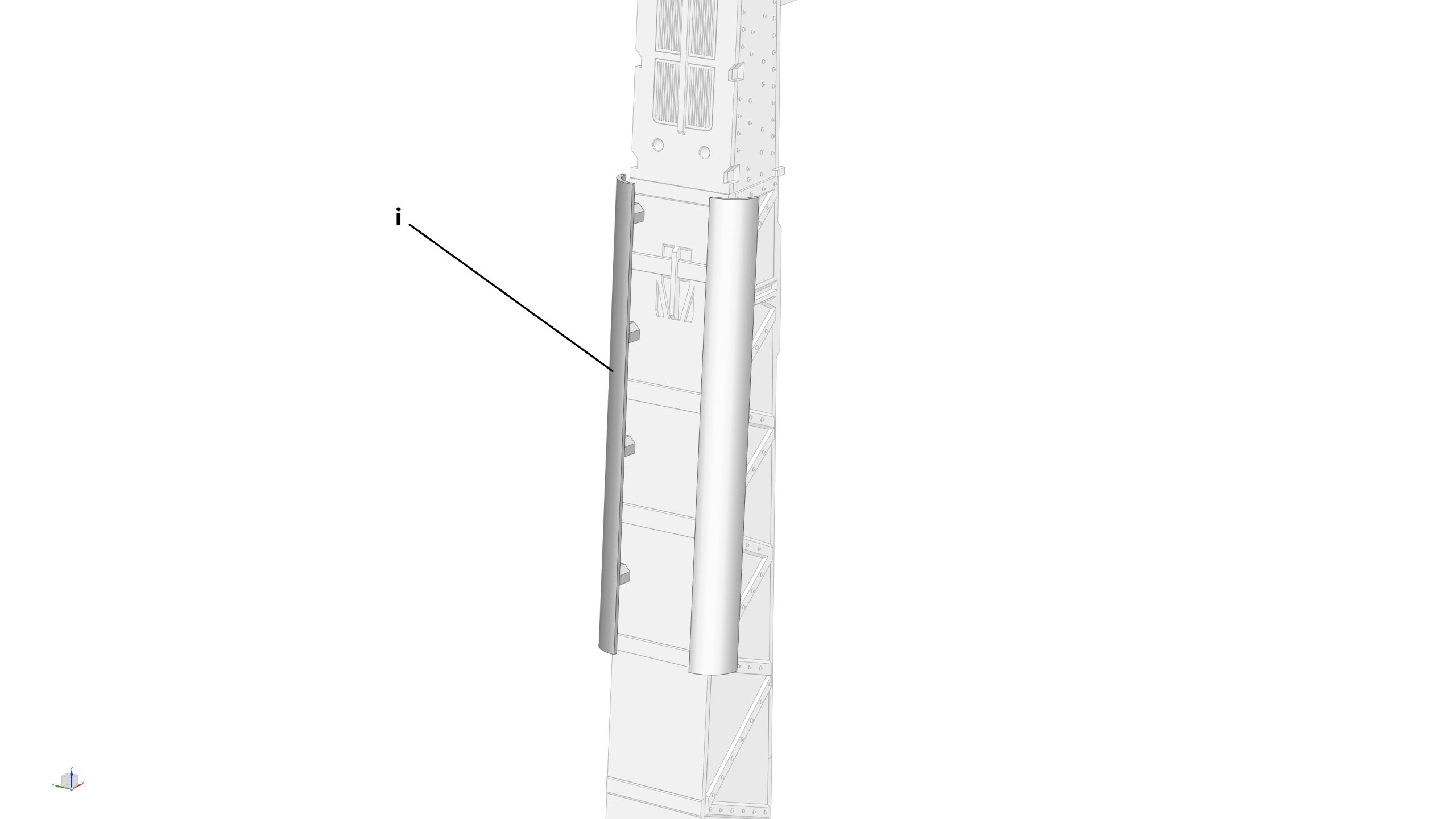

- 1x Tower Middle Structure Fairings (i)

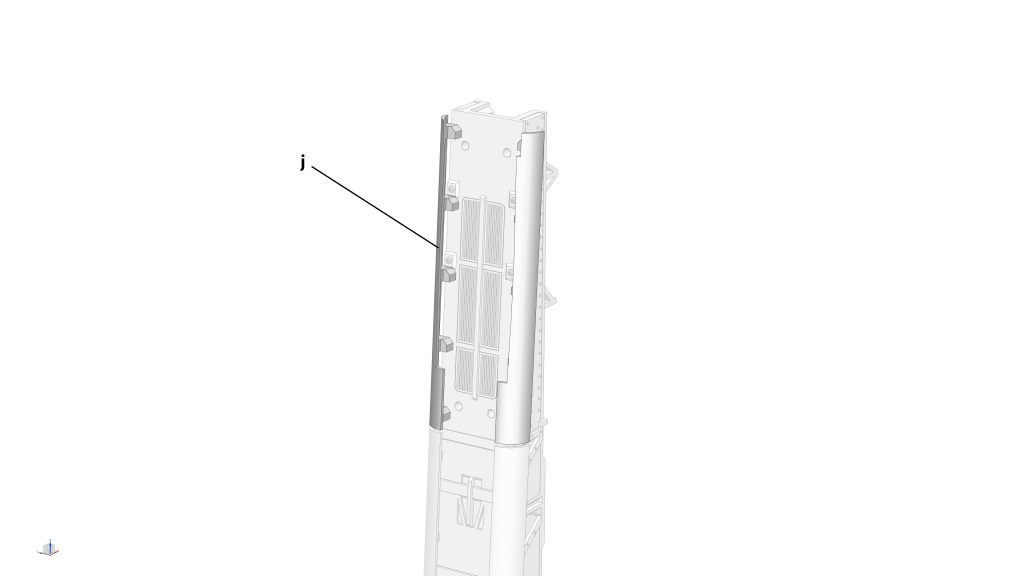

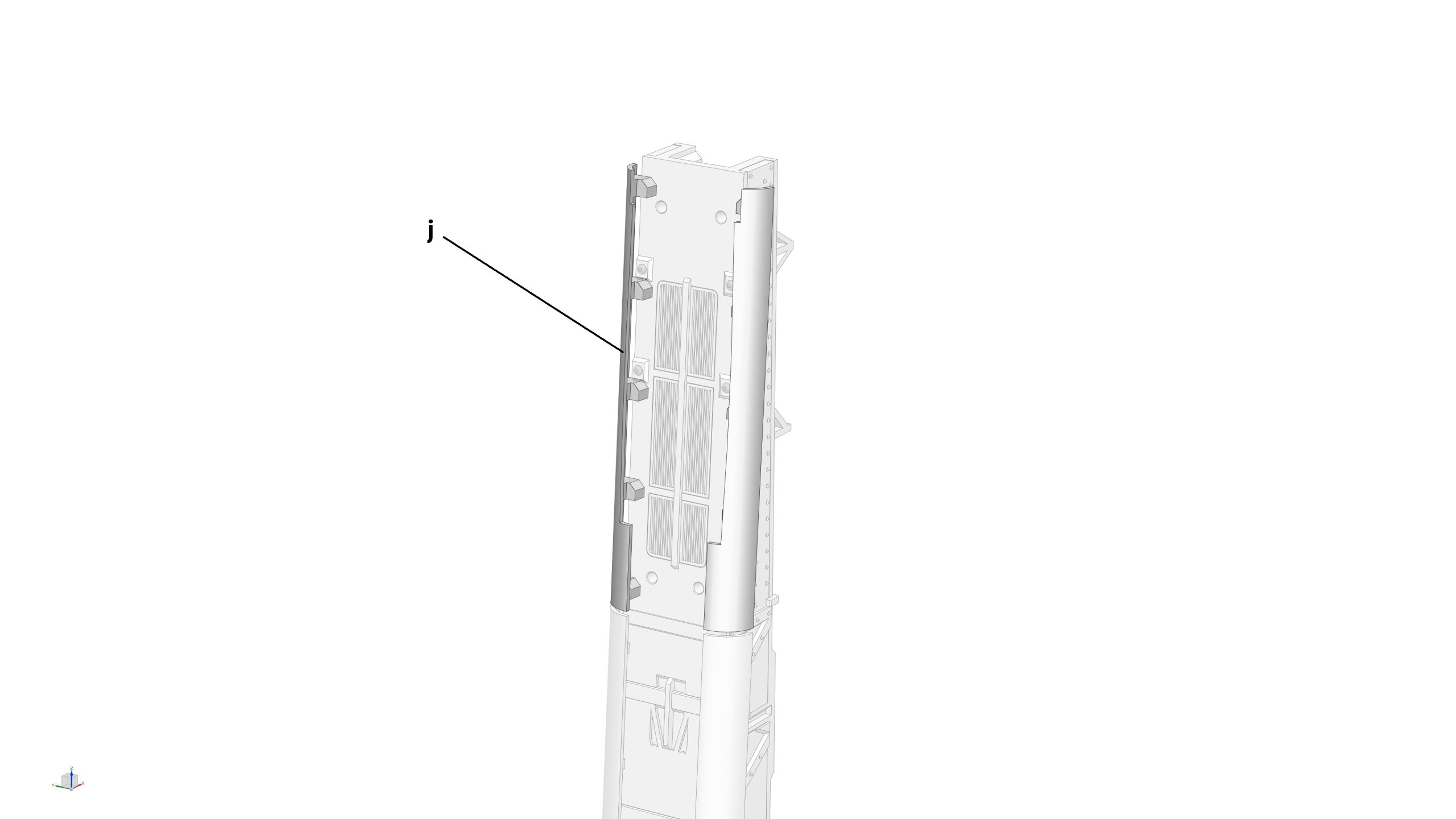

- 1x Tower Top Structure Fairings (j)

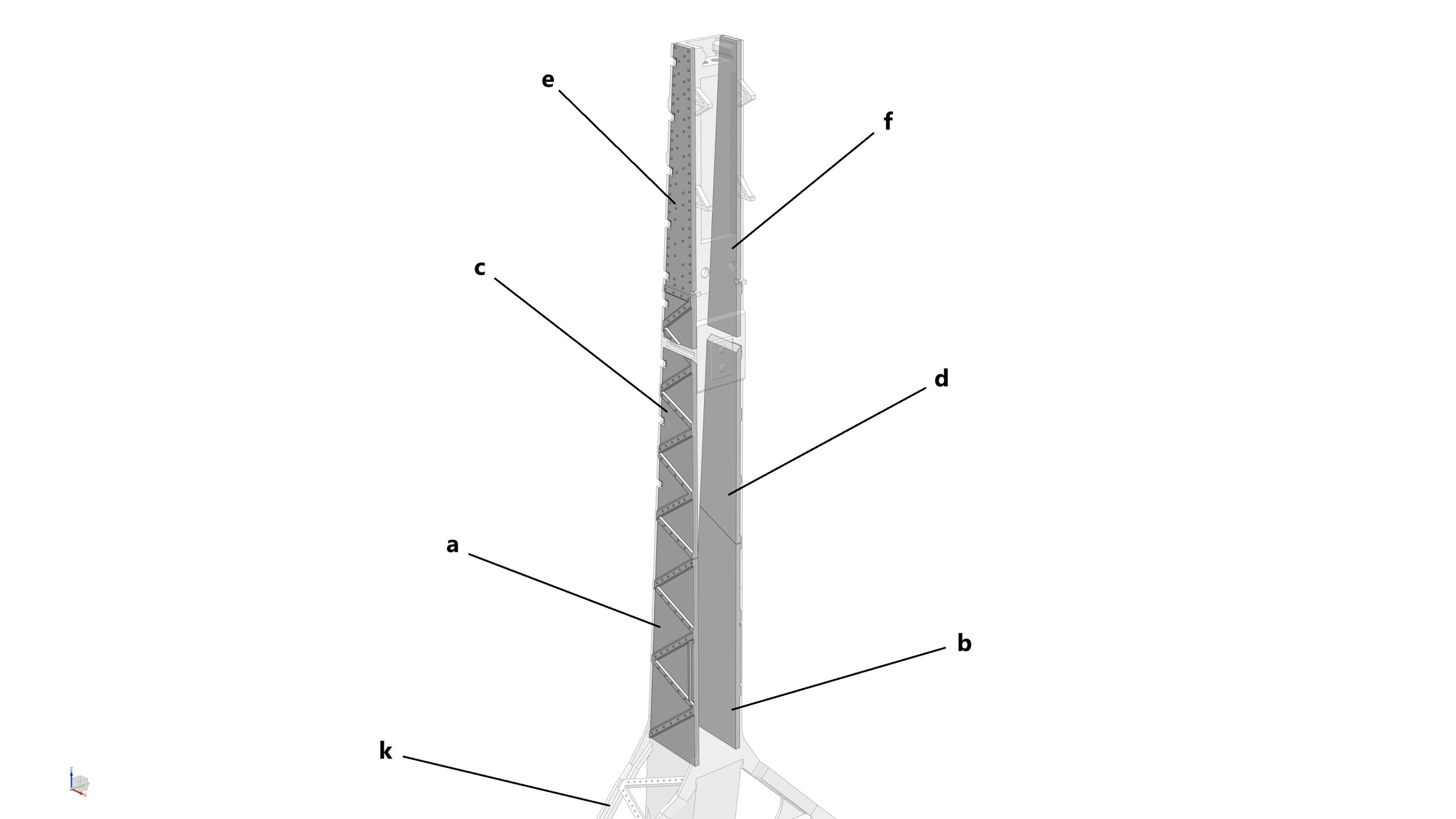

- 1x Strongback Tower from STEP 6 (k)
Assembly process
- STEP 7a: Glue all the Cladding panels to the Strongback Tower from STEP 6.
- STEP 7b: Glue the Tower Top Structure Rear Grills set to the Tower Top Structure
- STEP 7c: Glue the Tower Top Structure Front Grill to the Tower Top Structure
- STEP 7d: Glue the Tower Middle Structure Fairings to the Tower Middle Structure
Please note: Ensure the Fairings are correctly oriented before gluing
- STEP 7e: Glue the Tower Top Structure Fairings to the Tower Top Structure
Please note: Ensure the Fairings are correctly oriented before gluing
STEP 8: Assemble the Strongback Tower - Part 3
Parts required (refer to the photos below)

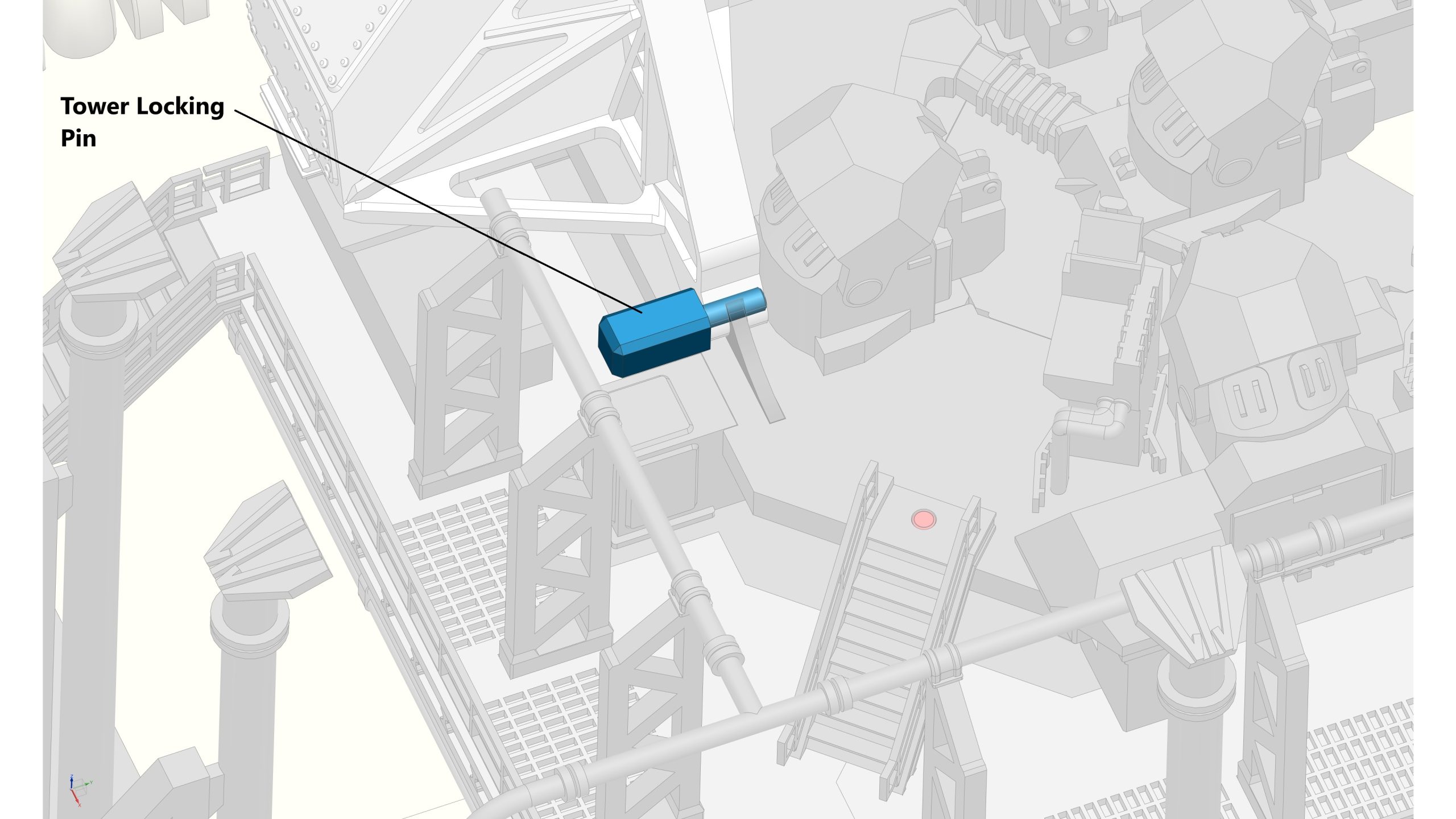

- 2x Tower Locking Pin (a)

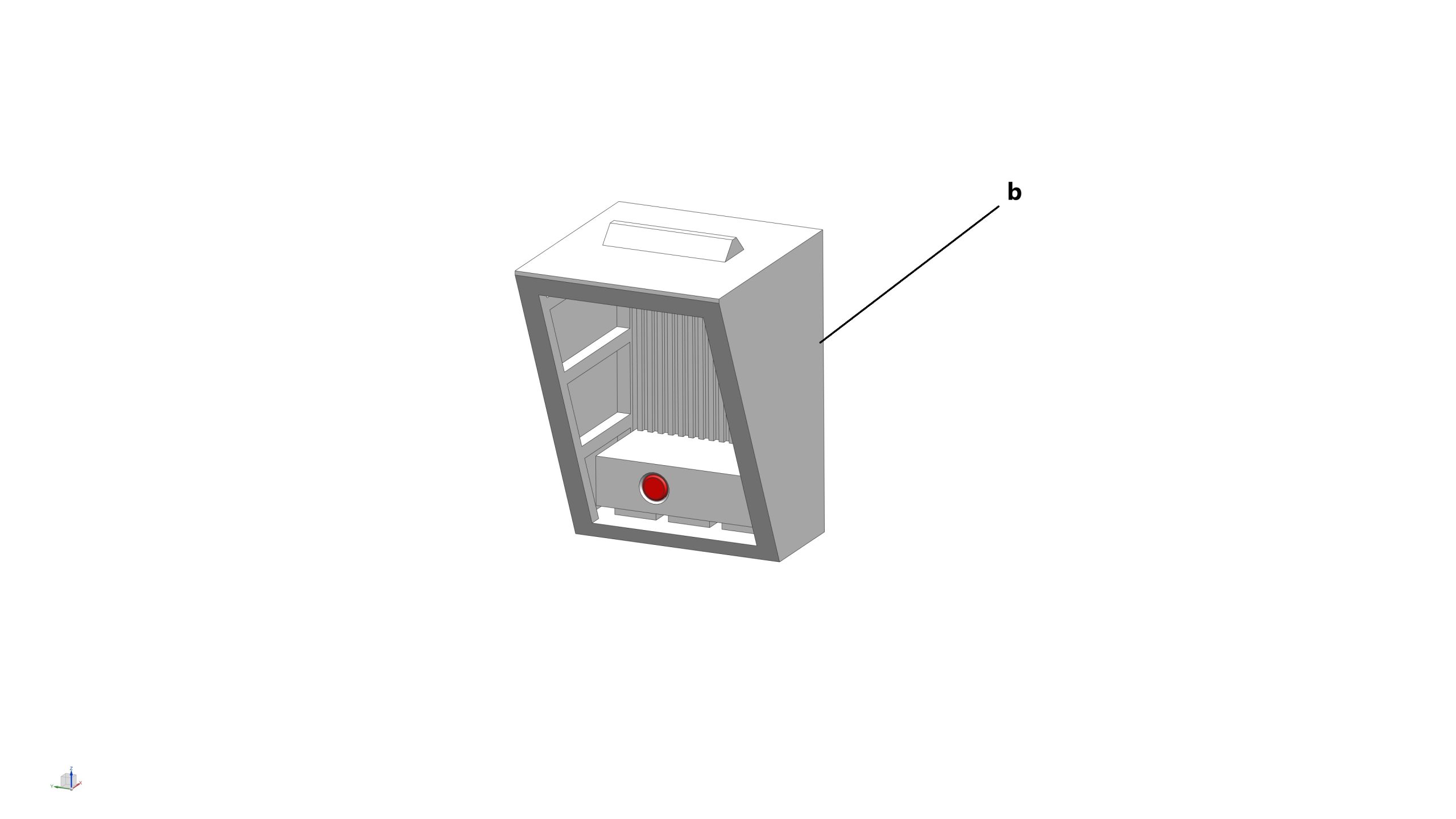

- 1x Tower Electrical Box (b)

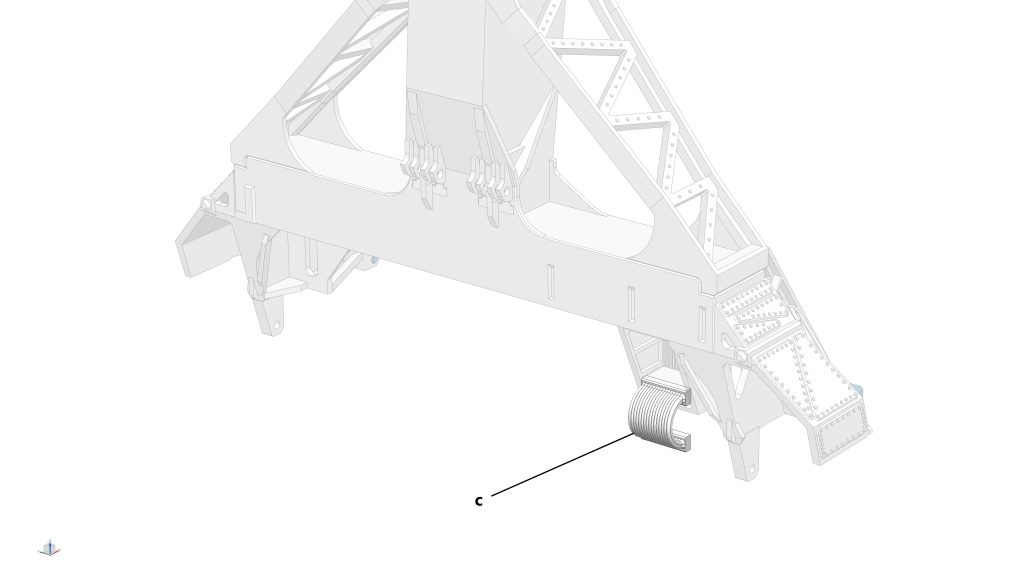

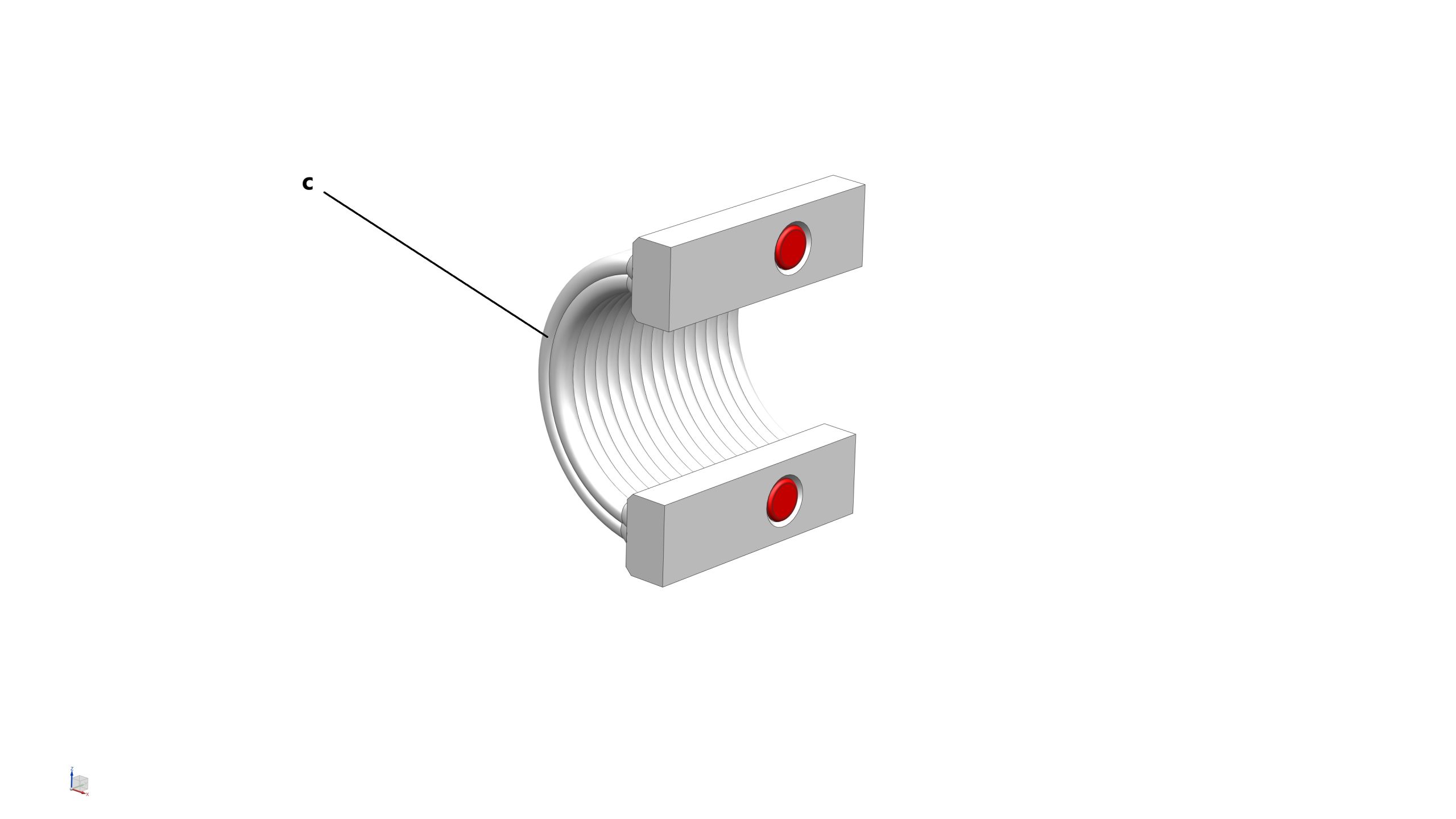

- 1x Tower C Wire Bundle (c)
- 1x Tower Electrical Cable Chute (Top) (d)

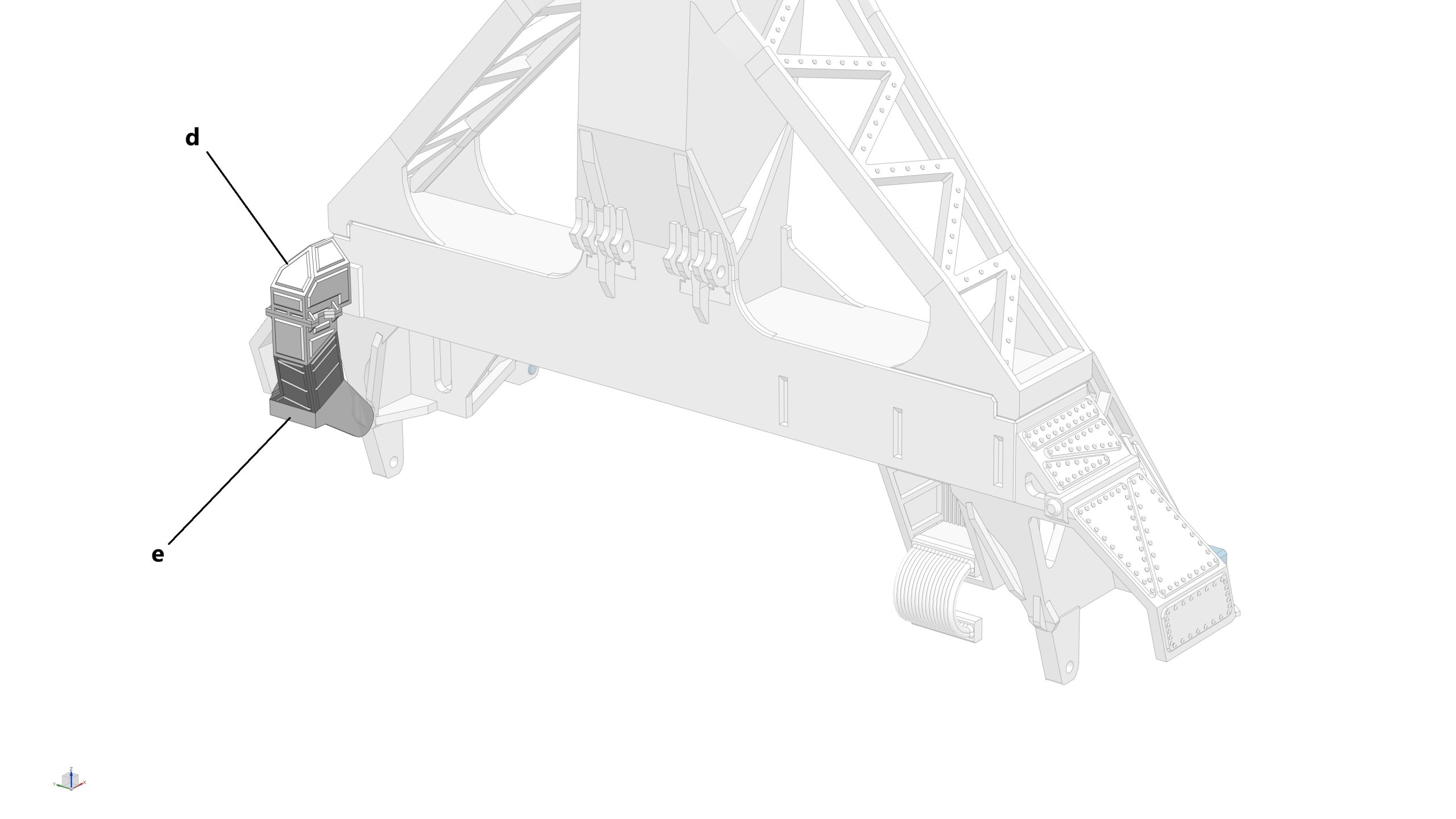

- 1x Tower Electrical Cable Chute (Bottom) (e)

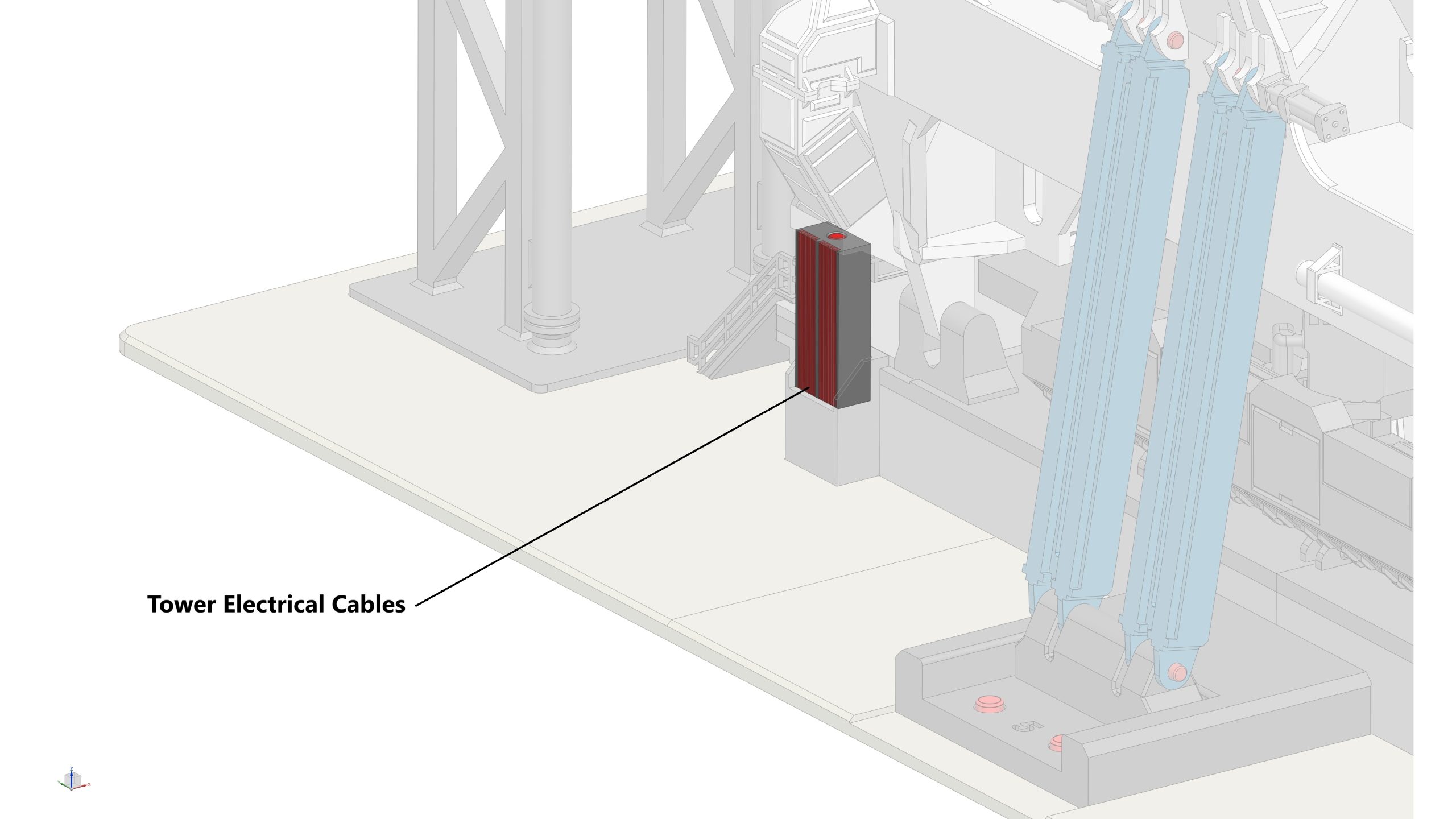

- 1x Tower Electrical Cables (f)
- 1x Tower Rear Tank (g)

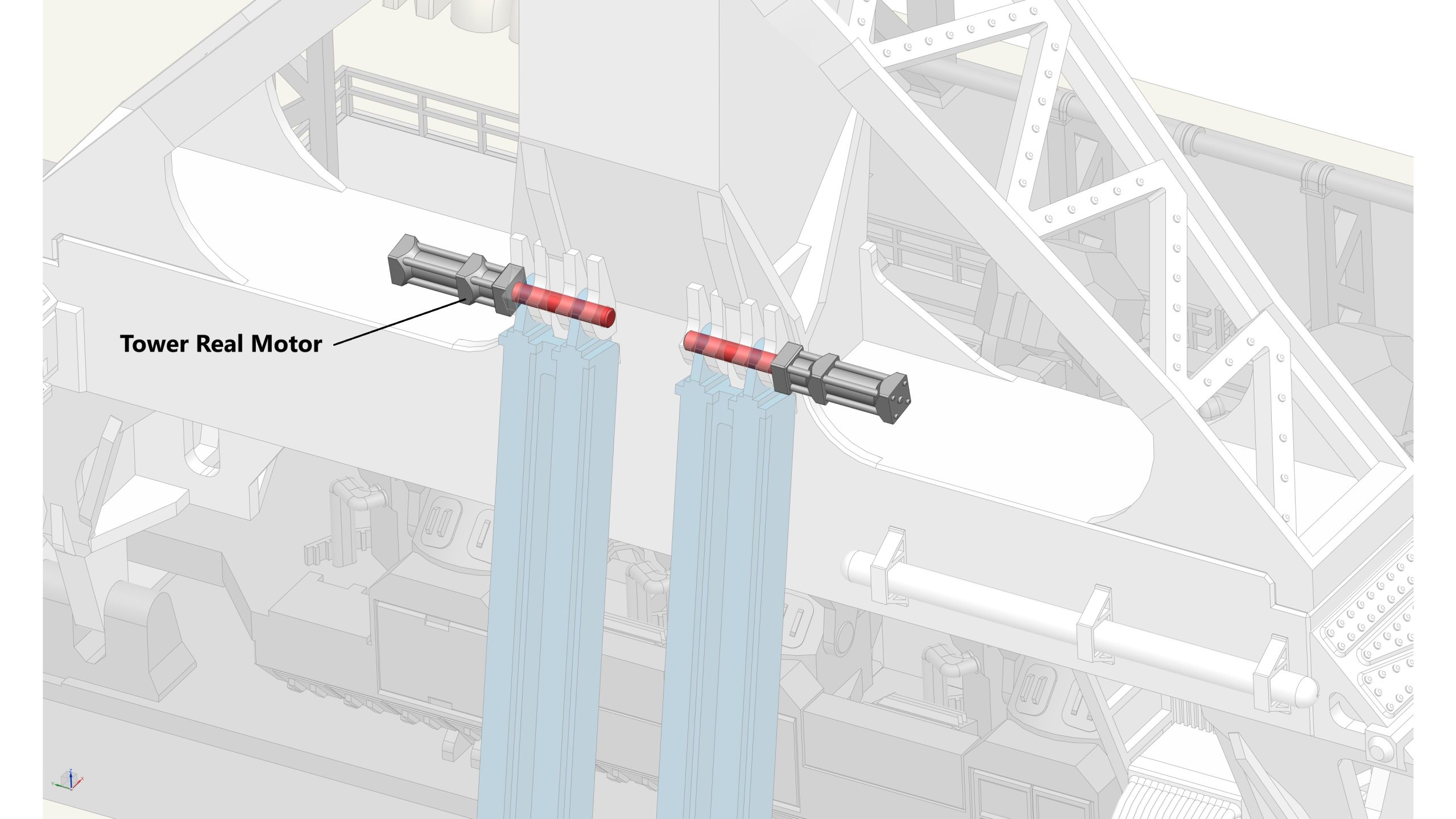

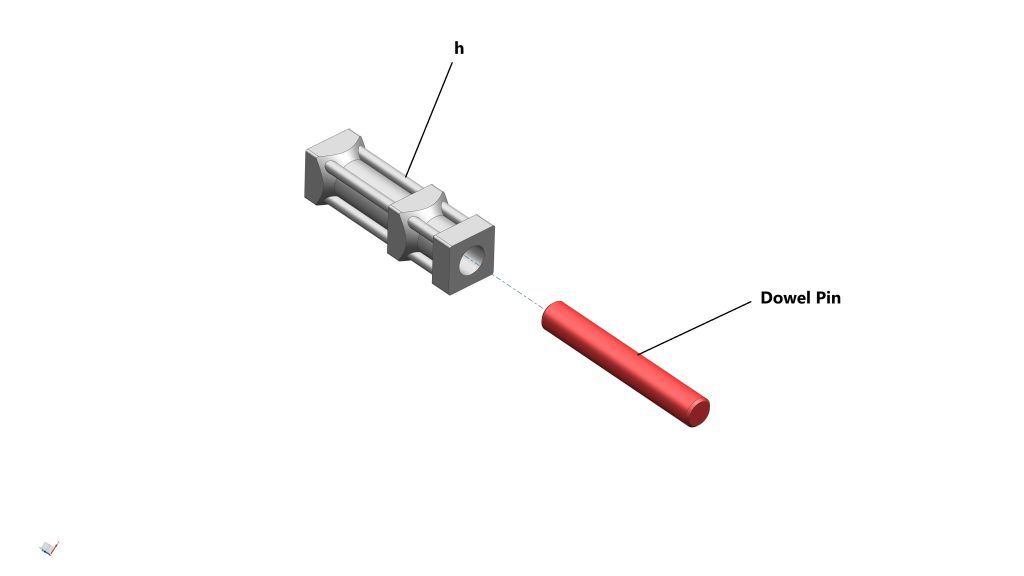

- 2x Tower Rear Motor (h)
- 1x Tower Middle Structure Bracket (i)
- 1x Tower Booster Brace (j)

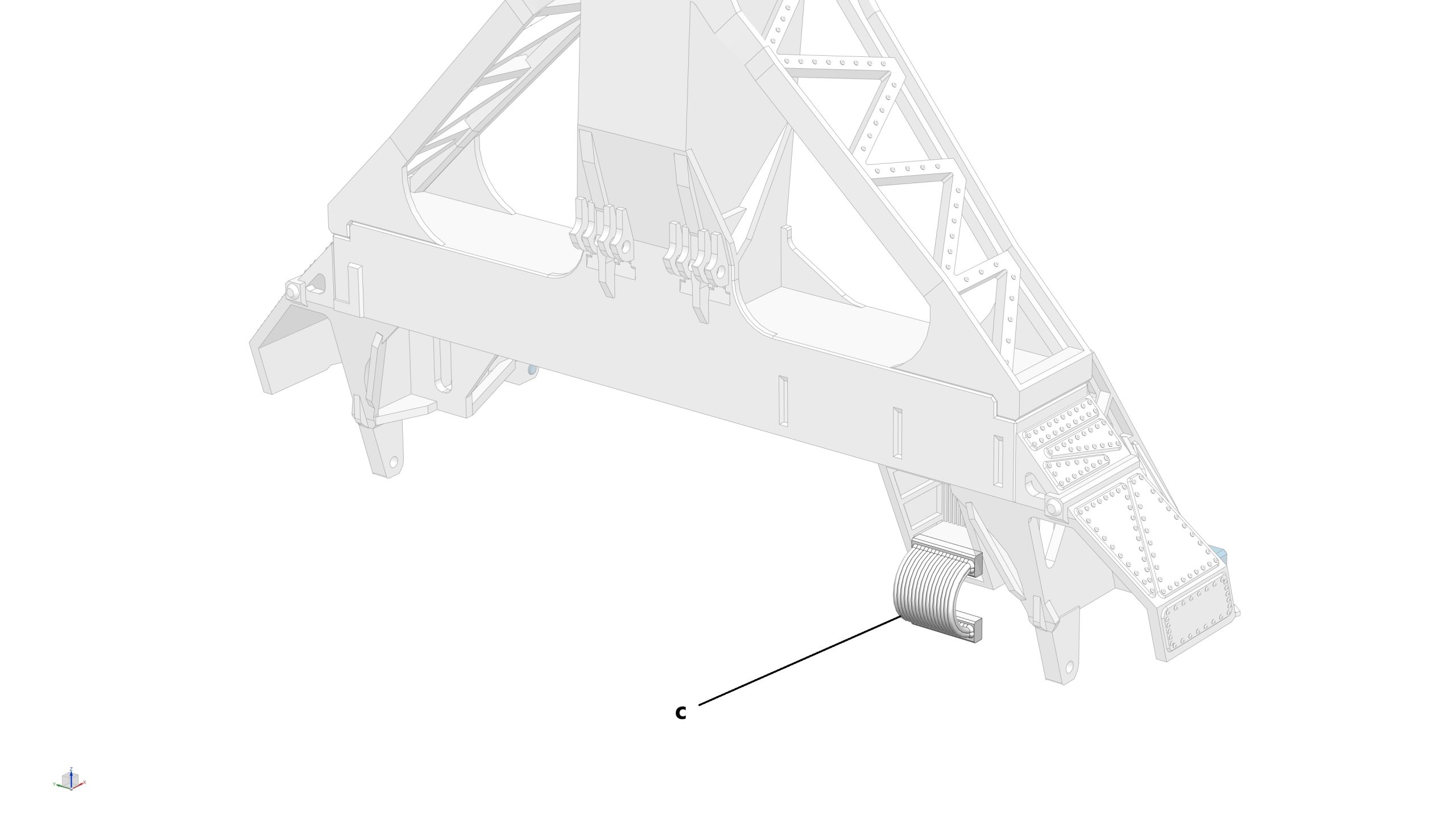

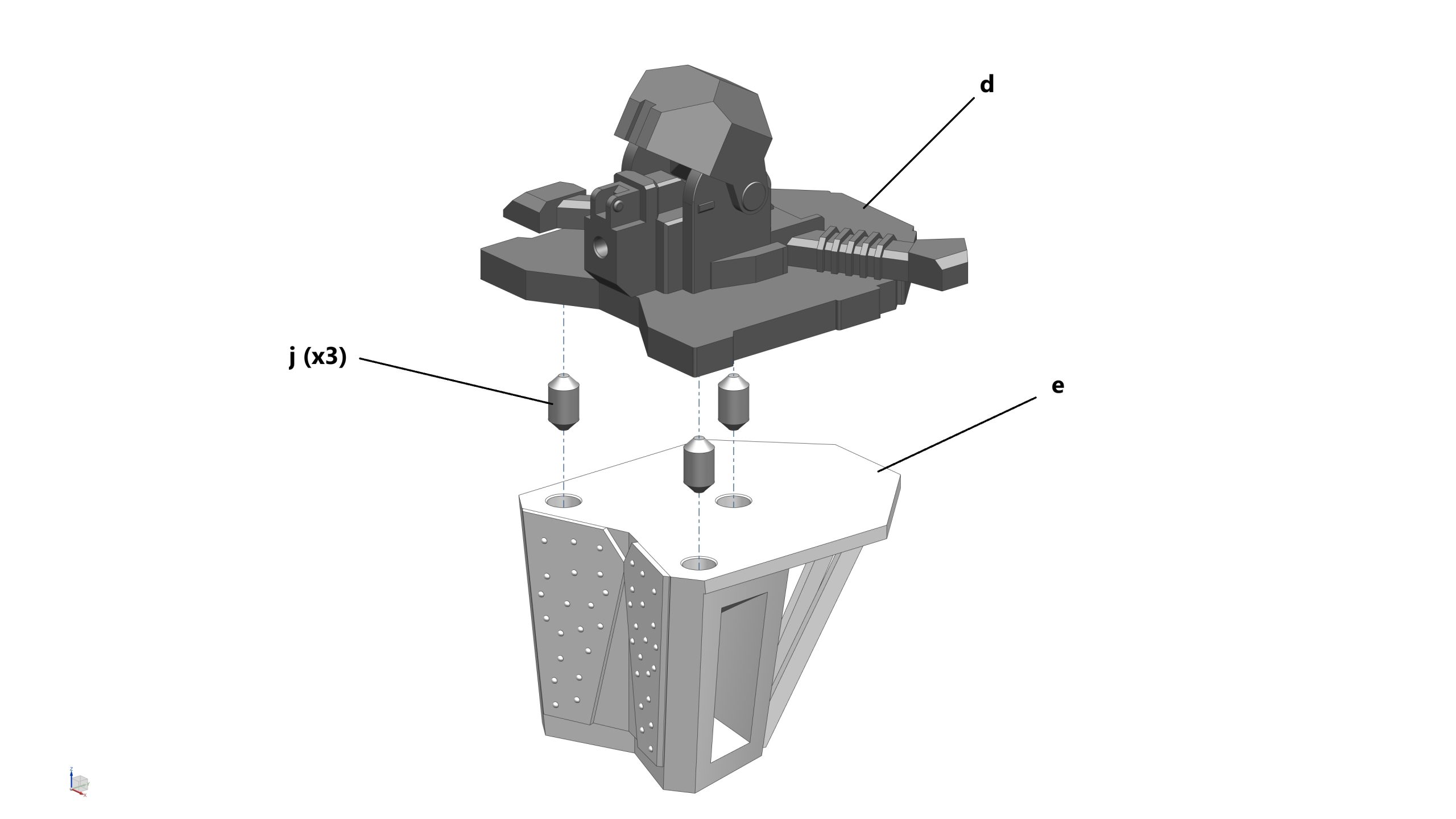

- 1x Tower Claw (k)
- 2x Tower Claw Arm (l)
- 2x Tower Claw Pin (m)

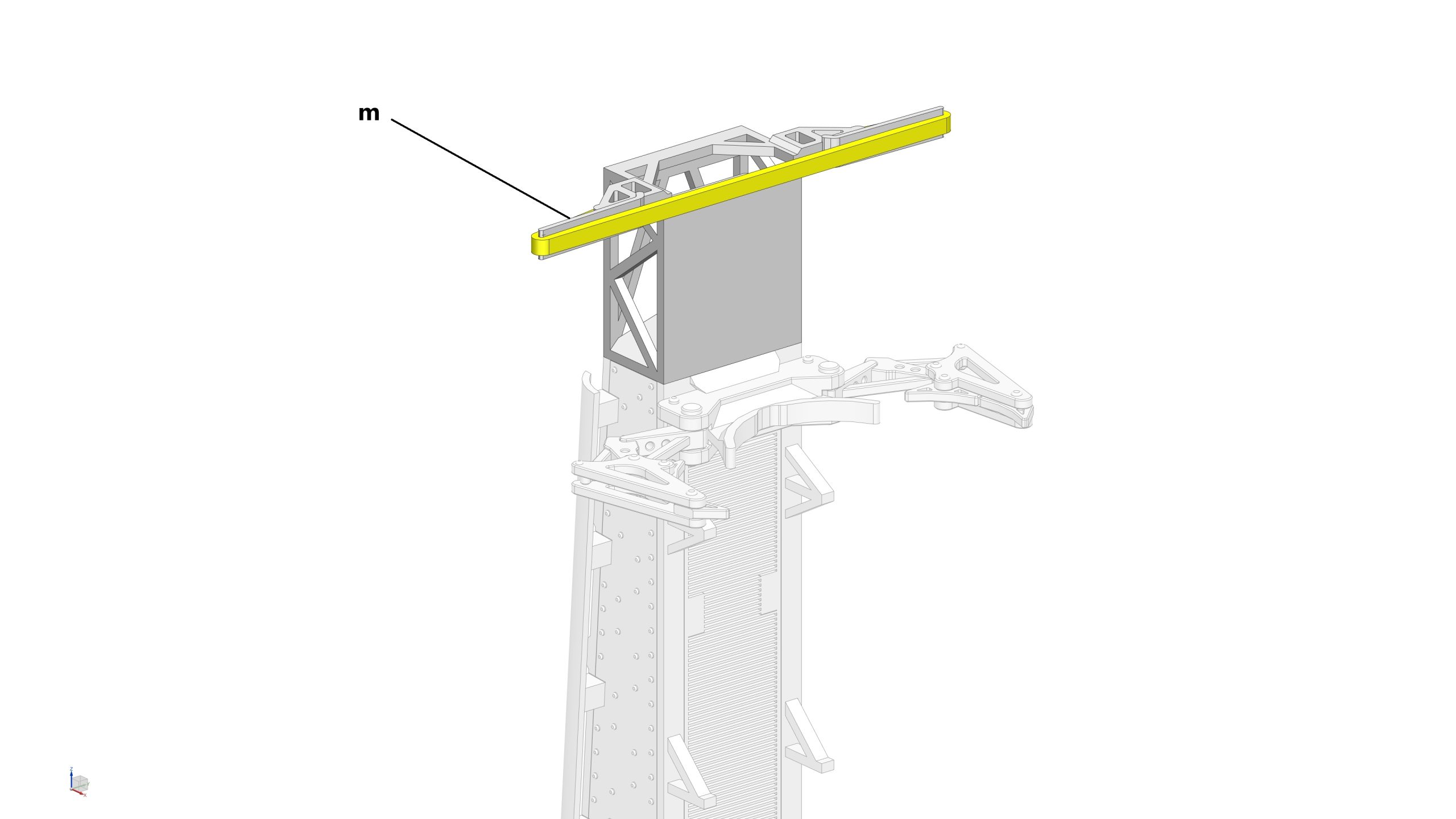

- 1x Tower Crown Structure (m)
- 2x Locating Pin (o)
- 1x Strongback Tower from STEP 7 (p)
- 2x Dowel pins (3mm D x 20mm L) (highlighted in RED)
- 6x Magnets (3mm dia x 2mm thick) (highlighted in RED)
- 8x Magnets (5mm dia x 3mm thick) (highlighted in RED)
Assembly process

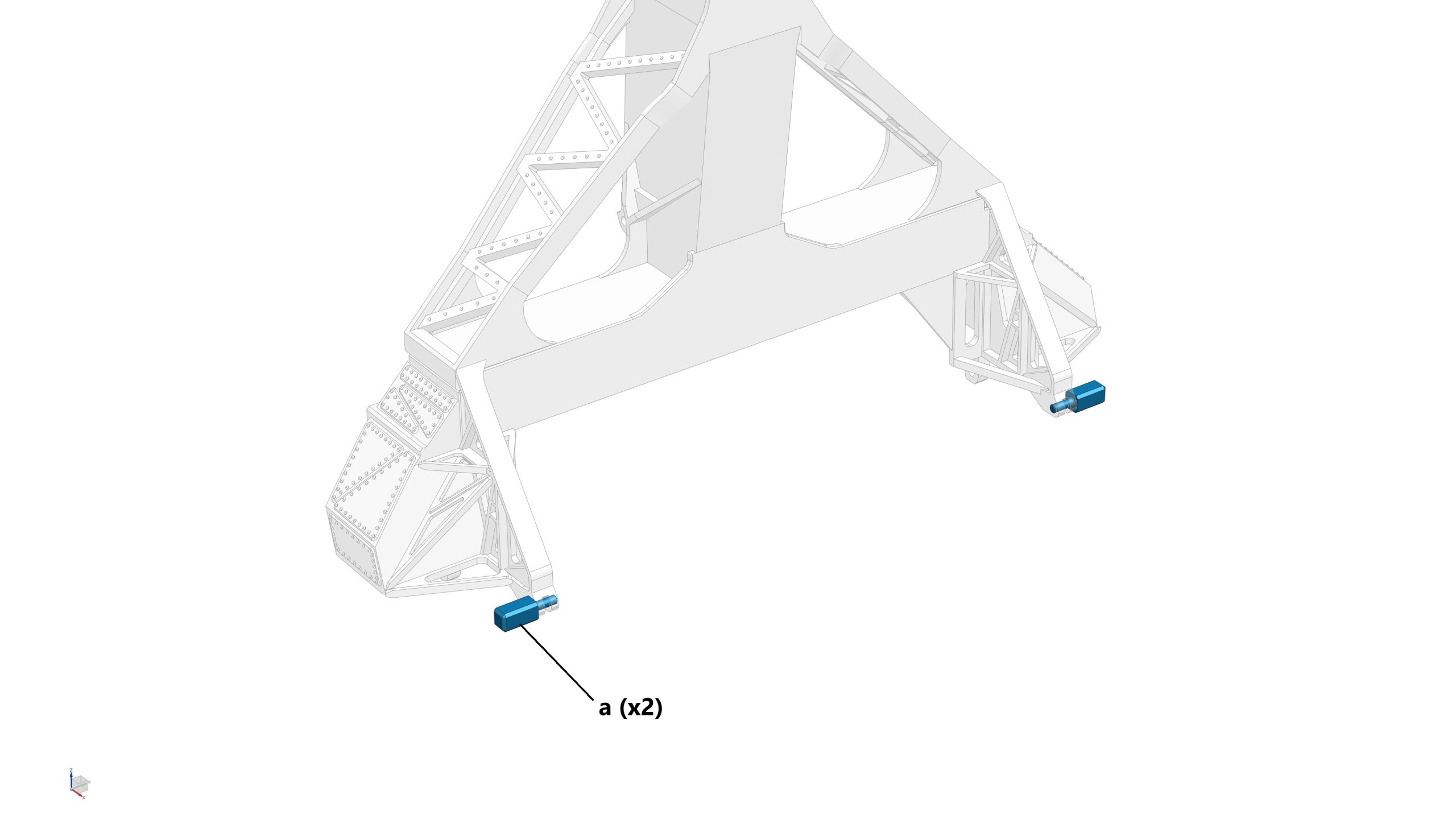

- STEP 8a: Install 2x Tower Locking Pins to the Strongback Tower from STEP 7

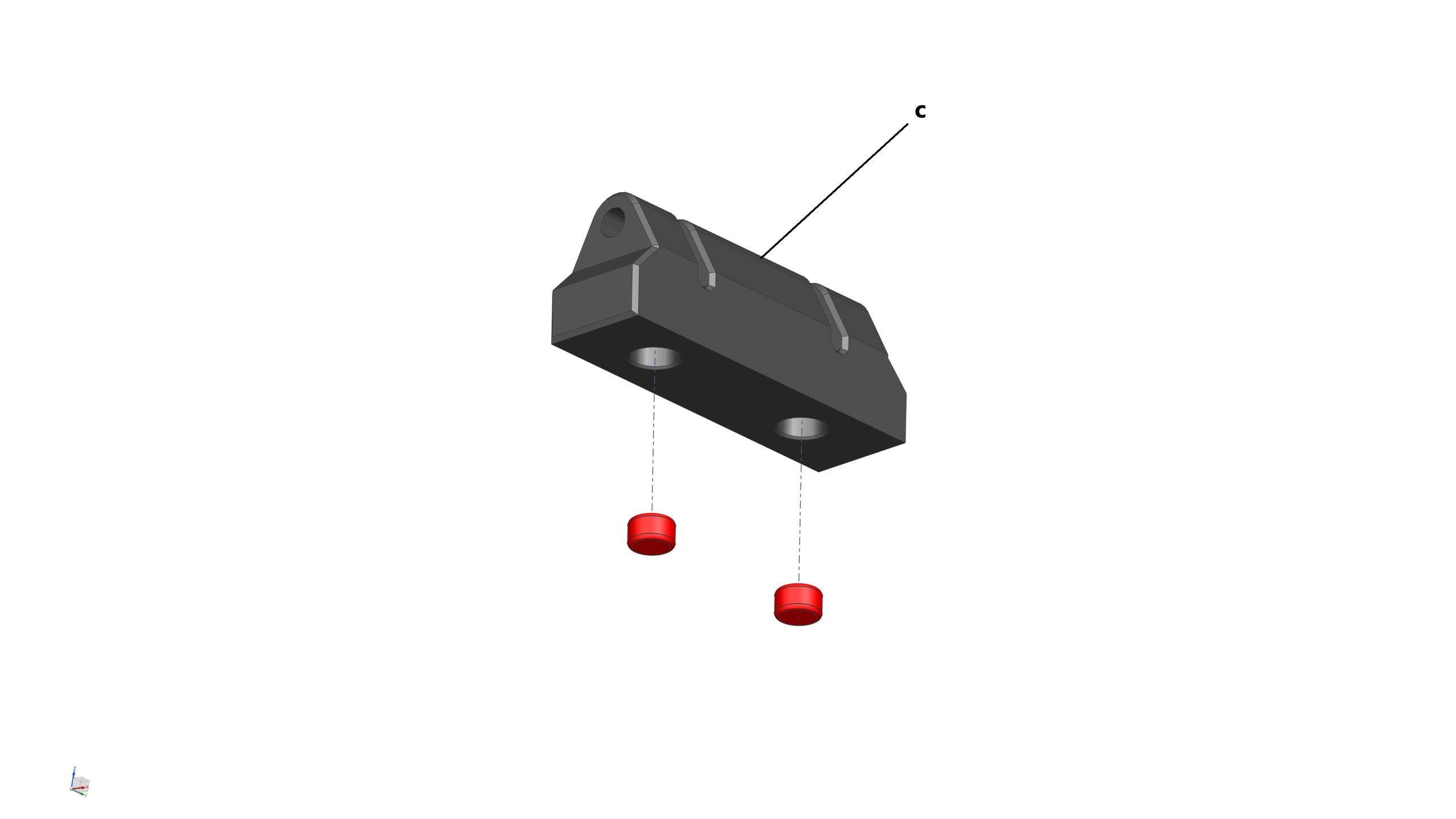

- STEP 8b: Glue 1x magnet (3mm dia x 2mm thick) into its pocket on the back face of the Tower Electrical Box
- STEP 8c: Glue the Tower Electrical Box to the Strongback Tower
- STEP 8d: Glue 2x magnets (3mm dia x 2mm thick) into their locations on the back face of the Tower C Wire Bundle

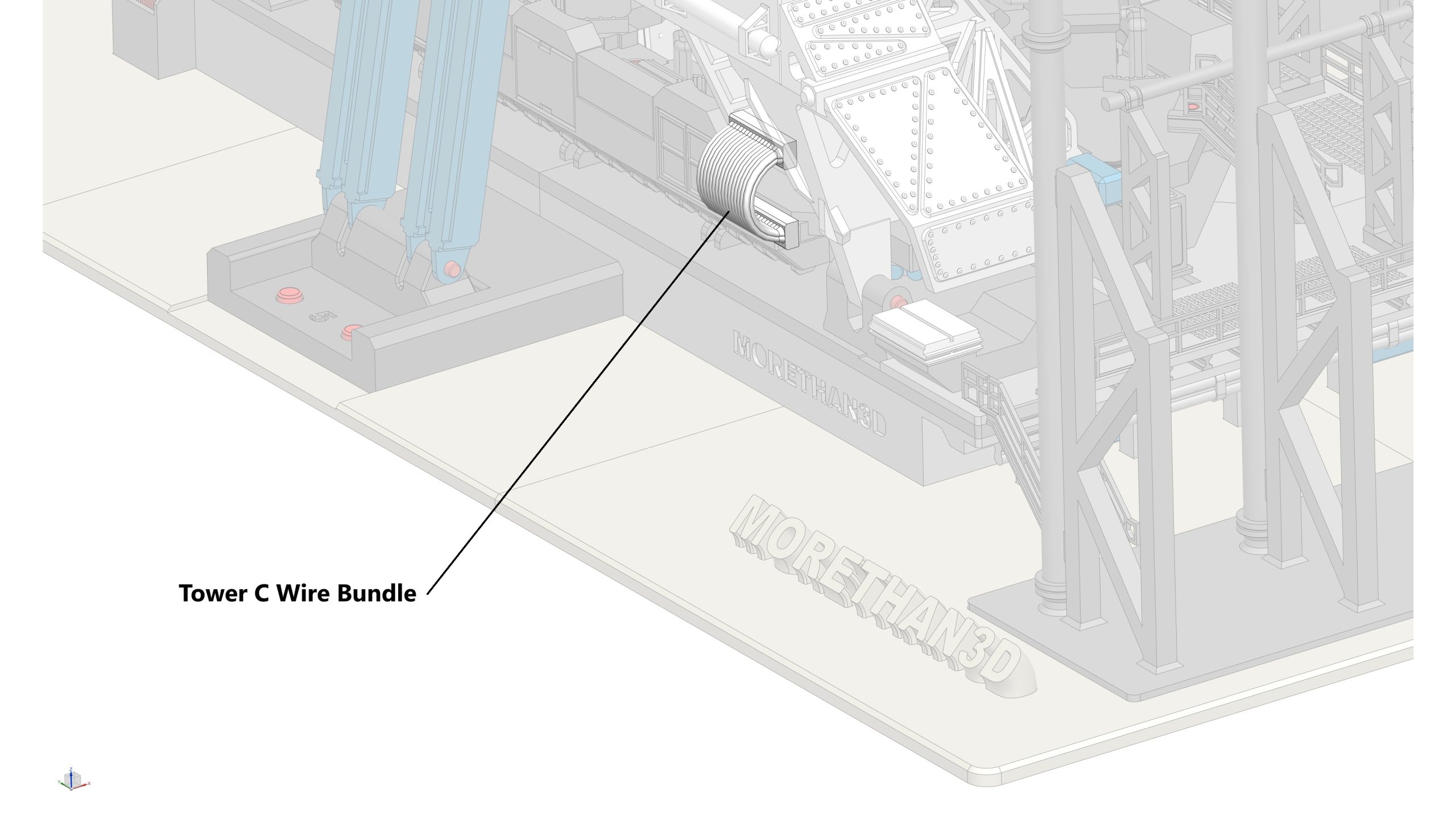

- STEP 8e: Install the Tower C Wire Bundle to the Tower Electrical Box
Please note: DO NOT glue the Tower C Wire Bundle to the Tower Electrical Box. Otherwise, the Tower won’t be able to tilt backward
- STEP 8f: Glue 2x magnets (5mm dia x 3mm thick), and 1x magnet (3mm dia x 2mm thick) into their locations on the Tower Electrical Cable Chute Top & Bottom

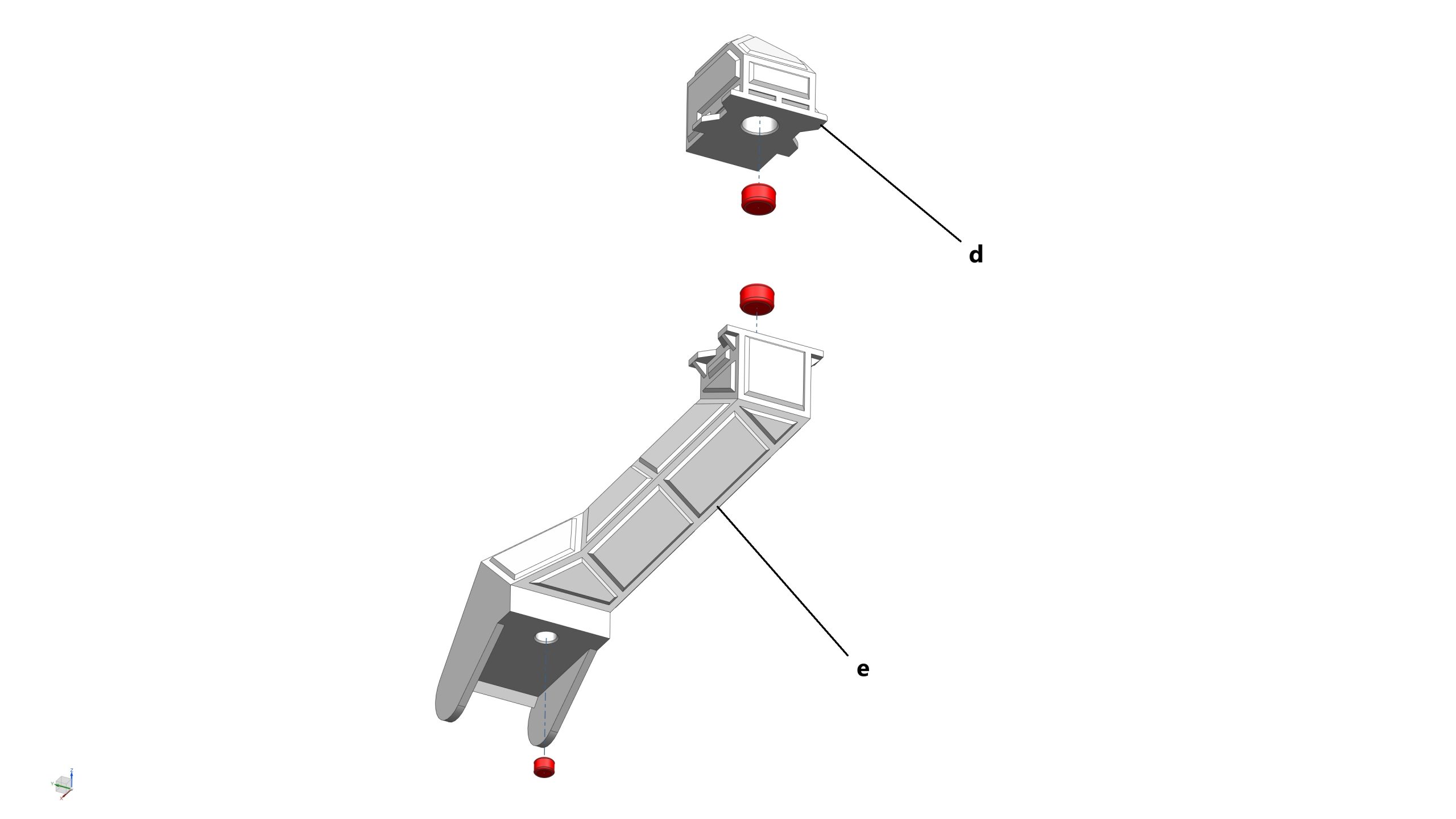

Please note: You could glue the Tower Electrical Cable Chute Top & Bottom rather than using magnets but it is NOT recommended
- STEP 8g: Glue the Tower Electrical Cable Chute Top to the Strongback Tower
Please note: DO NOT glue the Tower Electrical Cable Chute Bottom to the Strongback Tower (unless you glue the Top & Bottom together above)
- STEP 8h: Glue 2x magnets (3mm dia x 2mm thick) into their locations at both ends of the Tower Electrical Cables

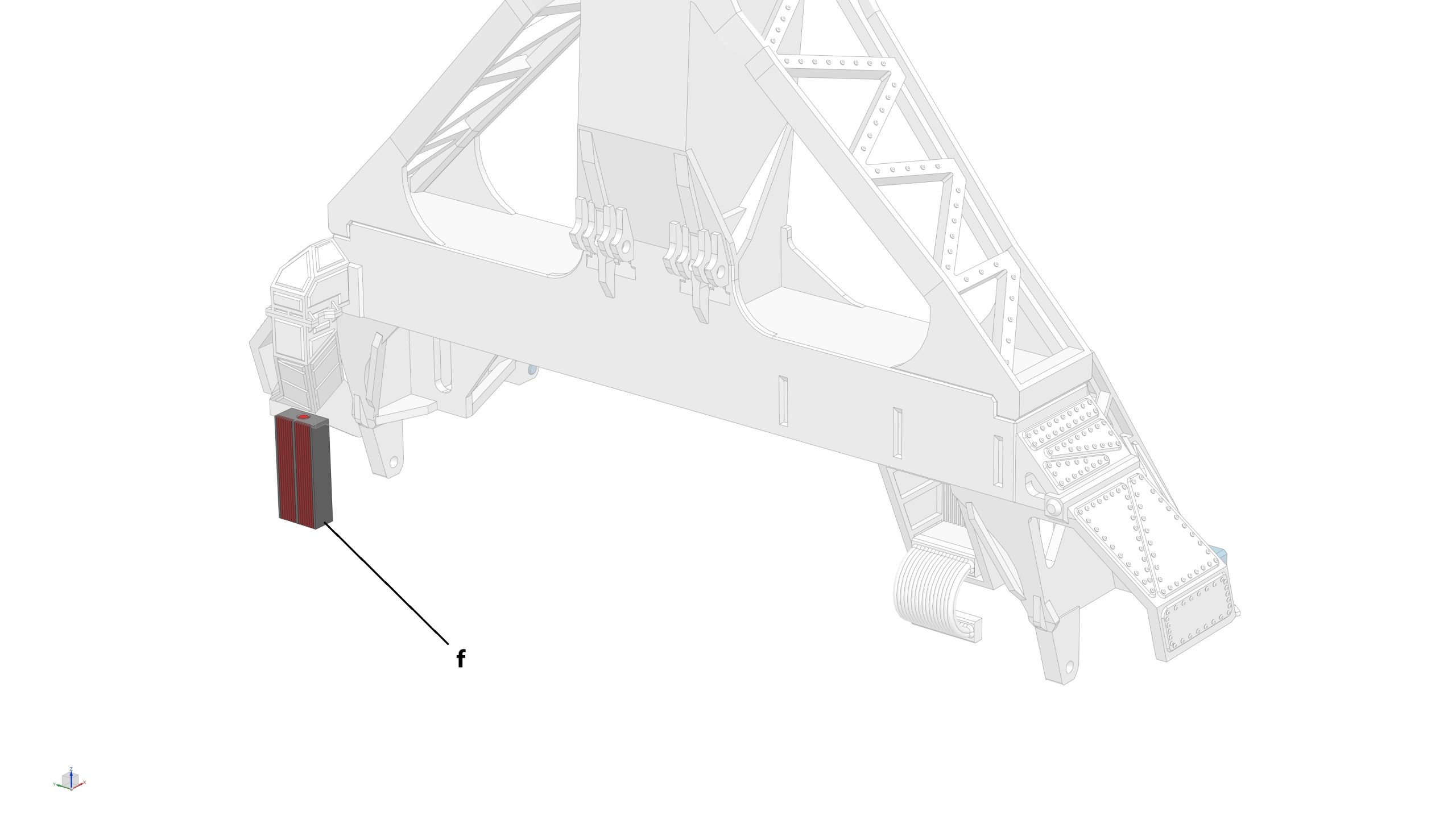

- STEP 8i: Install the Tower Electrical Cables to the Tower Electrical Cable Chute
- STEP 8j: Glue the Tower Rear Tank to the Strongback Tower

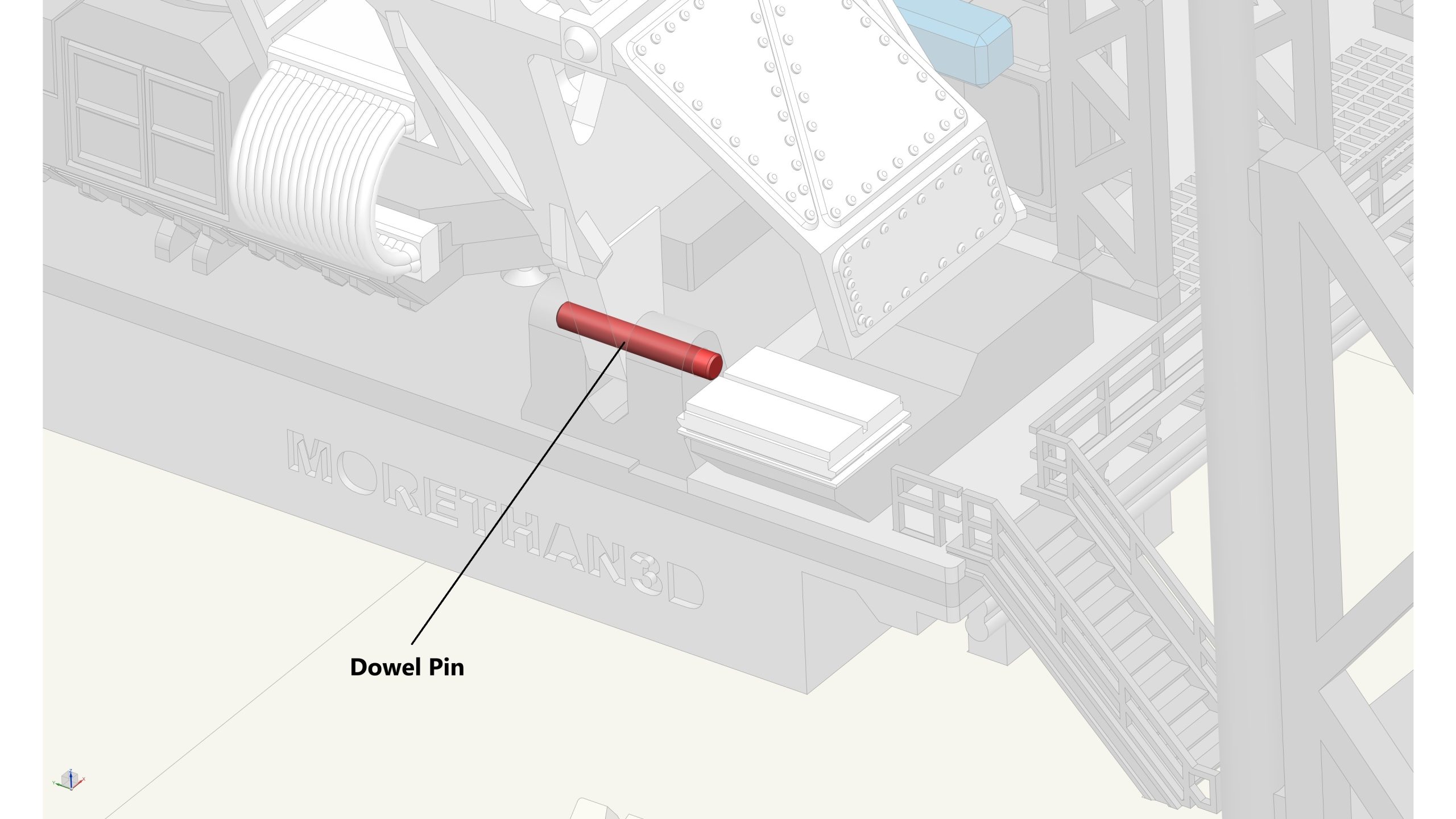

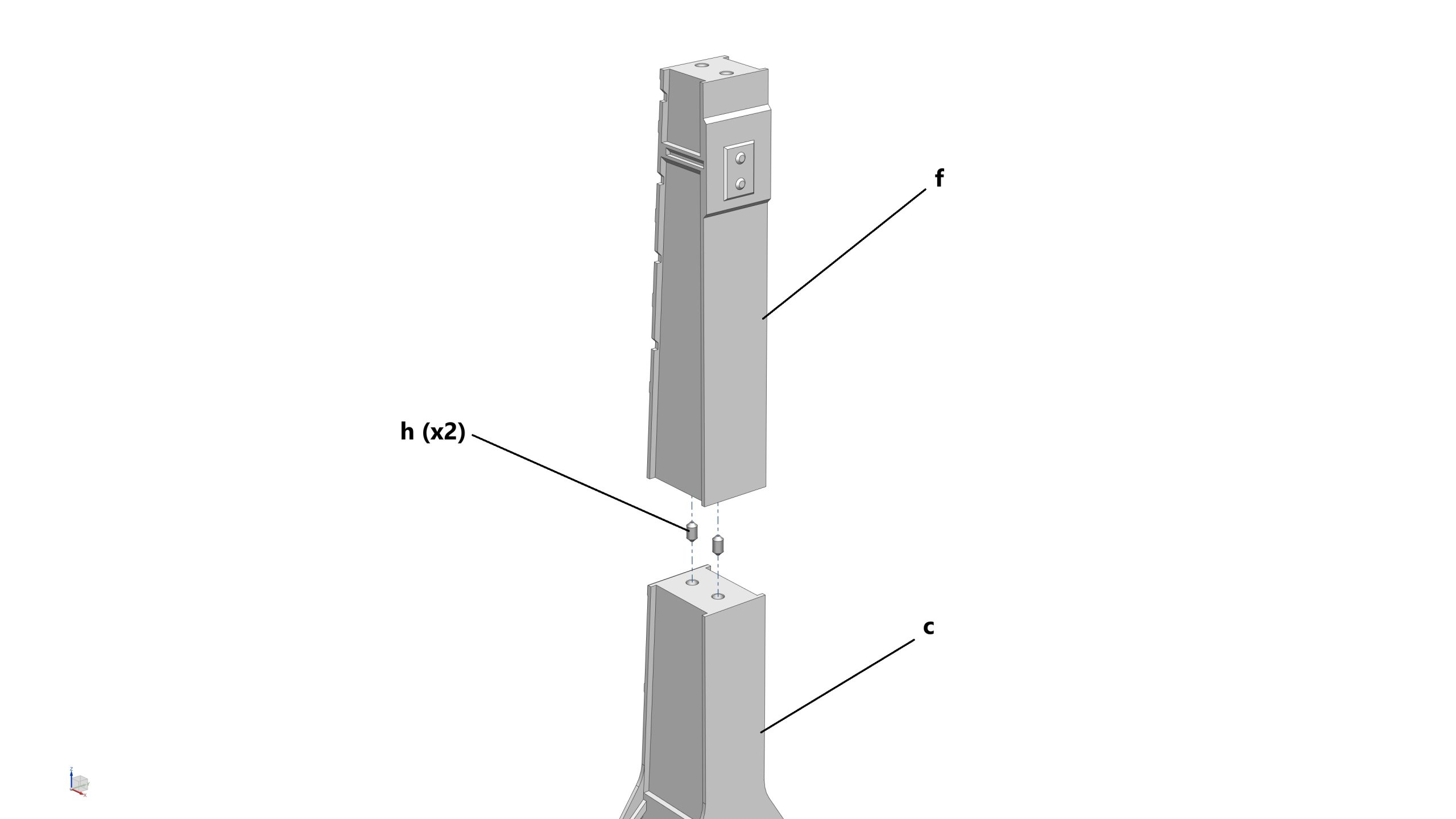

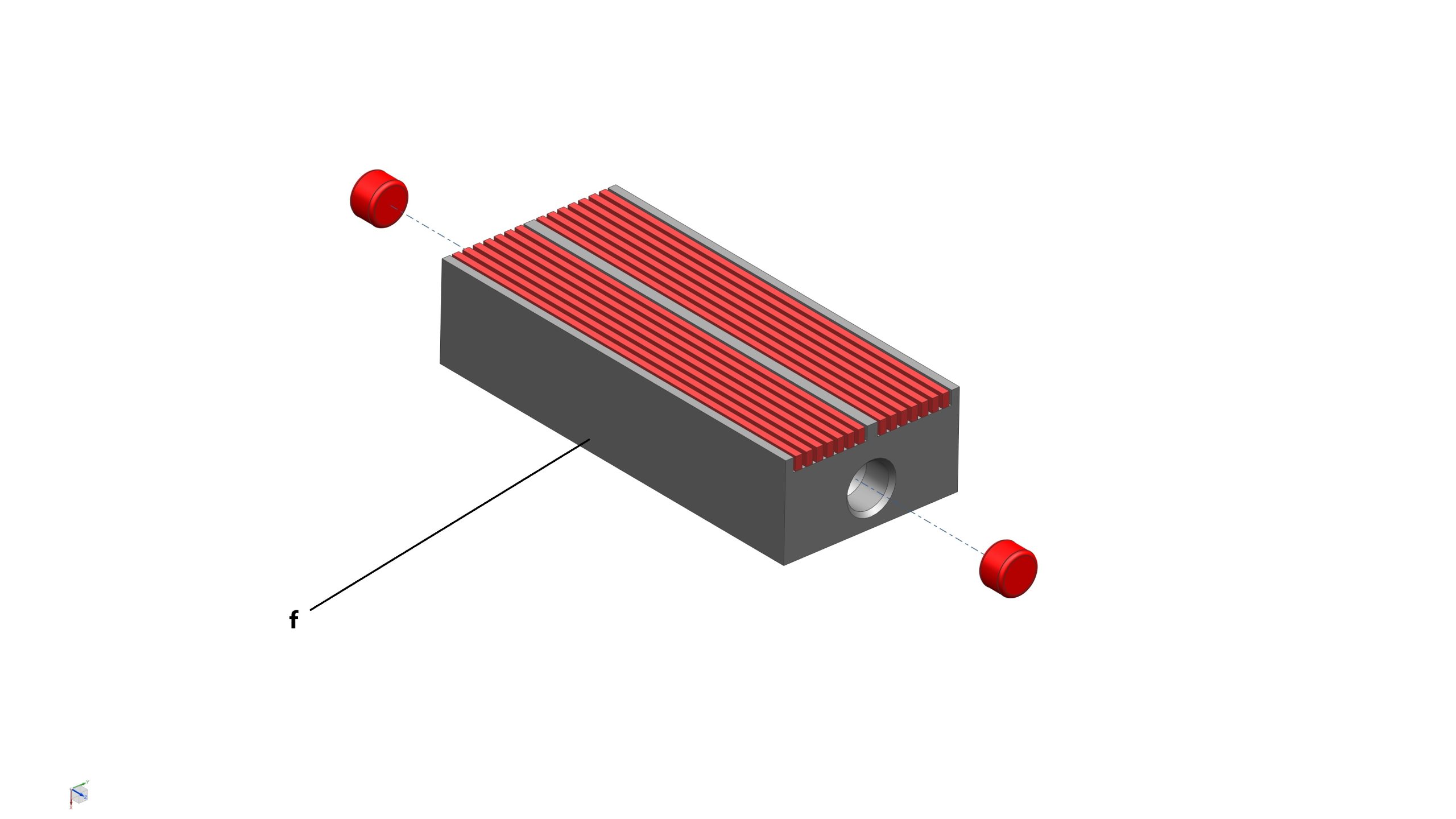

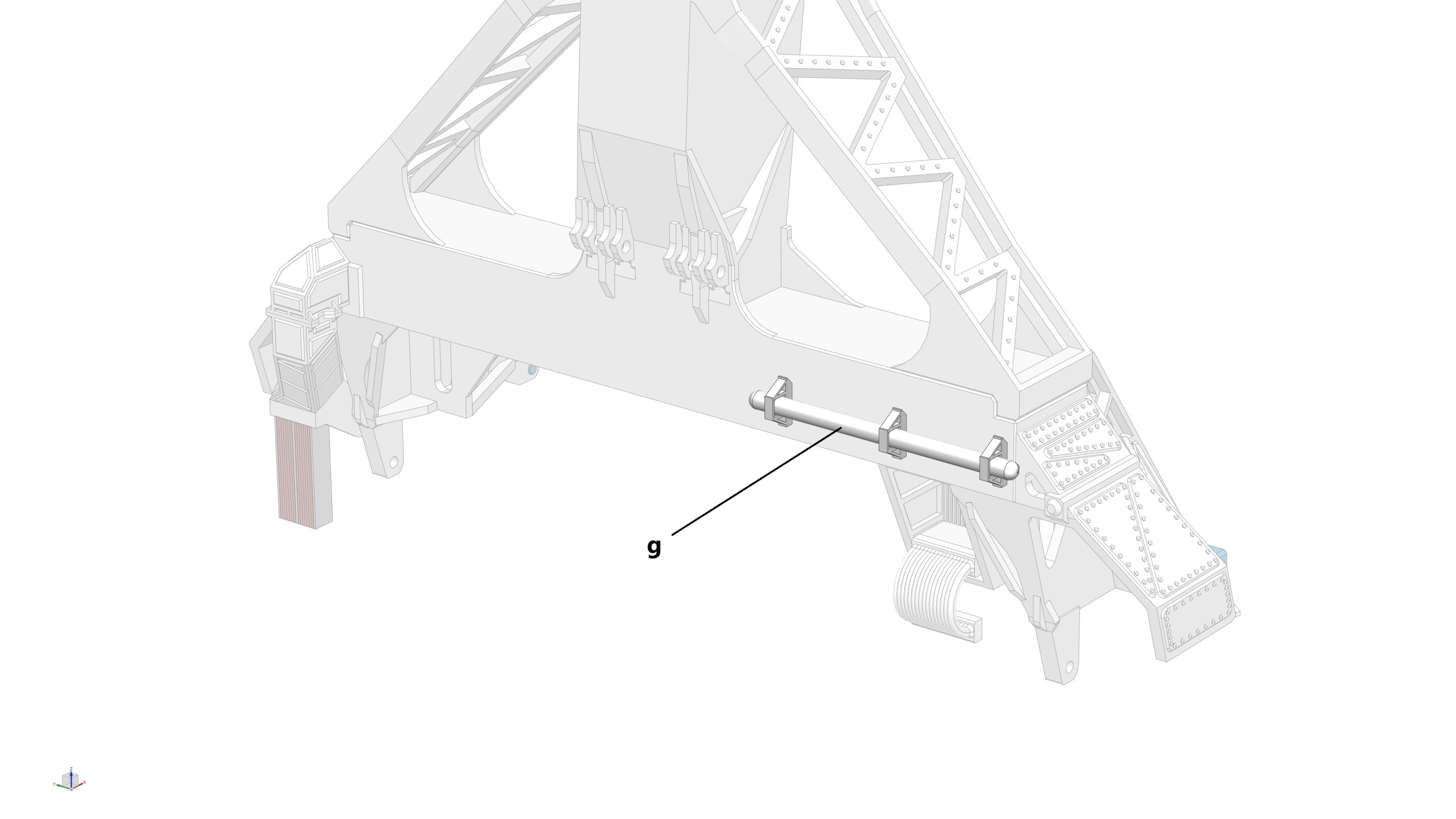

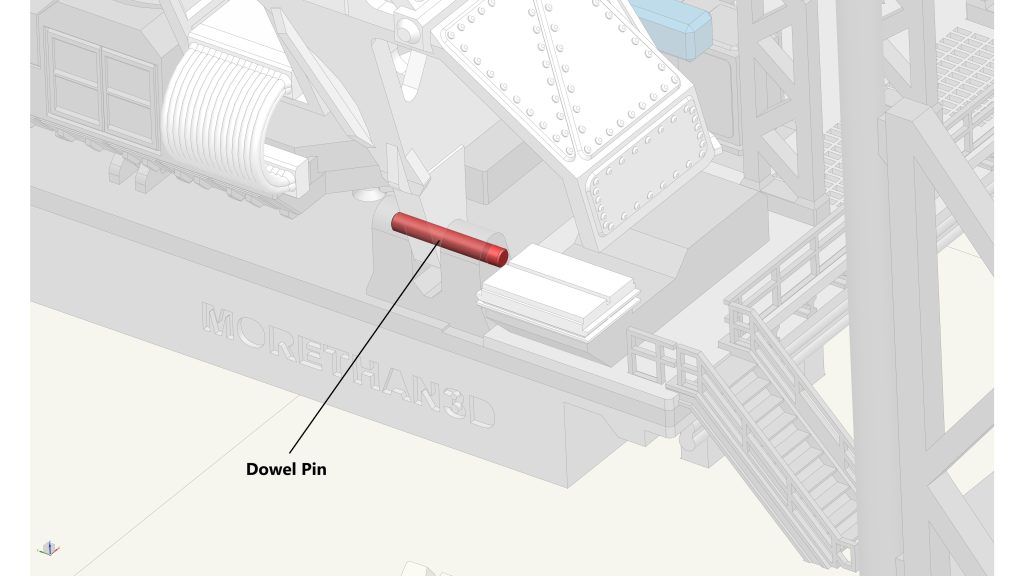

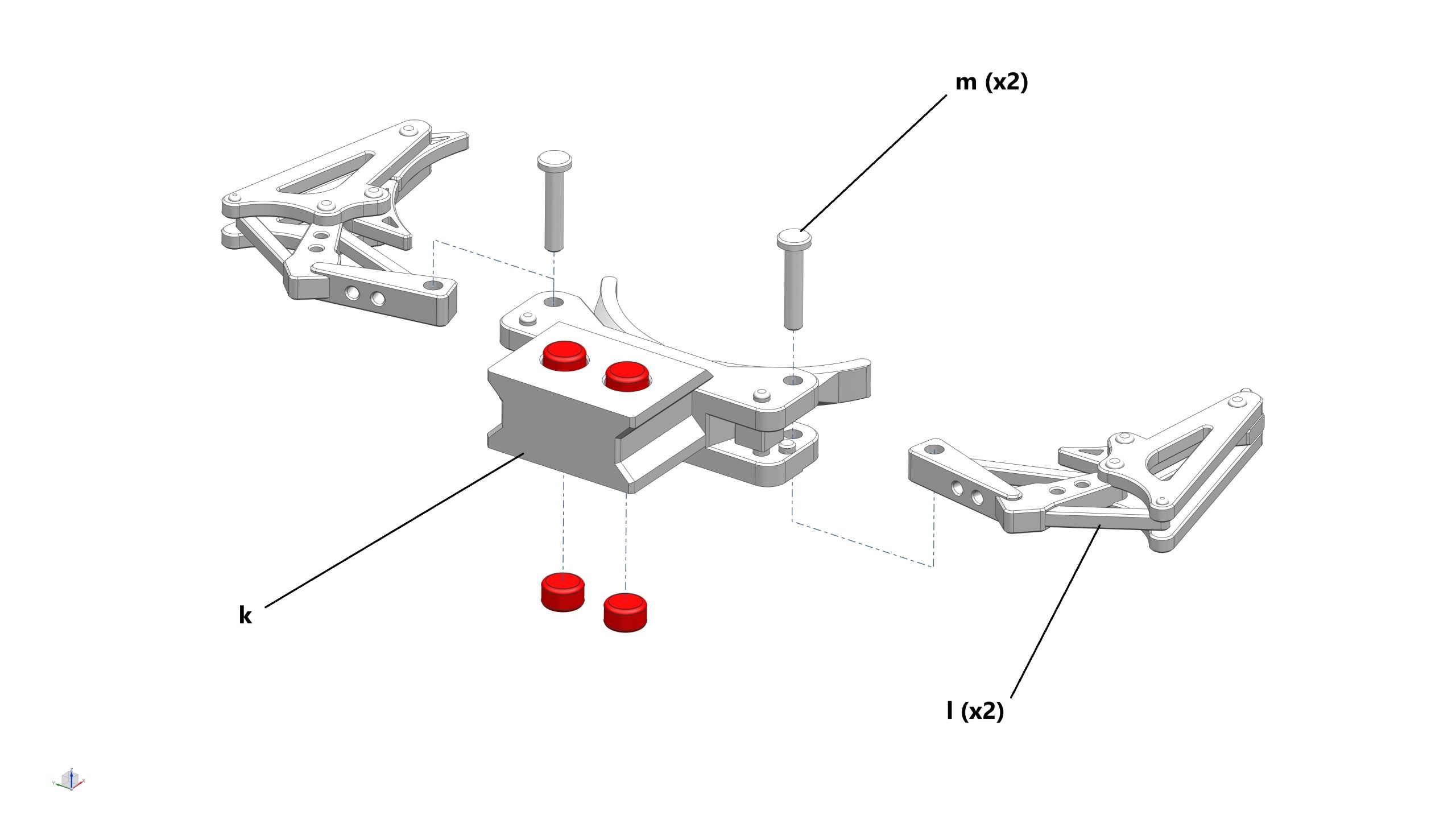

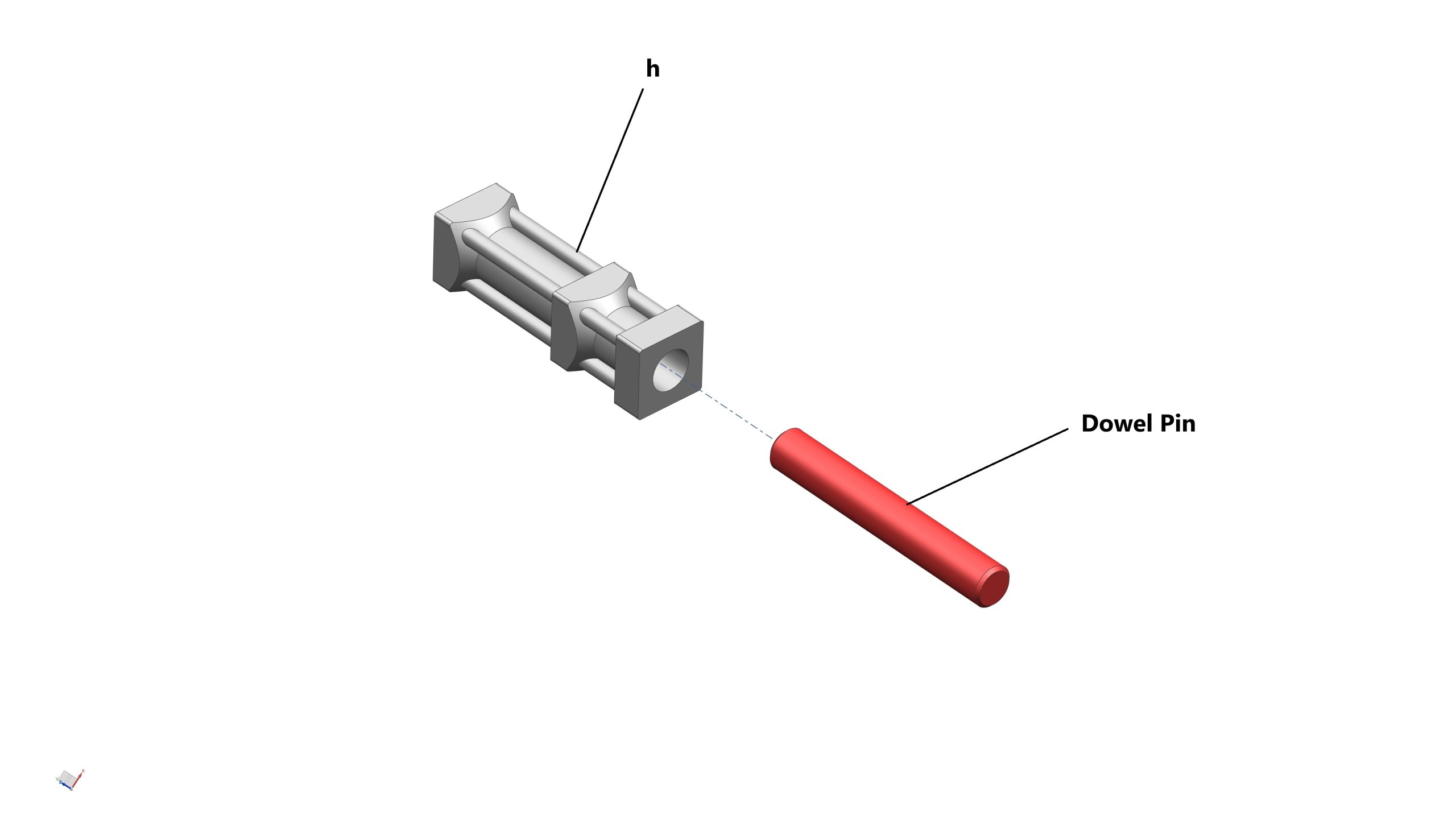

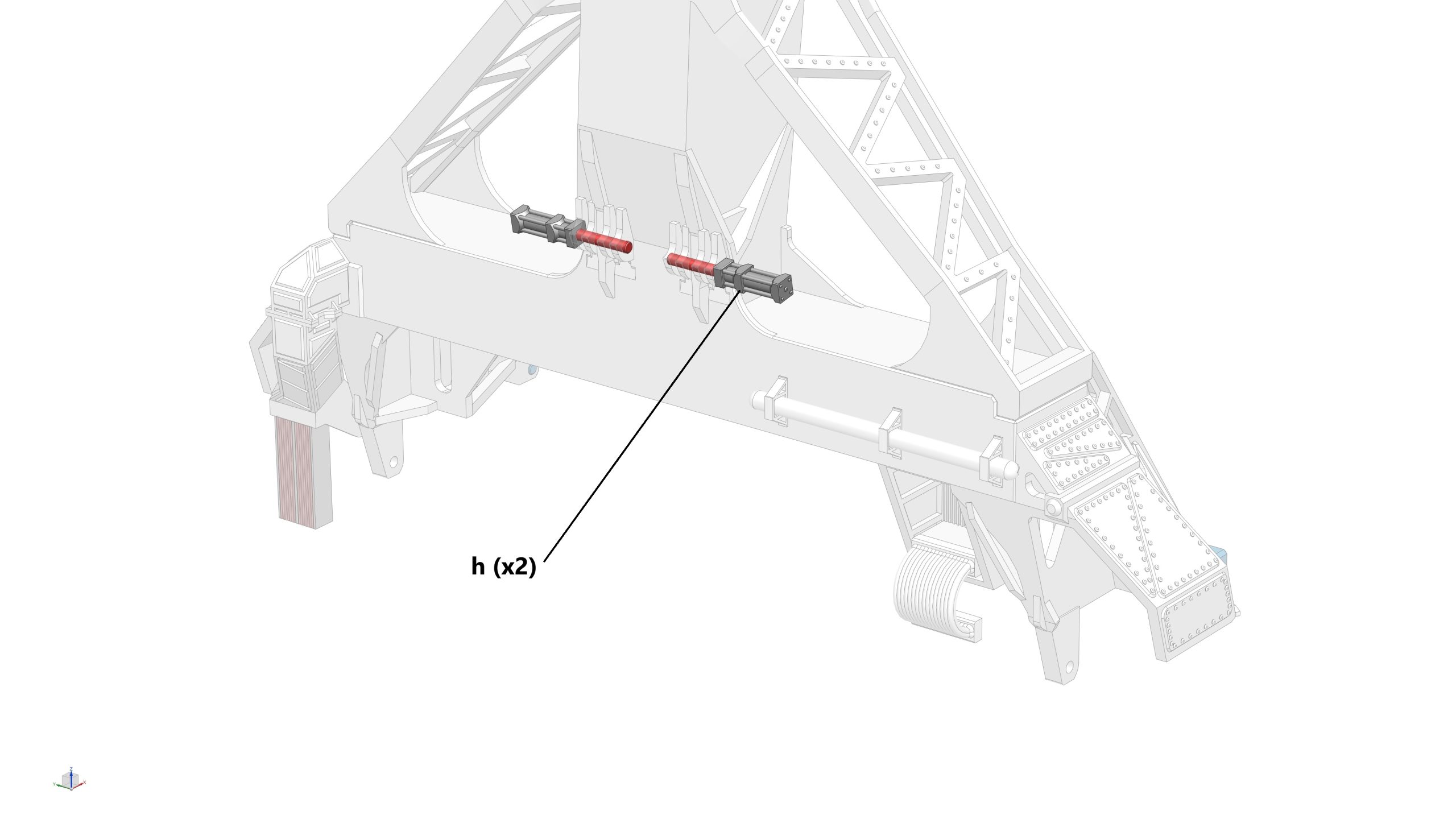

- STEP 8k: Glue a Dowel pins (3mm D x 20mm L) into the hole on each Tower Rear Motor
- STEP 8l: Install both Tower Rear Motors to the Strongback Tower

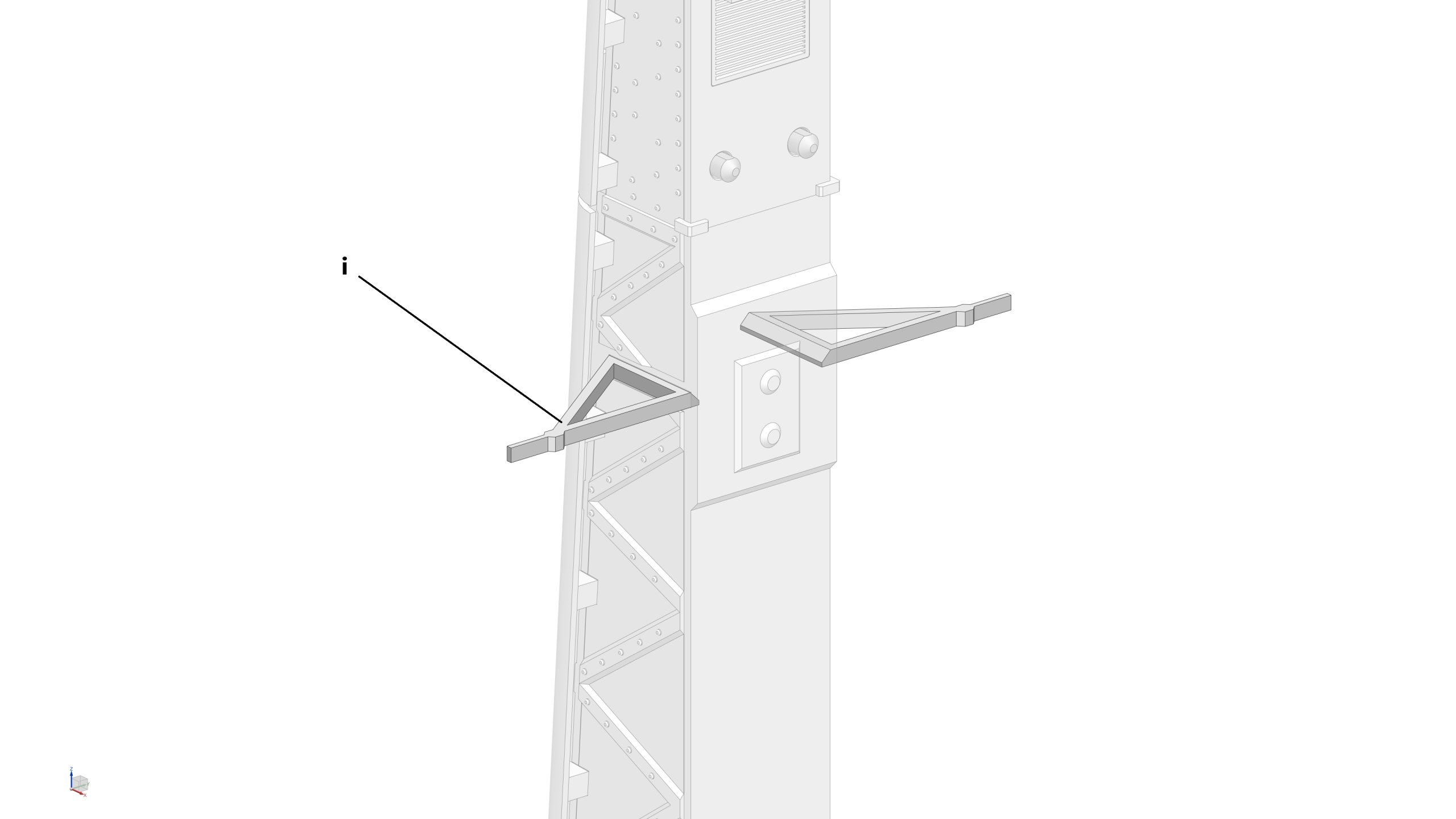

- STEP 8m: Glue the Tower Middle Structure Brackets to the Tower Middle Structure
- STEP 8n: Glue the Tower Booster Brace to the Tower Top Structure. Use 2x Locating Pin for alignment.

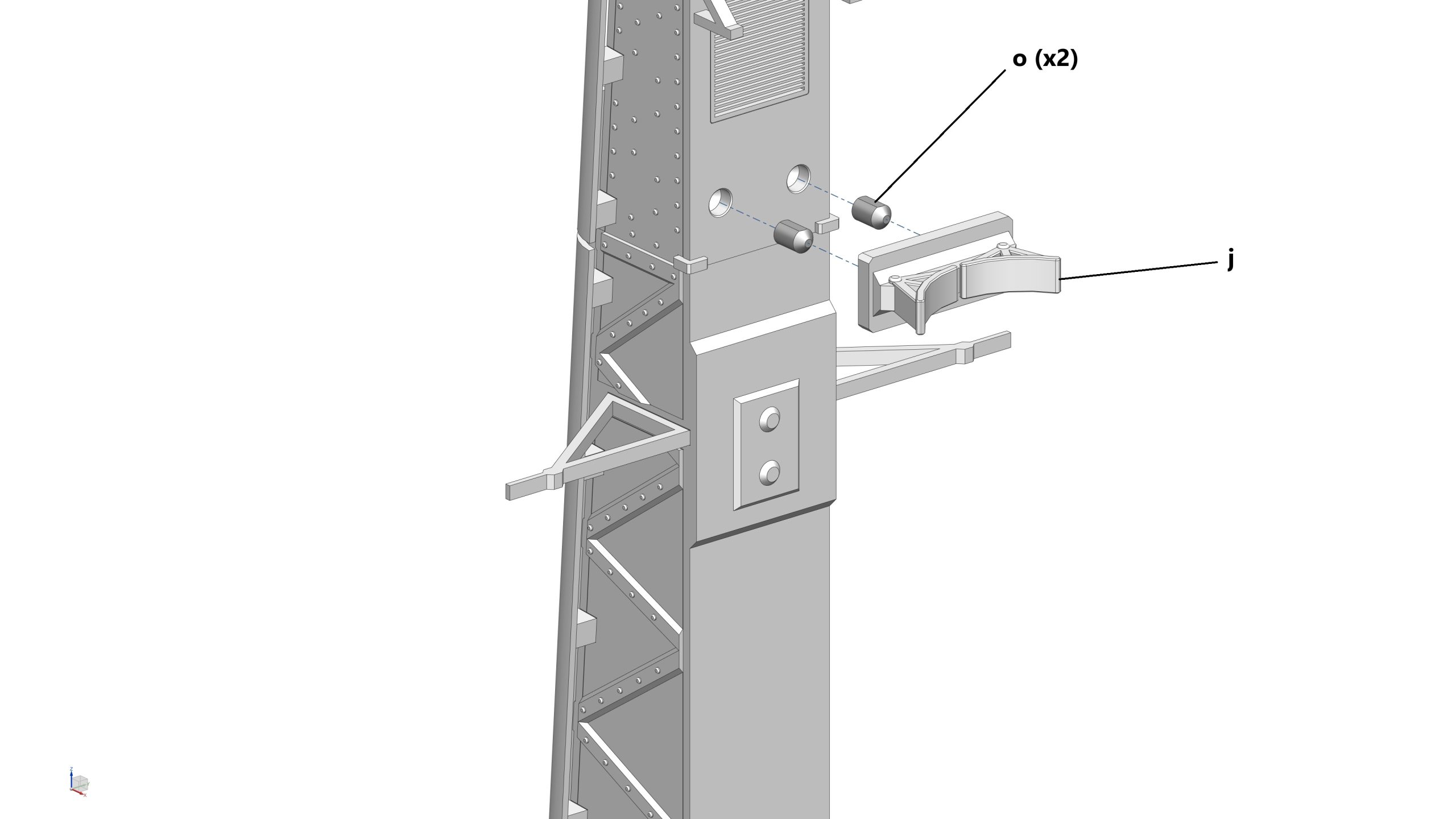

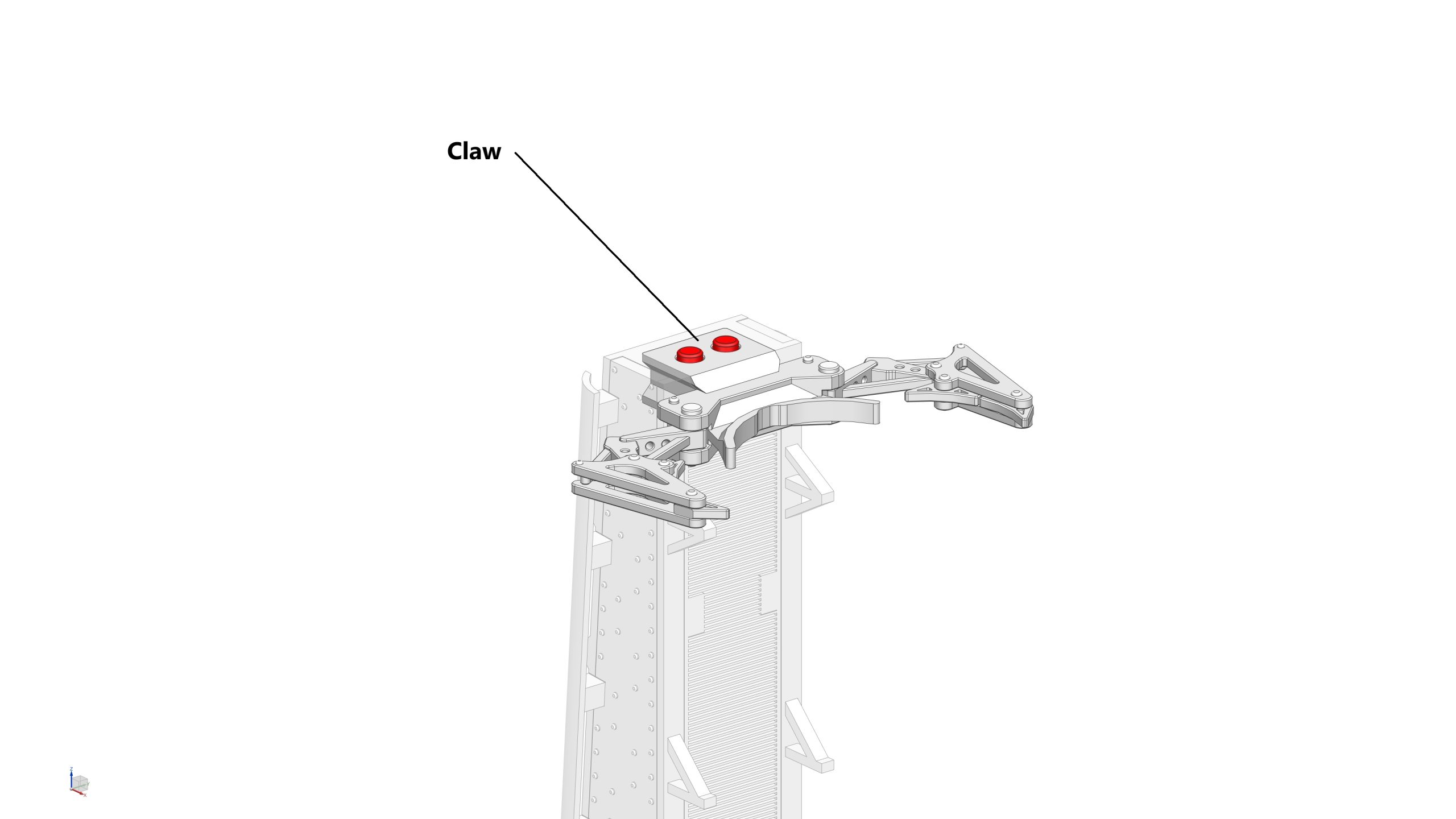

- STEP 8o: Glue 4x magnets (5mm dia x 3mm thick) into their locations on top (x2) and bottom (x2) faces of the the Tower Claw. Then install the 2x Tower Claw Arms using 2x Tower Claw Pins.
Please note: The 2x magnets located on the top face of the Tower Claw protrude out about 1.5mm

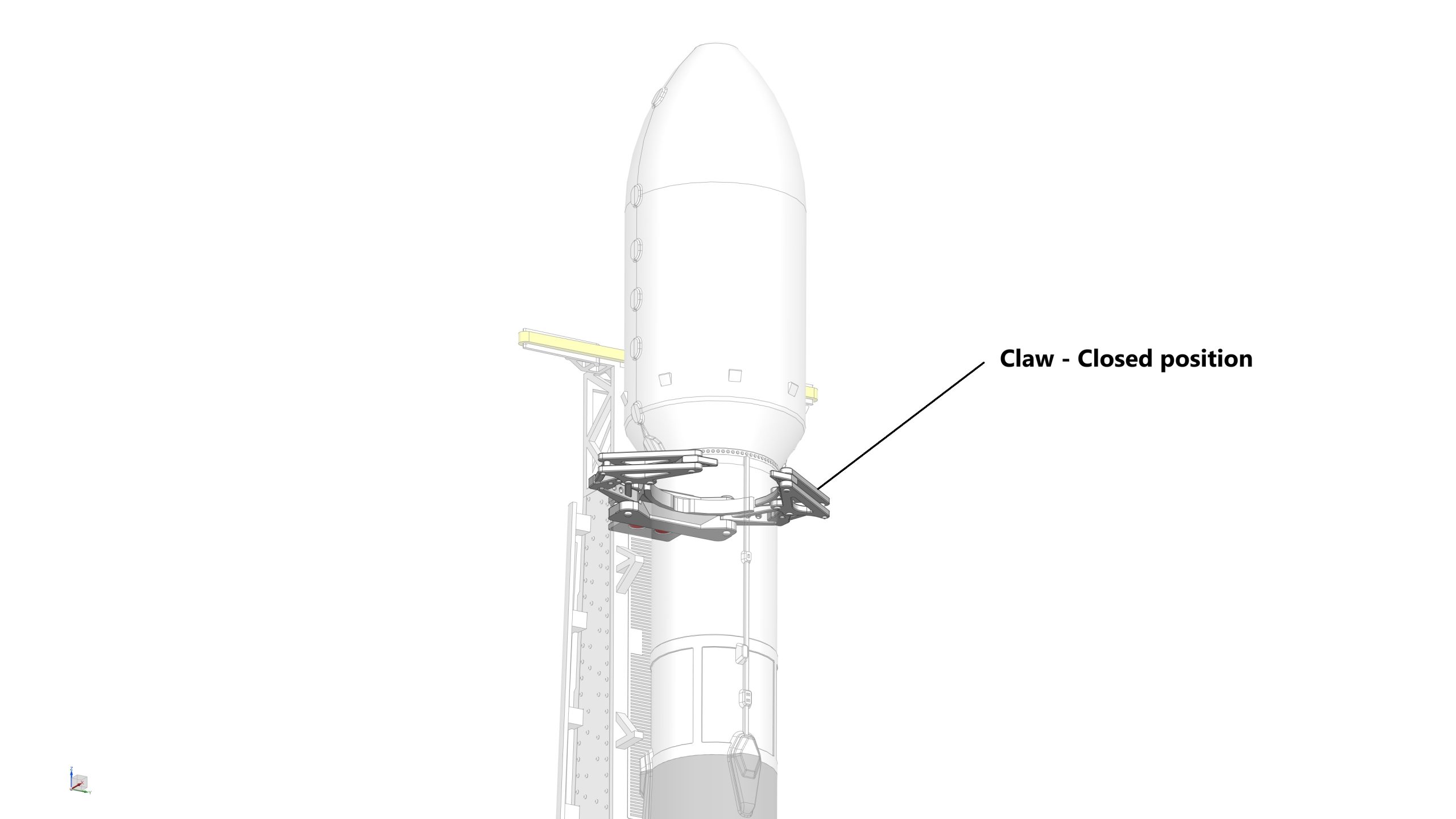

- STEP 8p: Install the Claw Assembly to the Tower Top Structure

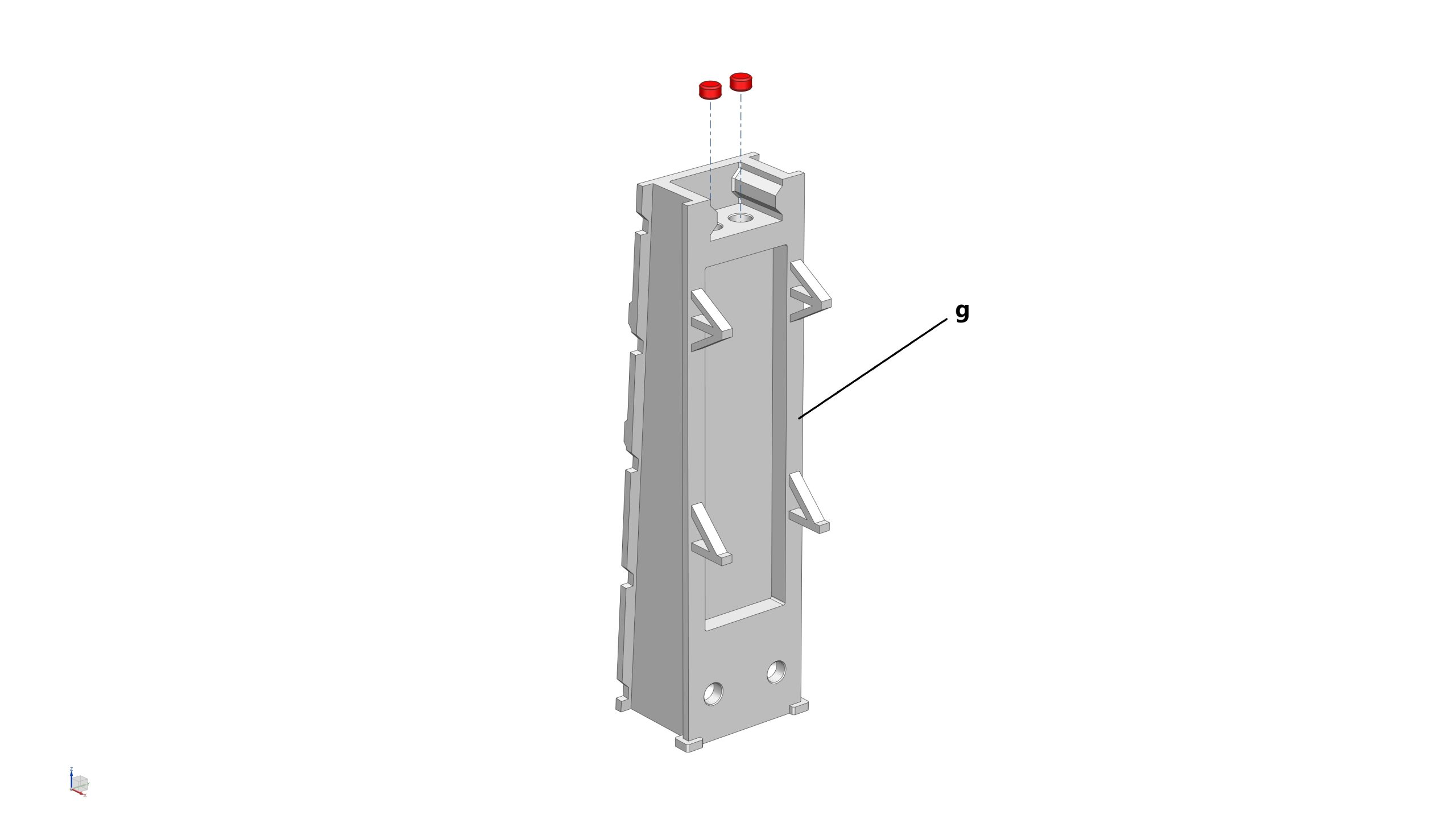

- STEP 8q: Glue 2x magnets (5mm dia x 3mm thick) into their locations at the bottom face of the Tower Crown Structure
Please note: These 2x magnets need to be pushed all the way in. The top of each magnet should sit 1.5mm below the top of the hole.
- STEP 8r: Install the Tower Crown Structure to the Tower Top Structure
STEP 9: Assemble the Strongback
Parts required (refer to the photos below)

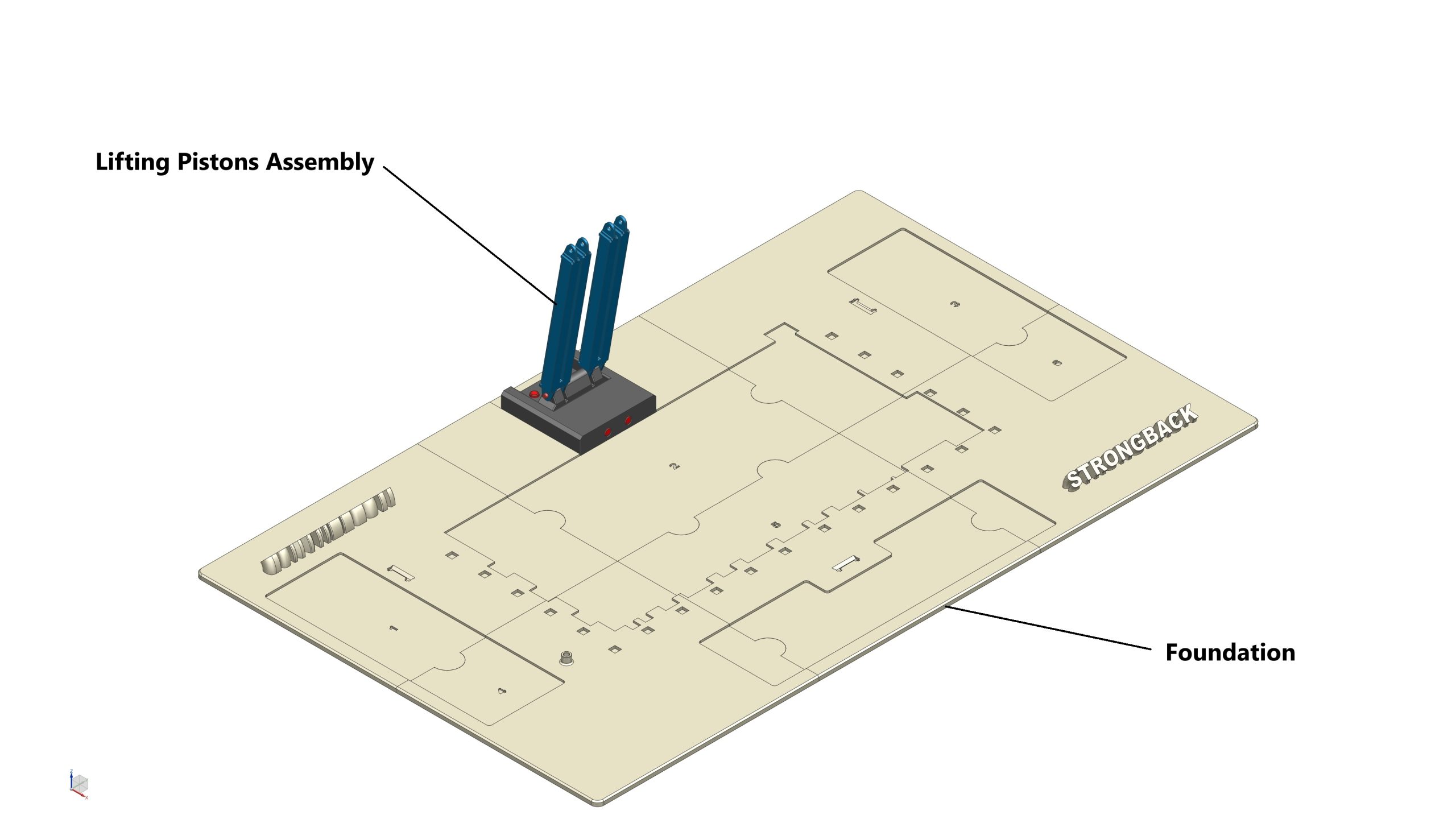

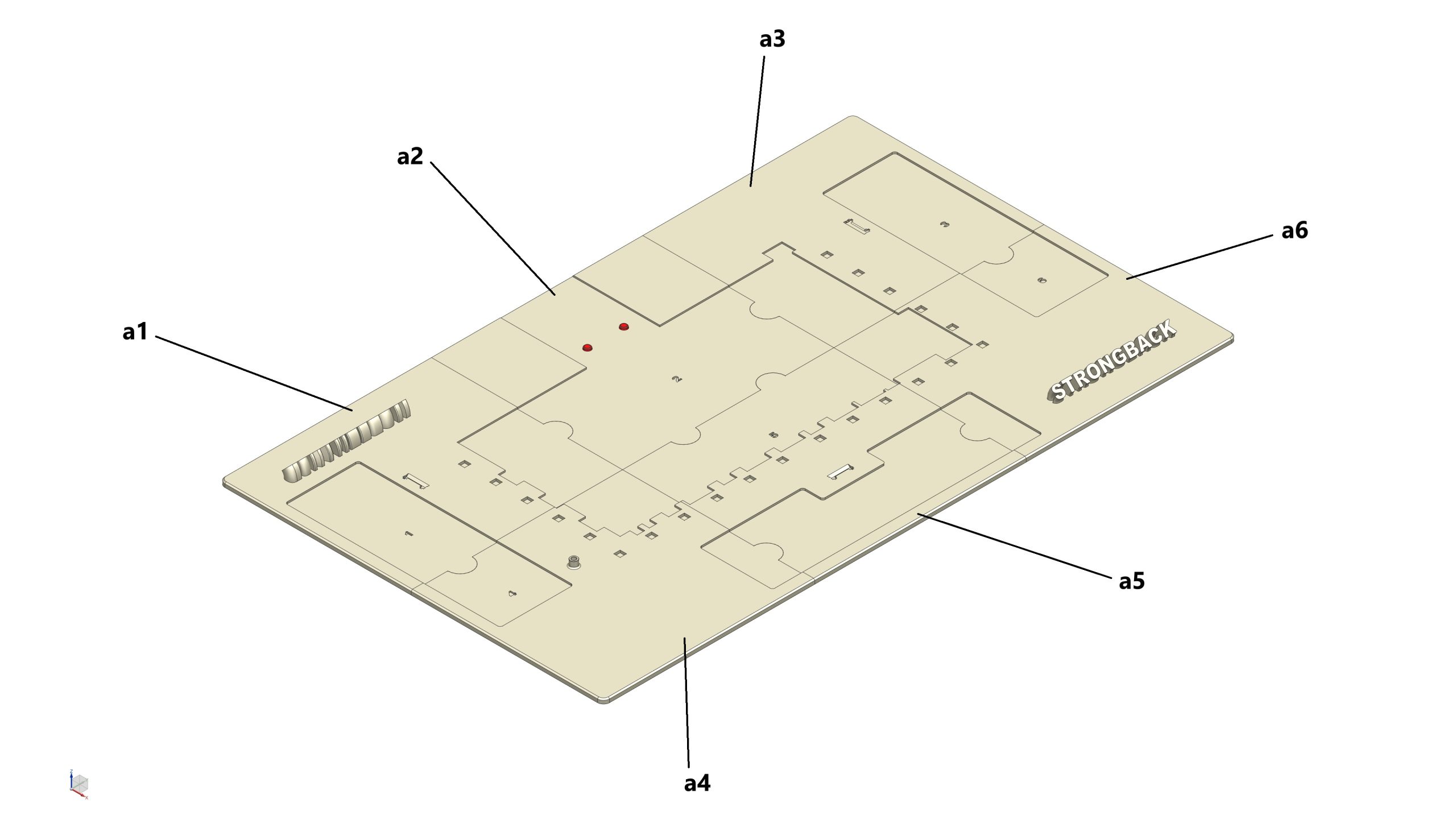

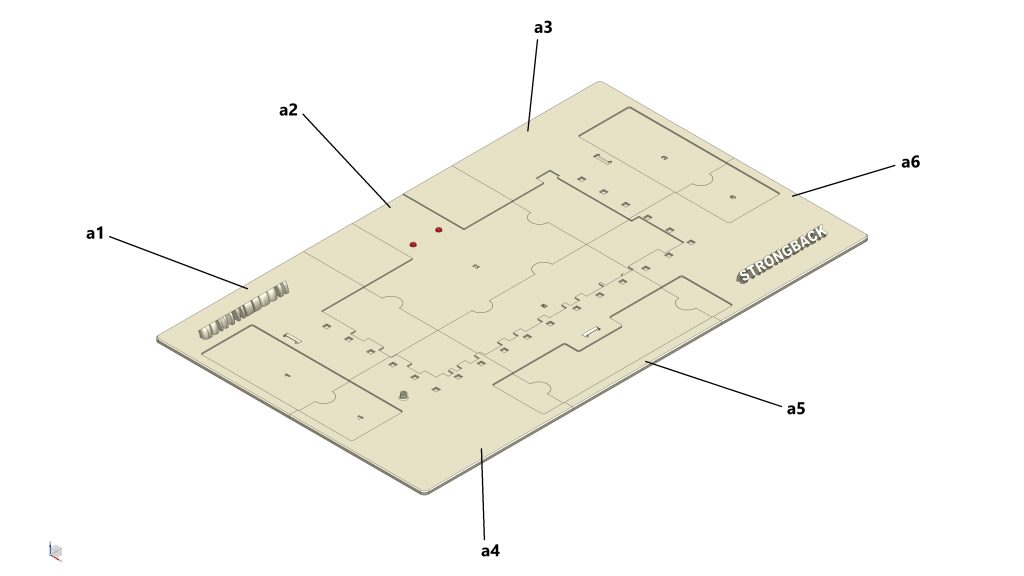

- 1x Foundation (from #1 to #6) (a)

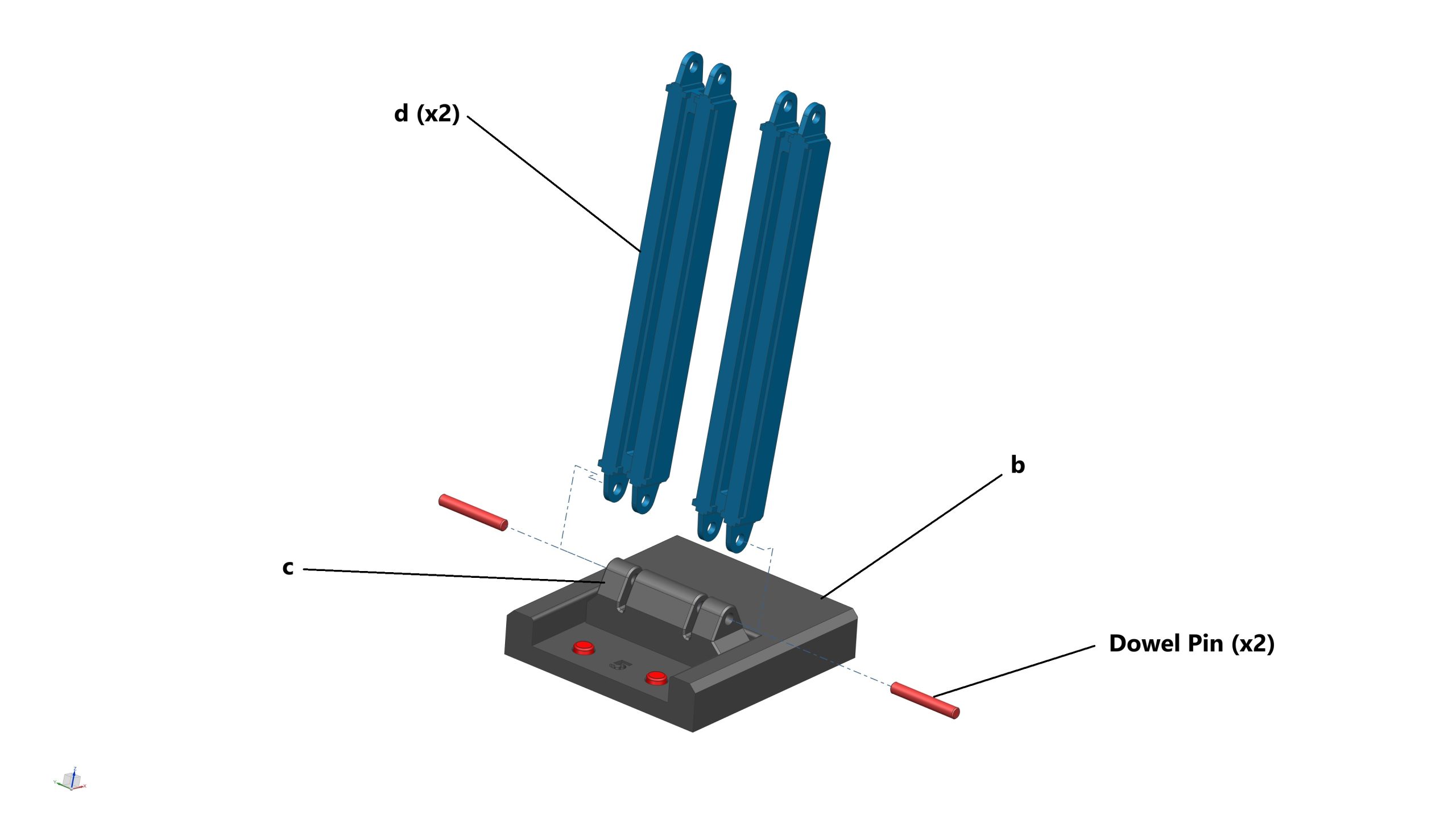

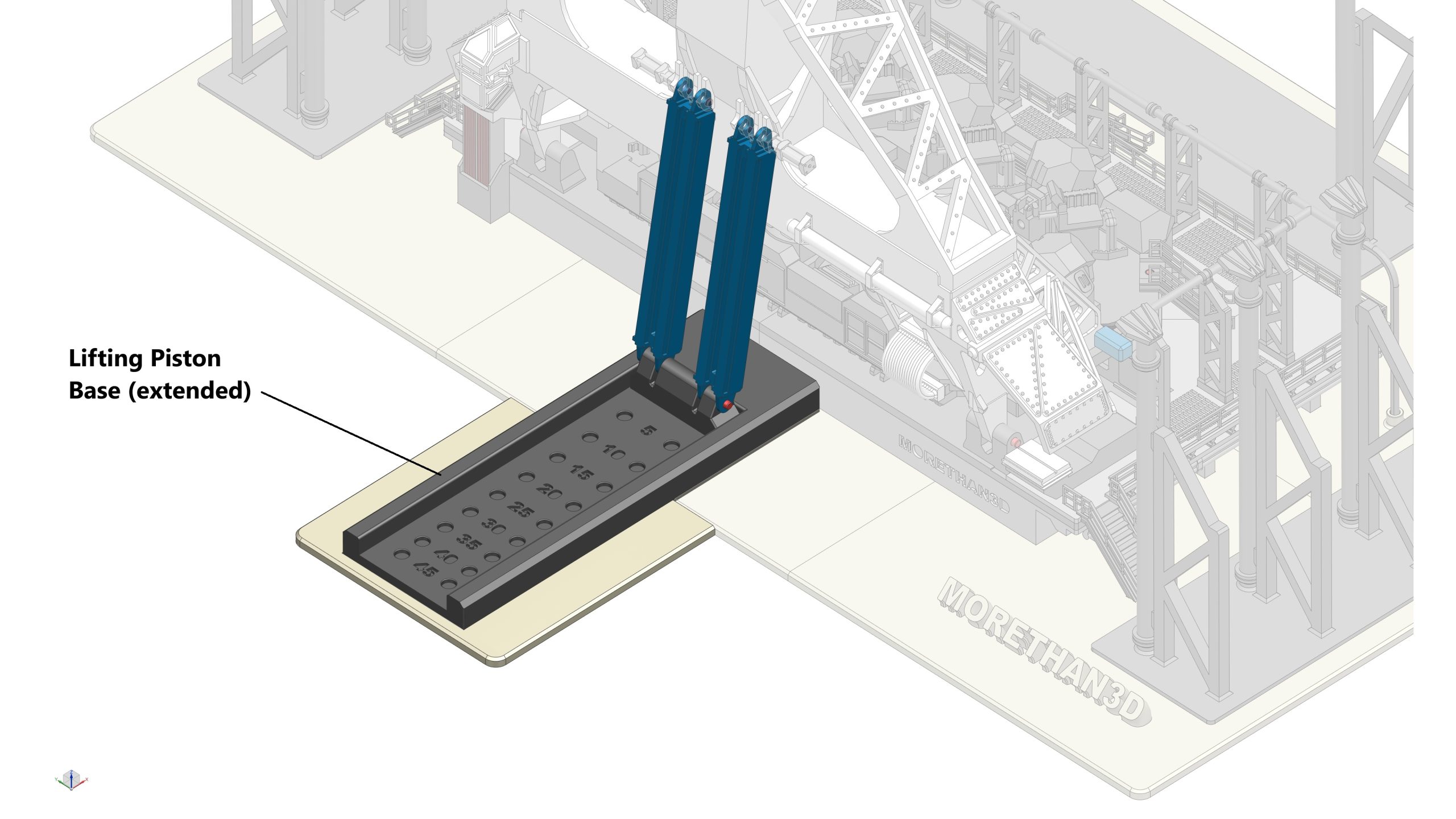

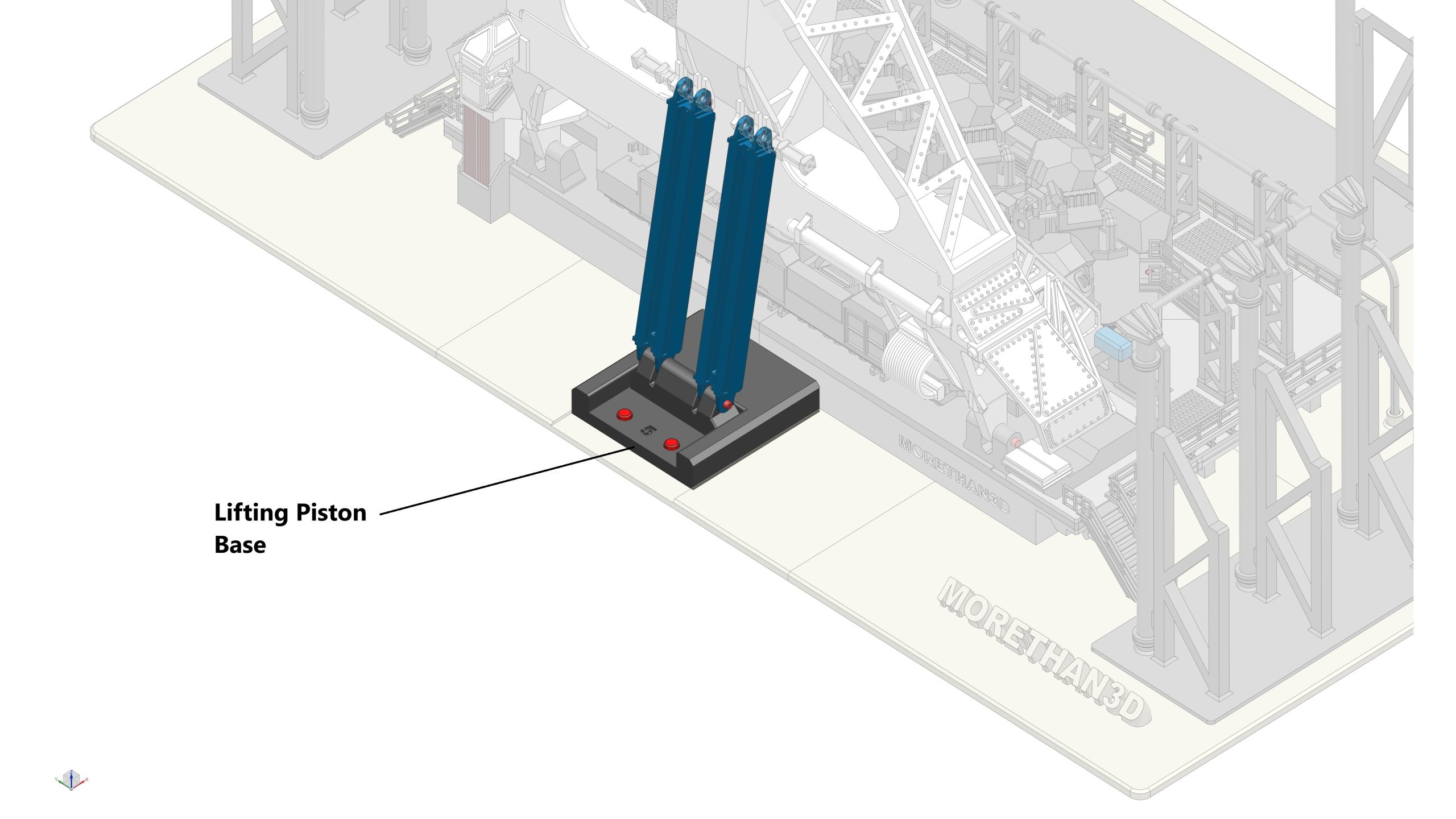

- 1x Lifting Pistons Base (b)
- 1x Lifting Pistons Slider (c)
- 2x Lifting Piston Struts (d)

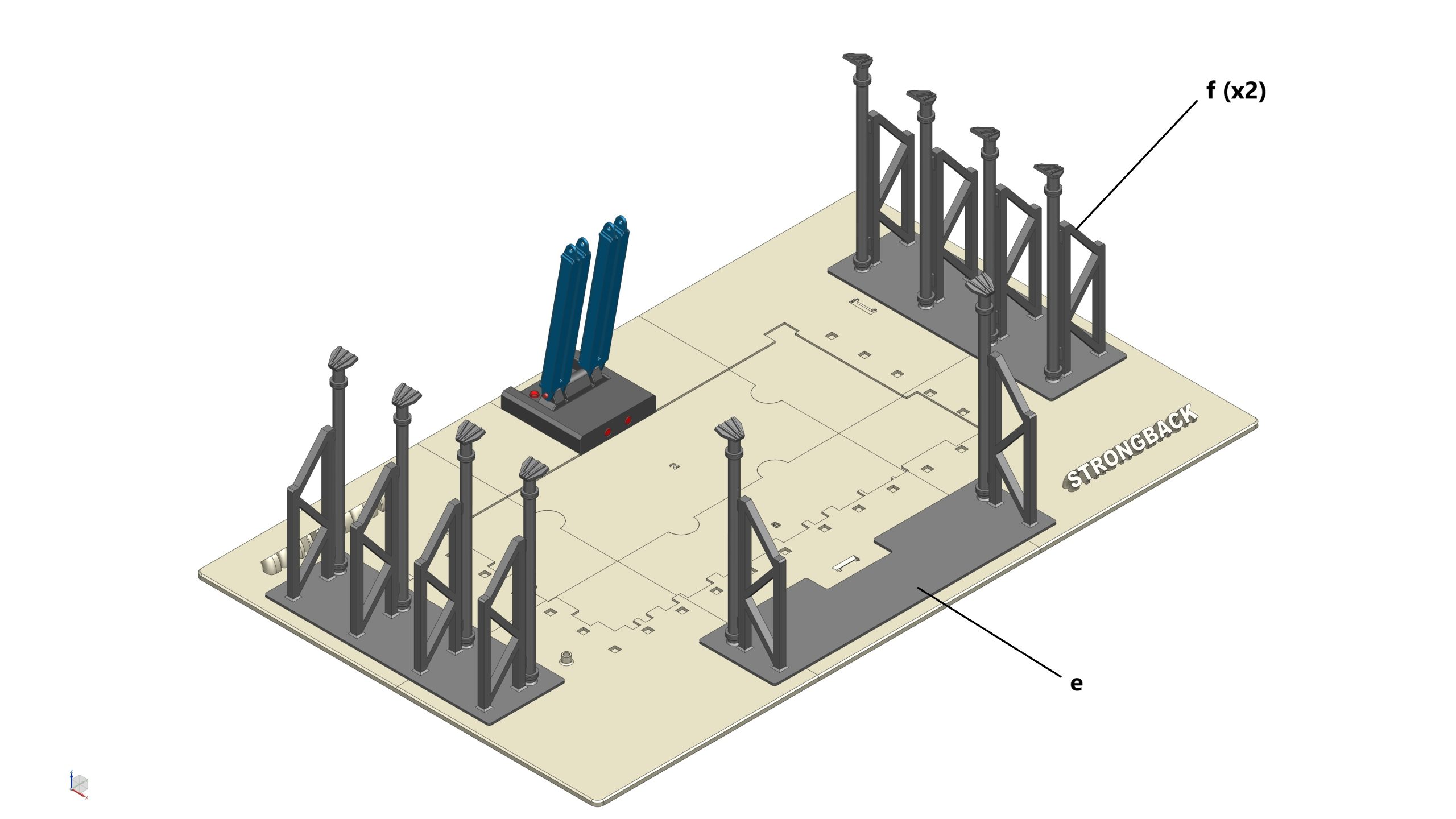

- 1x Deluge System (Front) (e)
- 2x Deluge System (Side) (f)

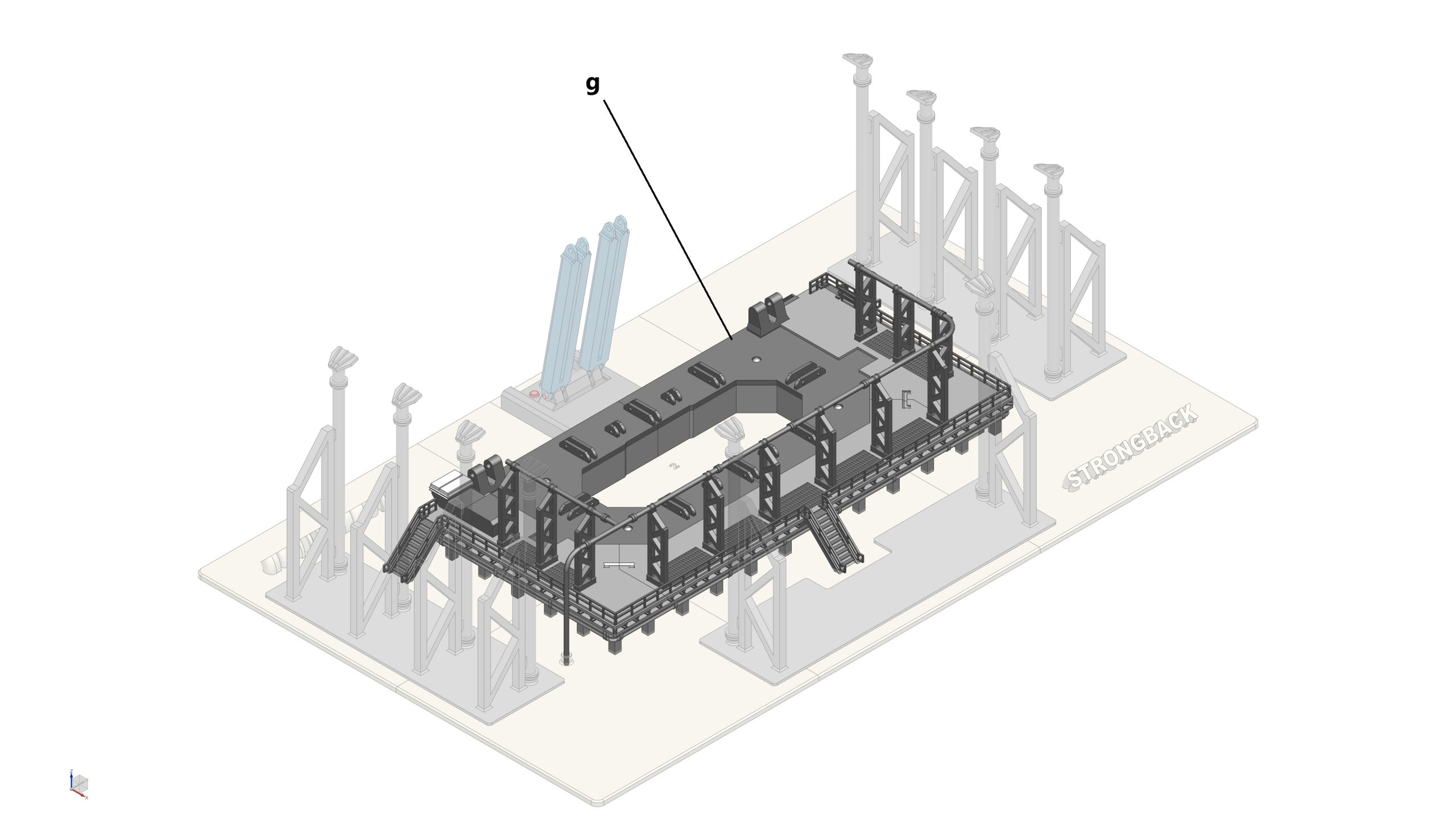

- 1x Lower Launch Platform from STEP 3 (g)

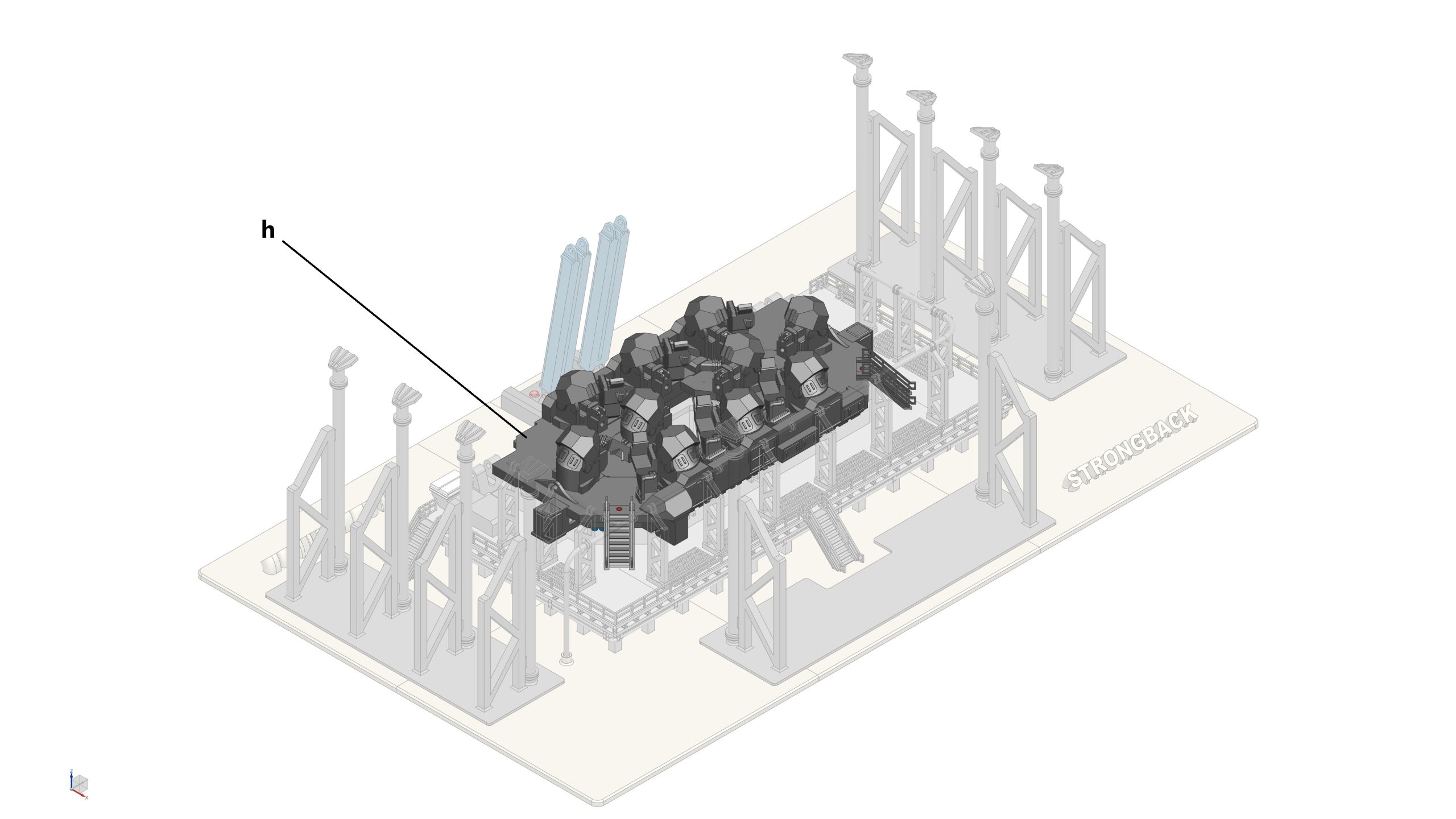

- 1x Upper Launch Platform from STEP 5 (h)

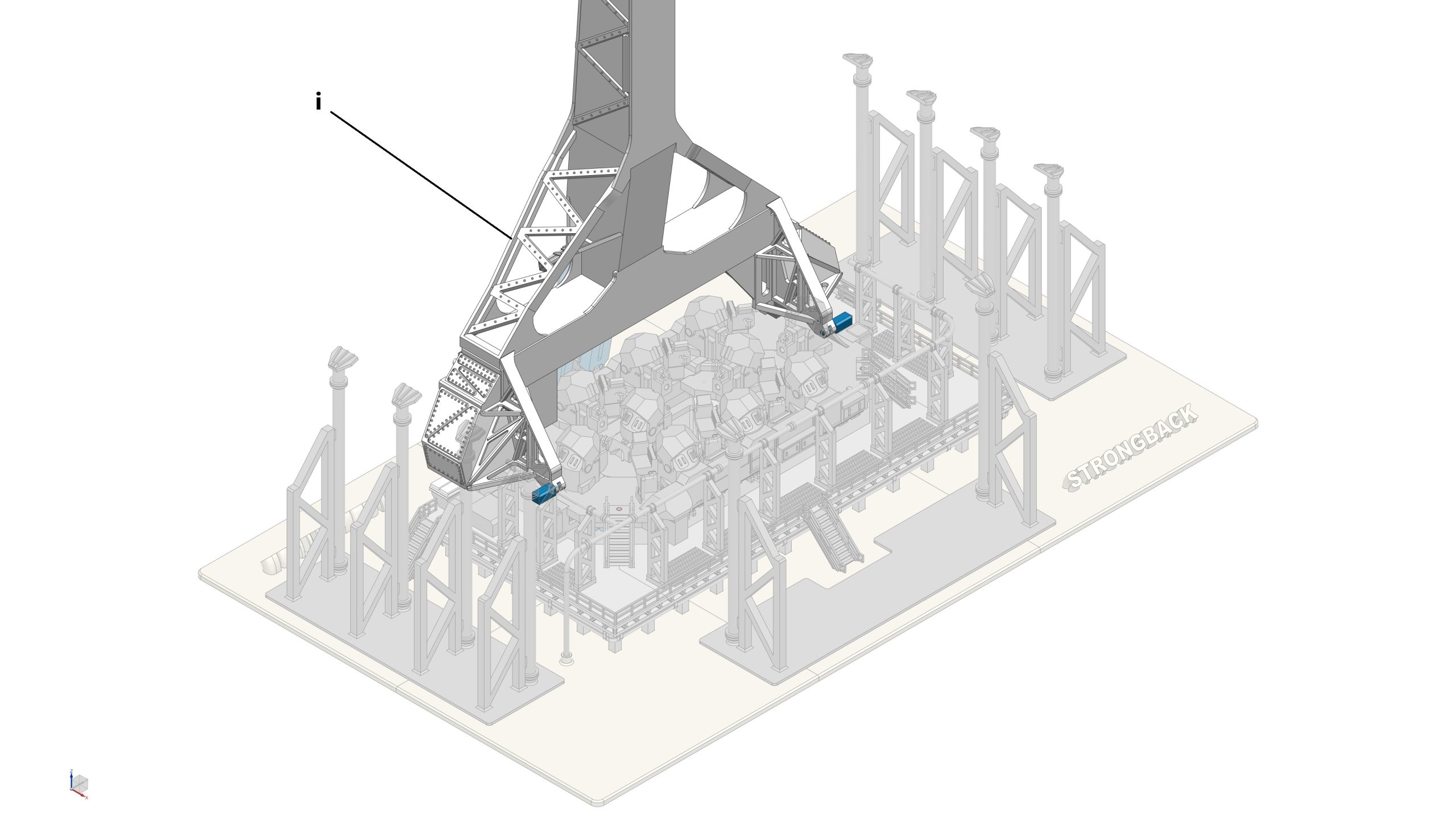

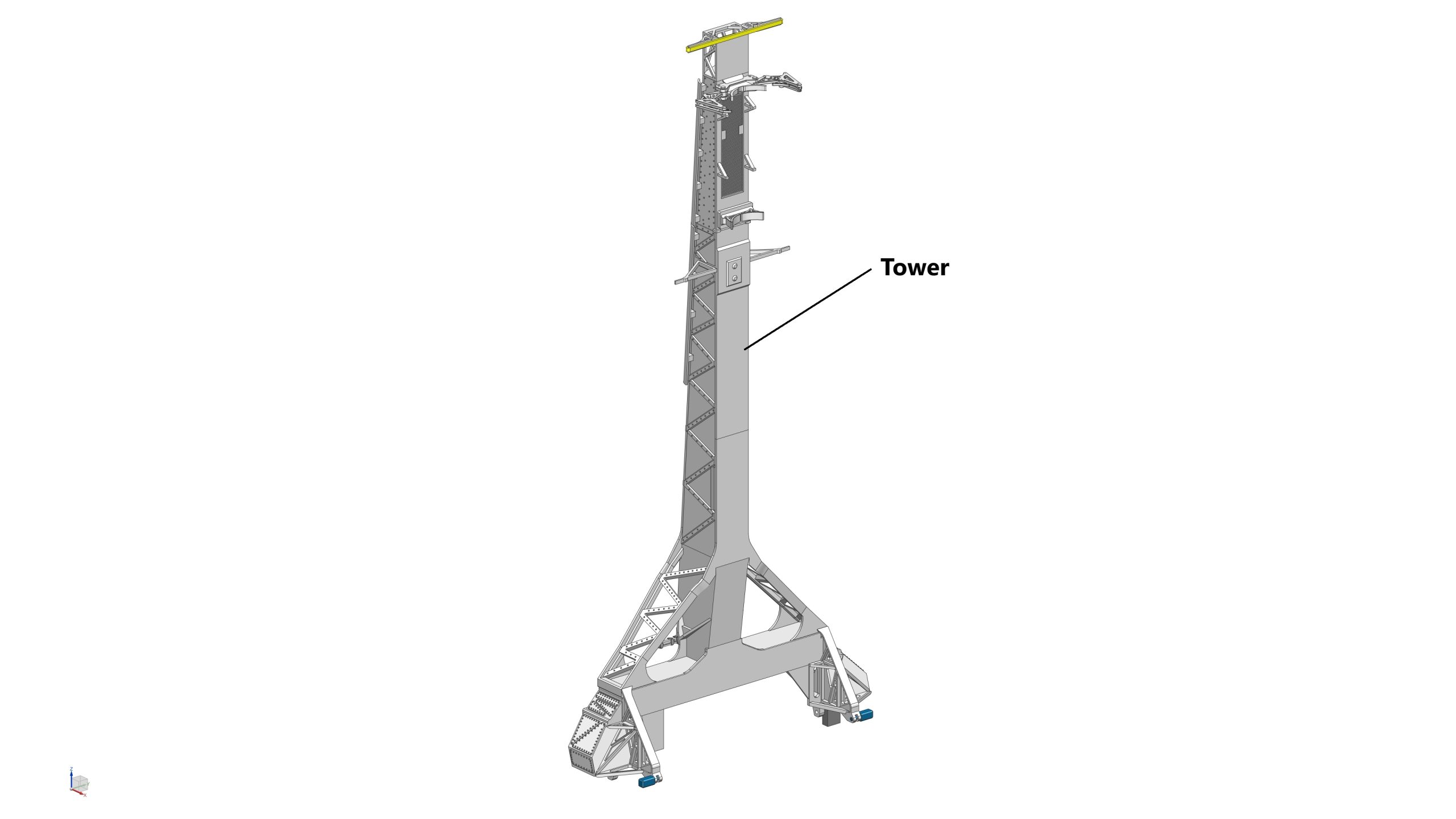

- 1x Strongback Tower from STEP 8 (i)
- 2x Dowel pins (3mm D x 20mm L) (highlighted in RED)
- 12x Magnet (5mm dia x 3mm thick) (highlighted in RED)
Assembly process

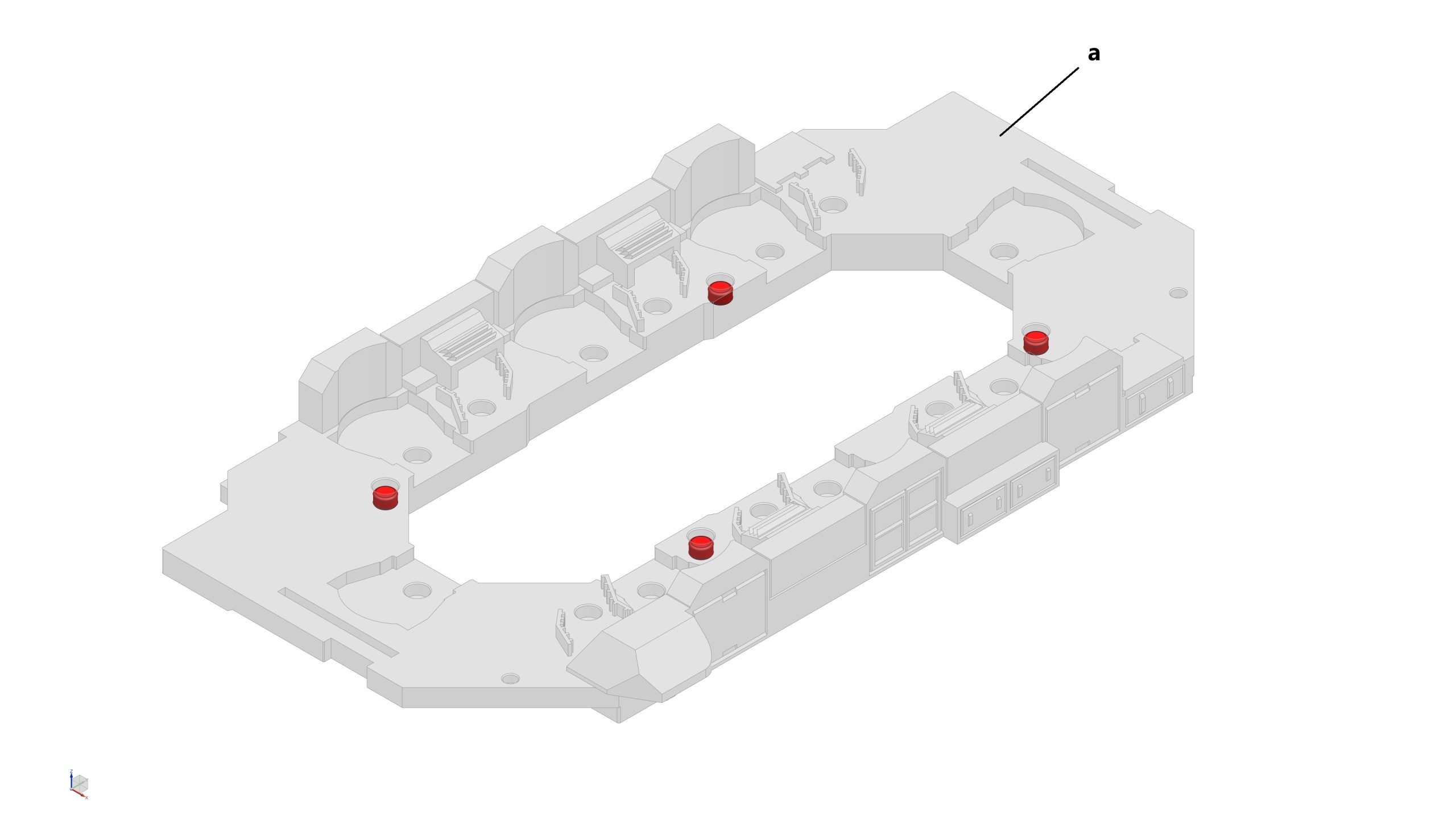

- STEP 9a: Glue all 6 sections (#1 to #6) of the Foundation together. Then glue 2x magnets (5mm dia x 3mm thick) into their locations on the top face of section #2
Please note: The 2x magnets protrude out about 1.5mm

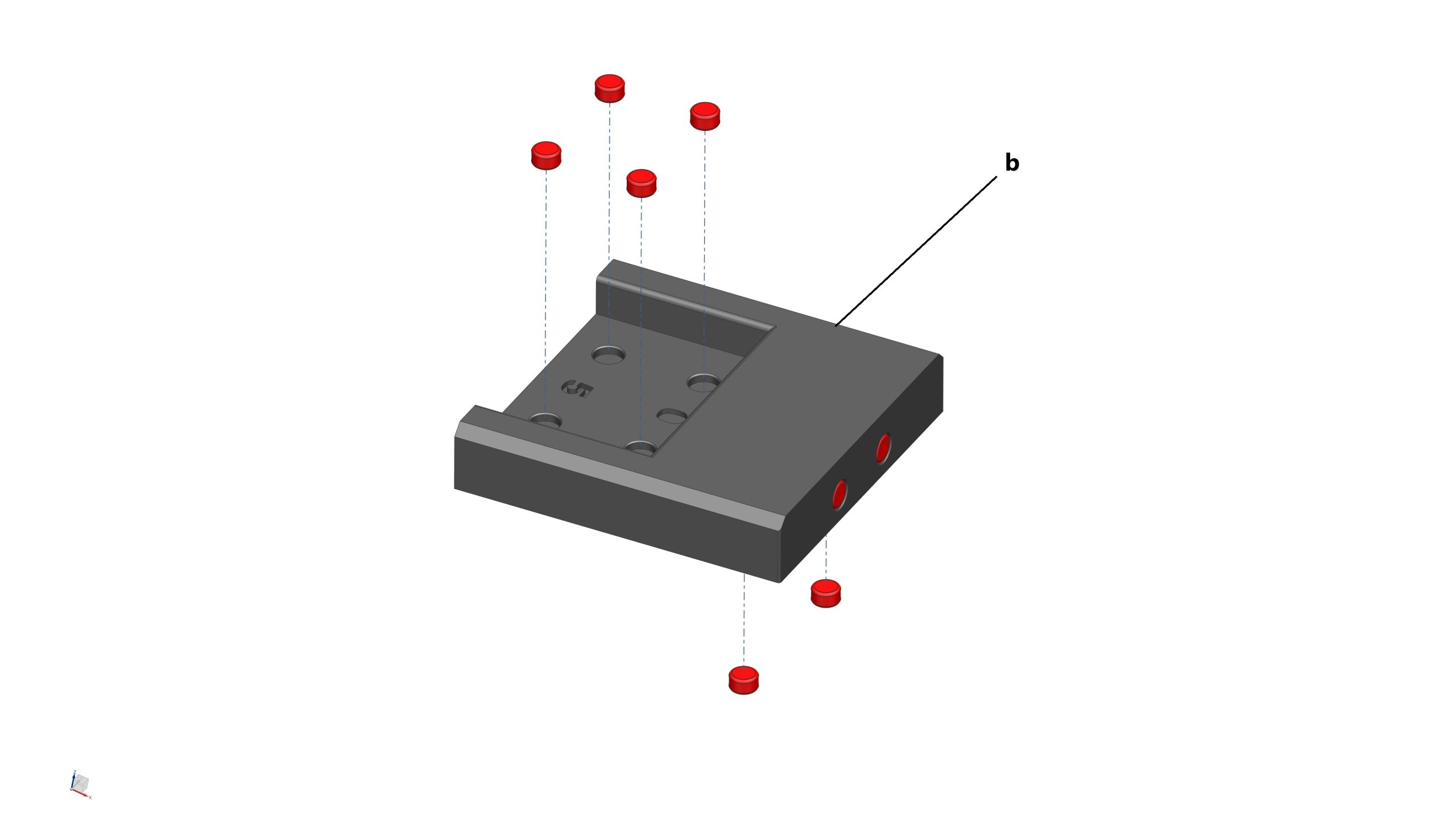

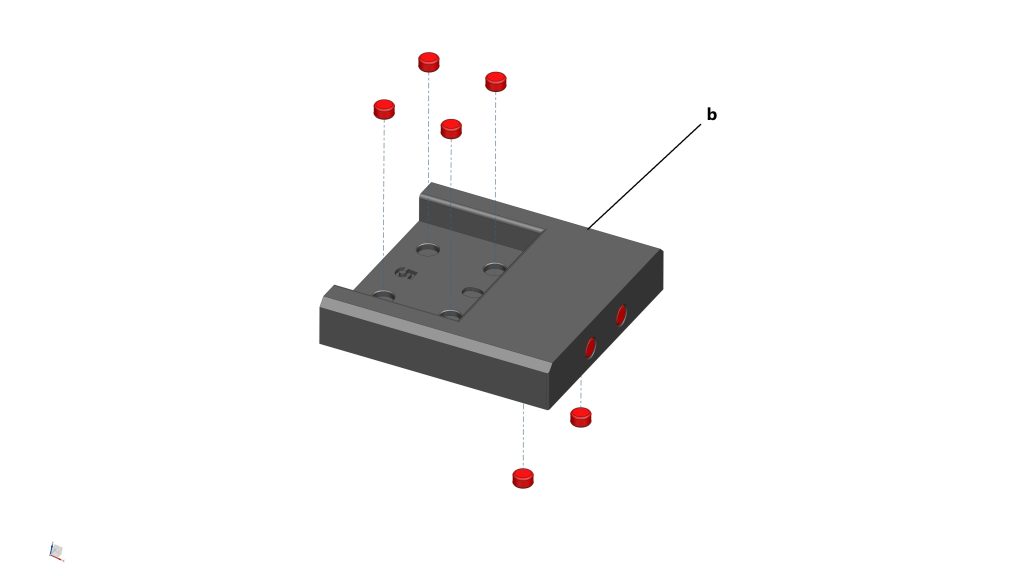

- STEP 9b: Glue 8x magnets (5mm dia x 3mm thick) into their locations at the top (x4), side (x2), and bottom (x2) faces of the Lifting Pistons Base
Please note: The 4x magnets located on the top face of the Lifting Pistons Base protrude out about 1.5mm, whereas the 2x magnets located on the bottom face need to be pushed all the way in. The top of these magnets should sit 1.5mm below the top of the hole.

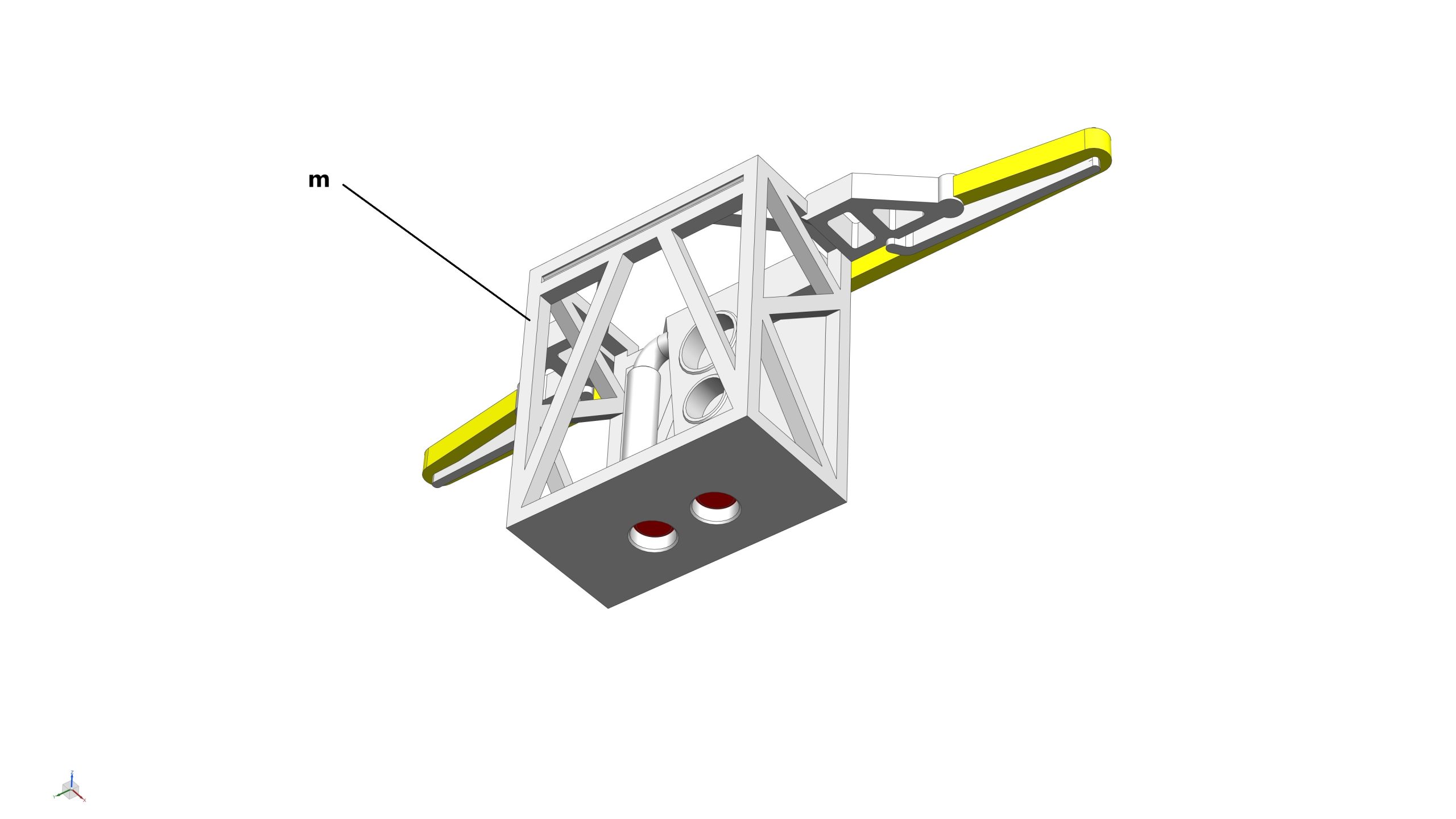

- STEP 9c: Glue 2x magnets (5mm dia x 3mm thick) into their locations on the bottom face of the Lifting Pistons Slider
Please note: These 2x magnets need to be pushed all the way in. The top of each magnet should sit 1.5mm below the top of the hole.
- STEP 9d: Install the Lifting Pistons Slider and 2x Struts to the Lifting Pistons Base. Secure the Struts to the Slider with 2x Dowel pins (3mm D x 20mm L)
Please note: Ensure the Struts are correctly oriented. The chamfered end of the Strut will be connected to the back of the Strongback Tower
- STEP 9e: Install the Lifting Pistons Assembly to the Foundation

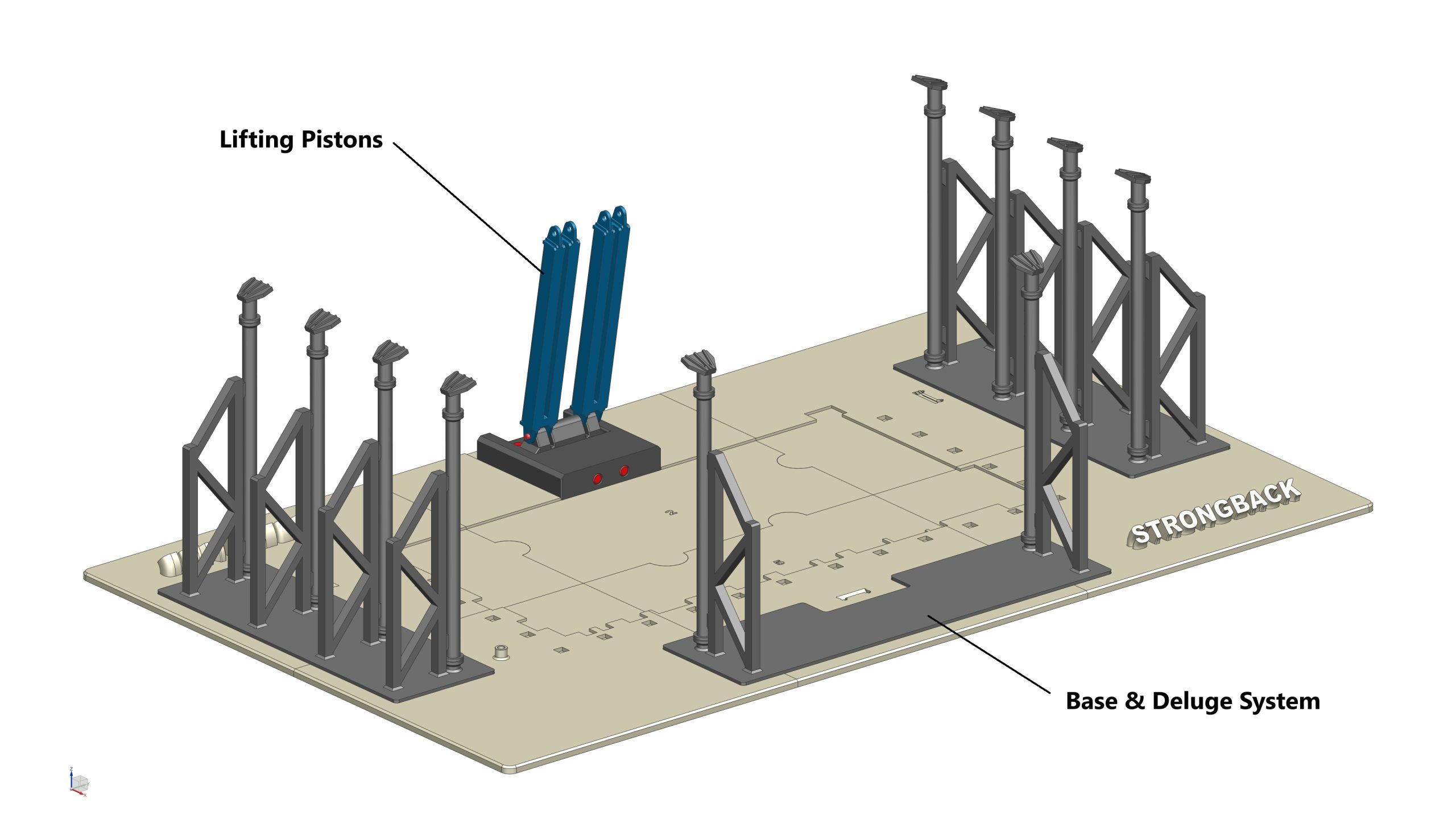

- STEP 9f: Glue the Deluge Systems to the Foundation
- STEP 9g: Glue the Lower Launch Platform (from STEP 3) to the Foundation
- STEP 9h: Place the Upper Launch Platform (from STEP 5) on top of the Lower Launch Platform. DO NOT glue them together

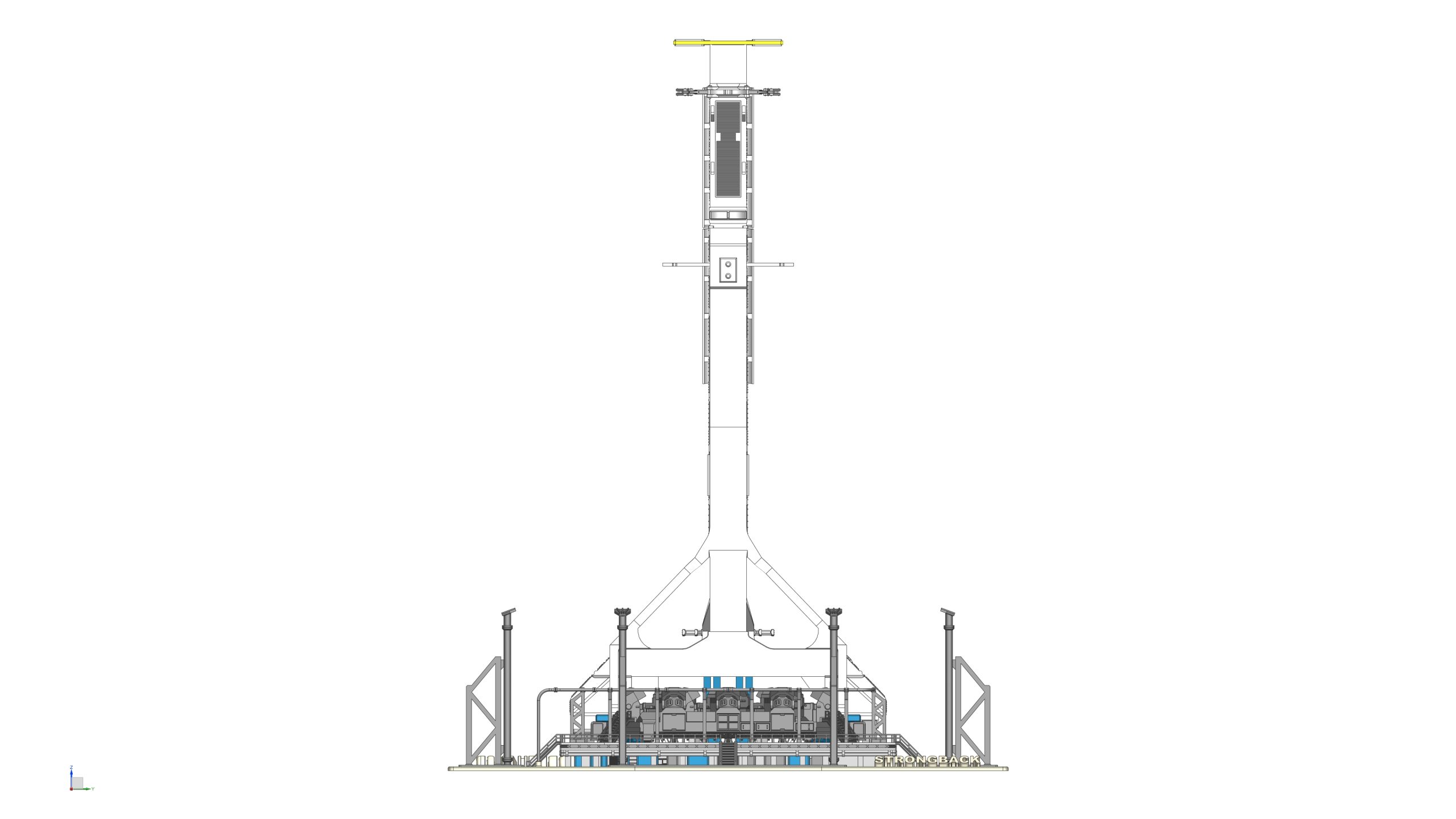

- STEP 9i: Please the Strongback Tower (from STEP 8) on top of the Upper Launch Platform
- STEP 9j: Secure the Strongback Tower to the Lower Launch Platform with 2x Dowel pins (3mm D x 20mm L)
- STEP 9k: Secure the Strongback Tower to the Upper Launch Platform with 2x Tower Locking Pins (from STEP 8a)

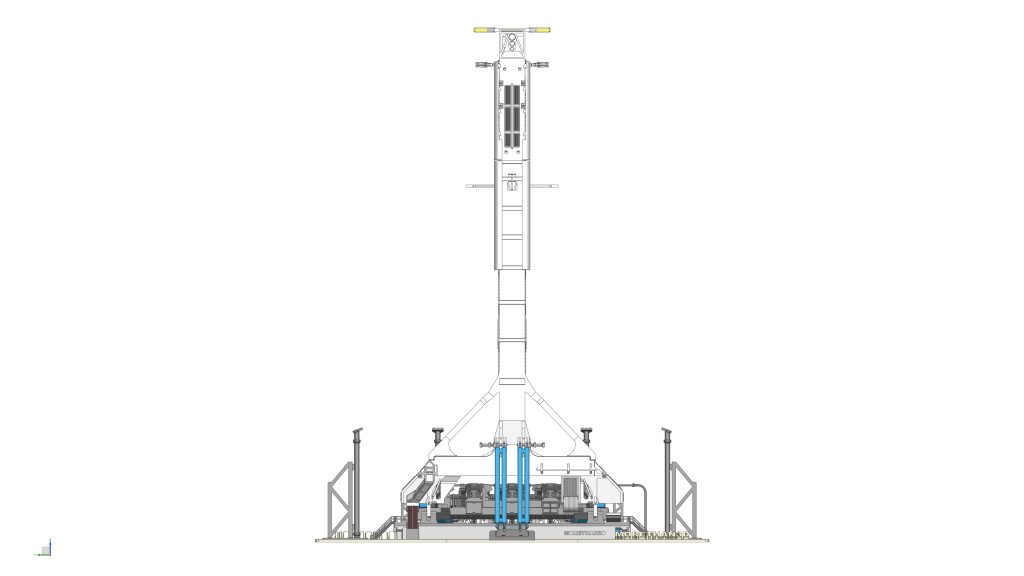

- STEP 9l: Secure the Strongback Tower to the Lifting Pistons Assembly with 2x Tower Rear Motors (from STEP 8k)
STEP 10: Tilting the Strongback Tower
Parts required (refer to the photos below)
- 1x Strongback Assembly from STEP 9
Assembly process
- STEP 10a: Remove 2x Tower Locking Pins (which secure the Strongback Tower to the Upper Launch Platform)
- STEP 10b: Remove the Tower Electrical Cables
- STEP 10c: Remove the Tower C Wire Bundle

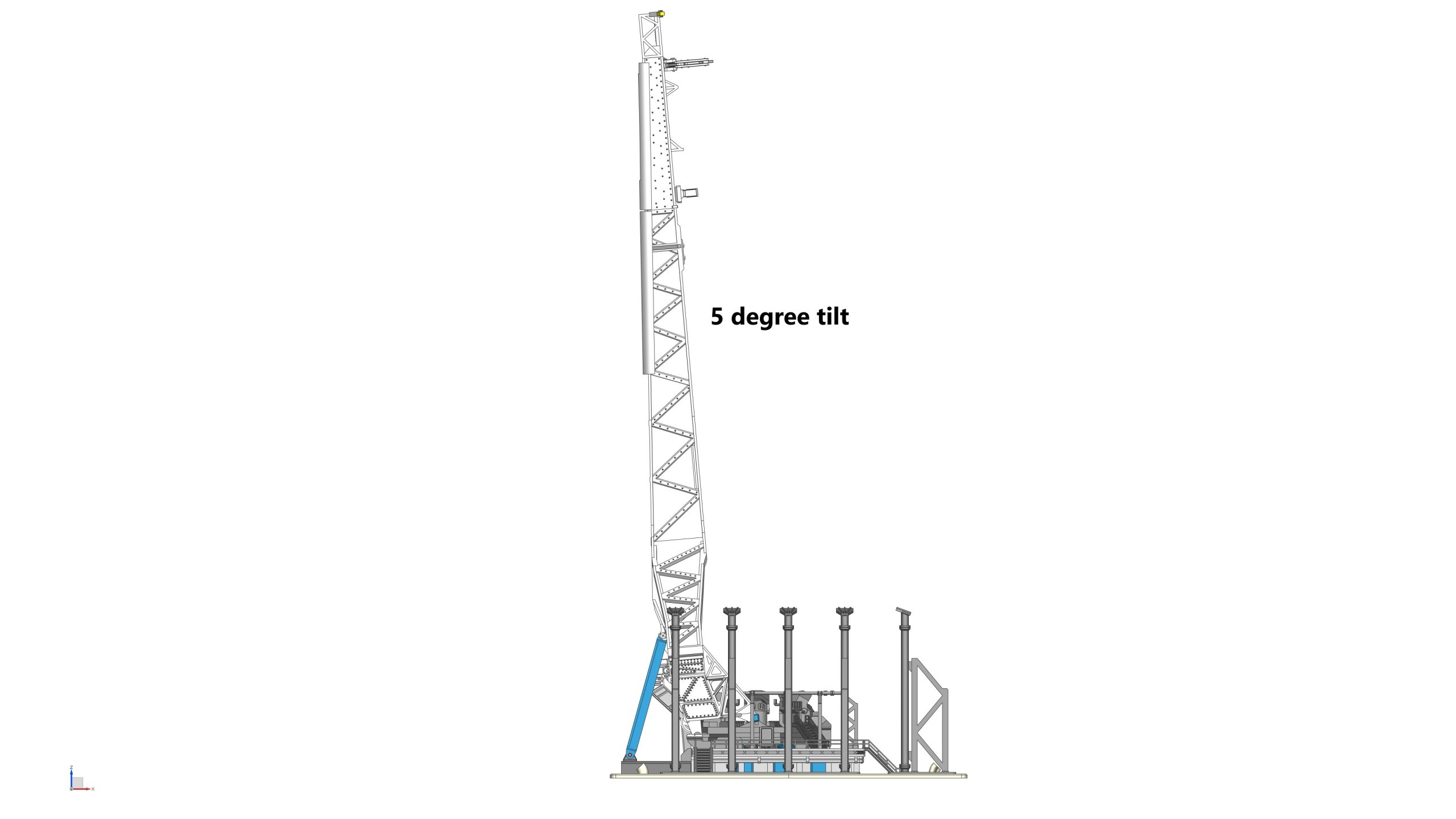

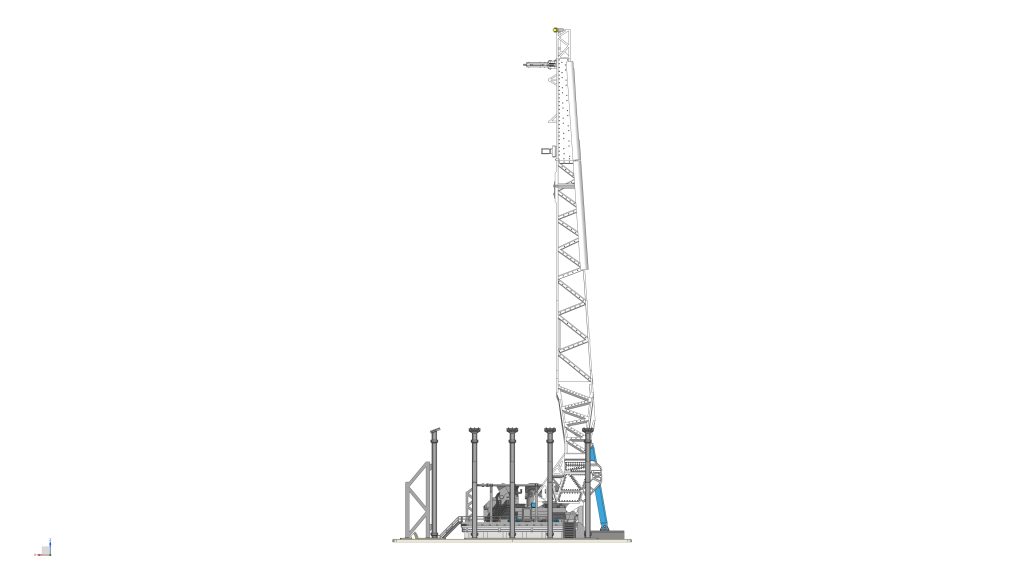

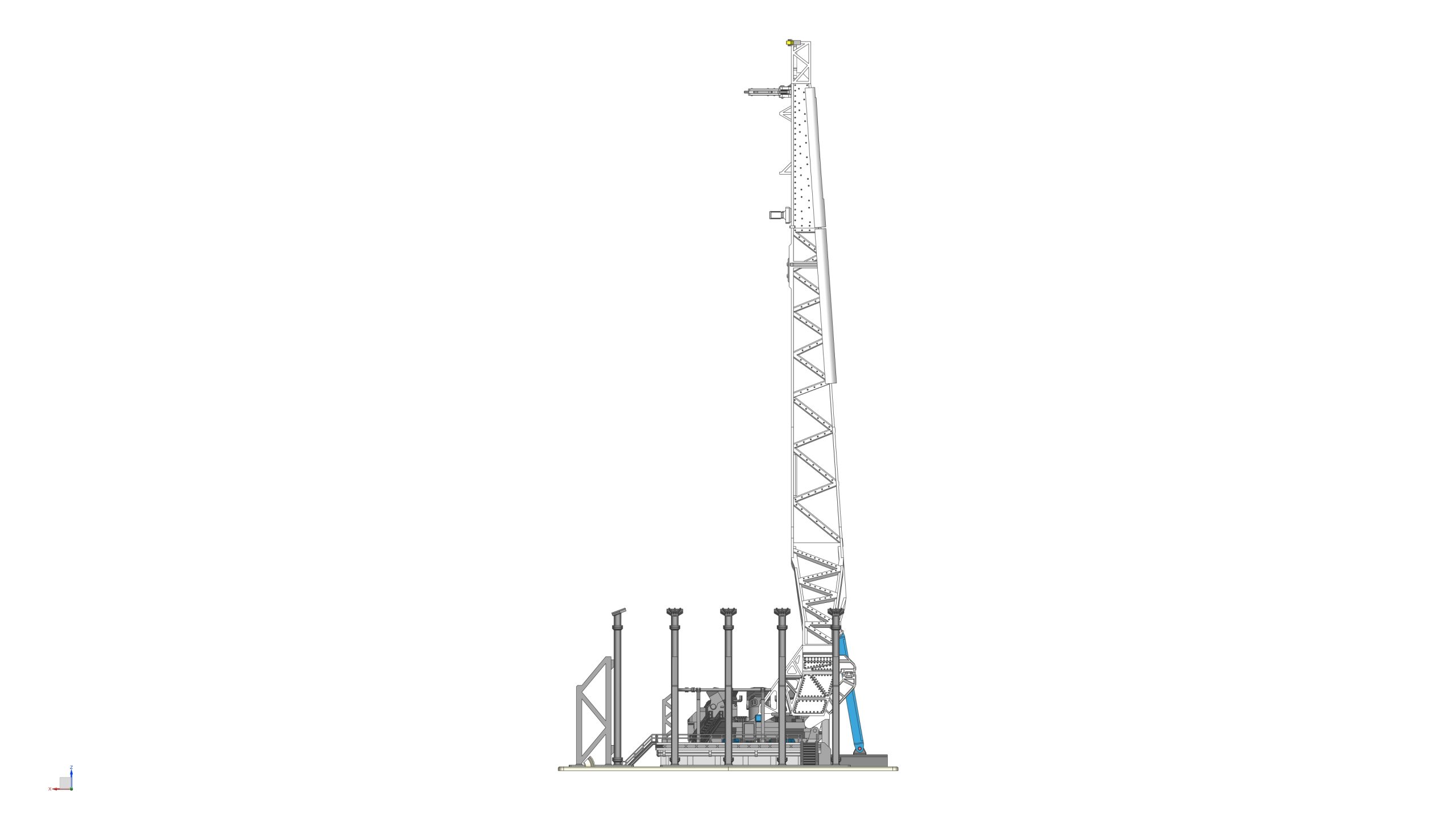

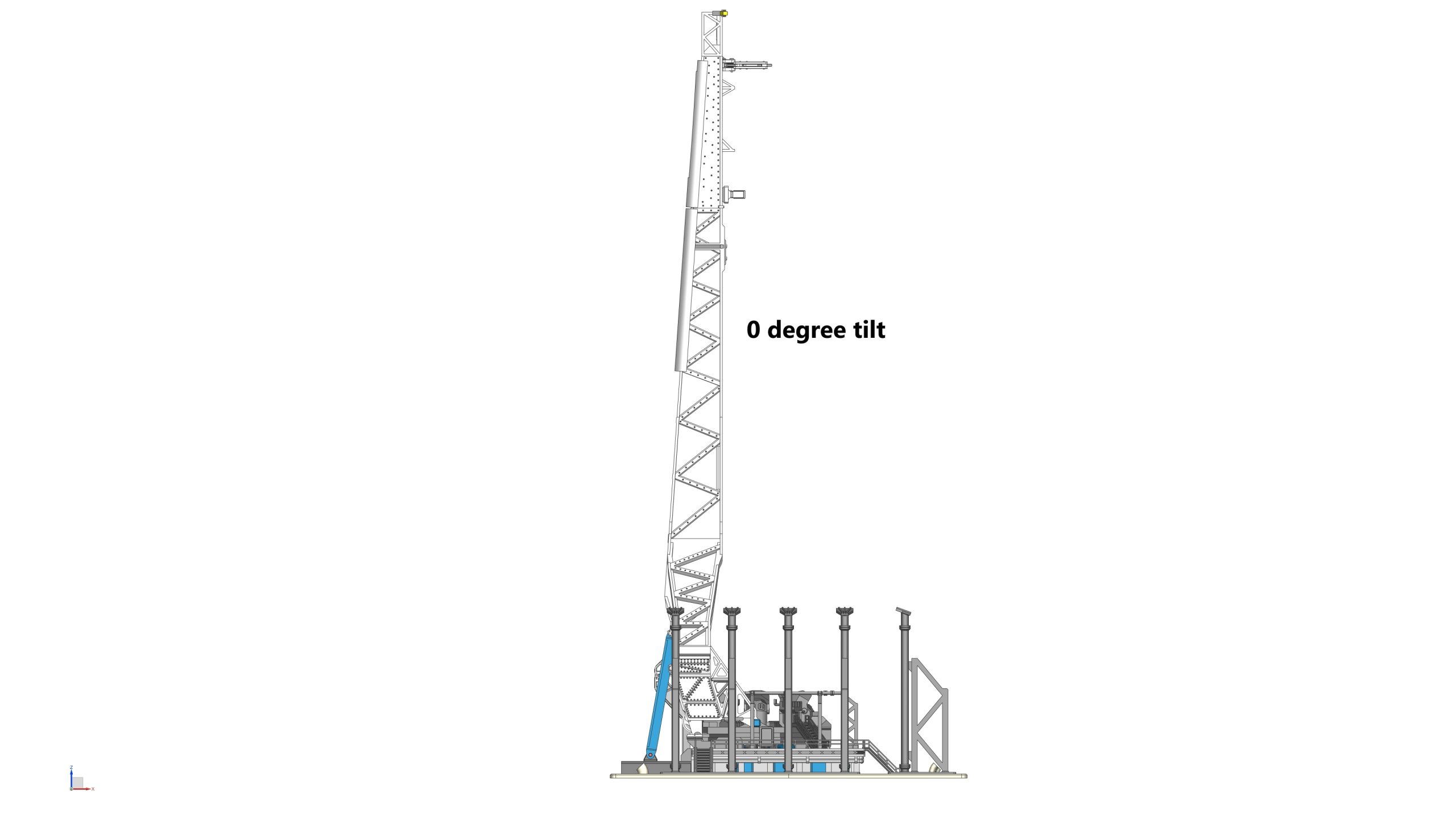

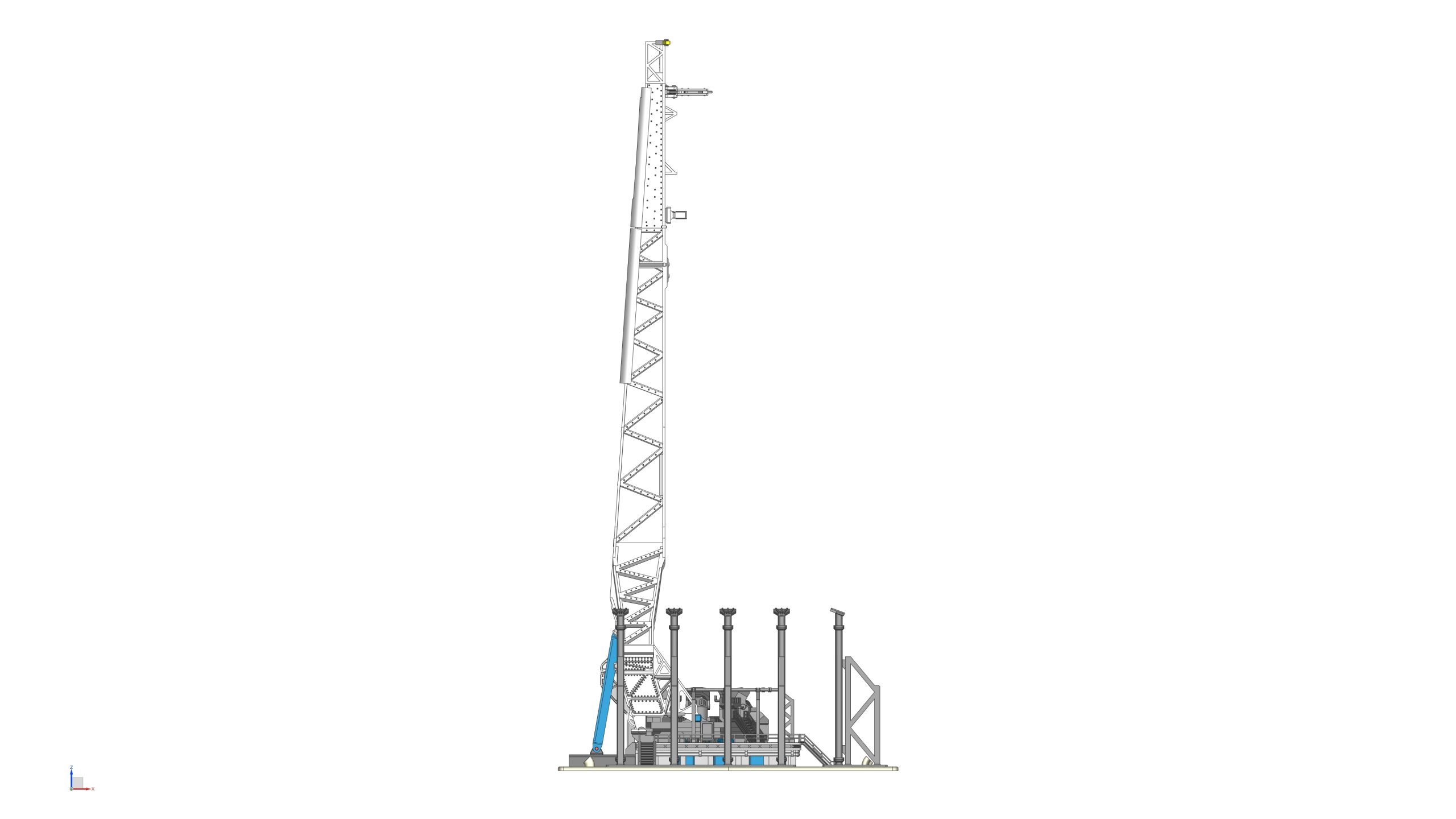

- STEP 10d: Slightly lift the Lifting Pistons Slider up, and move it to the 5 degree position. The Strongback Tower is now tilted backwards 5 degrees from the vertical position.

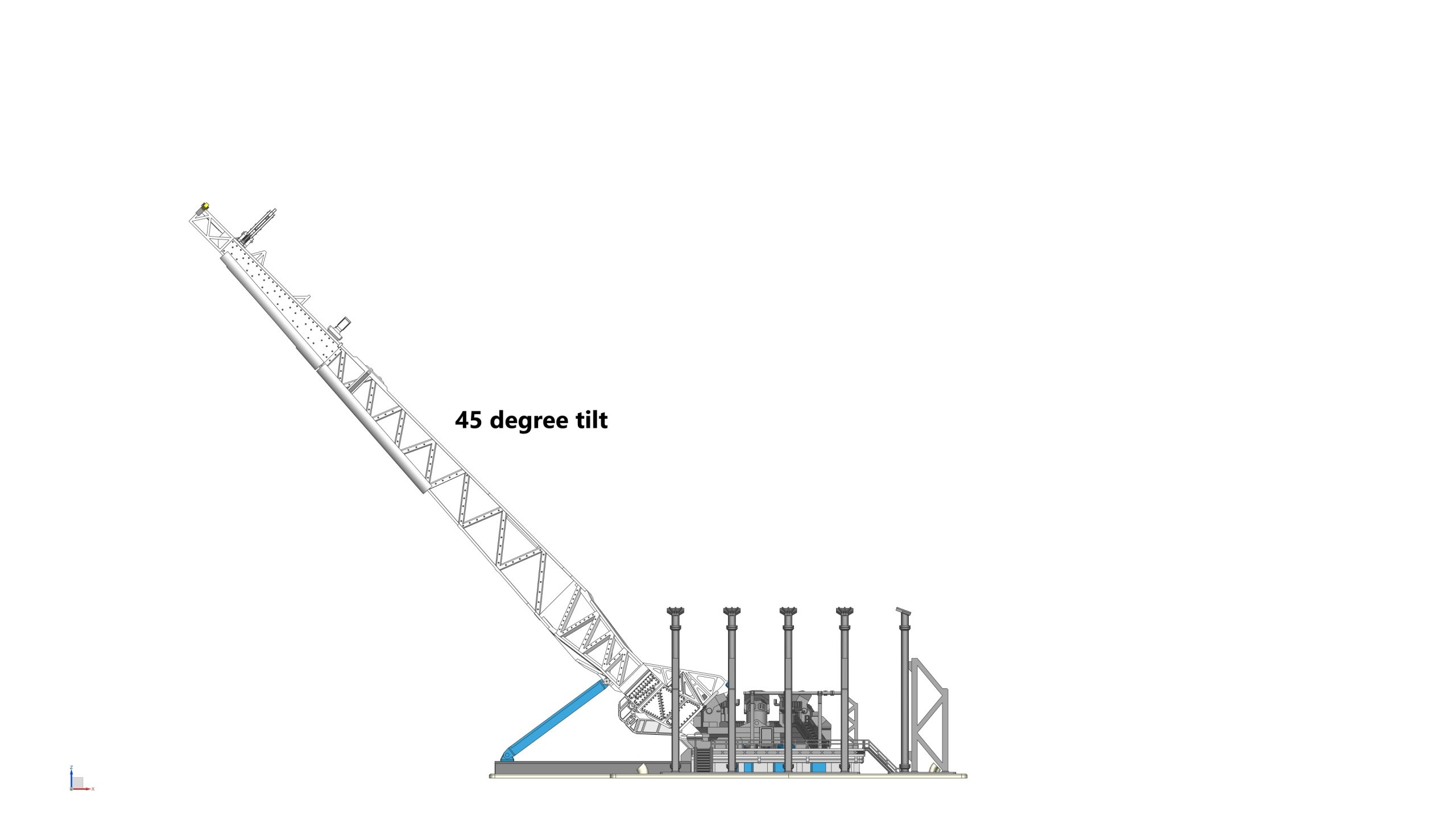

- STEP 10e: If you wish to further tilt the Strongback Tower backwards, replace the Lifting Pistons Base with the Lifting Pistons Base (Extended). This would allow the Strongback Tower to tilt backwards up to 45 degrees
STEP 11: Install the Falcon 9/Falcon Heavy
Parts required (refer to the photos below)
- 1x Strongback
- 1x Falcon 9
- 1x Falcon Heavy
Assembly process
- STEP 11a: To install the Falcon 9 to the Strongback. First, ensure the Upper Launch Platform has been set up correctly with all the Clamps in place (including the two F9 Clamps), and the Clamp Arms are at their extended position.
- STEP 11b: Slowly lower the Falcon 9 onto the Upper Launch Platform until its weight is fully supported by the 4x Central Clamps
Please note: It is easier to temporarily remove the Propellant Feed System from the Upper Launch Platform before lowering the Falcon 9 onto the Clamps, then reinstall them once the Falcon 9 is in place.
- STEP 11c: Close the Claws near the top of the Strongback to fully secure the Falcon 9

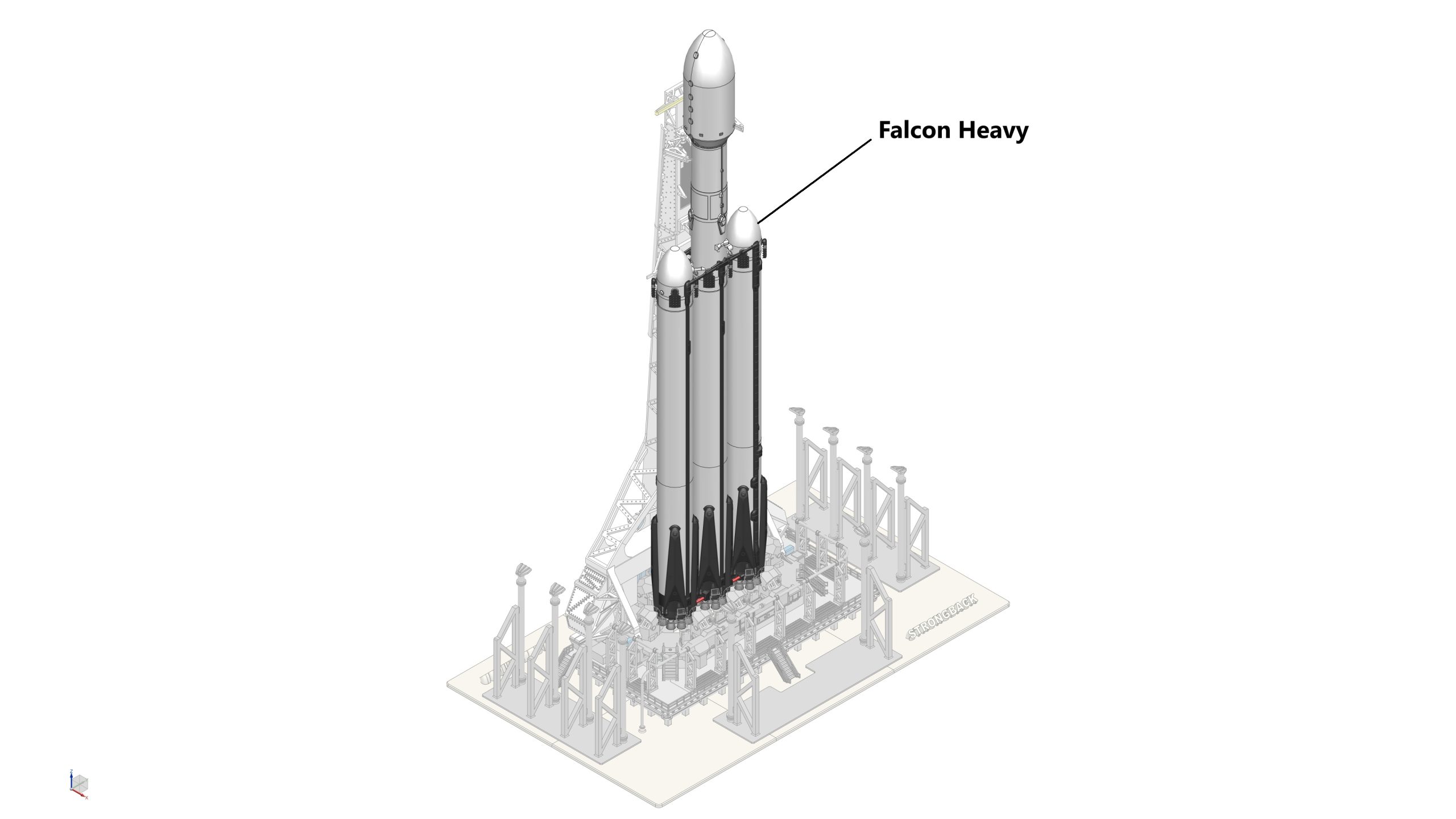

- STEP 11d: To install the Falcon Heavy to the Strongback, repeat the same operations above, but ensure the two F9 Clamps are removed from the Upper Launch Platform
And that’s it! Congratulations, you have completed your 1:96 STRONGBACK-S1 model!
