So now you’ve got all your parts printed? Great! Let’s assemble the model. I’ll take you through the assembly process step by step but before that, you need to purchase some items:

• 5mm dia x 3mm thick N42 Neodymium magnets (LINK) | Qty: 44-off
• 3mm dia x 2mm thick N42 Neodymium magnets (LINK) | Qty: 8-off
• Super glue (LINK) | Qty: 1 bottle

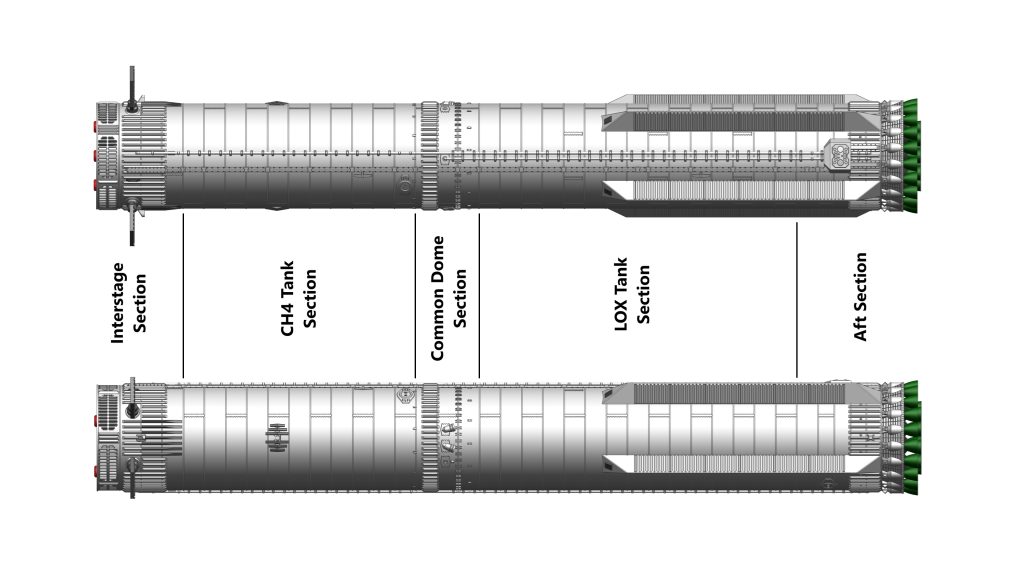

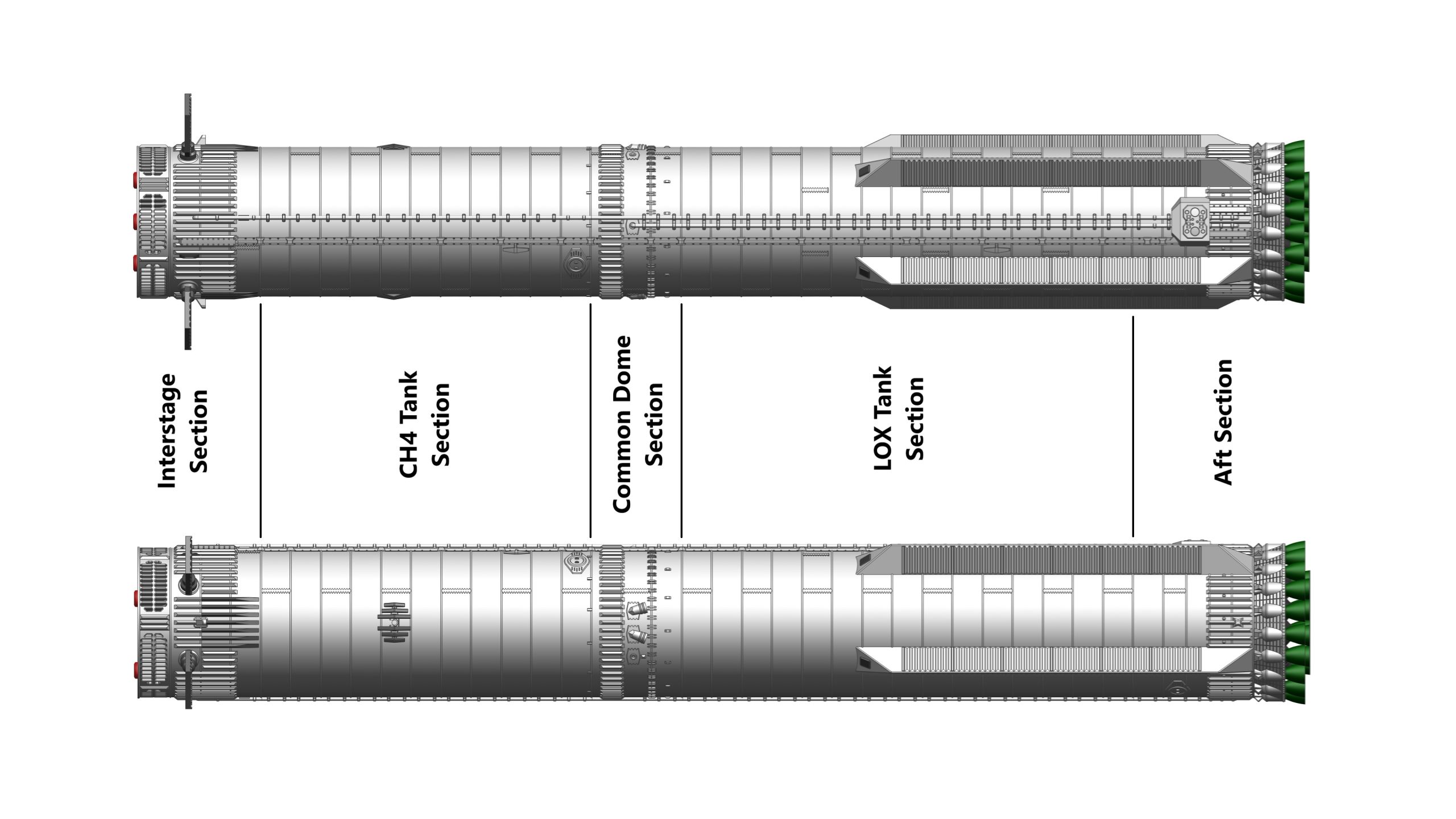

At this step, all I want you to do is try to stack all the parts together to get a good understanding of where they are located. Because there are a lot of magnets you need to fit during the assembly process, doing this first step will give you an idea of how to fit the magnets in each part correctly. Please use the ‘BOOSTER-XS4 Assembly.stl’ and the photos below if required.

Parts required (refer to the photos below)

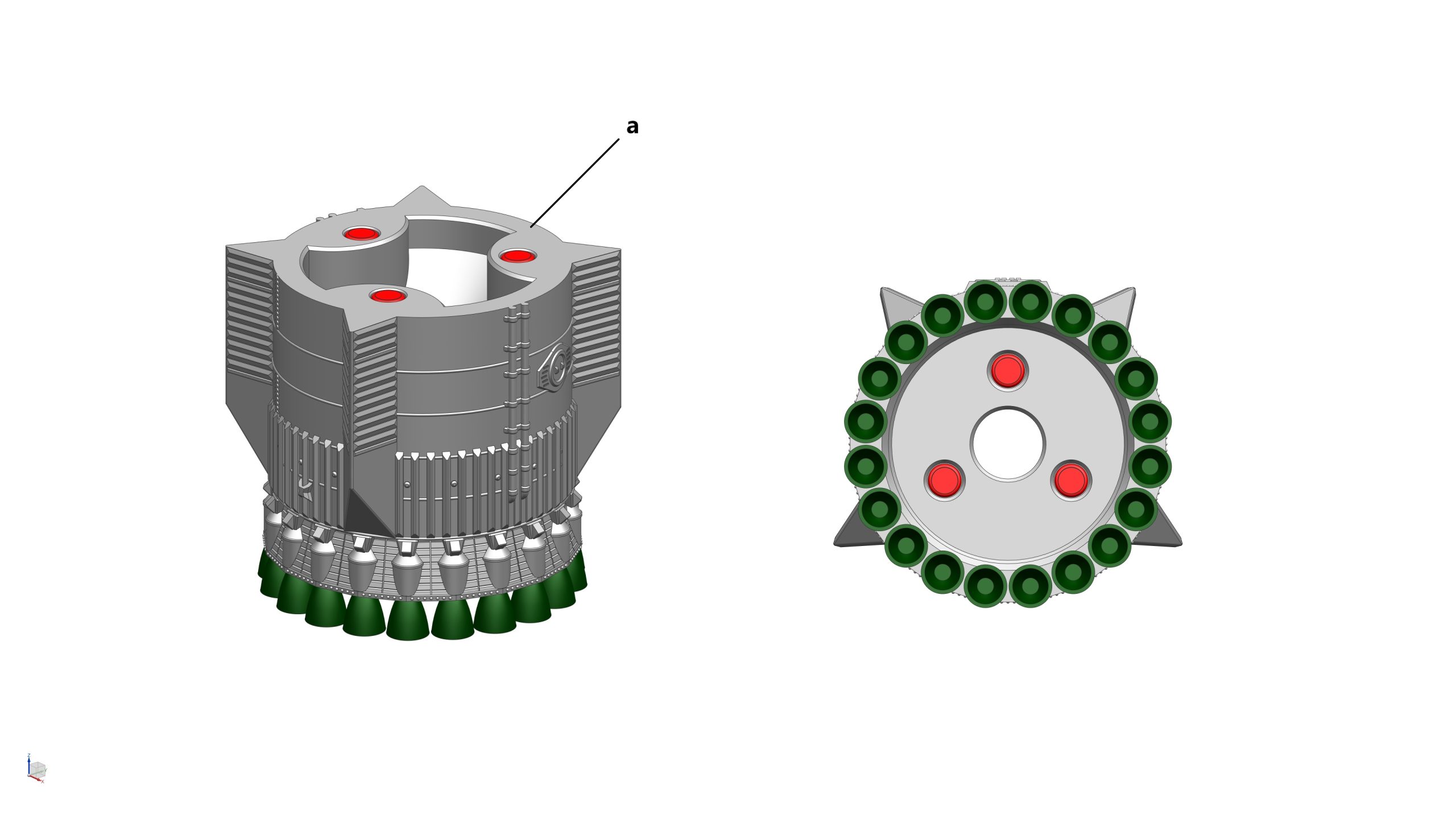

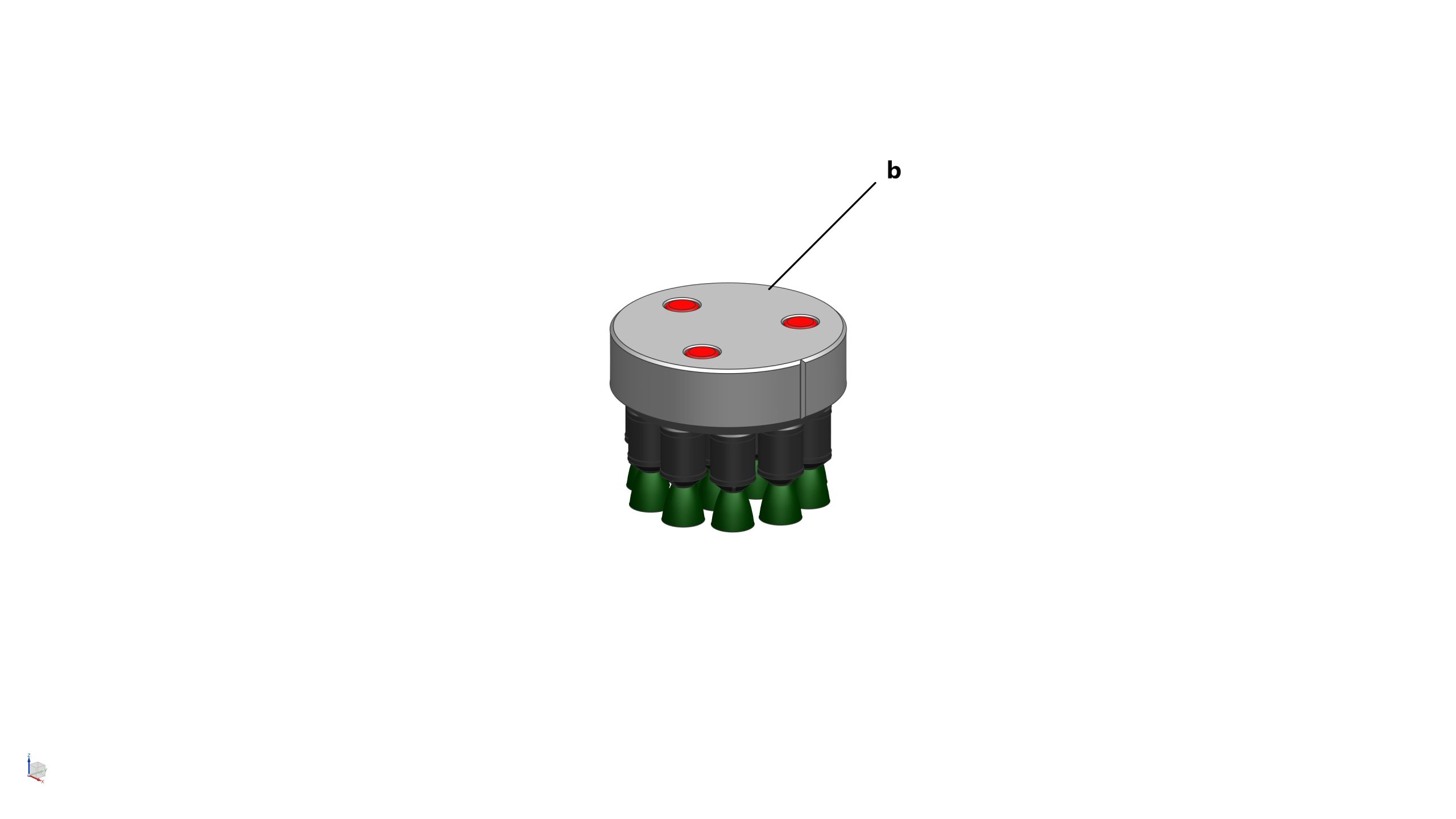

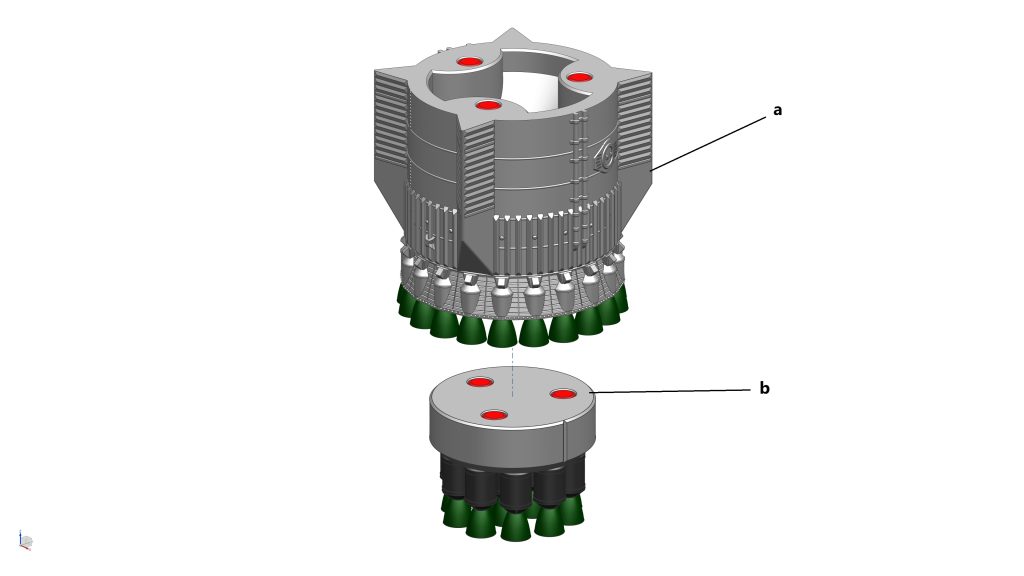

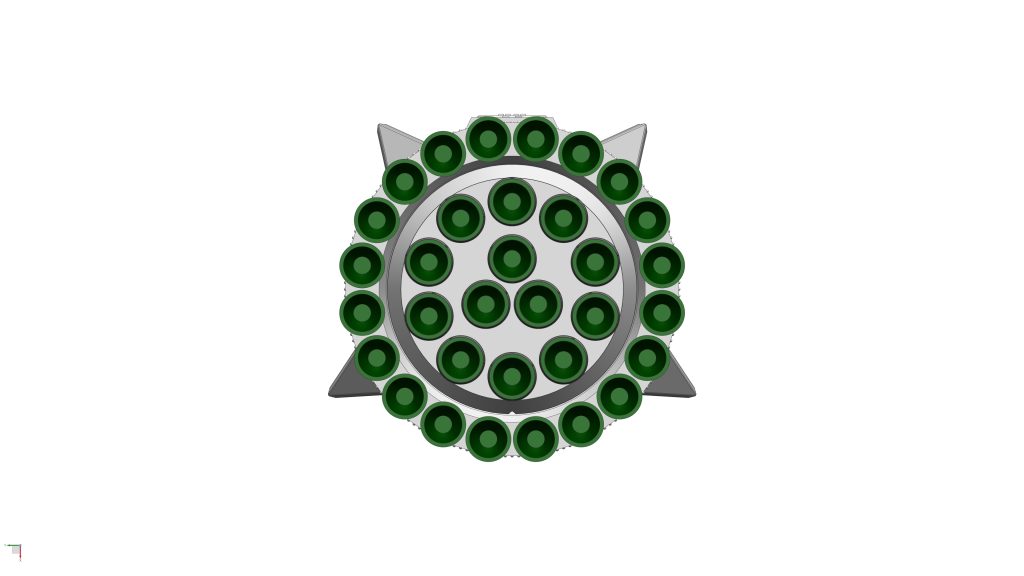

• 1x Booster Aft Section (a)

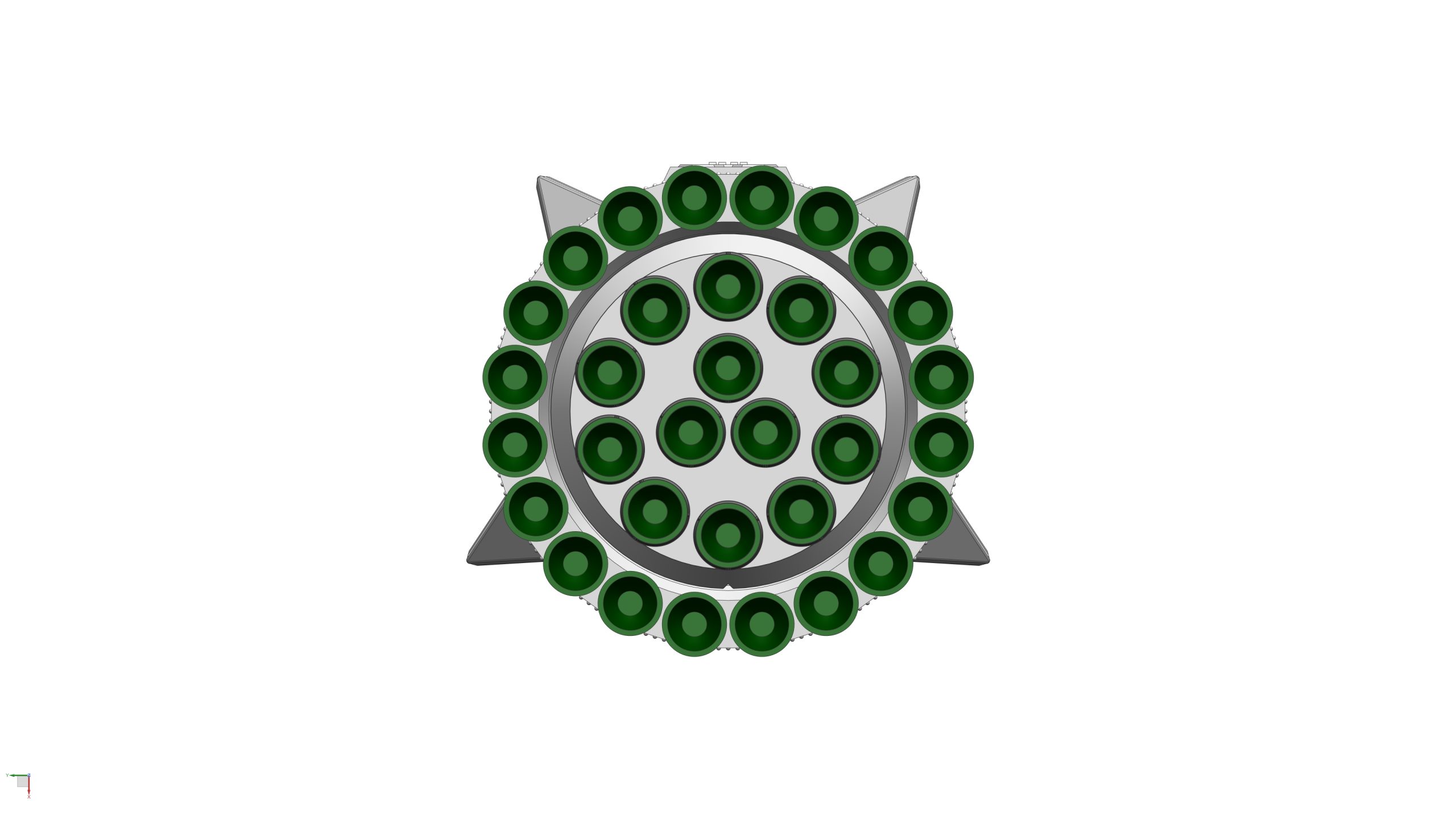

• 1x Booster Thrust Puck (b)
• 9x Magnets (5mm dia x 3mm thick) (highlighted in RED)

Assembly process

1. STEP 2a: Glue 6x (5mm dia x 3mm thick) magnets into their locations on the top face (3x) and bottom face (3x) of the Booster Aft Section

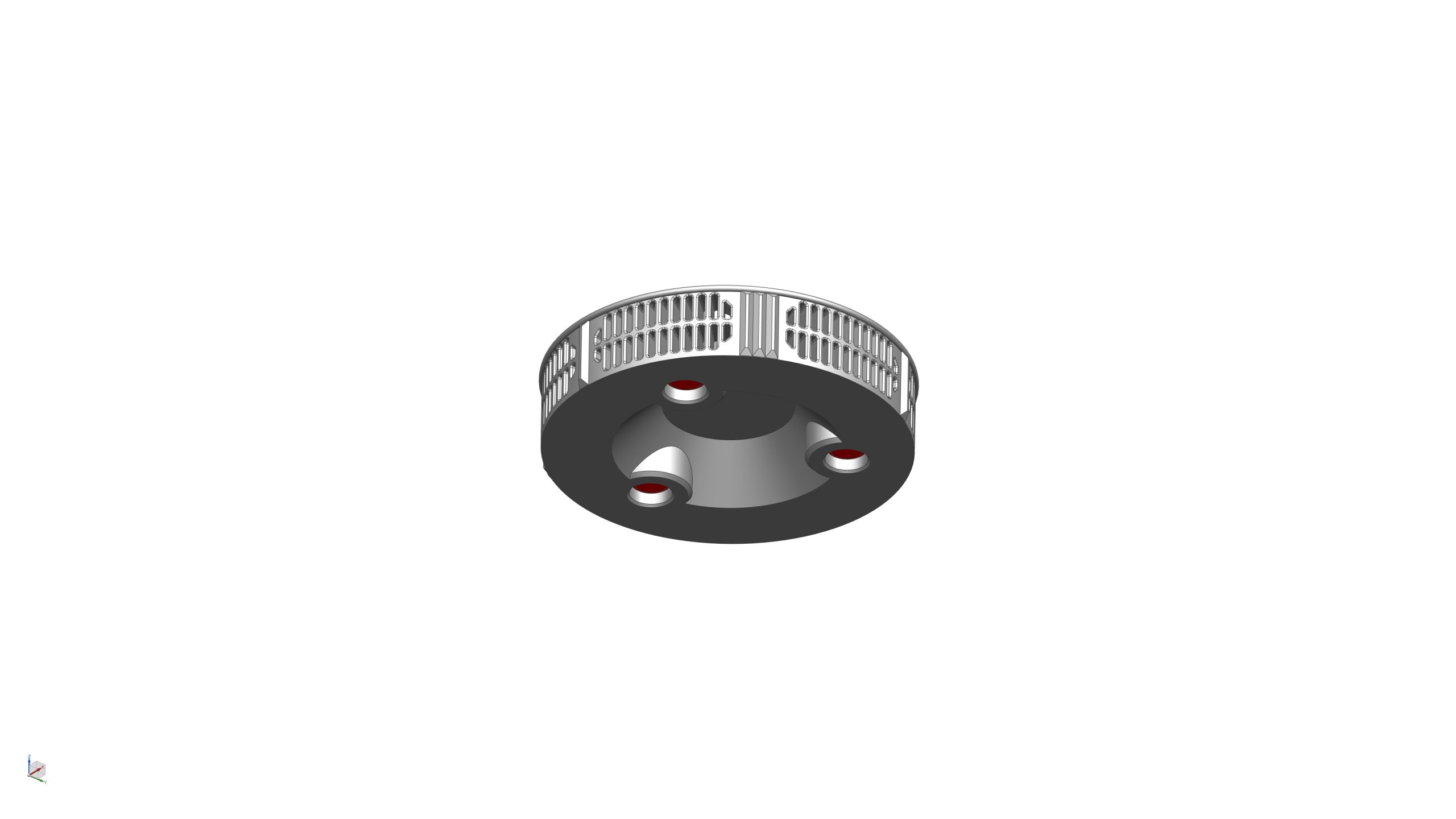

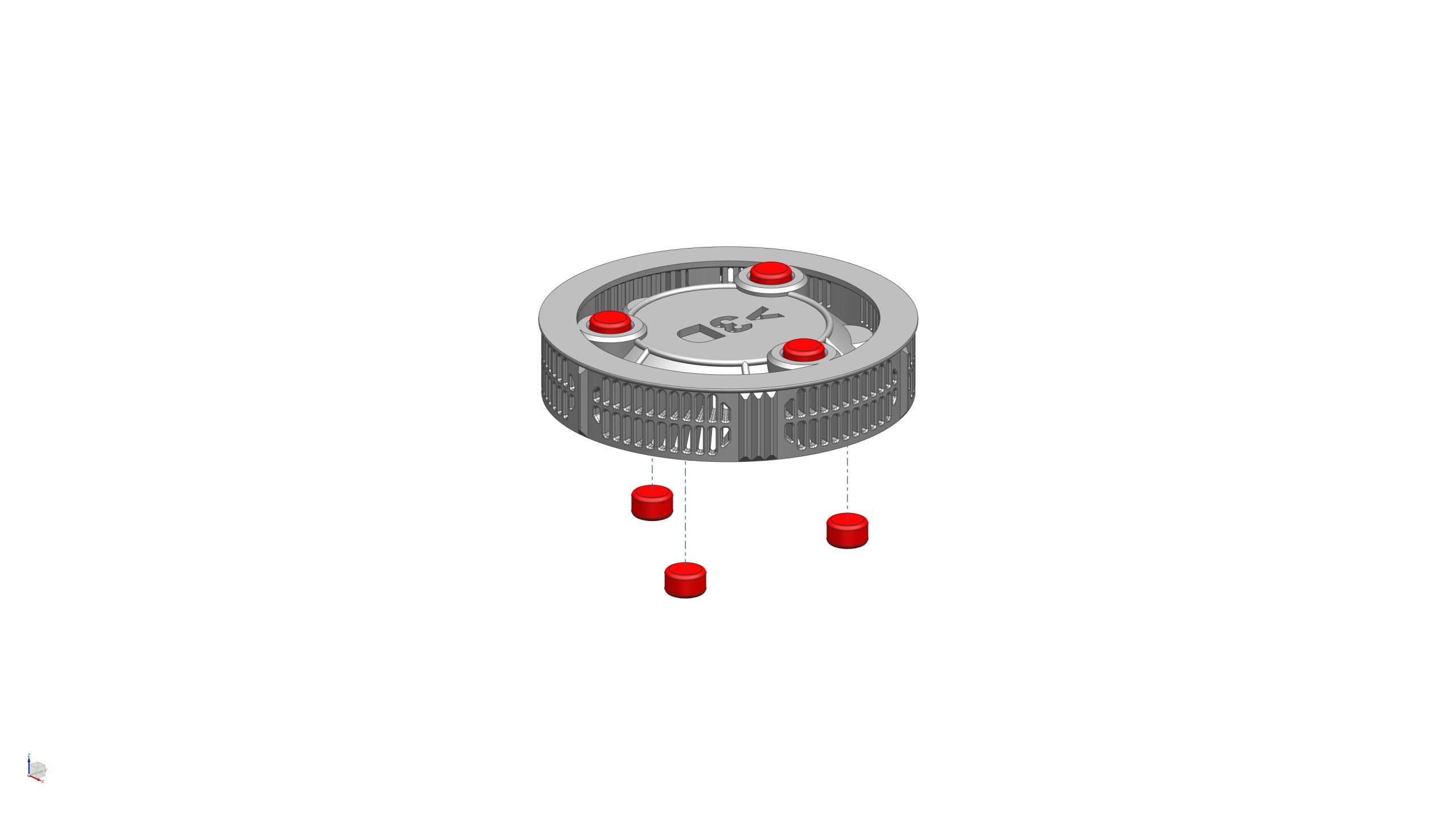

2. STEP 2b: Glue 3x (5mm dia x 3mm thick) magnets into their locations on the top face of the Booster Thrust Puck
3. STEP 2c: Insert the Booster Thrust Puck into the Booster Aft Section

Parts required (refer to the photos below)

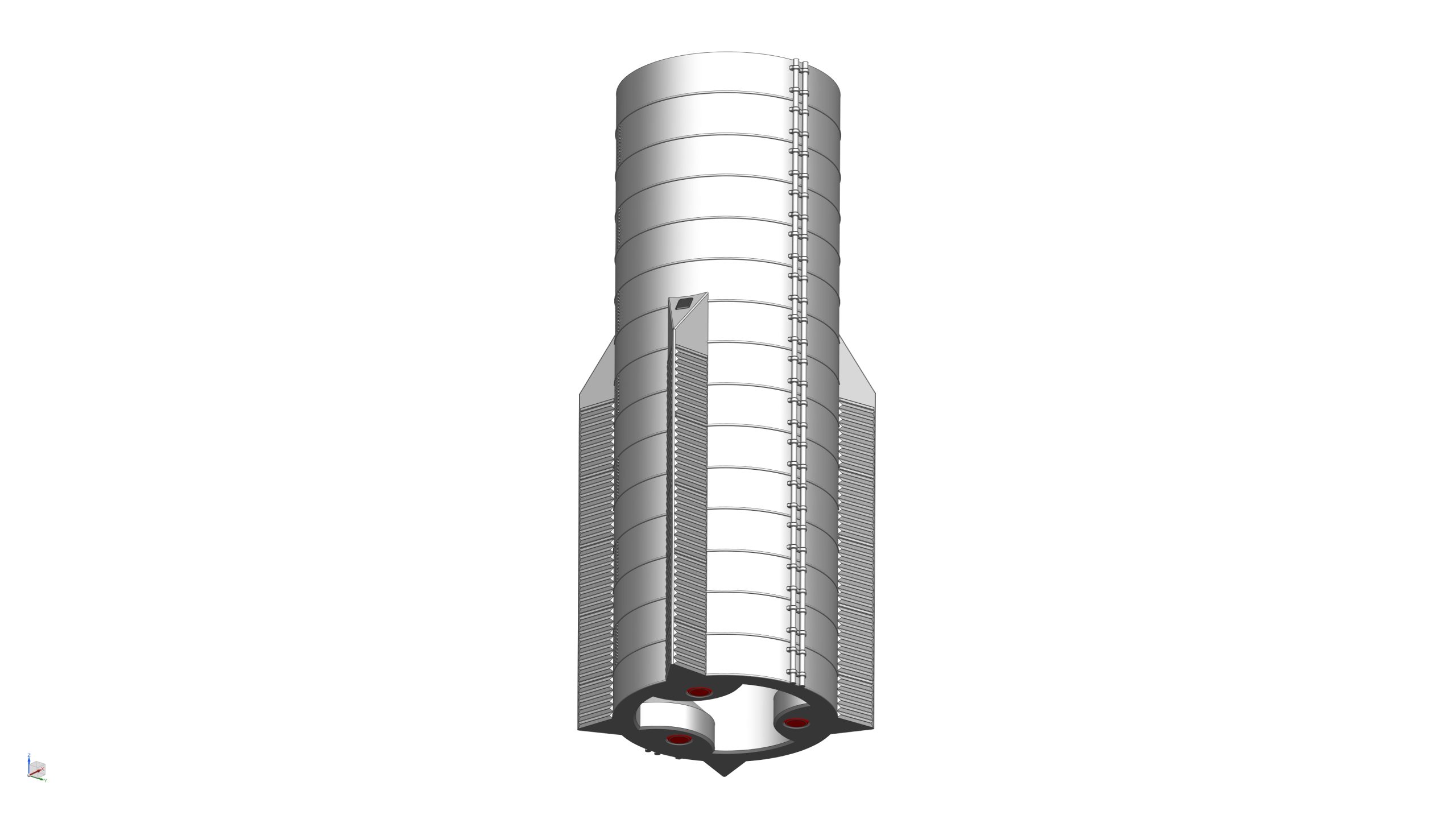

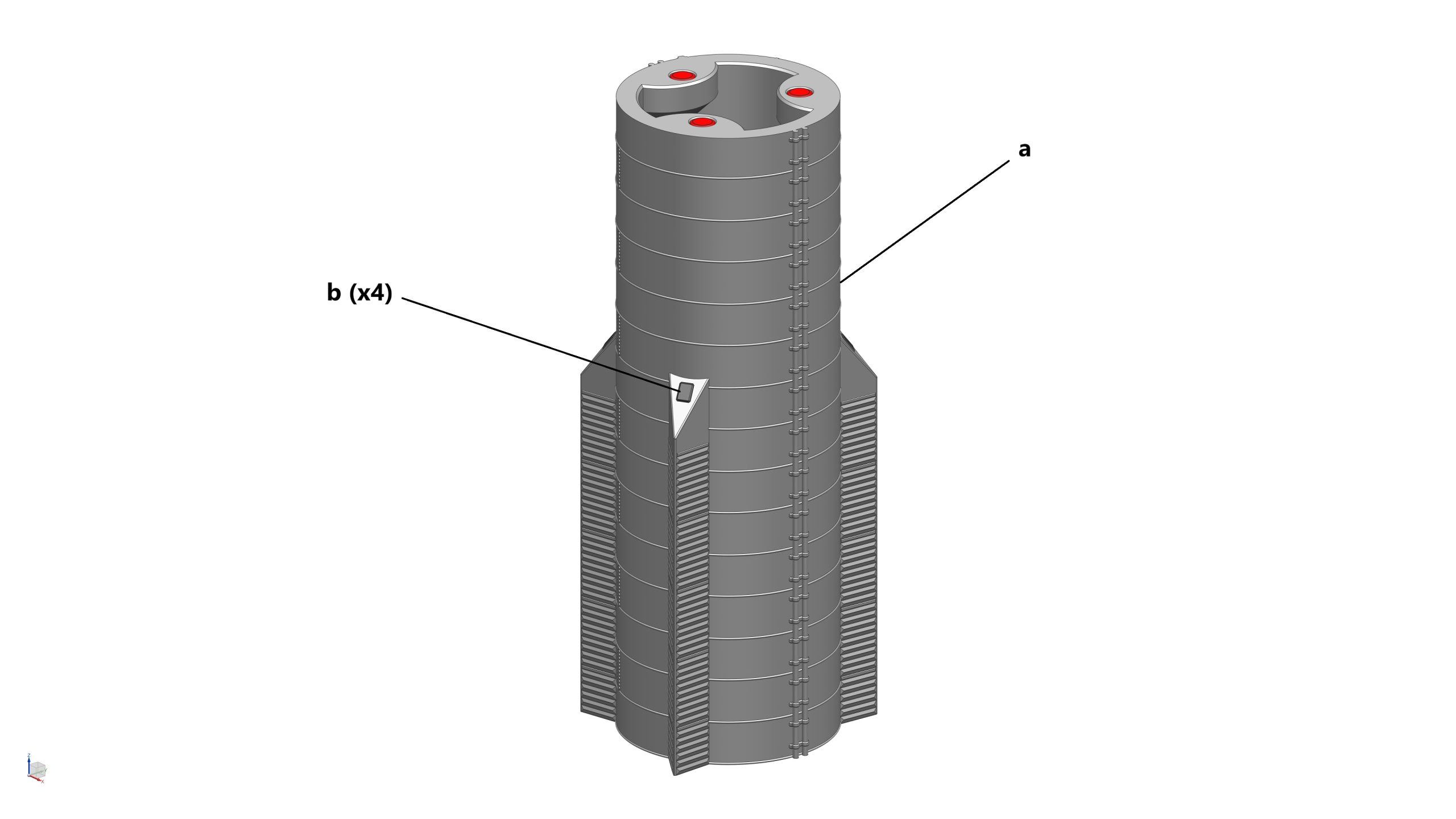

• 1x Booster LOX Tank Section (a)
• 4x Booster Starlink (b)
• 6x Magnets (5mm dia x 3mm thick) (highlighted in RED)

Assembly process

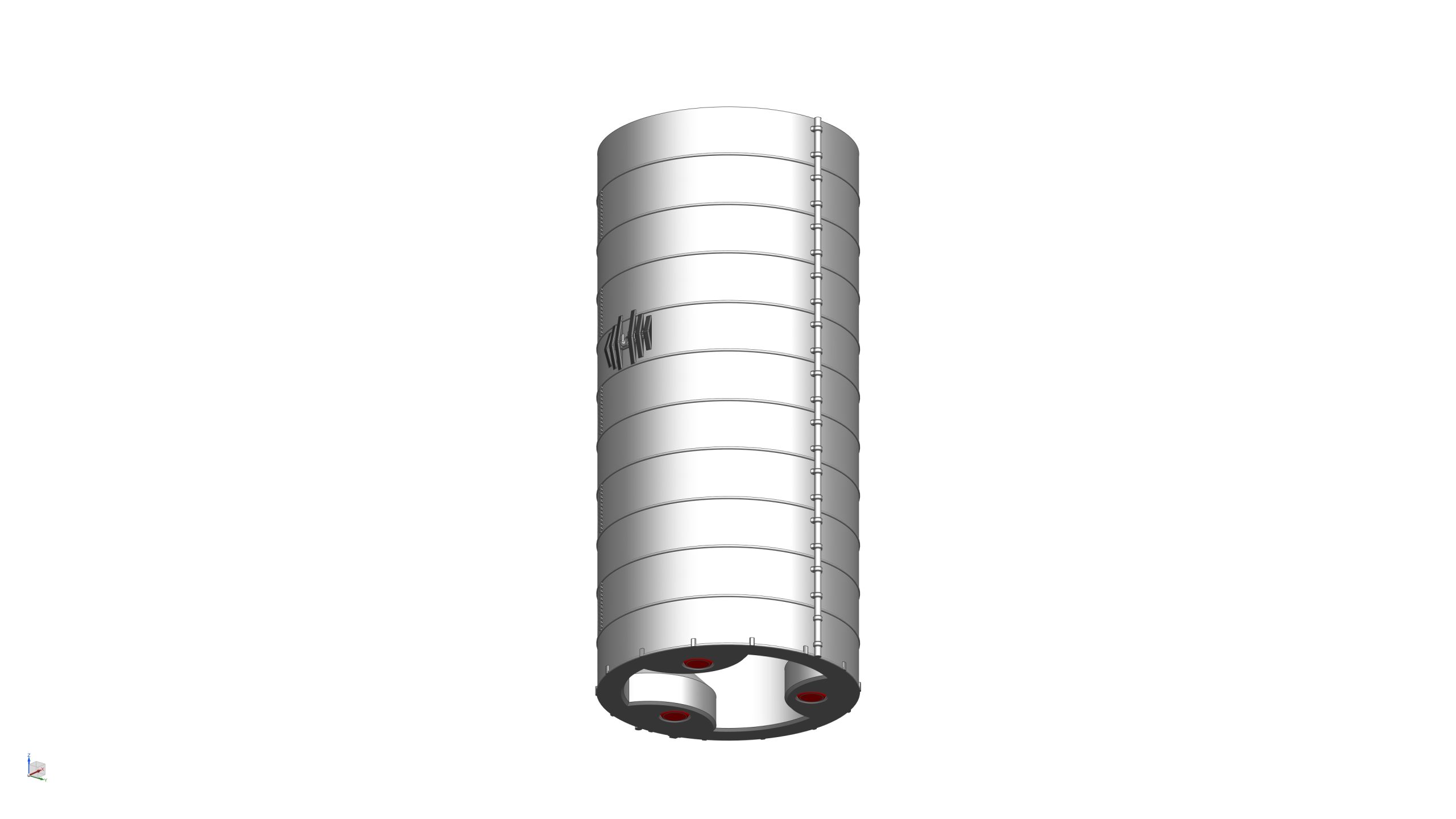

1. STEP 3a: Glue 6x (5mm dia x 3mm thick) magnets into their locations on the top face (3x) and bottom face (3x) of the Booster LOX Tank Section
2. STEP 3b: Glue 4x Booster Starlink into their locations on the top of the chines

Parts required (refer to the photos below)

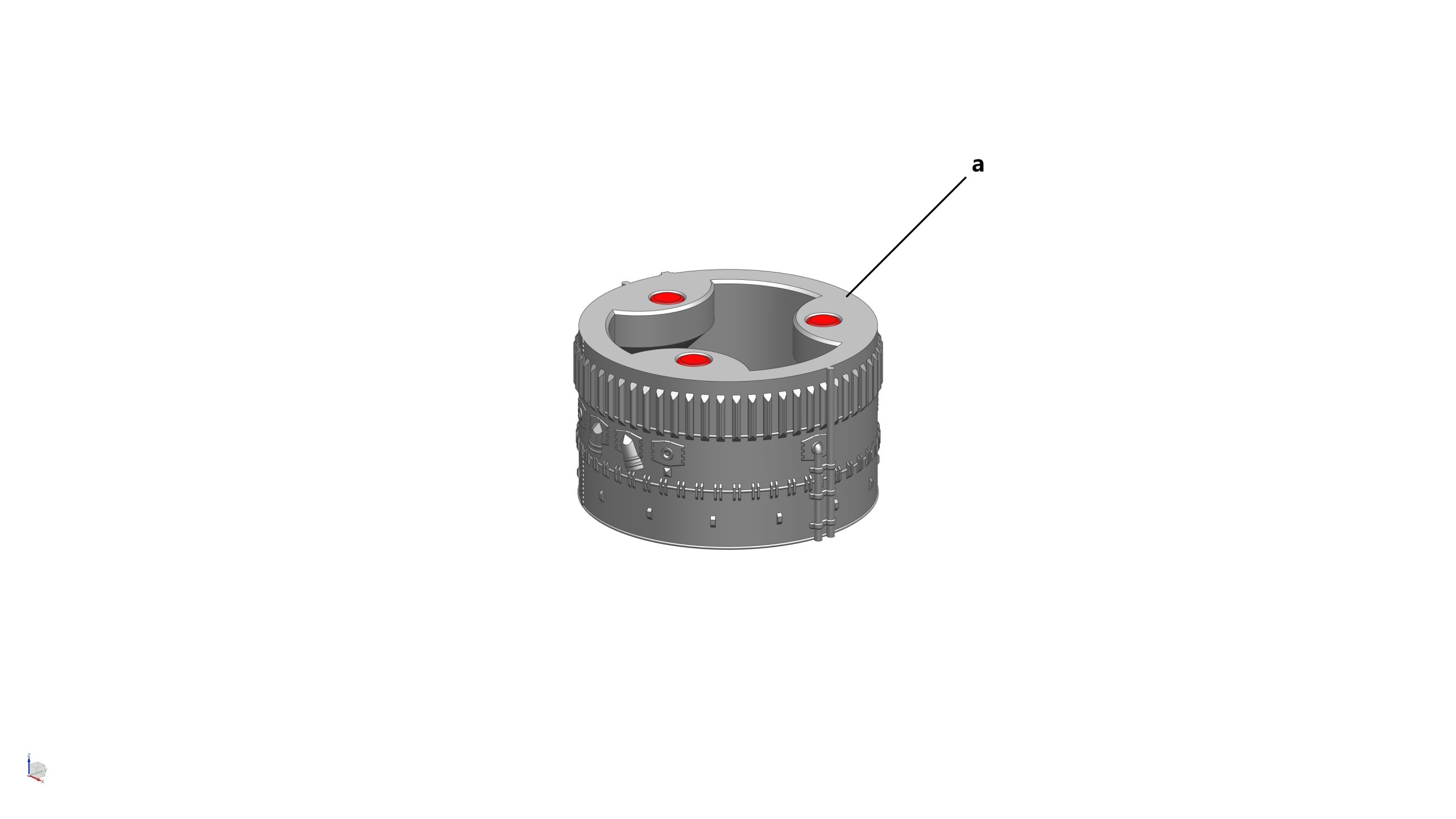

• 1x Booster Common Dome Section (a)
• 6x Magnets (5mm dia x 3mm thick) (highlighted in RED)

Assembly process

1. STEP 4: Glue 6x (5mm dia x 3mm thick) magnets into their locations on the top face (3x) and bottom face (3x) of the Booster Common Dome Section

Parts required (refer to the photos below)

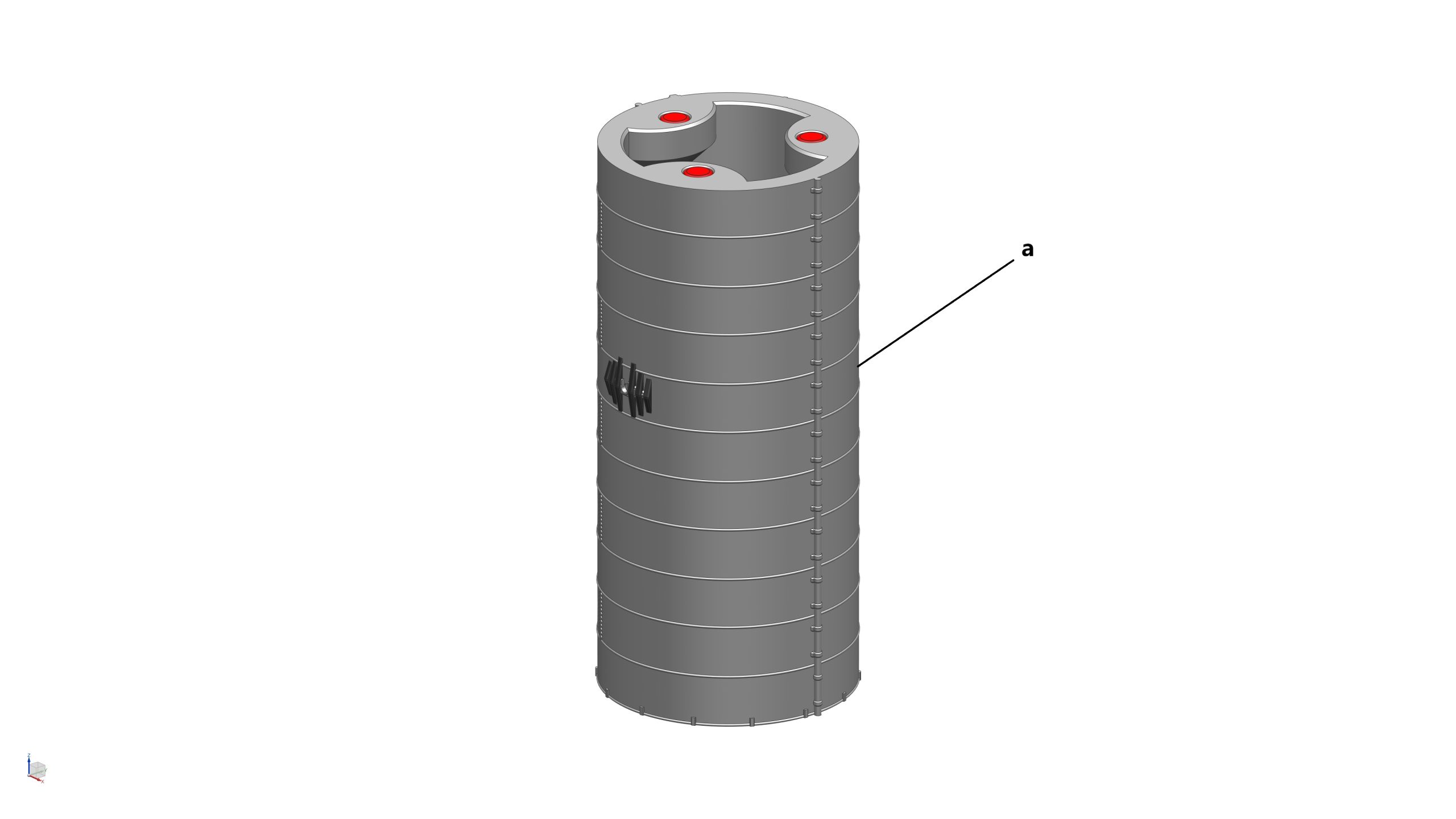

• 1x Booster CH4 Tank Section (a)
• 6x Magnets (5mm dia x 3mm thick) (highlighted in RED)

Assembly process

1. STEP 5: Glue 6x (5mm dia x 3mm thick) magnets into their locations on the top face (3x) and bottom face (3x) of the Booster CH4 Tank Section

Parts required (refer to the photos below)

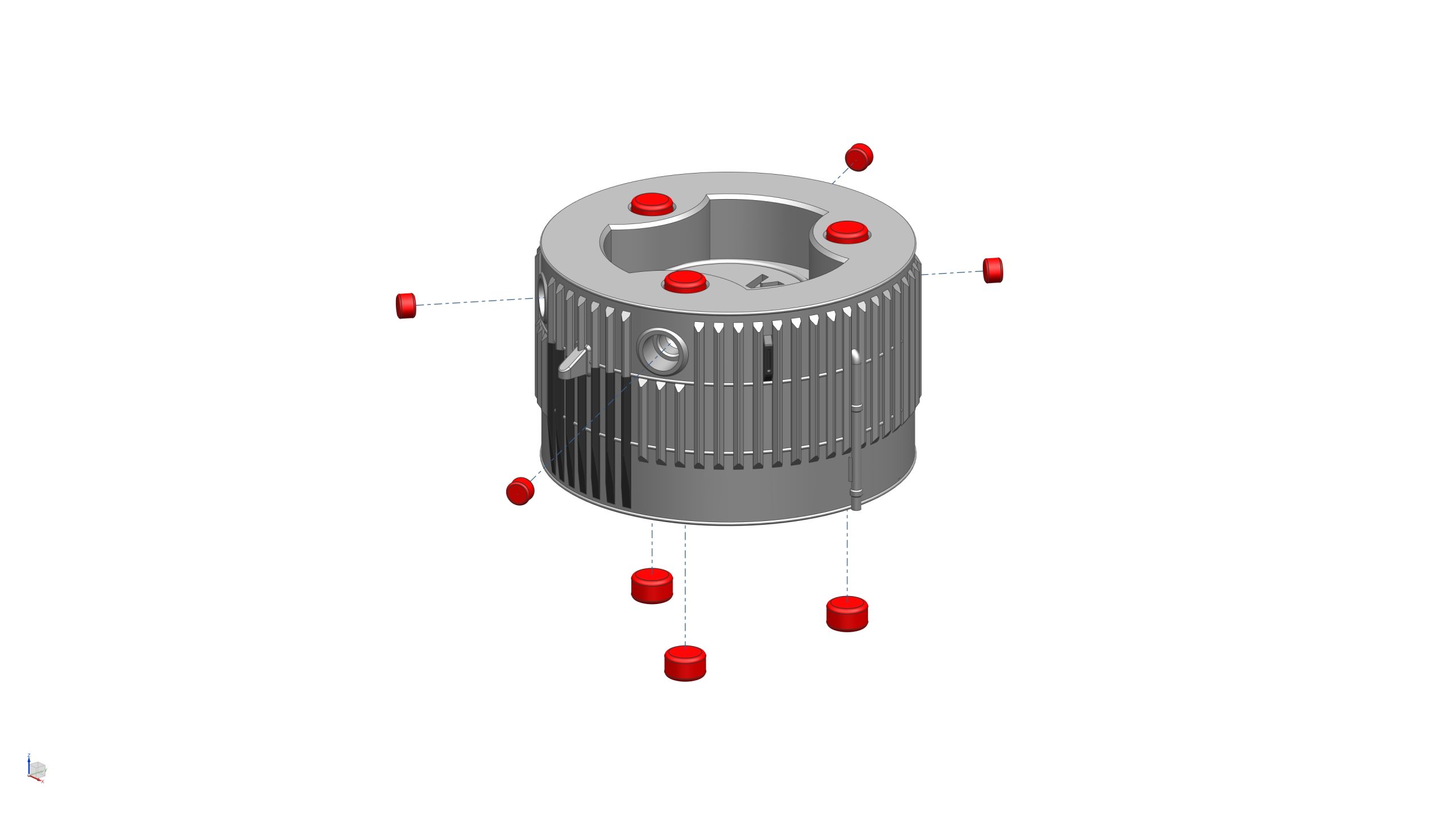

• 1x Booster Interstage Section (a)
• 4x Magnets (3mm dia x 2mm thick) (highlighted in RED)
• 6x Magnets (5mm dia x 3mm thick) (highlighted in RED)

Assembly process

1. STEP 6a: Glue 6x (5mm dia x 3mm thick) magnets into their locations on the top face (3x) and bottom face (3x) of the Booster Common Dome Section


   Please note: The 3x magnets on the top of the Booster Common Dome Section slightly protrude out of their pockets (approx. 1mm)

2. STEP 6b: Glue 4x (3mm dia x 2mm thick) magnets into their locations on the side of the Booster Common Dome Section

Parts required (refer to the photos below)

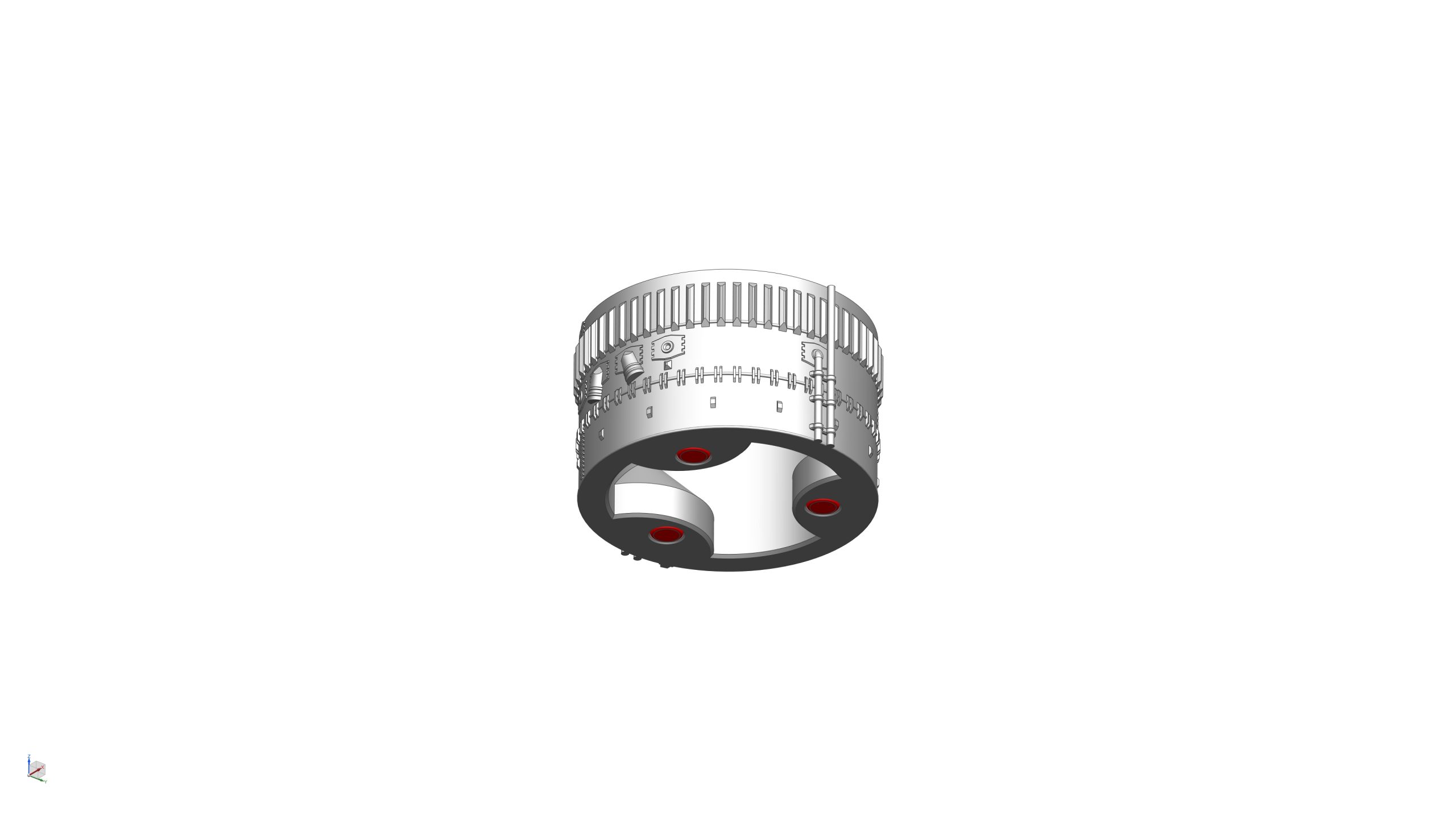

• 1x Hotstaging Ring (a)
• 6x Magnets (5mm dia x 3mm thick) (highlighted in RED)

Assembly process

1. STEP 7: Glue 6x (5mm dia x 3mm thick) magnets into their locations on the top face (3x) and bottom face (3x) of the Hotstaging Ring.


   Please note: The 3x magnets on the top of the Hotstaging Ring slightly protrude out of their pockets (approx. 1mm), whilst the 3x magnets at the bottom should be pushed all the way into their magnet holes (they should sit approx. 1mm below the surface of the holes)

Parts required (refer to the photos below)

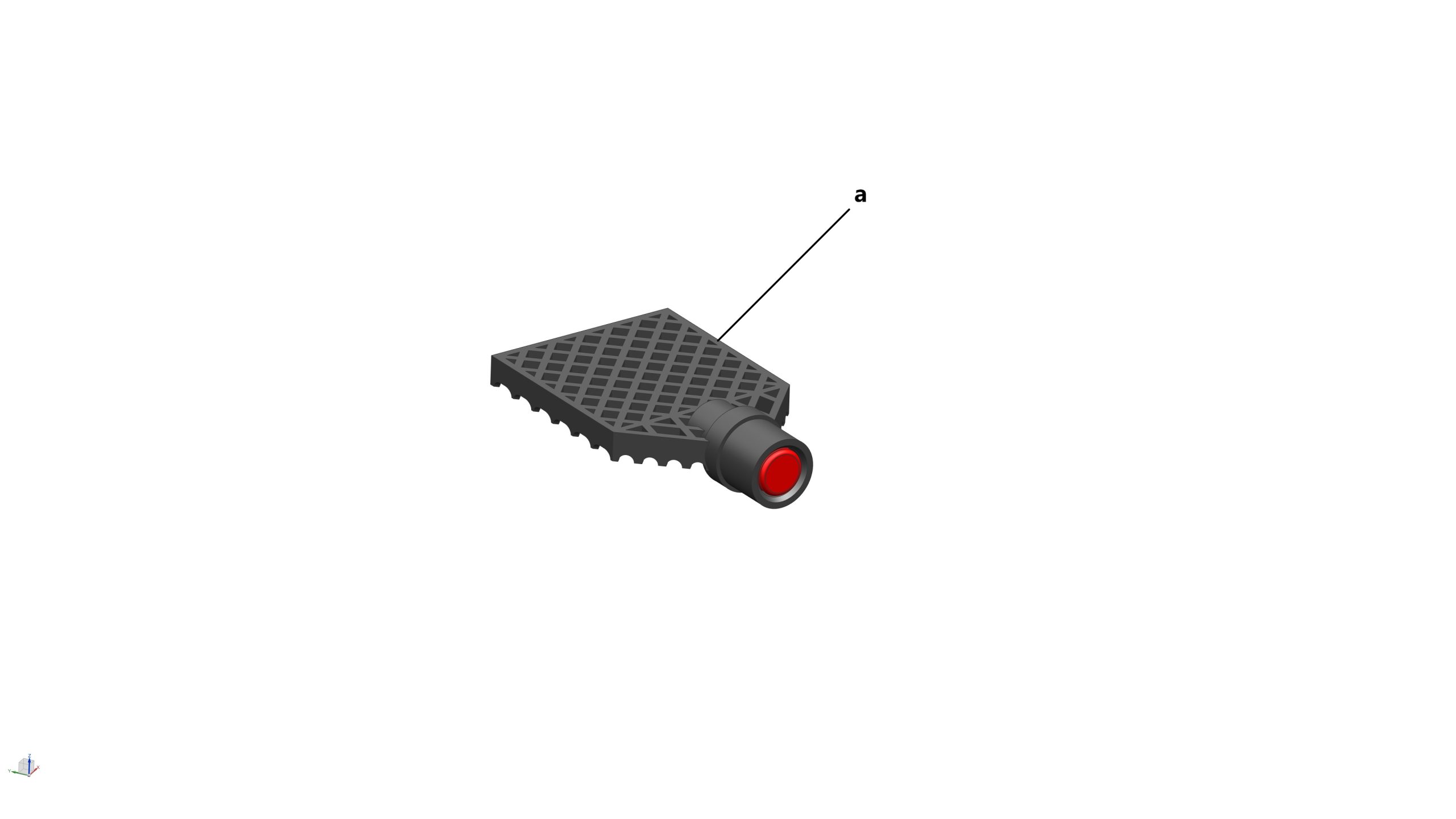

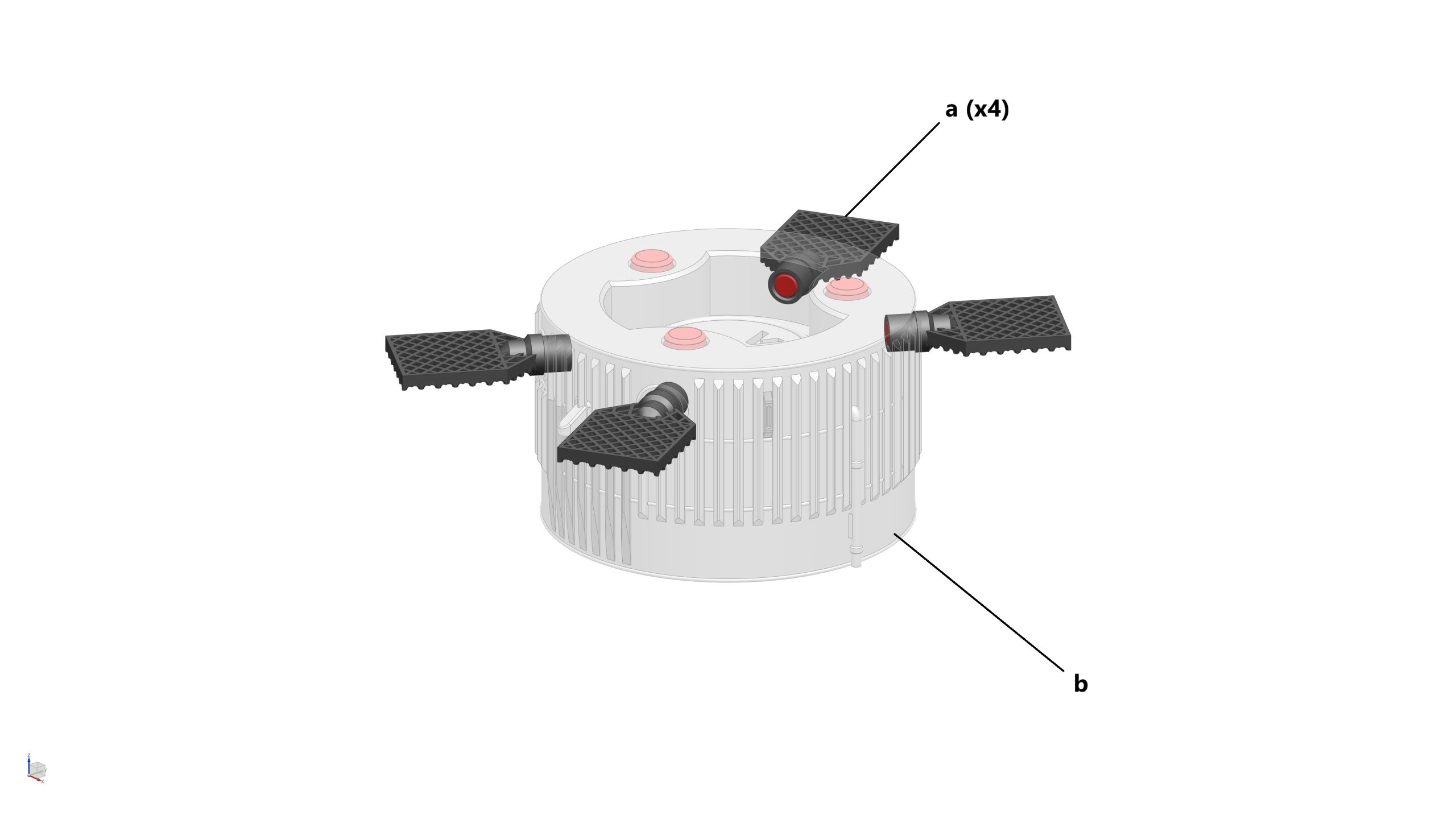

• 4x Grid Fins (a)
• 1x Interstage Section from STEP 6 (b)
• 4x Magnets (3mm dia x 2mm thick) (highlighted in RED)

Assembly process

1. STEP 8a: Glue 1x (5mm dia x 3mm thick) magnet into the magnet hole at the end of each Grid Fin
2. STEP 8b: Insert all 4x Grid Fins into the Interstage Section

Parts required (refer to the photos below)

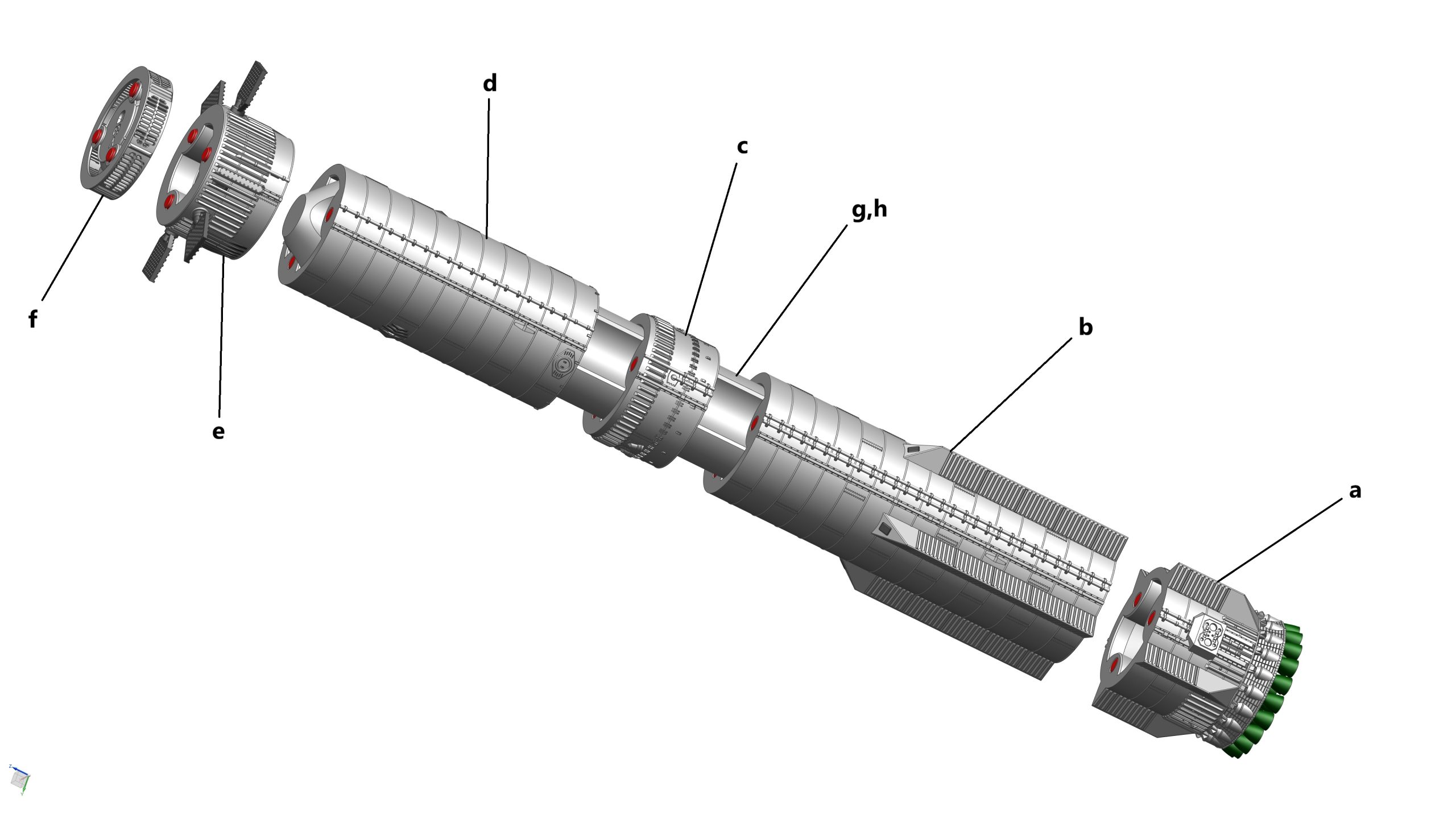

• 1x Booster Aft Section from STEP 2 (a)
• 1x Booster LOX Tank Section from STEP 3 (b)
• 1x Booster Common Dome Section from STEP 4 (c)
• 1x Booster CH4 Tank Section from STEP 5 (d)
• 1x Booster Interstage Section from STEP 8 (e)
• 1x Booster Hot-staging Ring from STEP 7 (f)

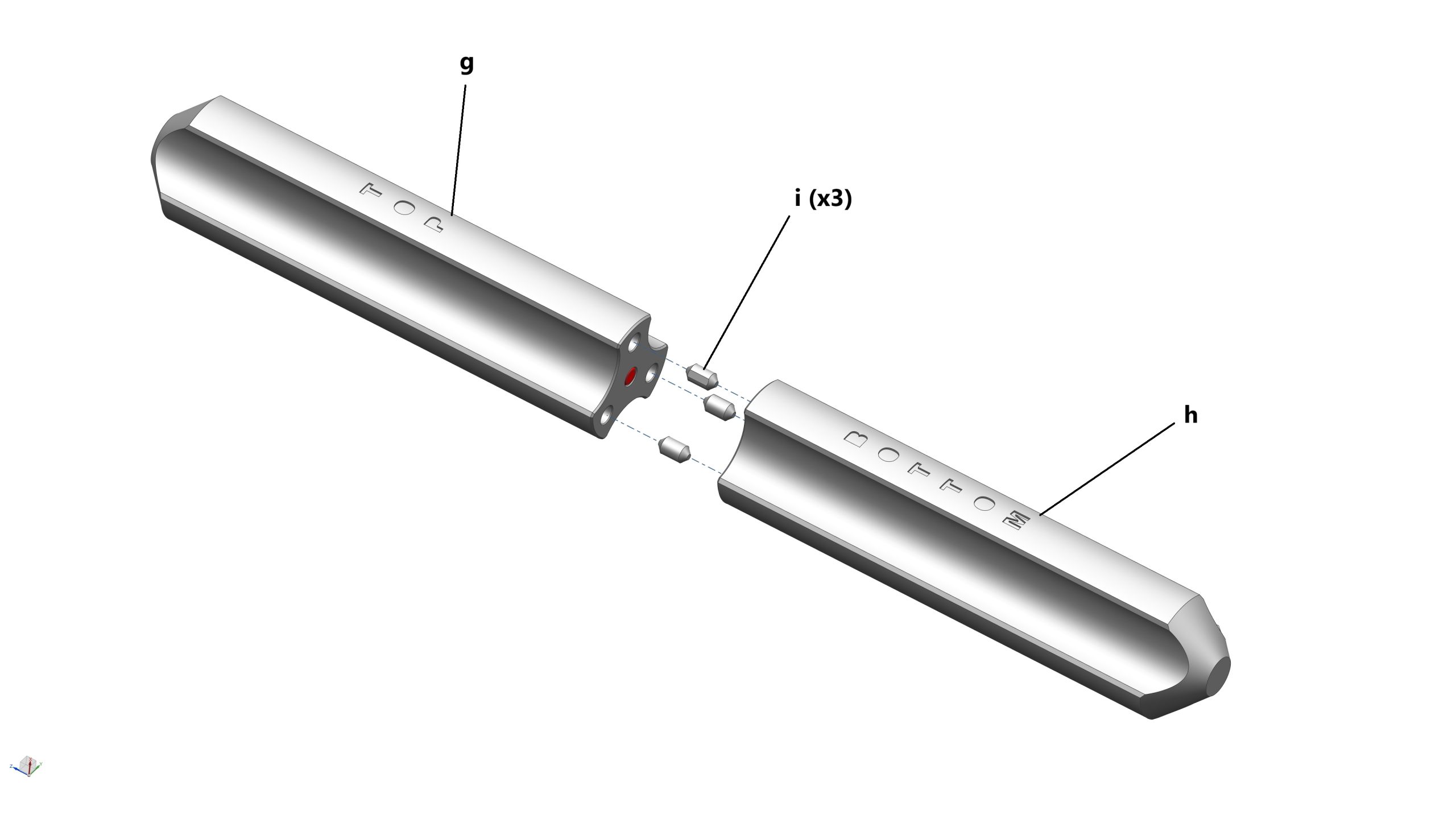

• 1x Booster Inner Compartment (Top) (g)
• 1x Booster Inner Compartment (Bottom) (h)
• 3x Locating Pins (i)
• 2x Magnets (5mm dia x 3mm thick) (highlighted in RED)

Assembly process

1. STEP 9a: Glue 1x (5mm dia x 3mm thick) magnet into the centered hole at the bottom face of the Booster Inner Compartment (Top), and Booster Inner Compartment (Bottom). Then assemble both parts together
2. STEP 9b: Stack all the sections together

Parts required (refer to the photos below)

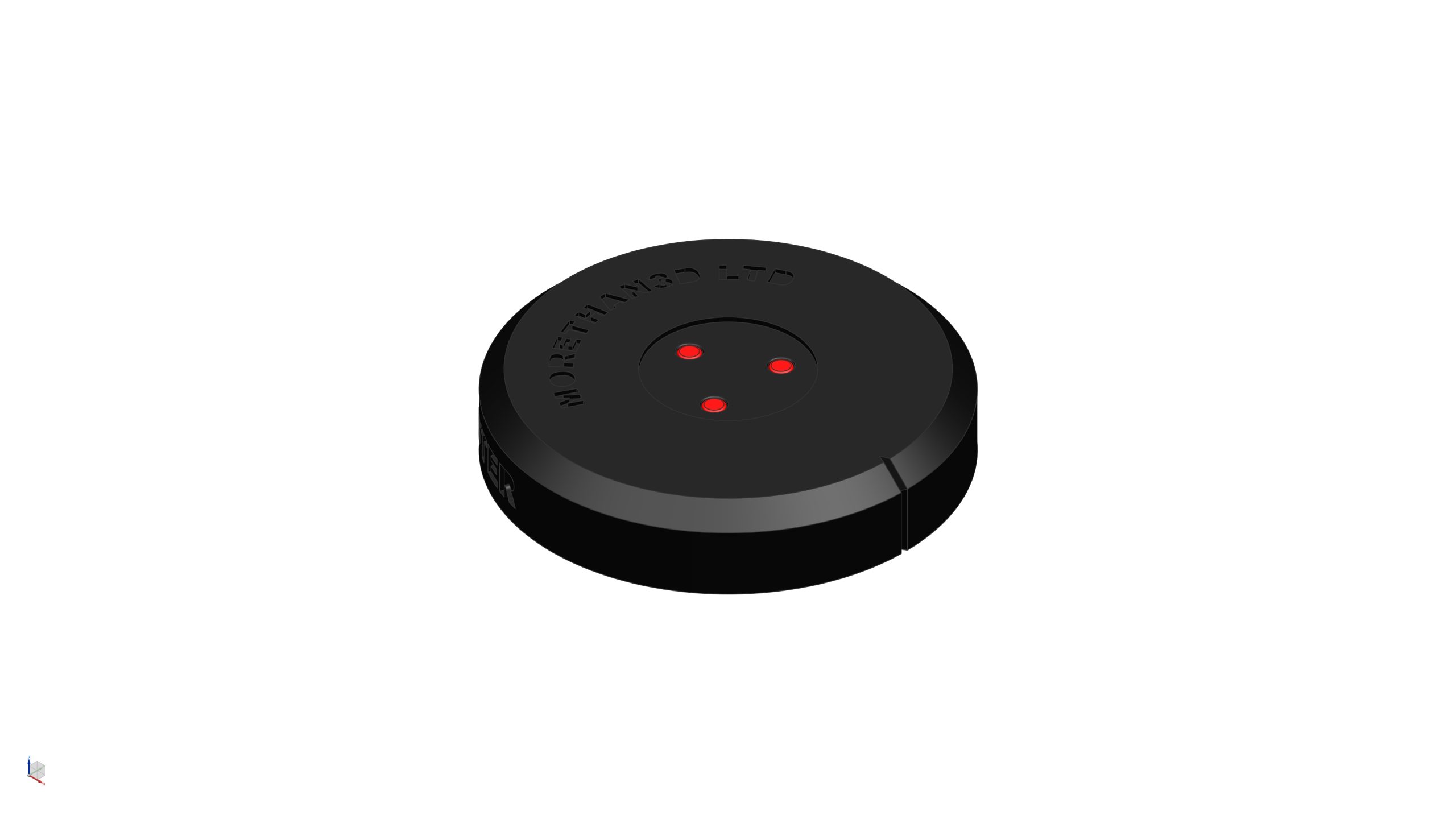

• 1x Booster Basic Stand
• 3x Magnets (5mm dia x 3mm thick) (highlighted in RED)

Assembly process

1. STEP 11a: Glue 3x (5mm dia x 3mm thick) magnets into their locations on the top face of the Basic Stand


   Please note: These magnets on the Basic Stand should attract the ones on the Thrust Puck

2. STEP 11b: Place the BOOSTER-XS4 on the Basic Stand.

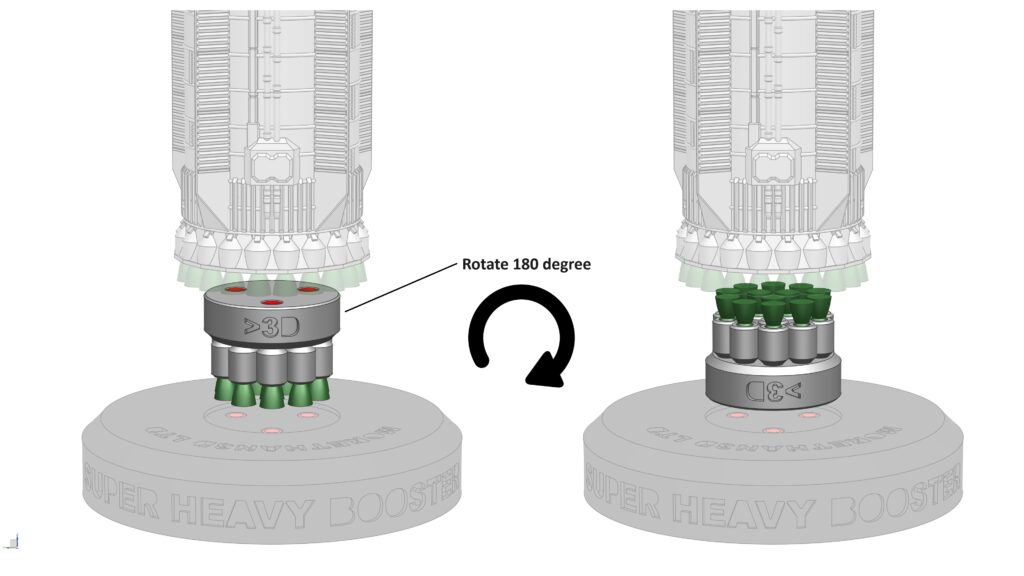

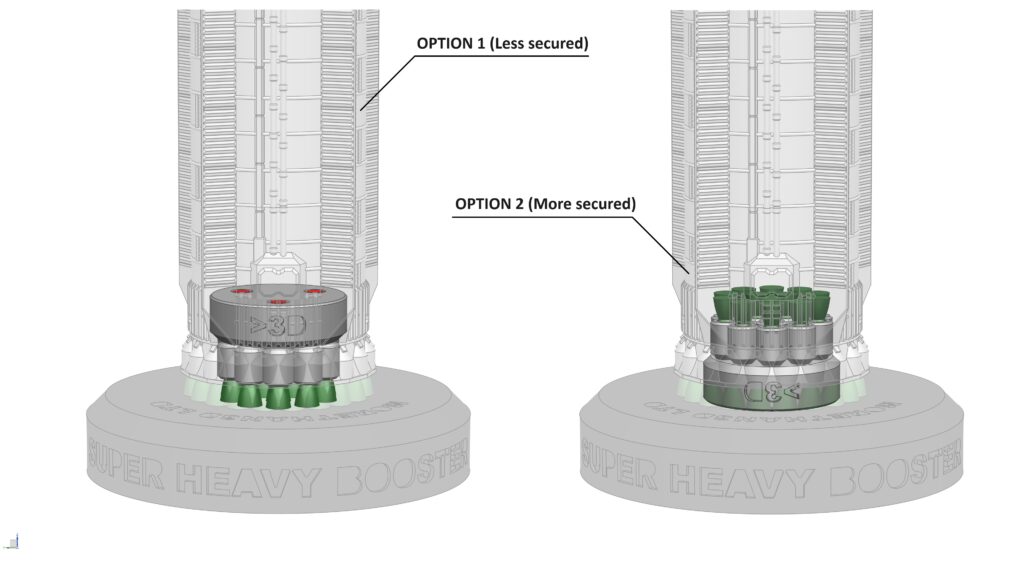

   Please note: There are 2 options to place the Booster on the Basic Stand. Option 1 is simple and straight forward but less secured. Option 2 is more secured but you’ll need to remove the Booster Thrust Puck (you can use a pen and push it out via the hole at the bottom of the Booster Aft Section) and rotate it 180 degree

And that’s it! Congratulations, you have completed your 1:200 BOOSTER-XS4 model!
