How to print the BOOSTER-S8

If you want to save this How-To instruction as a pdf file (and print it out later if needed), simply copy the URL of this page and paste it to https://www.printfriendly.com/ . Printfriendly will generate a printer-friendly pdf of the page with all the texts and images for you.

Please consider joining Morethan3D community on our Discord channel to discuss 3D printing hints & tips, ask questions, and get help if you come across any printing issues.

The STL package of this model includes an “All-In-One” Print Profile created for Bambu Lab H2 Series 3D printers. If you don’t have a H2 Series but any other printers from Bambu Lab, simply load the profile in Bambu Studio and change the printer setting to your printer. If you are new to 3D printing and never use a “All-In-One” Print Profile before, follow this instruction: How to use Bambu Studio’s All-In-One Print Profile

If you don’t have access to any Bambu Lab 3D printers. We recommend you to download Bambu Studio and load our Profile up so you can replicate the print settings that we use for each part of the model in your own slicer. Most parts of the model can be printed with a standard 0.4mm Nozzle. However, to achieve the optimum result for parts with small details, we strongly recommend using a 0.2mm Nozzle

Below are some tips.

There are two “All-In-One” Bambu Studio Profiles created for this model:
– BOOSTER-S8 [MORETHAN3D – H2D Profile] – 0.2 Nozzle
This profile contains all parts that are recommended to print with a 0.2mm Nozzle

– BOOSTER-S8 [MORETHAN3D – H2D Profile] – 0.4 Nozzle
This profile contains all parts that are recommended to print with a 0.4mm Nozzle

It is strongly recommended that you use the correct Nozzle size to print the parts to achieve the optimum result. You can print all parts with a 0.4mm Nozzle if you don’t have a 0.2mm one, but some parts won’t look as good as they should
There are two STL’s in folder ‘STEP 01’ called ‘BOOSTER-S8 Assembly’, and ‘BOOSTER-S8 Propellant Distribution System’.
If you load these files (separately), you’ll see the fully assembled BOOSTER-S8 model, and the internal plumbing. This will help you understand where each and every part is fitted on the model.
This model contains a number of parts that require multi-colour printing.
To print these multi-colour parts, all you need to do is load both files of the same part (Black, and Silver) into your slicer software, assign the correct colour to the part, and print.
Please note: Both the Black and Silver parts are saved from the same coordinate in relation to each other. Hence, when you load them into your slicer software, they should merge together correctly. You don’t need to align them manually
At STEP 2 – Assemble the Booster Aft Section, DO NOT glue the Booster Aft (Top) and Booster Aft (Bottom) together at this STEP. Otherwise, you’ll lose some access to assemble the plumbing later on.
You’ll only glue these two parts together at STEP 15 – Stack Booster Sections
At STEP 09 – Assemble the Booster Interstage Section, you’ll find there are 4 STL files in the folder:
– Booster Hot Stage Ring_S8
– Booster Interstage Custom Support_S8
– Booster Interstage_S8 (Black)
– Booster Interstage_S8 (Silver)

All of these files need to be loaded into the slicer at once. They are NOT intended to be printed separately!

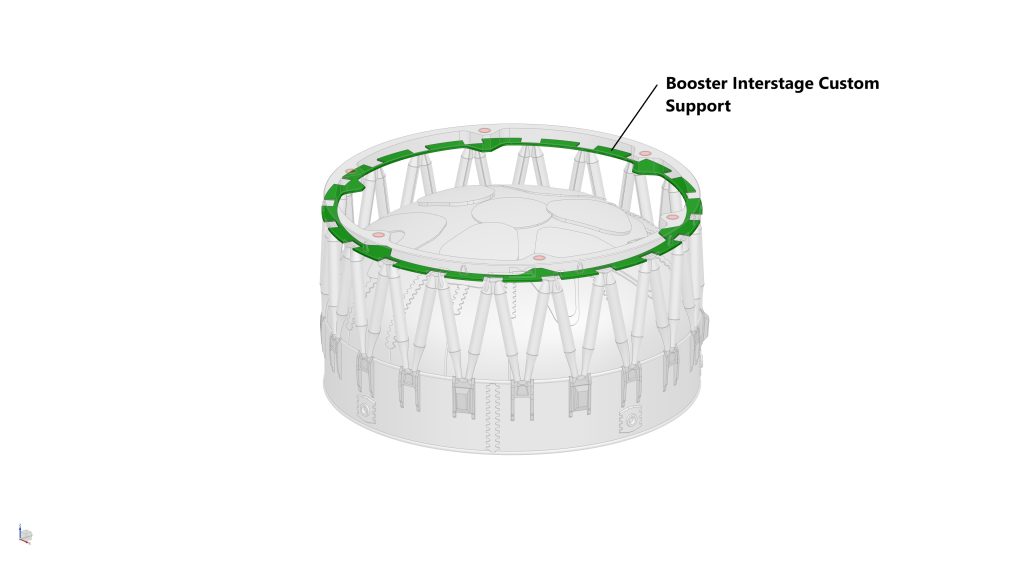

Also, please note that the Booster Interstage Custom Support is a sacrificial ring that sits just 0.1mm below the upper ring of the Hot Staging Ring. This sacrificial ring will need to be removed once the part is printed

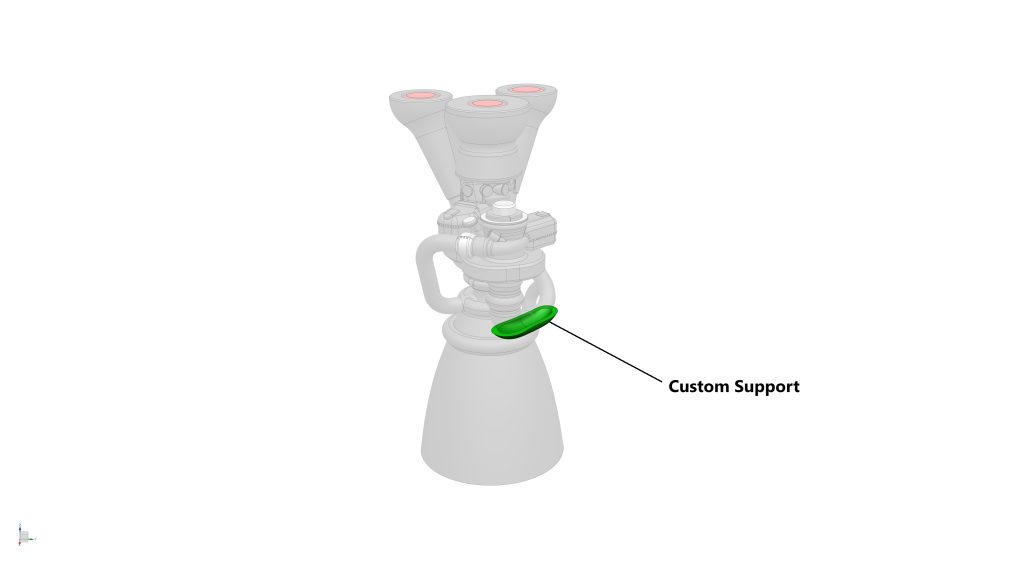

At STEP 10 – Assemble the Raptor Engines, and Grid Fins, you’ll find both the Raptor 3_Outer and Raptor 3_Central have two versions each:
– Raptor 3_Central_S8
– Raptor 3_Central (With Custom Support)_S8
And
– Raptor 3_Outer_S8
– Raptor 3_Outer (With Custom Support)_S8

Regardless of which version you choose, you’ll need to generate support for it. However, the “With Custom Support” version includes a sacrificial “scoop” underneath the Fuel Feed Pipe of the Raptor. This custom support will need to be removed once the part is printed, and it’ll leave a much better surface underneath the pipe.
At STEP 10 – Assemble the Raptor Engines, and Grid Fins, you also find another option for the Raptor 3_Outer called “No Magnet Version”.
If you intend to permanently glue all 20x Outer Raptor 3 to the Booster Aft Section, you can use this version instead.
All magnet holes can be printed without support regardless of their positions/orientations on the model. Please don’t generate support for these holes (unless you really need to). Otherwise, you may struggle to remove support inside the holes due to restricted access.
This model is designed in such a way to allow you to assemble and disassemble the model into piece part level, because almost every part is held together by magnets. However, if you prefer to glue everything, or some parts, together, that’s also fine – but please be aware that if you do, it may be difficult to update the model later on.
This model is designed at 1:96 scale, hence, it is recommend that you print at this scale to achieve the highest quality. However, if you decide to print the model at a smaller scale, please be aware that the magnets we selected for this model will no longer fit and you will have to find smaller magnets to fit, or glue the parts together.

How to assemble the BOOSTER-S8

So now you’ve got all your parts printed? Great! Let’s assemble the model!

I’ll take you through the assembly process step by step but before that, you need to purchase some items:

3mm dia x 2mm thick N42 Neodymium (LINK) | Qty: 146-off
5mm dia x 3mm thick N42 Neodymium magnets (LINK) | Qty: 82-off
Super glue (LINK) | Qty: 1 bottle

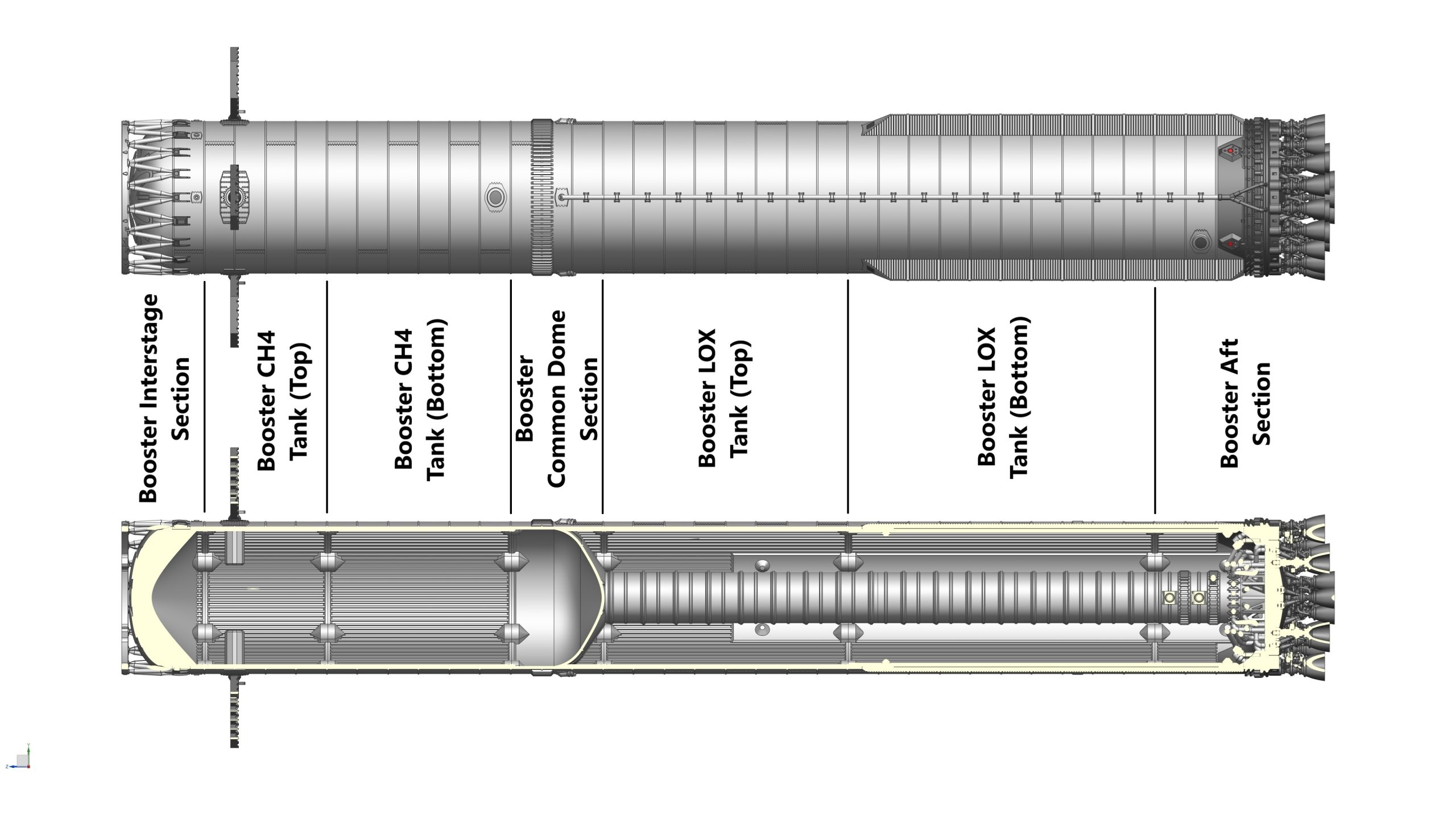

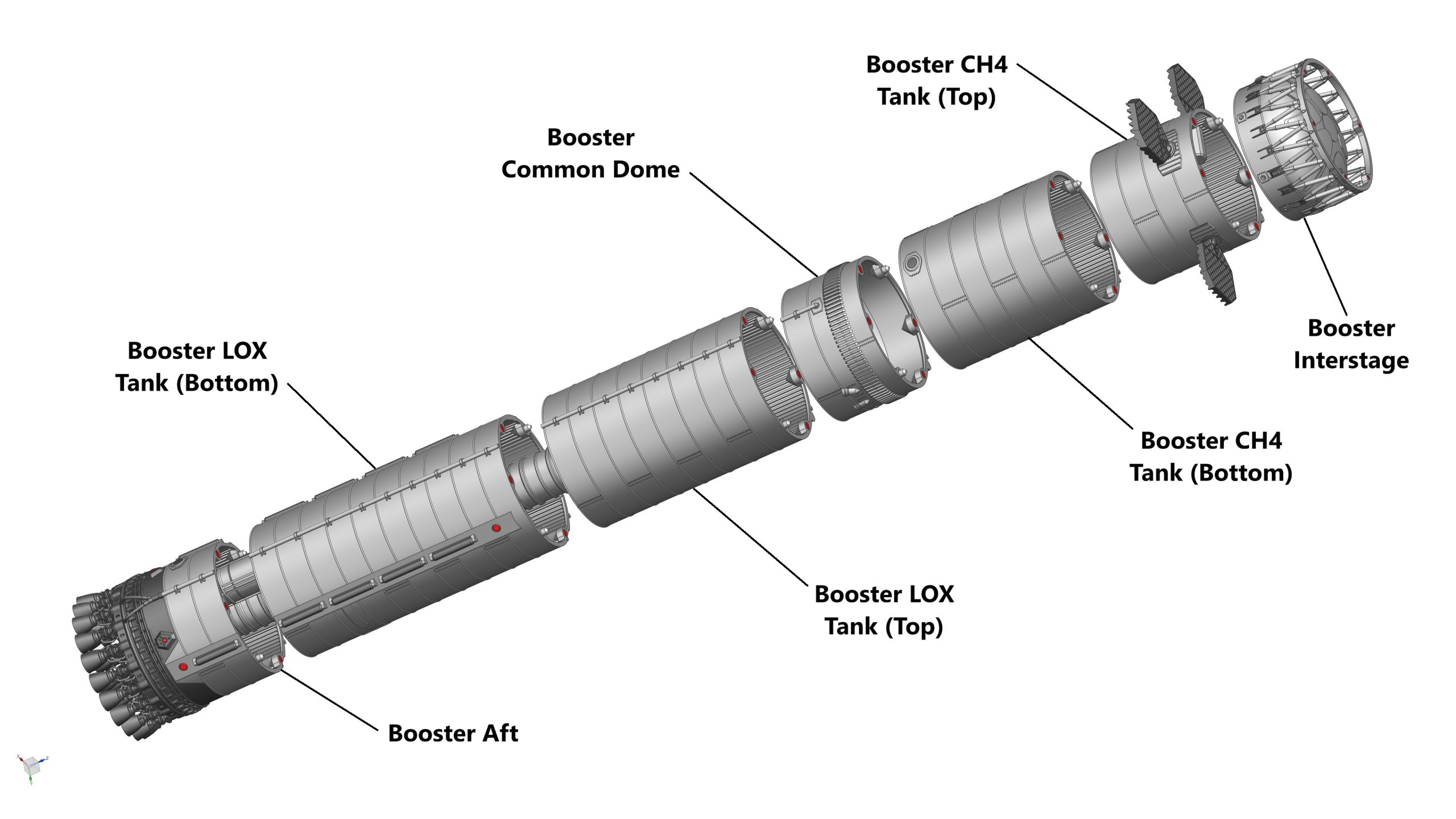

STEP 1: ‘Dry’ assemble the model

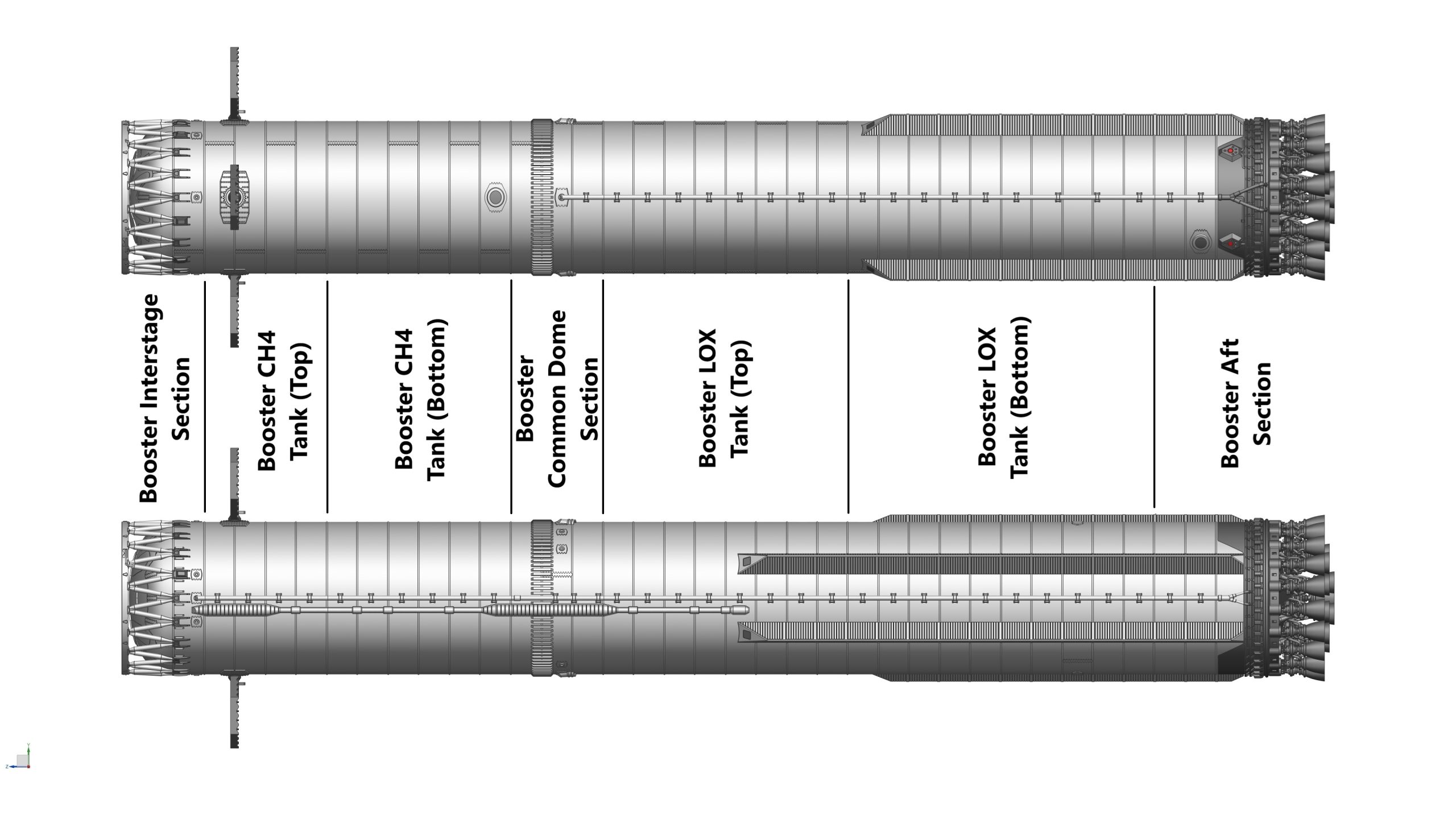

At this step, all I want you to do is try to stack all the parts together to get a good understanding of where they are located. Because there are a lot of magnets you need to fit during the assembly process, doing this first step will give you an idea of how to fit the magnets in each part correctly. Please use the files in STEP 01 folder, and the photos below if required.

STEP 1

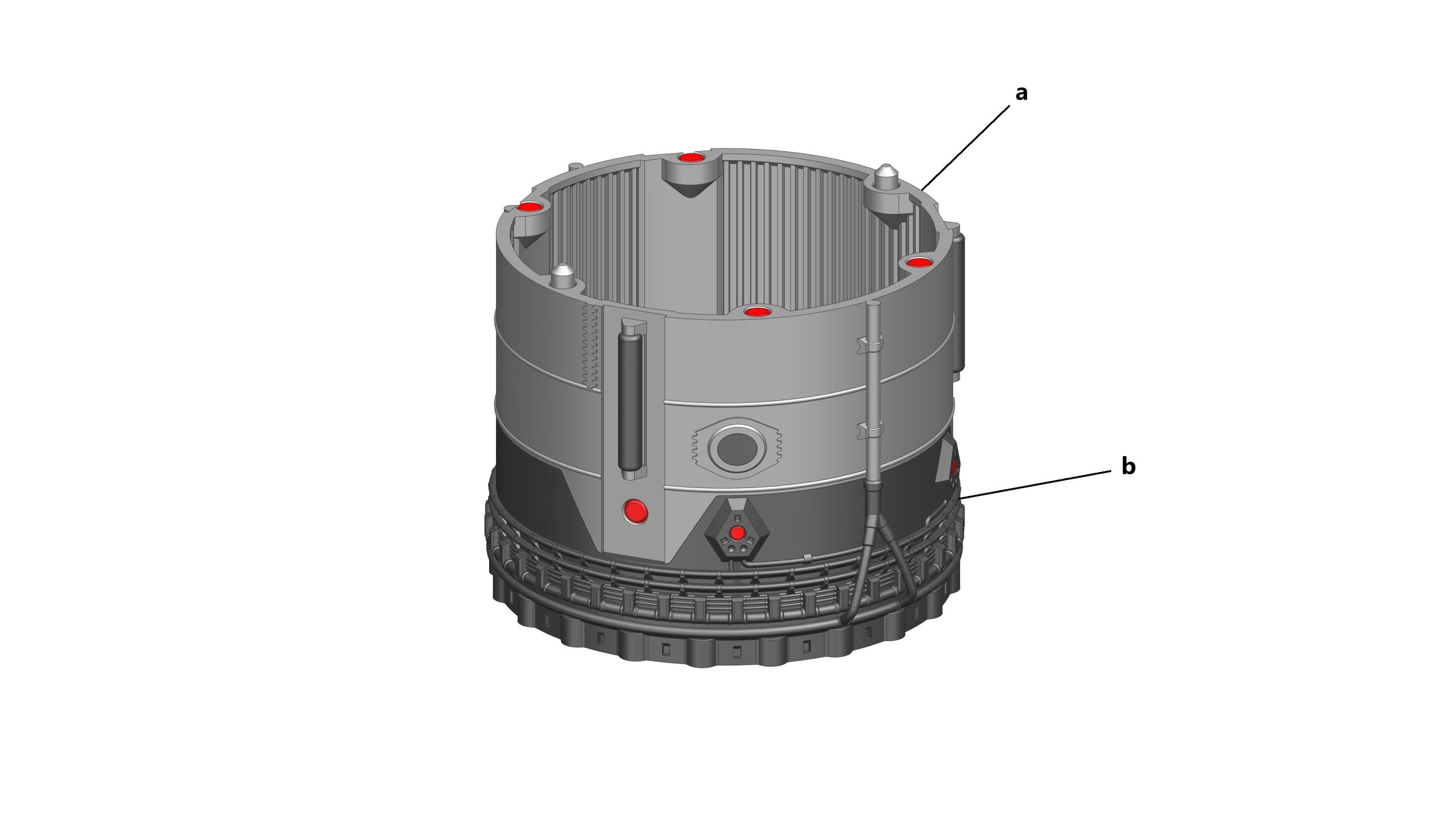

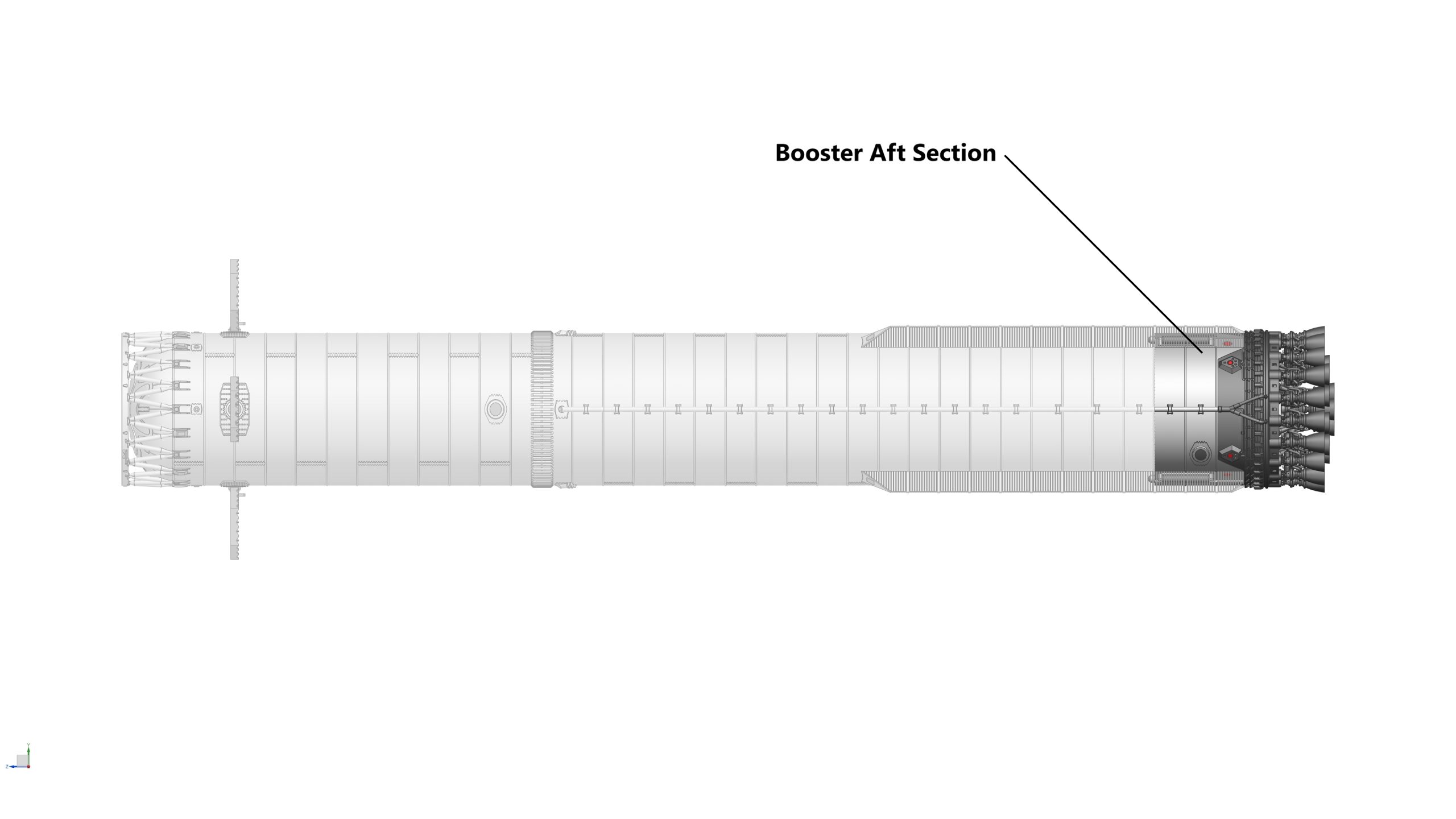

STEP 2: Assemble the Booster Aft Section

Parts required (refer to the photos below)

1x Booster Aft (Top) (a)
1x Booster Aft (Bottom) (b)
4x COPV (c)
20x LOX Outer Engine Feed Pipe (d)
2x Locating Pin (e)
22x Magnets (3mm dia x 2mm thick) (highlighted in red)
8x Magnets (5mm dia x 3mm thick) (highlighted in red)

Assembly process

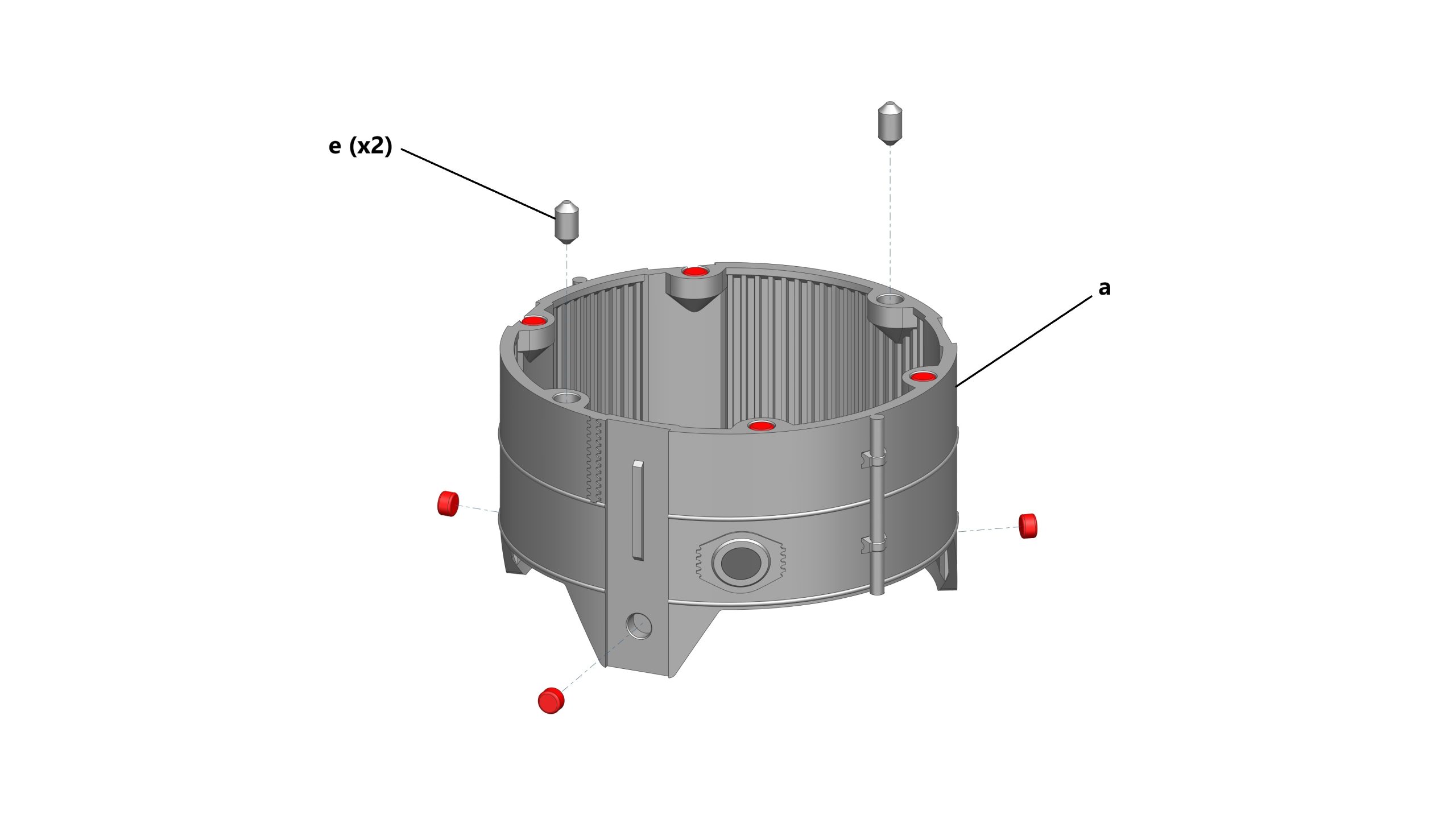

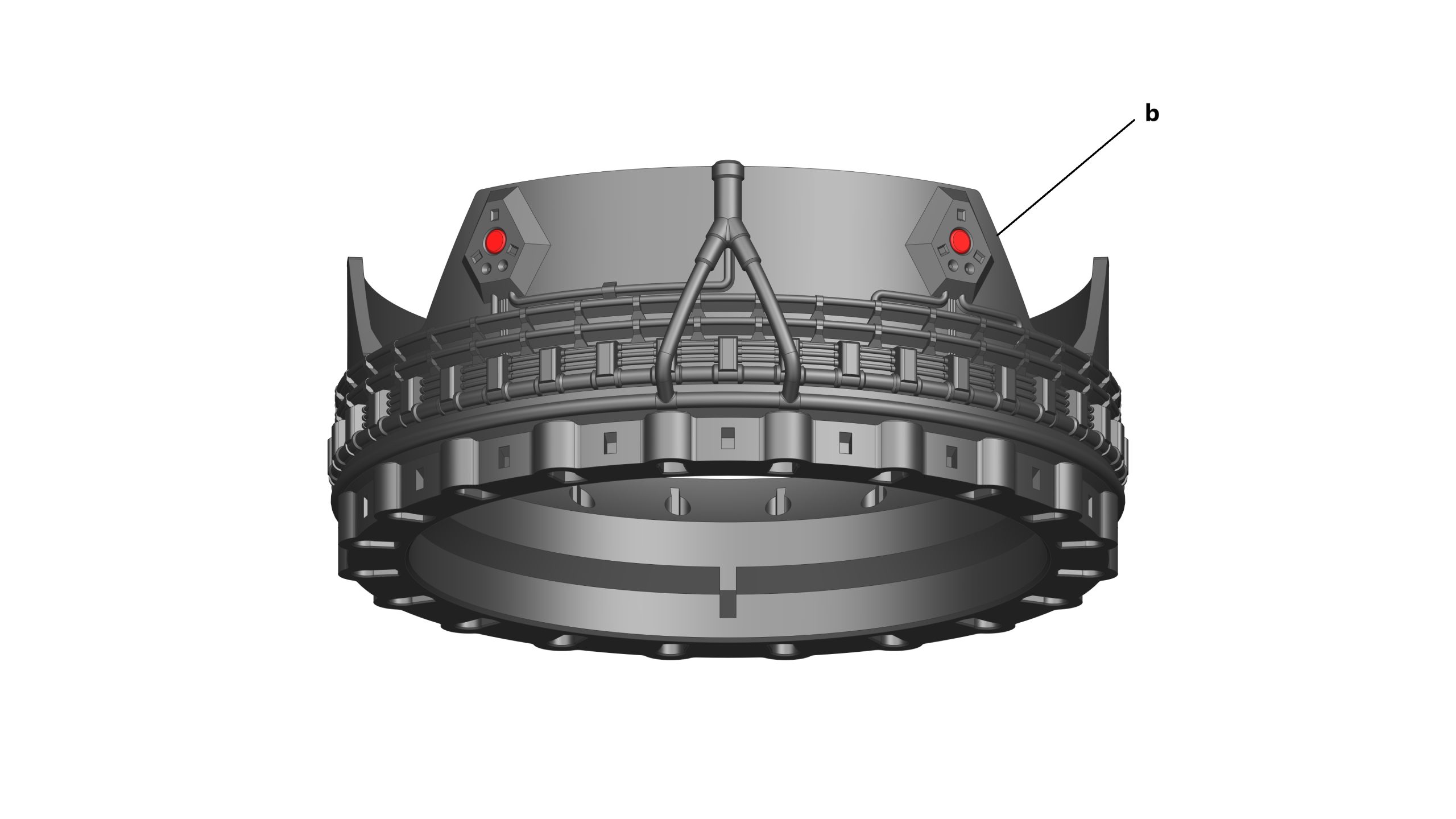

STEP 2a: Glue 2x magnets (3mm dia x 2mm thick) into the QD panels located on the side of the Booster Aft (Bottom)
STEP 2b: Glue 20x magnets (3mm dia x 2mm thick) into their pockets at the bottom face of the Booster Aft (Bottom)

IMPORTANT: These 20x magnets need to be pushed all the way in – see pic below. However, if you are going to permanently glue the 20x R3 engines (Outer) to the Booster Aft (Bottom), then these magnets are NOT required.

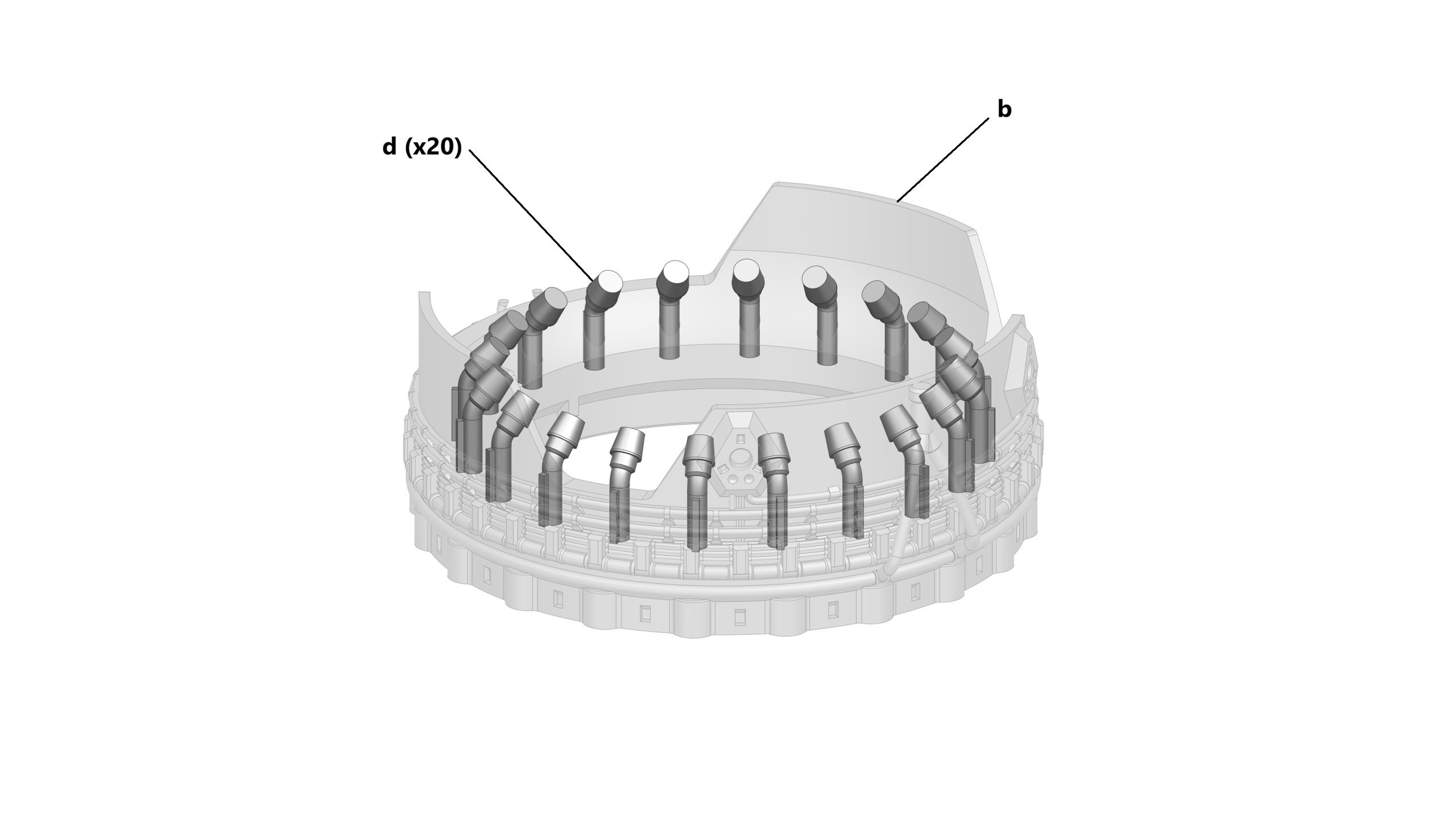

STEP 2c: Insert 20x LOX Outer Engine Feed Pipes into the Booster Aft (Bottom)
STEP 2d: Glue 8x magnets (5mm dia x 3mm thick) into their pockets at the top (x4) and sides (x4) of the Booster Aft (Top), then insert 2x Locating Pins to 2 holes located at the top face of the Booster Aft (Top)

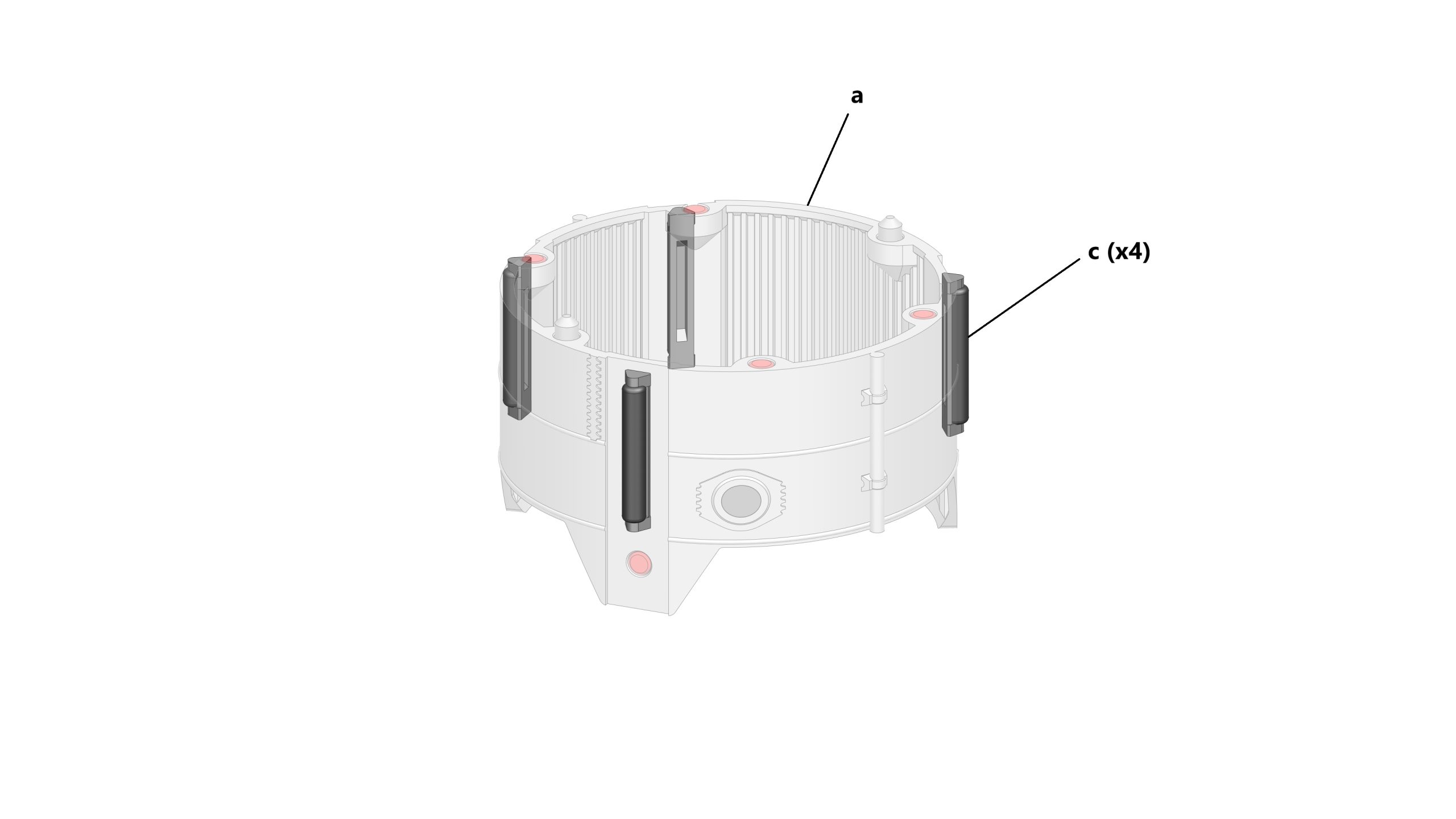

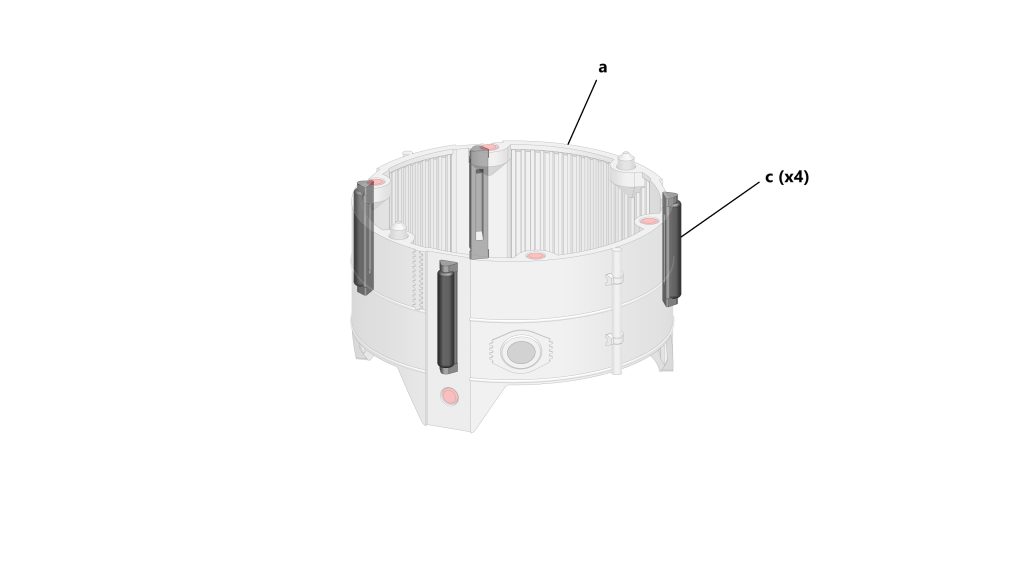

STEP 2e: Glue 4x COPV’s to the sides of the Booster Aft (Top)
STEP 2f: Temporarily stack the Booster Aft (Bottom) and Booster Aft (Top) together to ensure everything fits correctly.

IMPORTANT: DO NOT glue the Booster Aft Top and Bottom together at this STEP just yet. Otherwise, you’ll lose some access to assemble the plumbing later on.

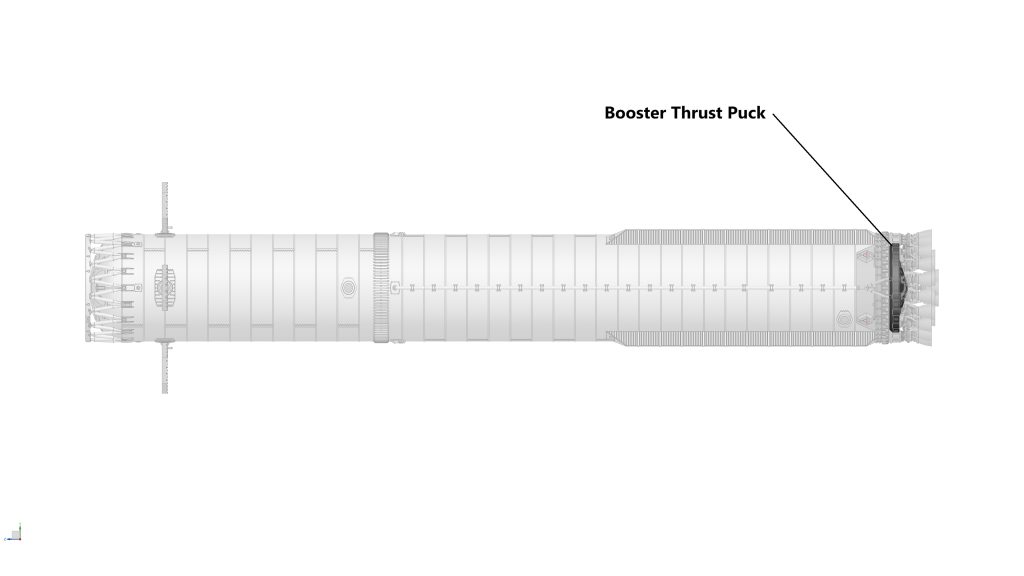

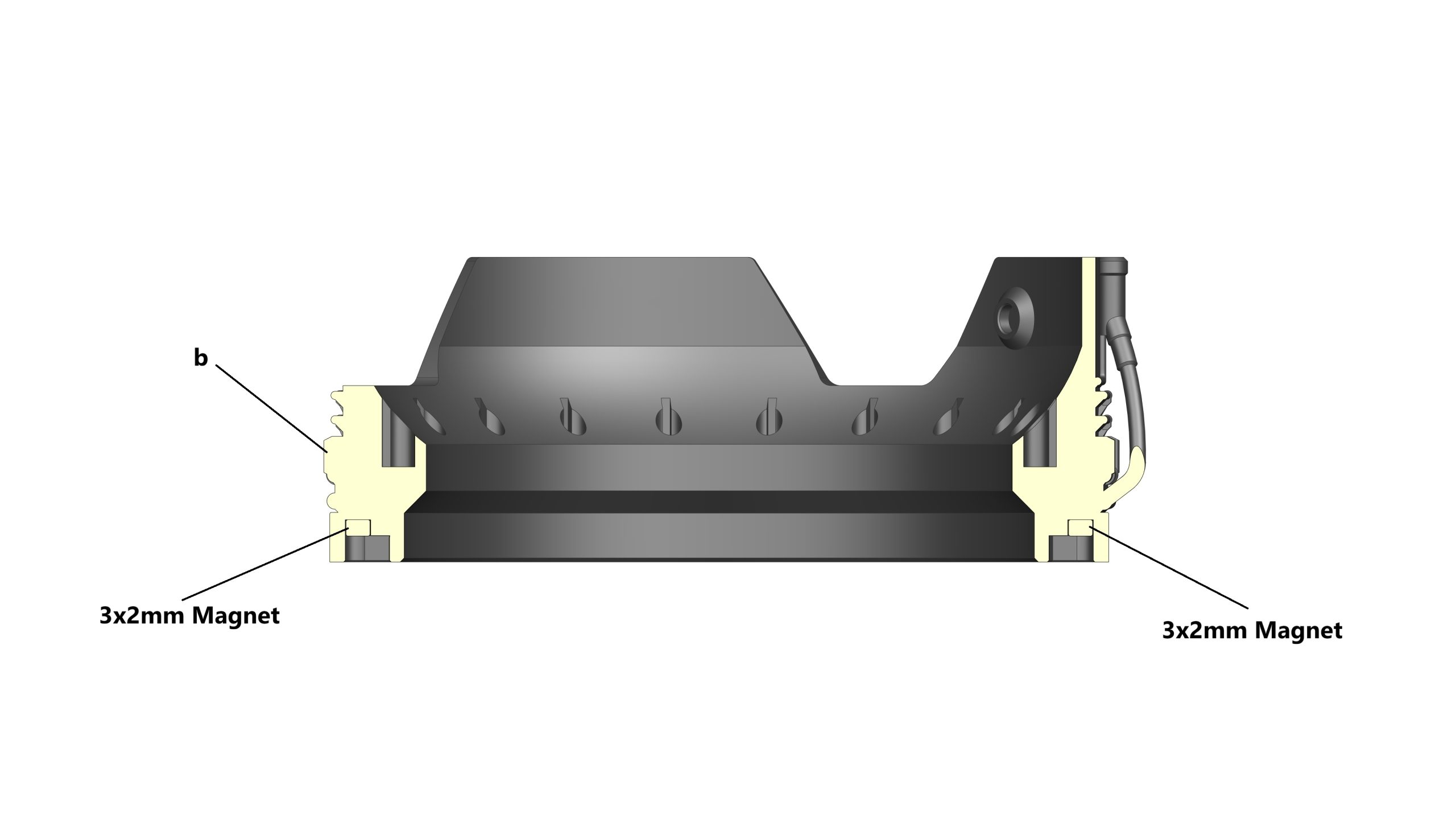

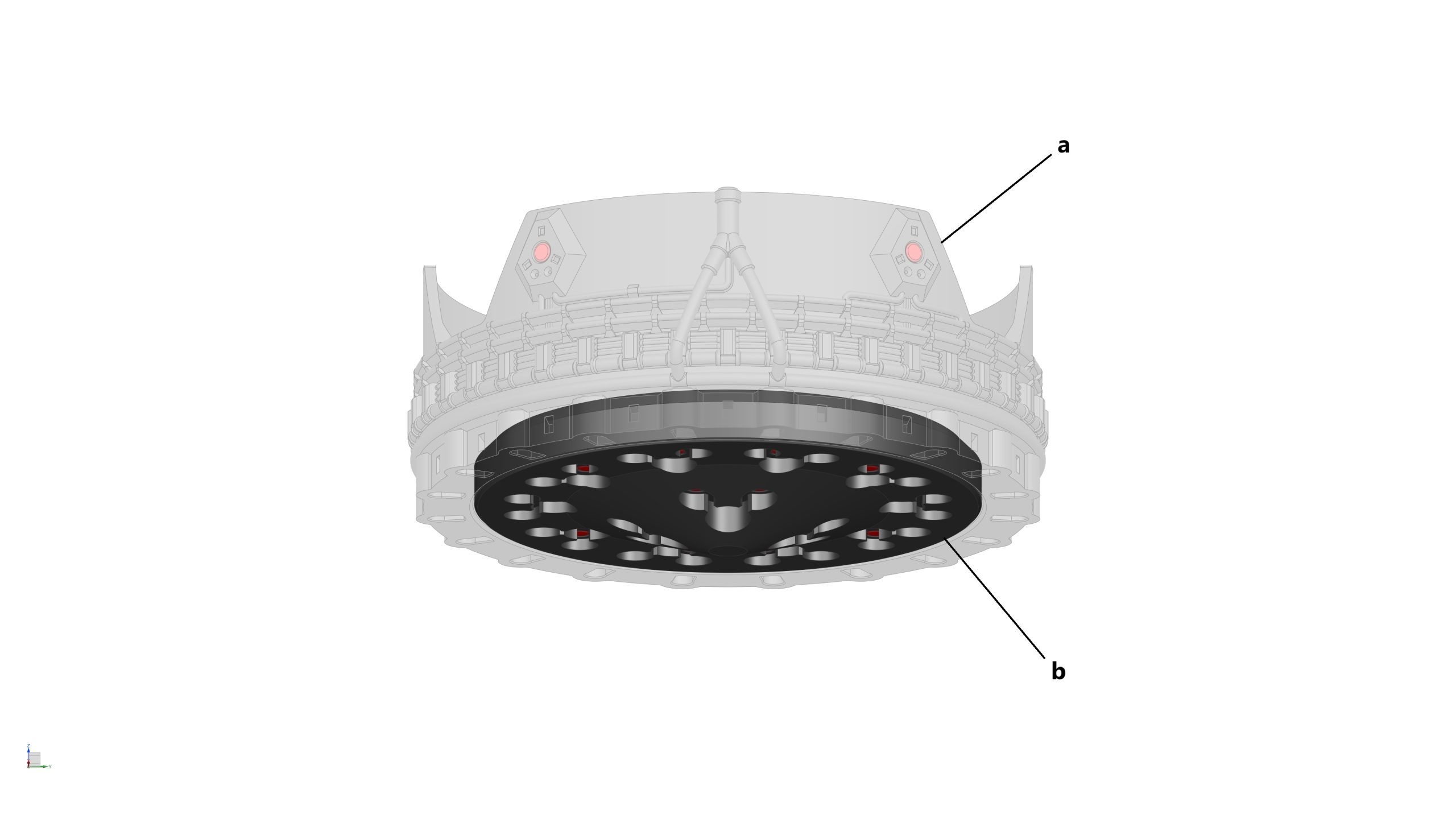

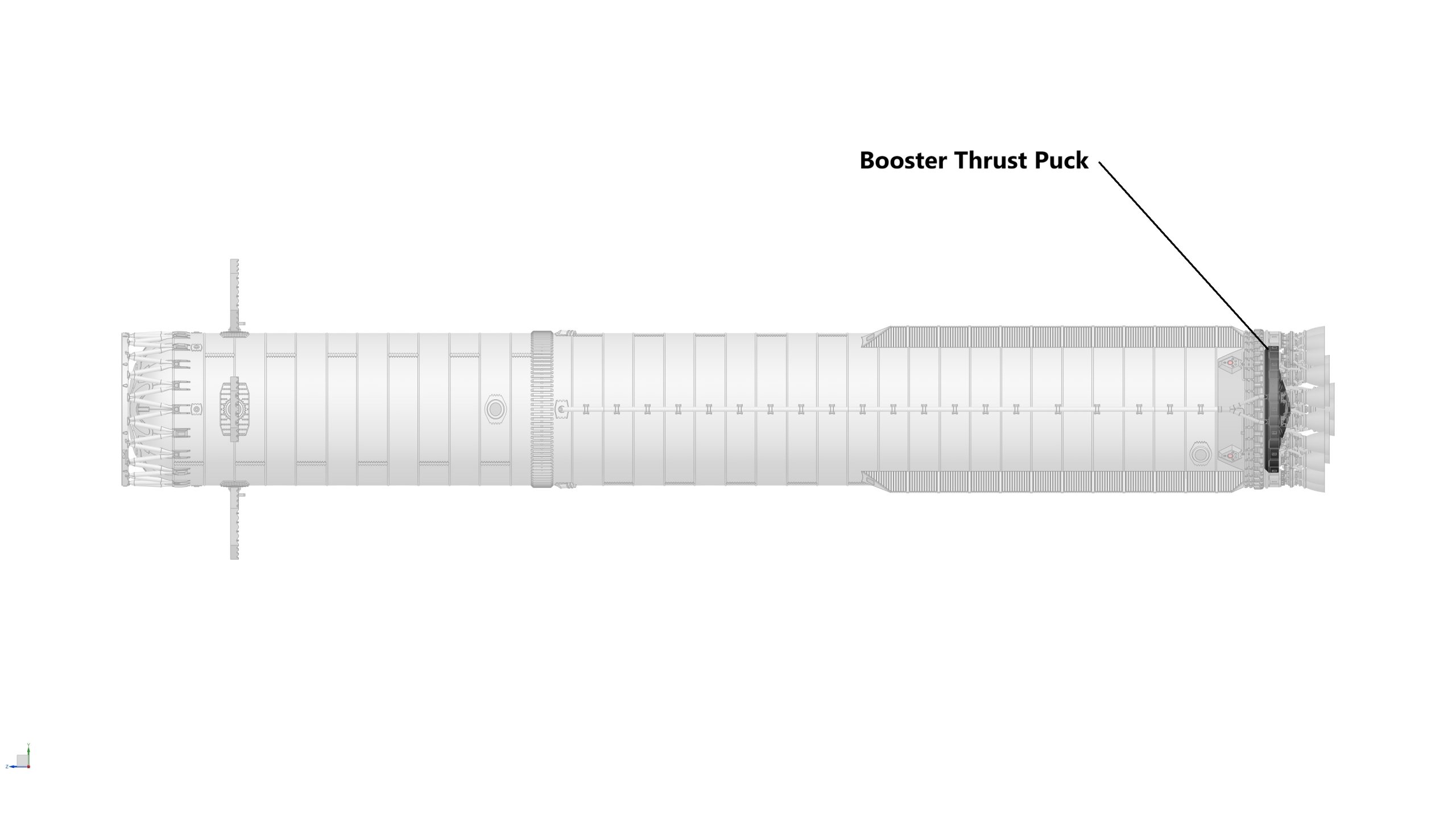

STEP 3: Assemble the Booster Thrust Puck

Parts required (refer to the photos below)

1x Booster Aft (Bottom) from STEP 2 (a)

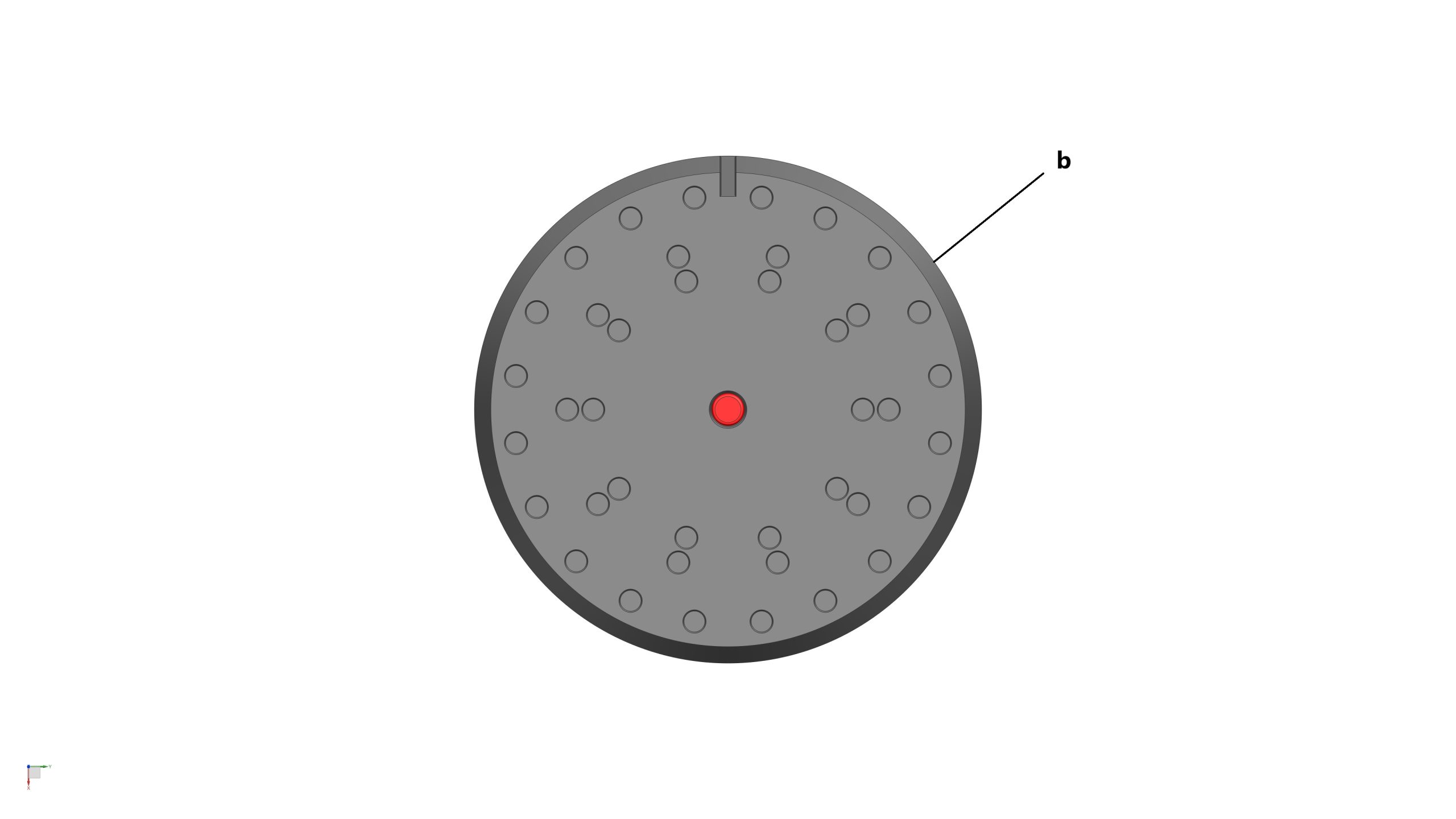

1x Booster Thrust Puck (b)
39x Magnets (3mm dia x 2mm thick) (highlighted in red)
1x Magnets (5mm dia x 3mm thick) (highlighted in red)

Assembly process:

STEP 3a: Glue 1x magnet (5mm dia x 3mm thick) into the magnet hole at the top of the Booster Thrust Puck

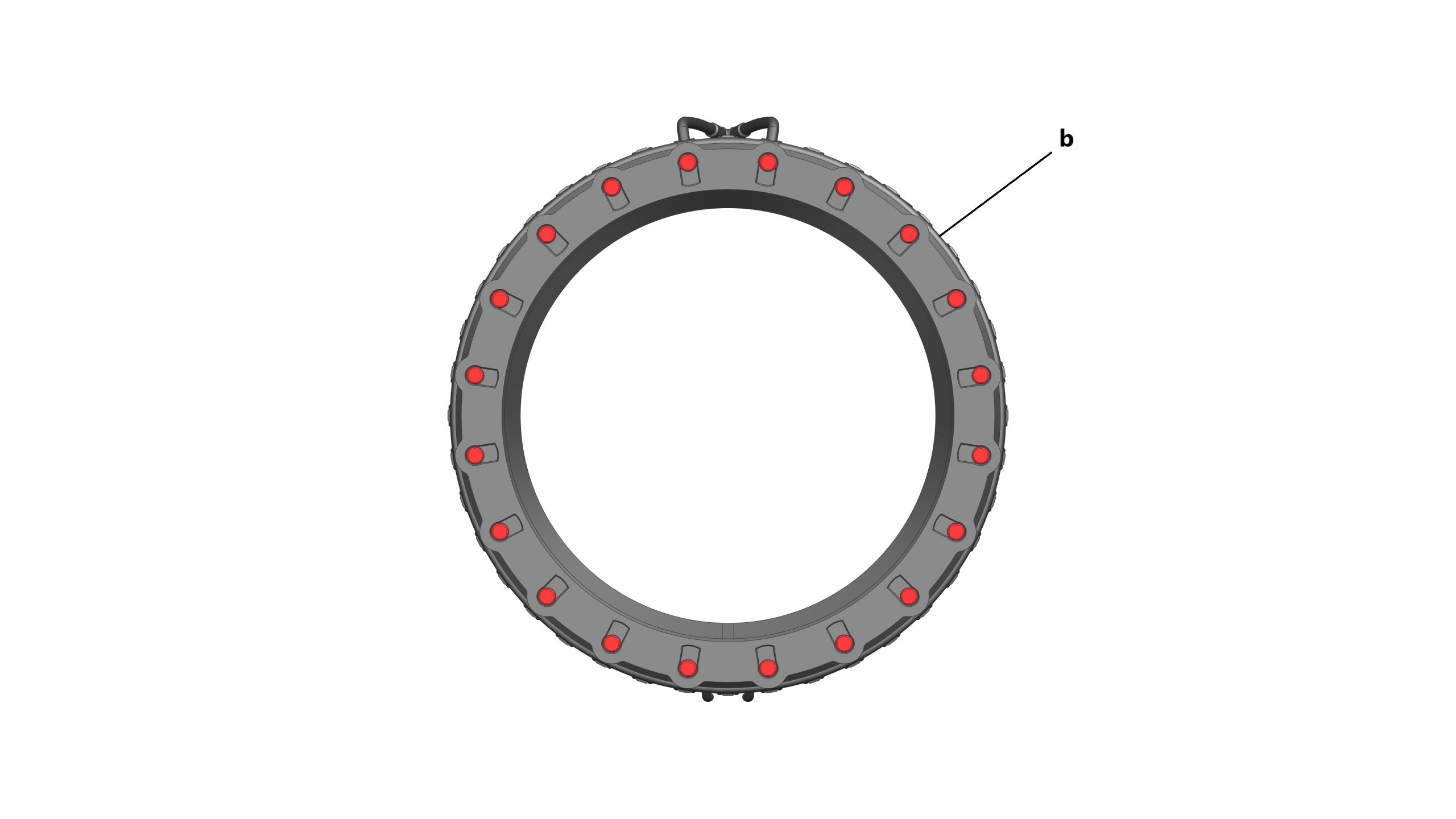

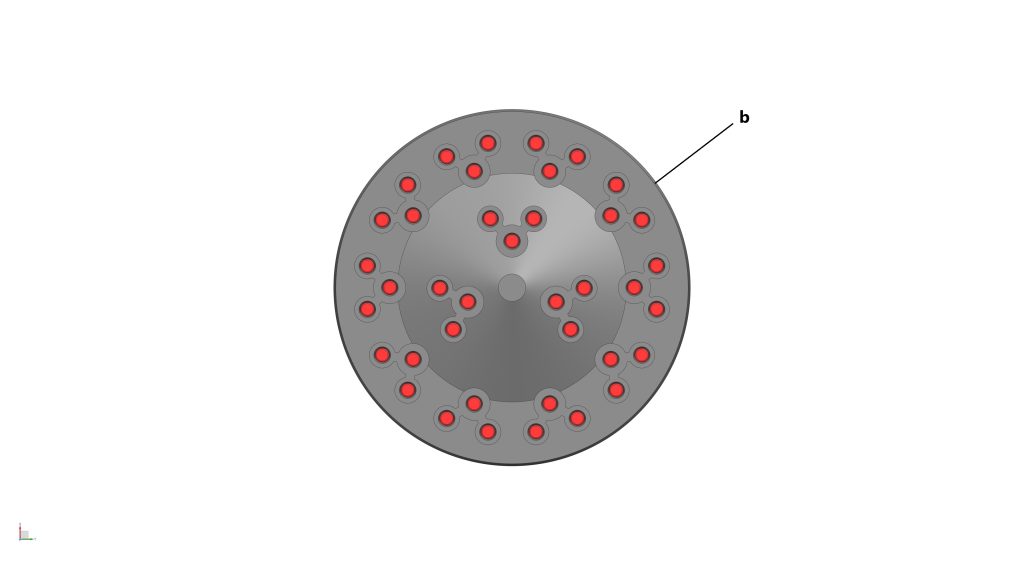

STEP 3b: Glue 39x magnet (3mm dia x 2mm thick) into their pockets at the bottom of the Booster Thrust Puck
STEP 3b: Glue the Booster Thrust Puck to the Booster Aft (Bottom) from STEP 2.

IMPORTANT: Use the cut-out slot on the Booster Thrust Puck to align with the Booster Aft (Bottom)

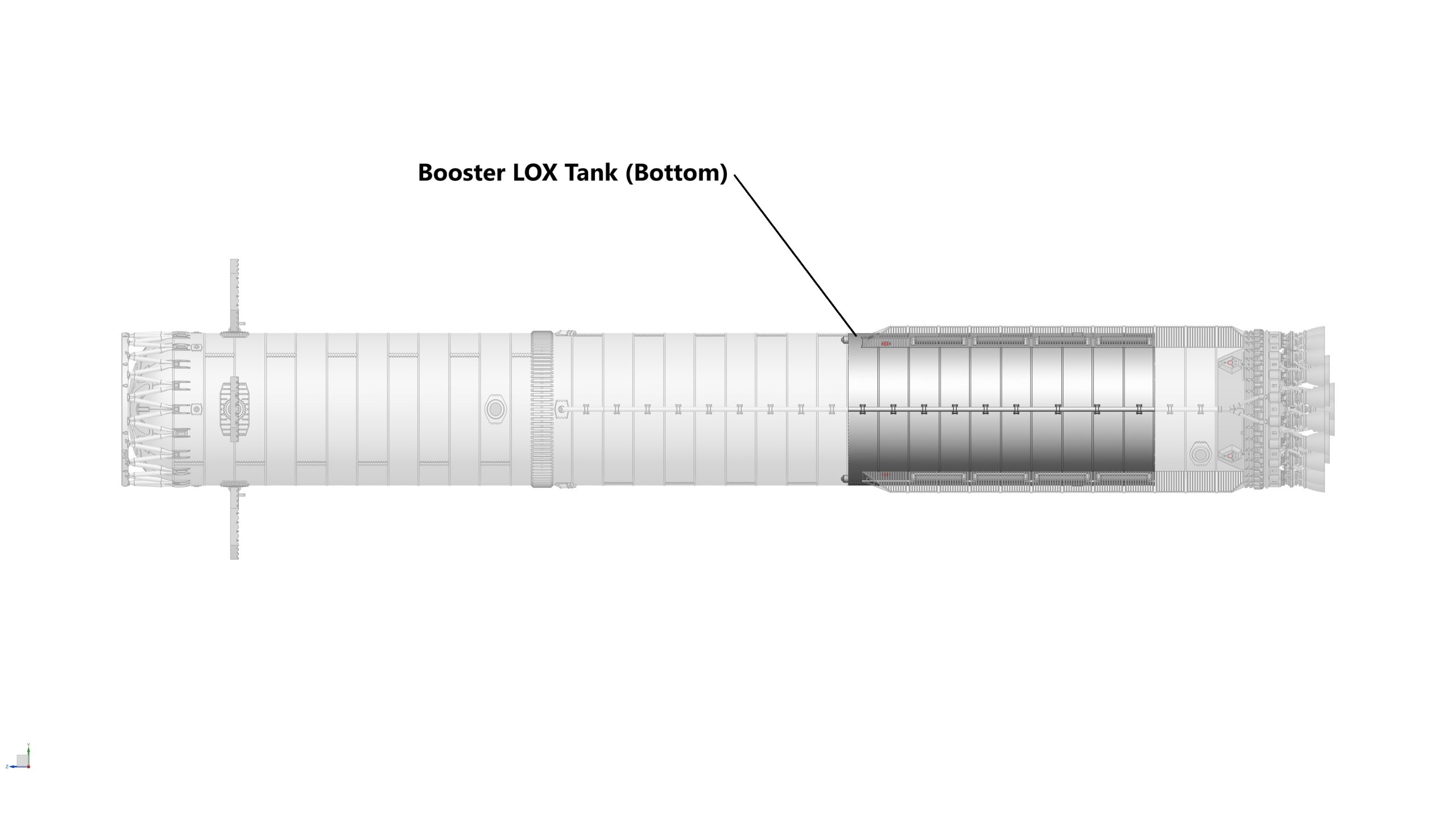

STEP 4: Assemble the Booster LOX Tank (Bottom) Section

Parts required (refer to the photos below)

1x Booster LOX Tank (Bottom) (a)
18x COPV (b)
2x Locating Pin (c)
10x Magnets (5mm dia x 3mm thick) (highlighted in red)

Assembly process

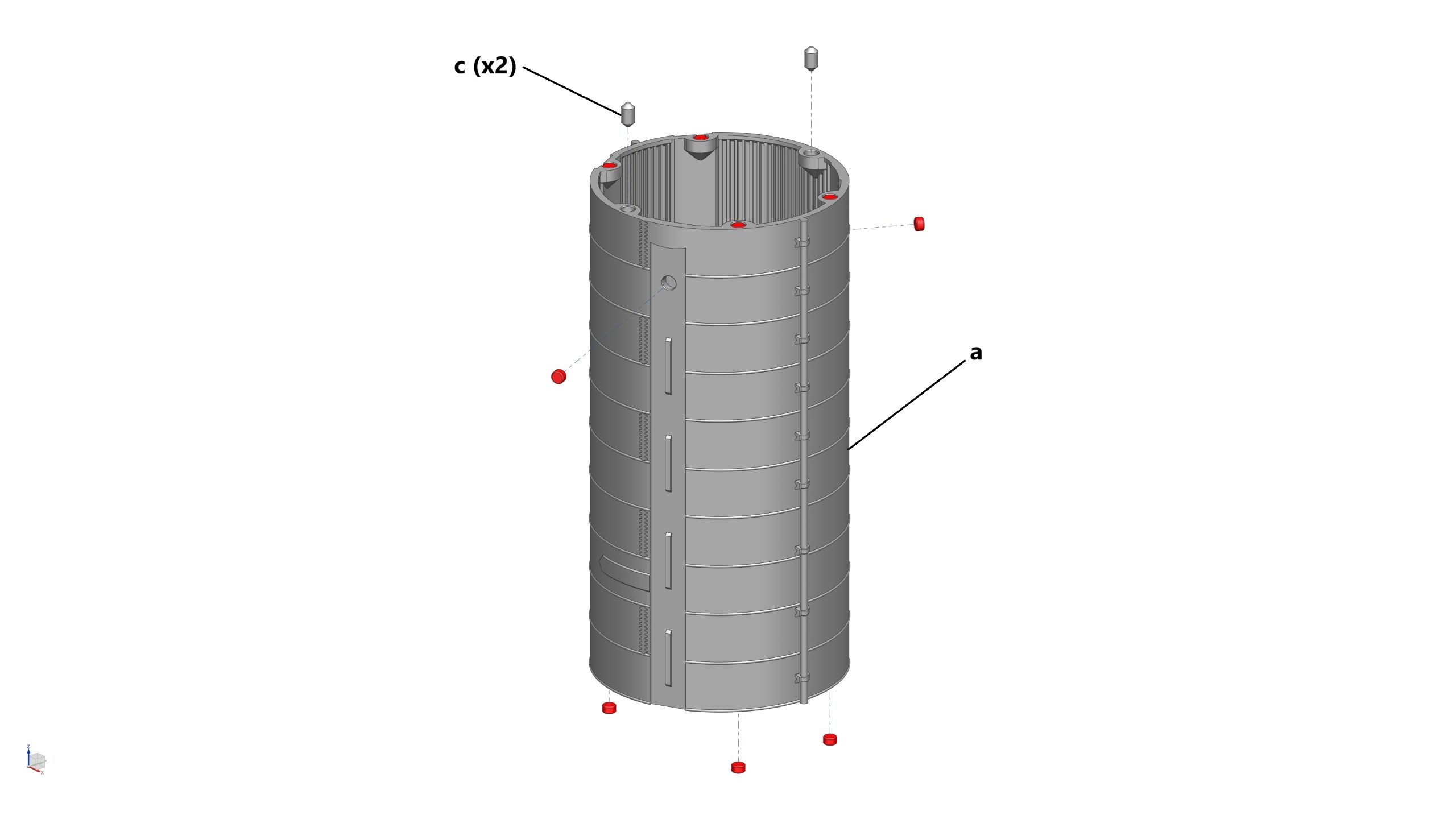

STEP 4a: Glue 10x magnets (5mm dia x 3mm thick) into their pockets at the top (x4), side (x2), and bottom (x4) faces of the Booster LOX Tank (Bottom), then insert 2x Locating Pins to 2 holes located at the top face of the Booster LOX Tank (Bottom)

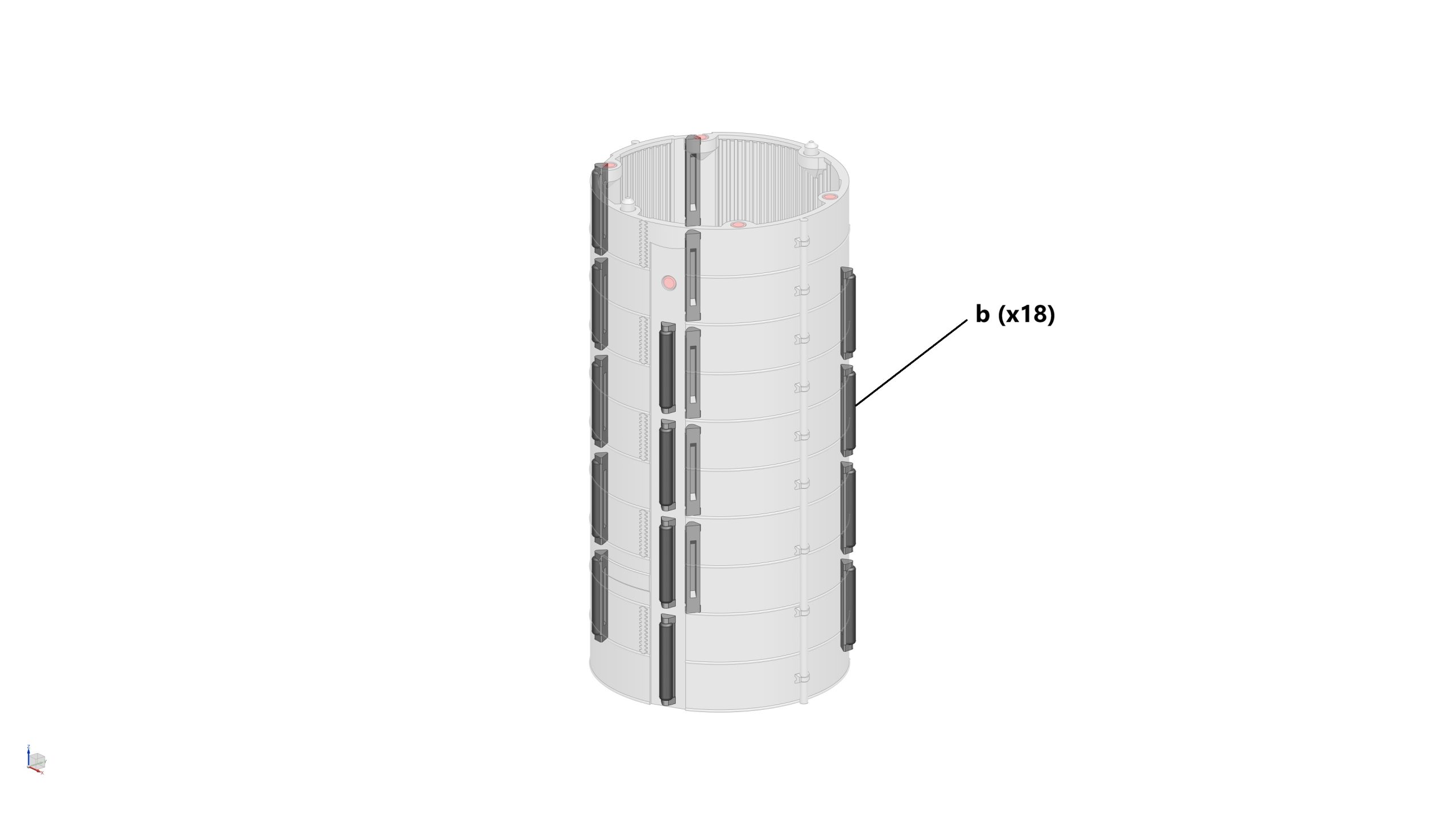

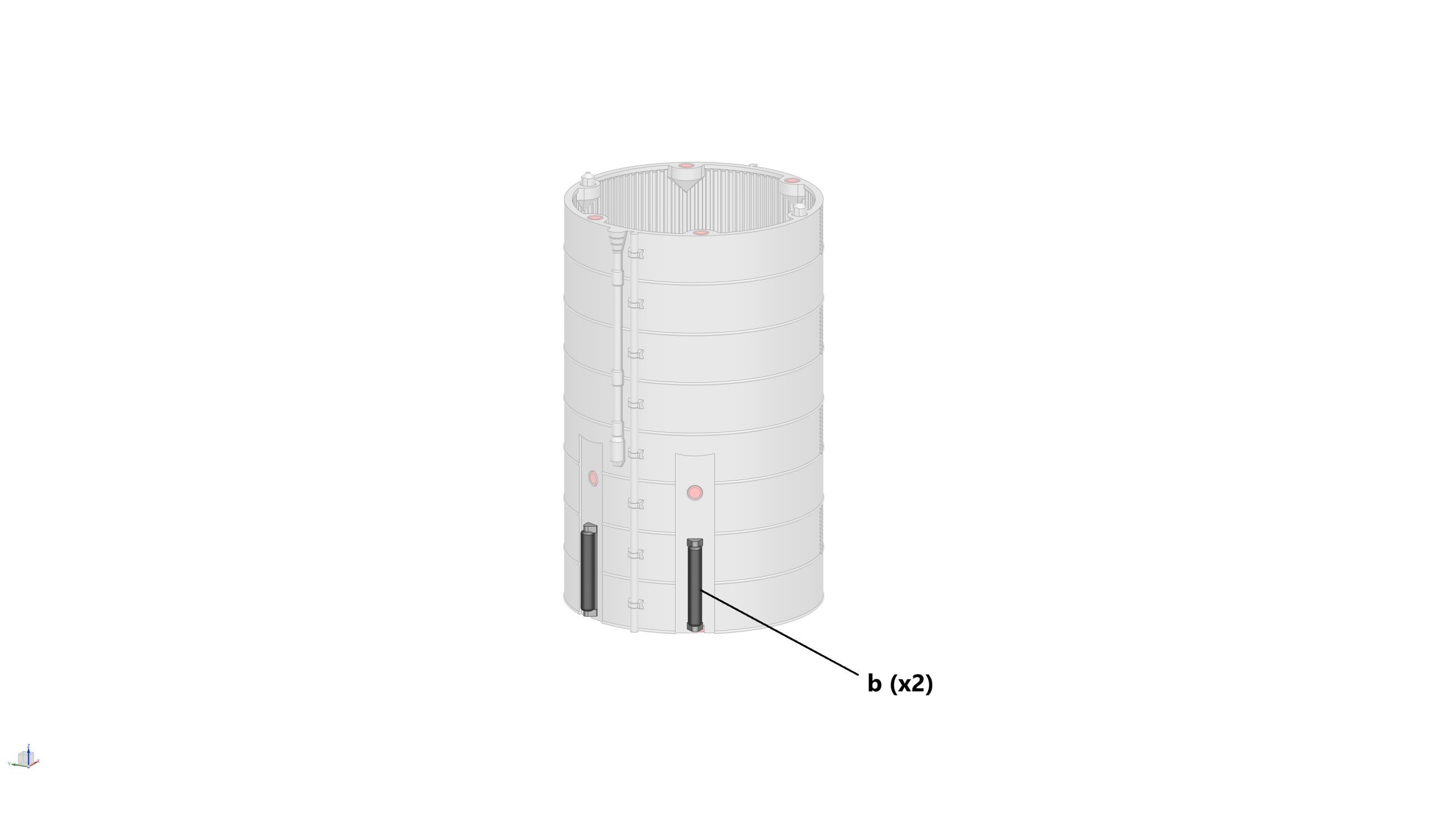

STEP 4b: Glue 18x COPV’s to the sides of the Booster LOX Tank (Bottom)

STEP 4

STEP 4a

STEP 4b

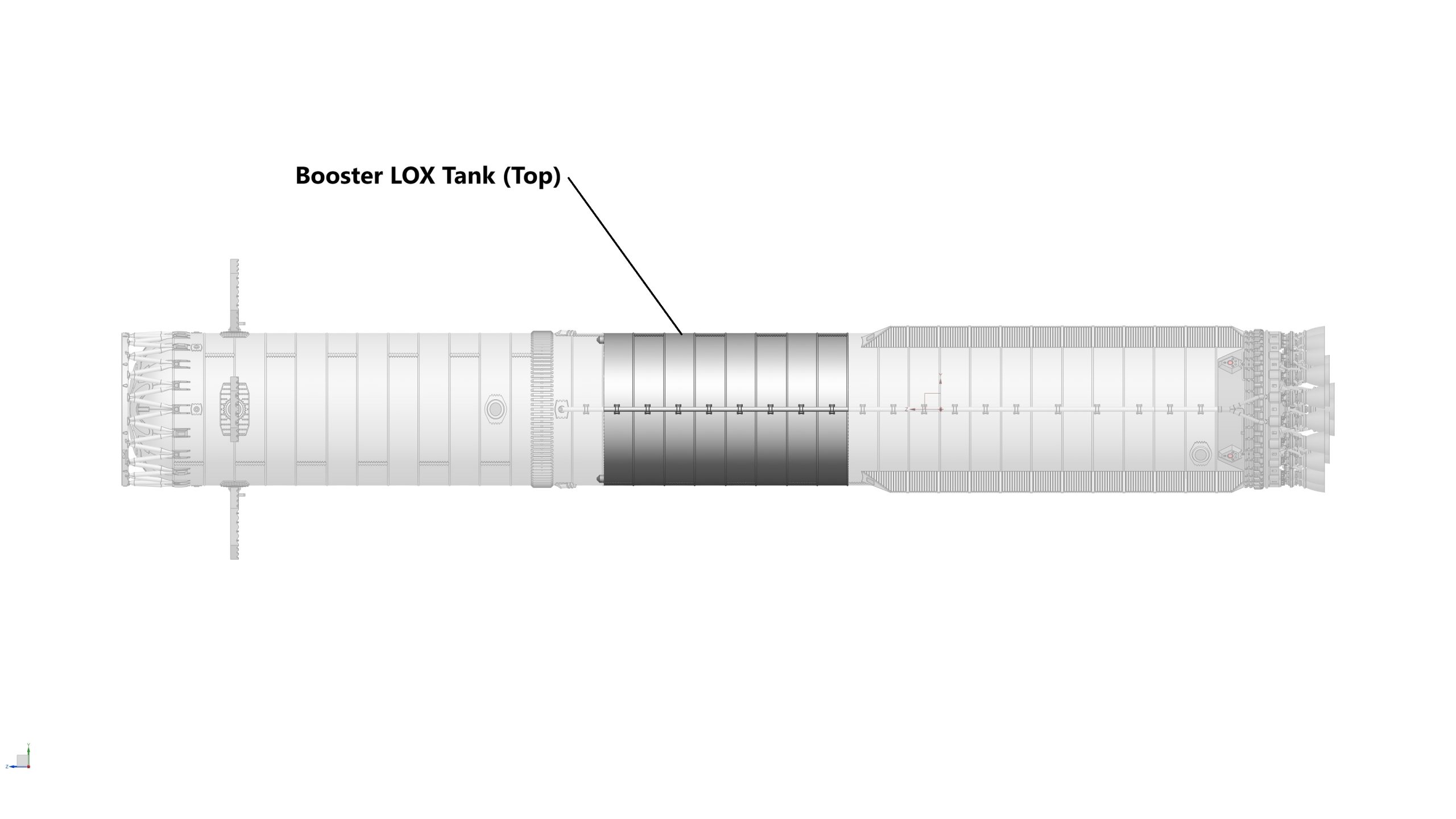

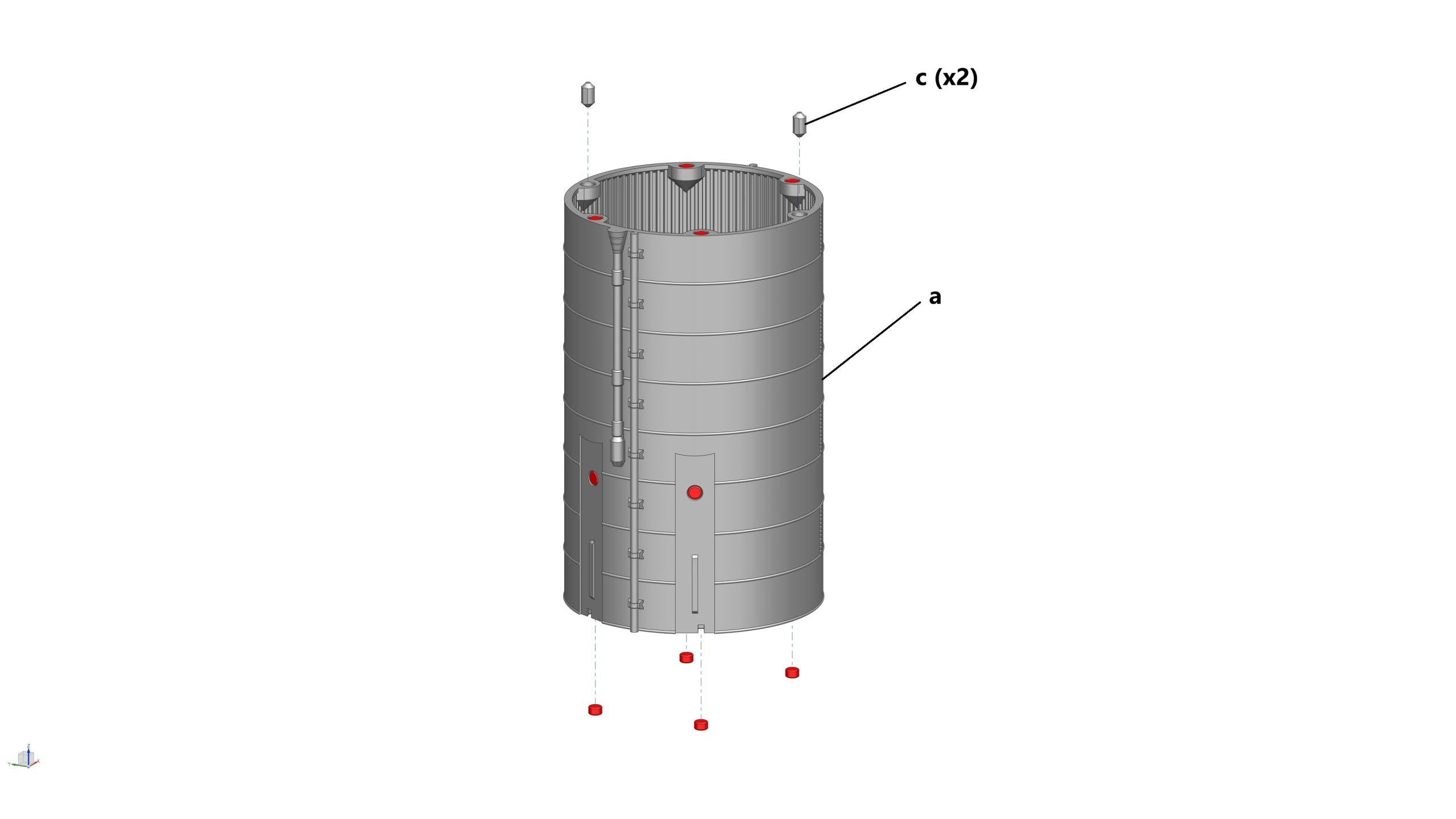

STEP 5: Assemble the Booster LOX Tank (Top) Section

Parts required (refer to the photos below)

1x Booster LOX Tank (Top) (a)
2x COPV (b)
2x Locating Pin (b)
10x Magnets (5mm dia x 3mm thick) (highlighted in red)

Assembly process

STEP 5a: Glue 10x magnets (5mm dia x 3mm thick) into their pockets at the top (x4), side (x2), and bottom (x4) faces of the Booster LOX Tank (Top), then insert 2x Locating Pins to 2 holes located at the top face of the Booster LOX Tank (Top)
STEP 5b: Glue 2x COPV’s to the sides of the Booster LOX Tank (Top)

STEP 5

STEP 5a

STEP 5b

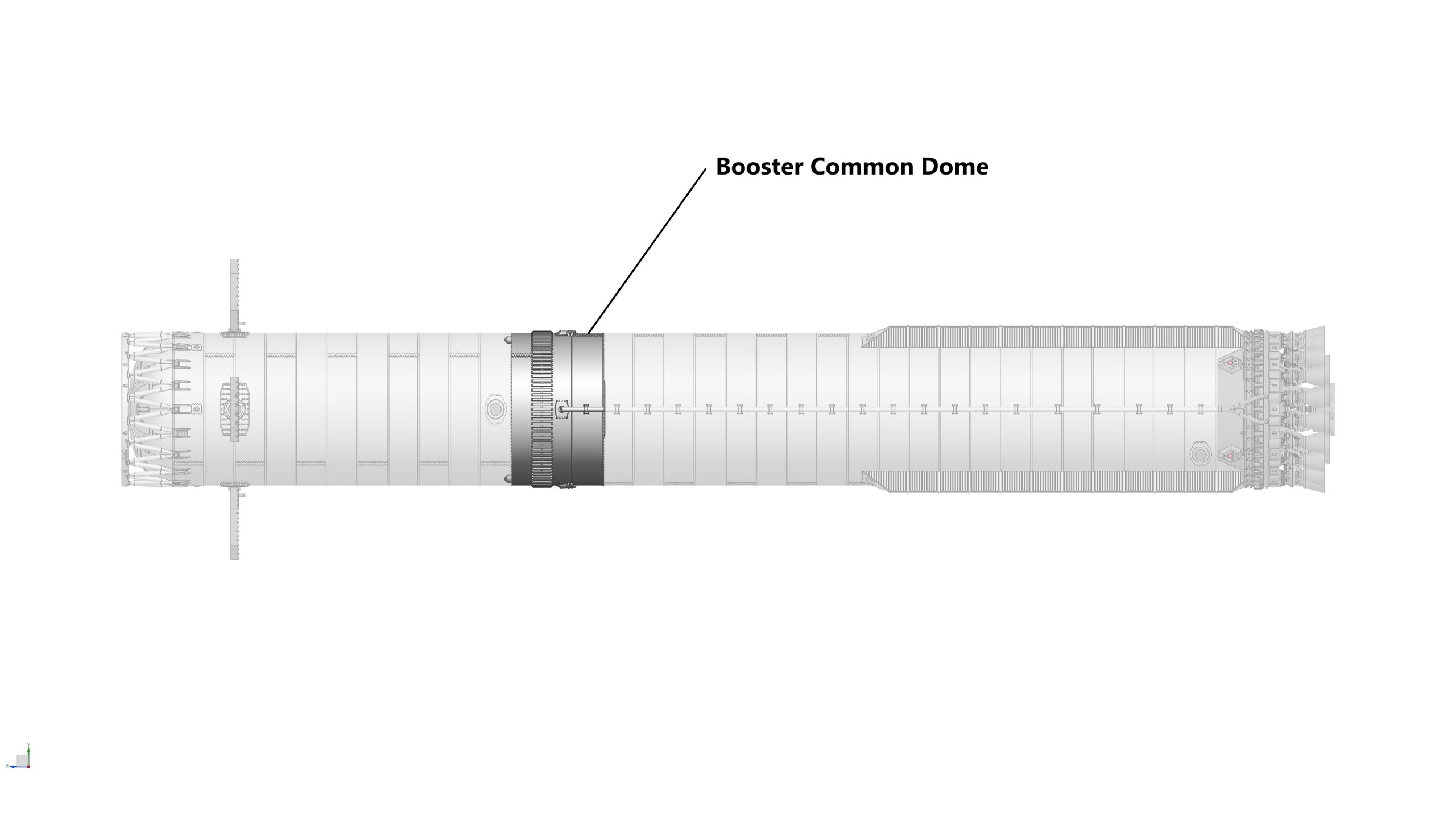

STEP 6: Assemble the Booster Common Dome Section

Parts required (refer to the photos below)

1x Booster Common Dome (a)
2x Locating Pin (b)
8x Magnets (5mm dia x 3mm thick) (highlighted in red)

Assembly process

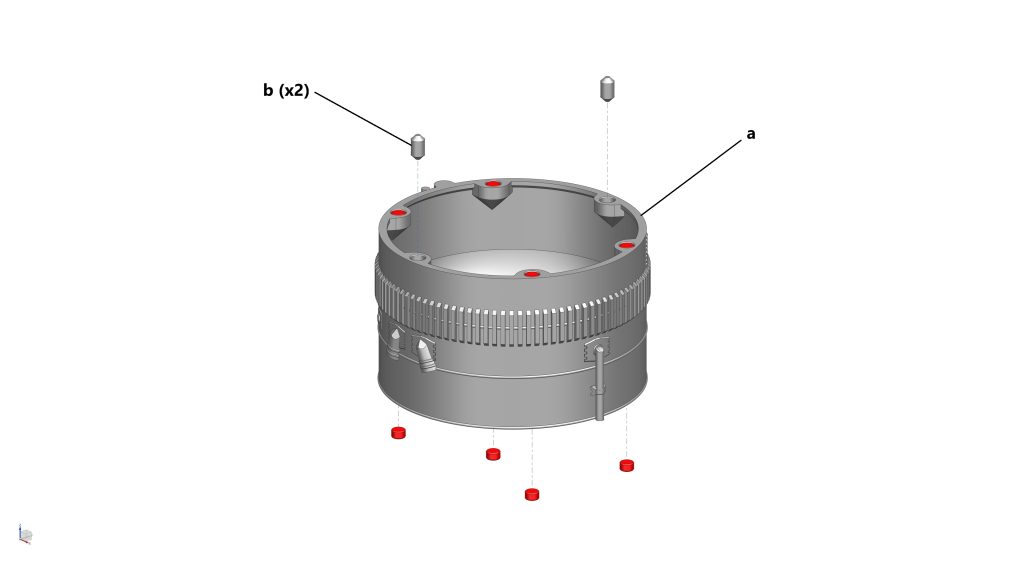

STEP 6a: Glue 8x magnets (5mm dia x 3mm thick) into their pockets at the top (x4) and bottom (x4) faces of the Booster Common Dome, then insert 2x Locating Pins to 2 holes located at the top face of the Booster Common Dome

STEP 6

STEP 6a

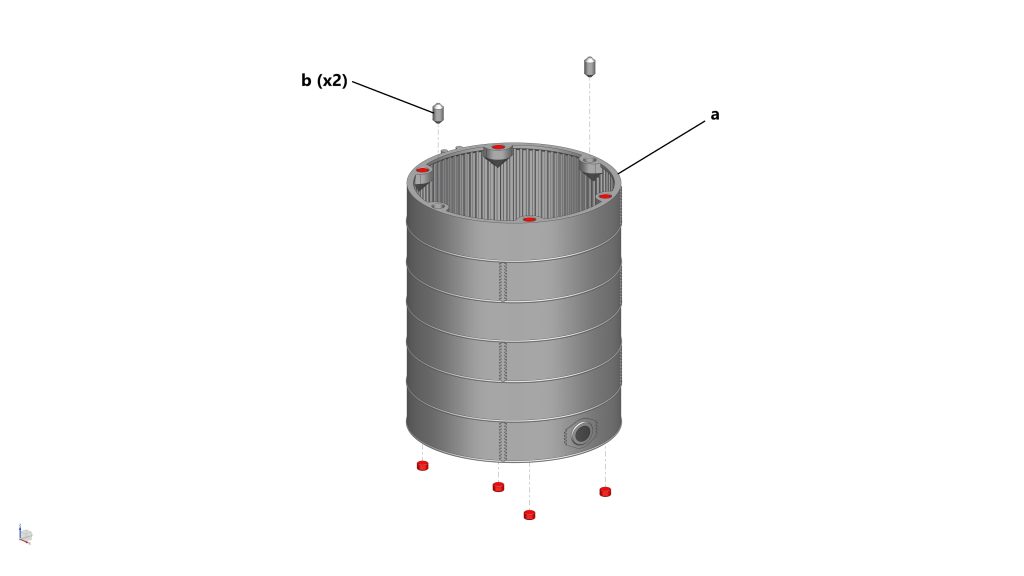

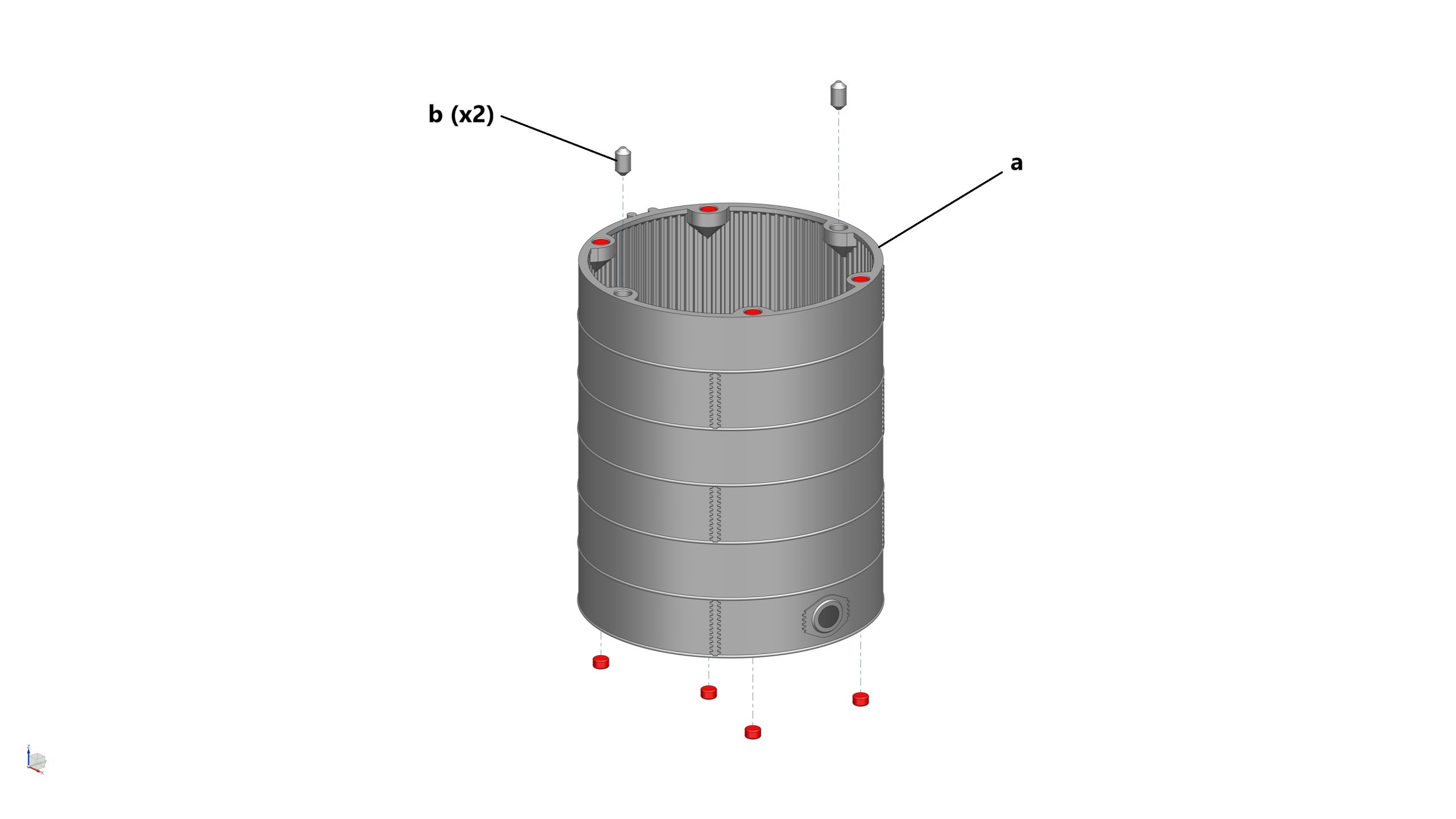

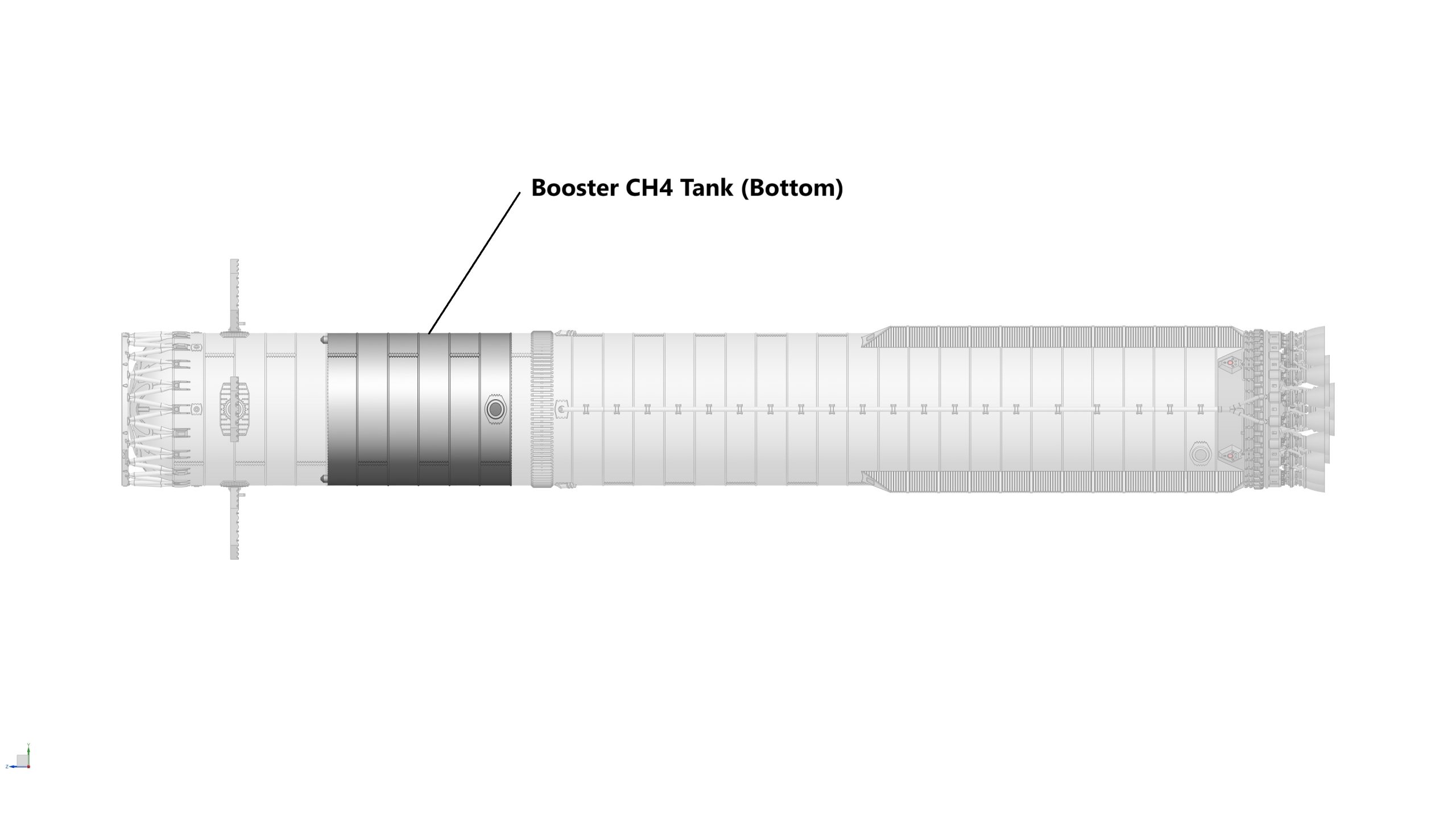

STEP 7: Assemble the Booster CH4 Tank (Bottom) Section

Parts required (refer to the photos below)

1x Booster CH4 Tank (Bottom) (a)
2x Locating Pin (b)
8x Magnets (5mm dia x 3mm thick) (highlighted in red)

Assembly process

STEP 7a: Glue 8x magnets (5mm dia x 3mm thick) into their pockets at the top (x4) and bottom (x4) faces of the Booster CH4 Tank (Bottom), then insert 2x Locating Pins to 2 holes located at the top face of the Booster CH4 Tank (Bottom)

STEP 7

STEP 7a

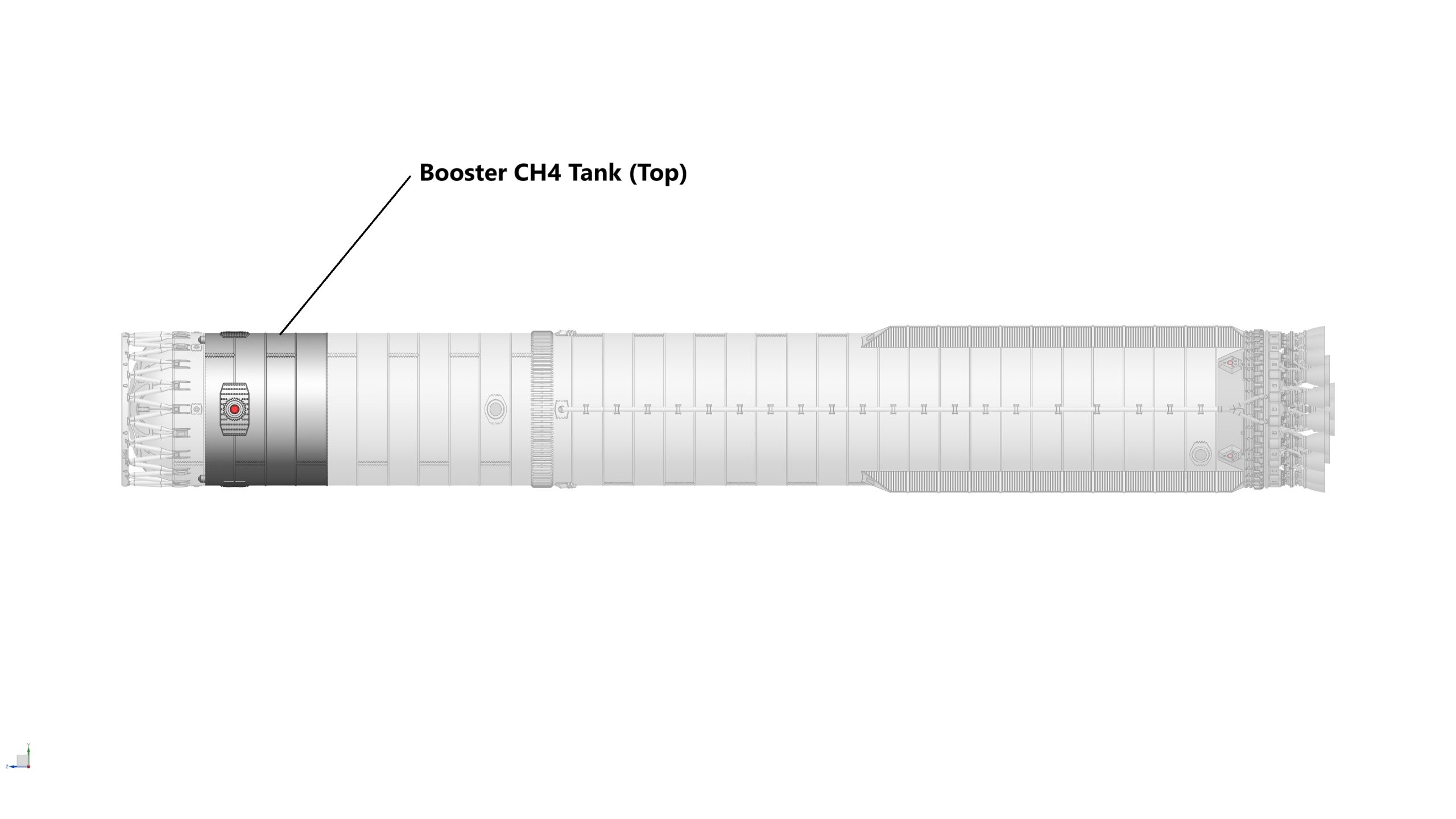

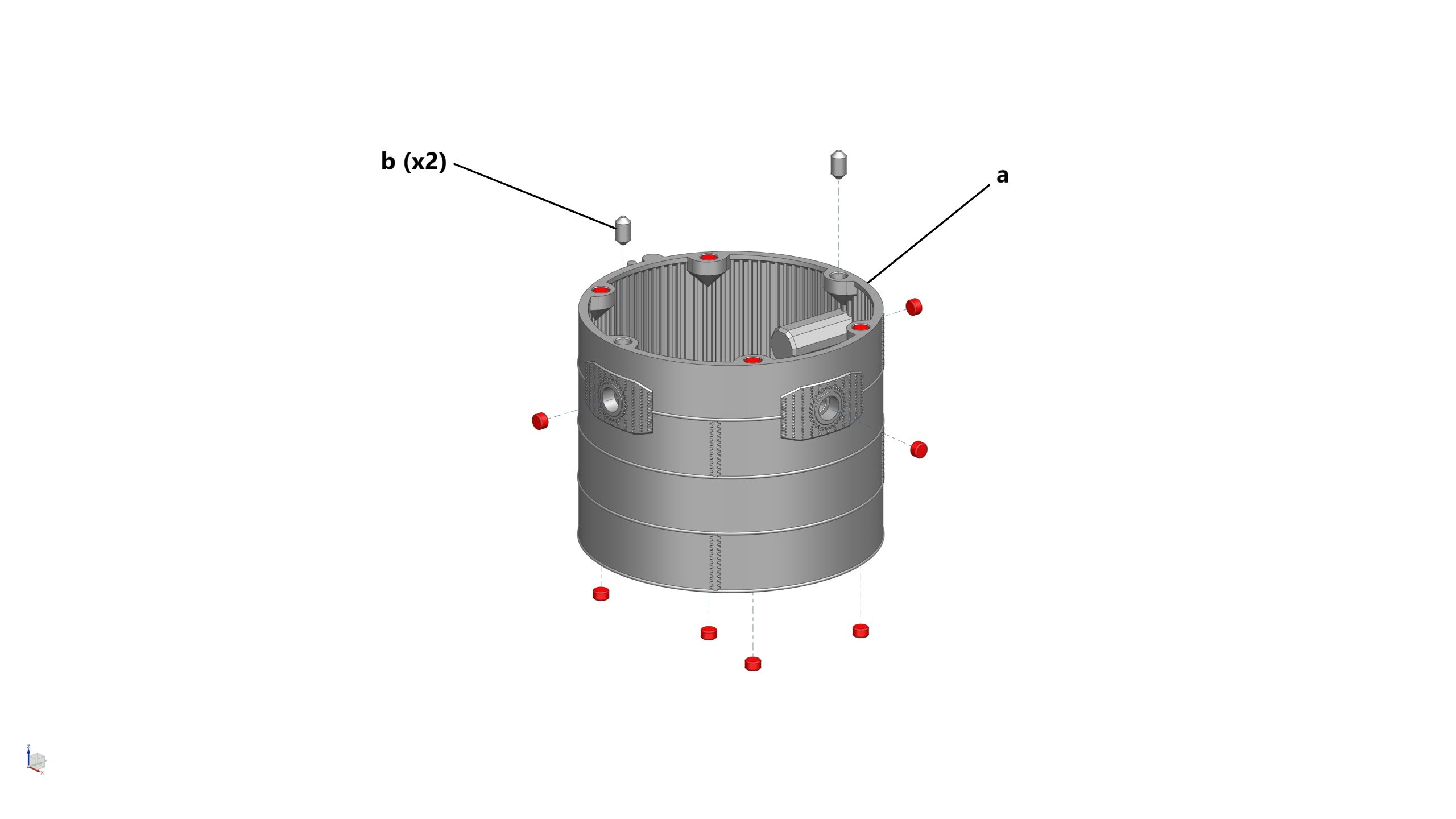

STEP 8: Assemble the Booster CH4 Tank (Top) Section

Parts required (refer to the photos below)

1x Booster CH4 Tank (Top) (a)
2x Locating Pin (b)
11x Magnets (5mm dia x 3mm thick) (highlighted in red)

Assembly process

STEP 7a: Glue 11x magnets (5mm dia x 3mm thick) into their pockets at the top (x4), sides (x3) and bottom (x4) faces of the Booster CH4 Tank (Top), then insert 2x Locating Pins to 2 holes located at the top face of the Booster CH4 Tank (Top)

STEP 8

STEP 8a

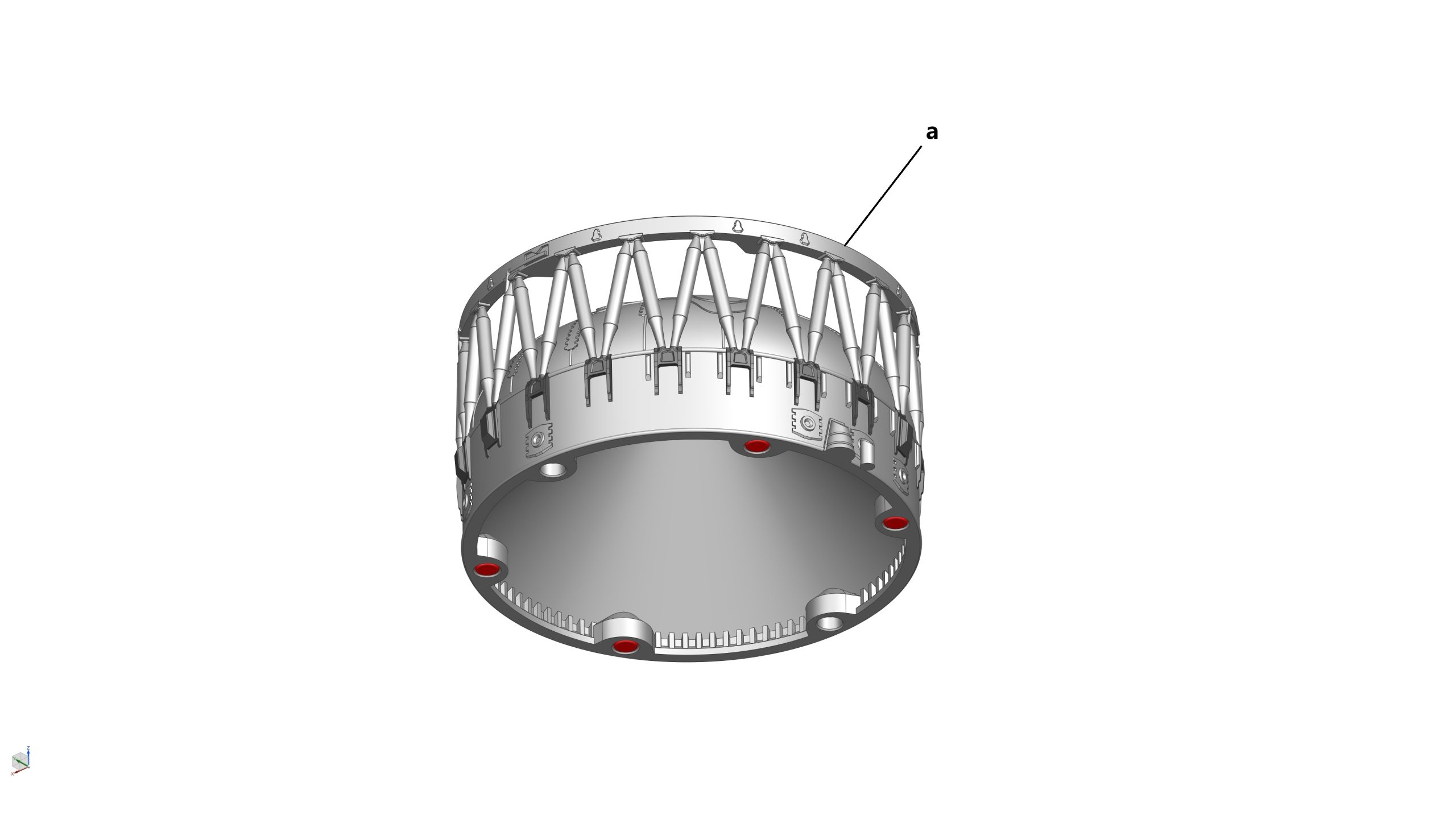

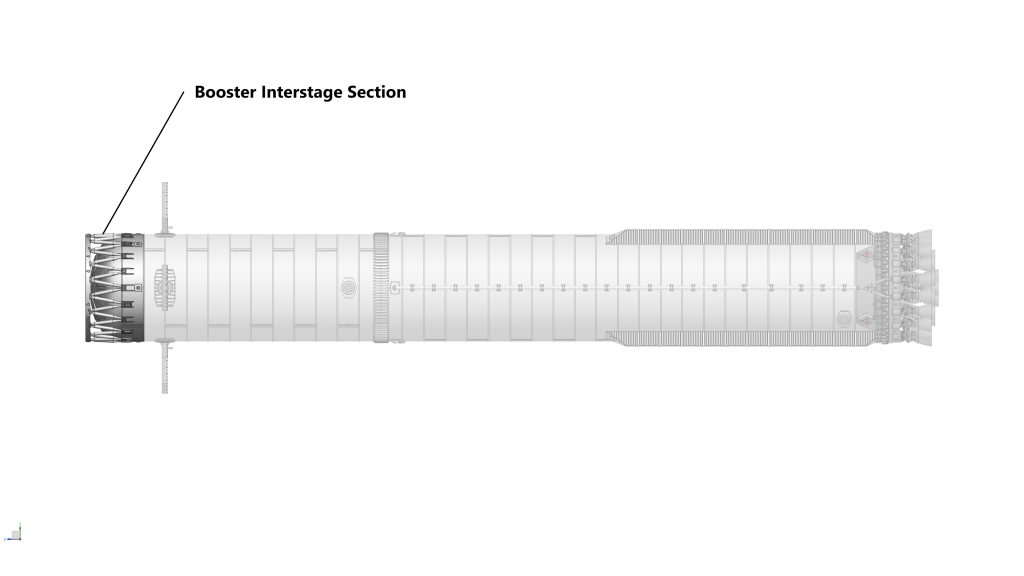

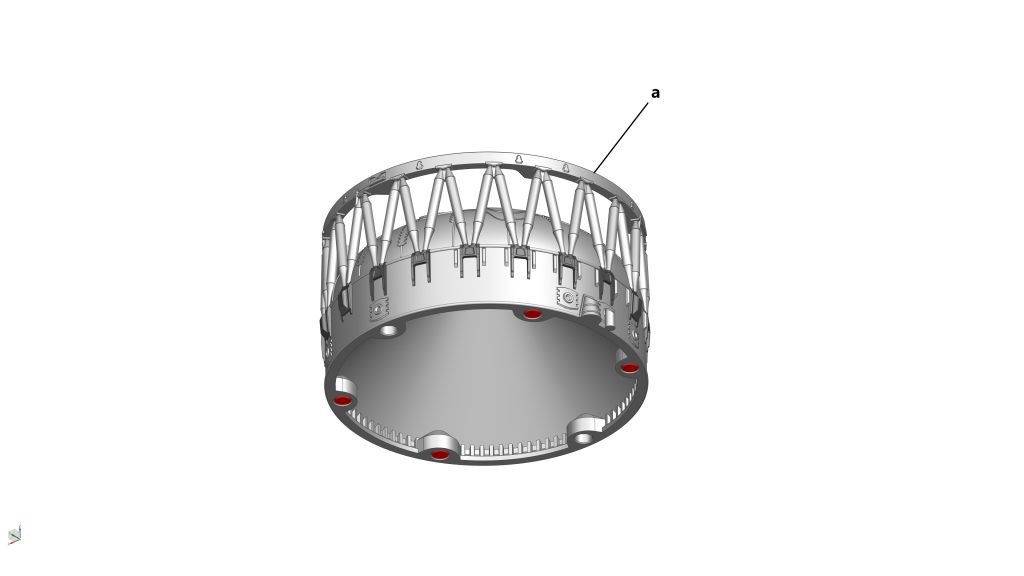

STEP 9: Assemble the Booster Interstage Section

Parts required (refer to the photos below)

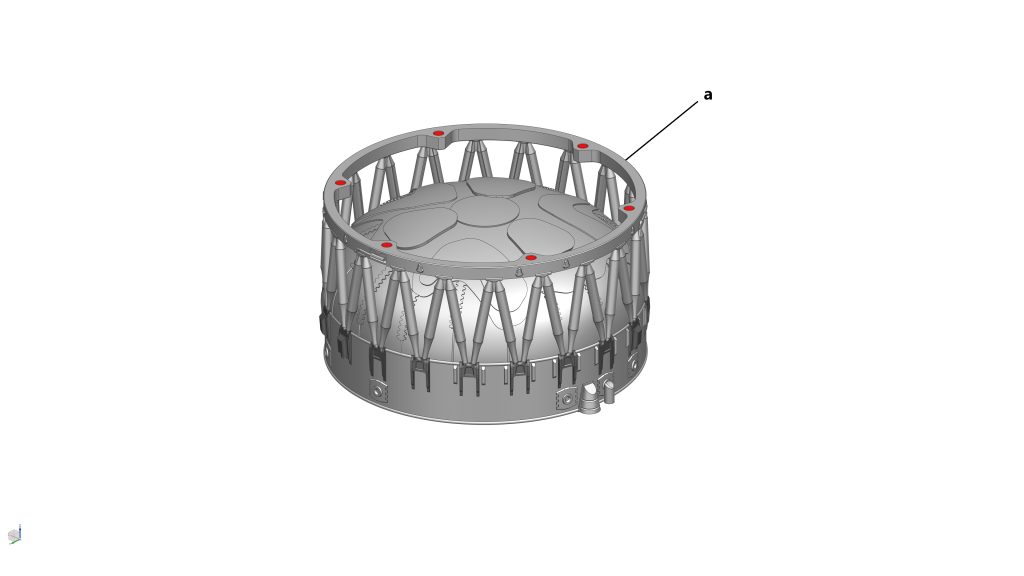

1x Booster Interstage (a)
6x Magnets (3mm dia x 2mm thick) (highlighted in red)
4x Magnets (5mm dia x 3mm thick) (highlighted in red)

Assembly process

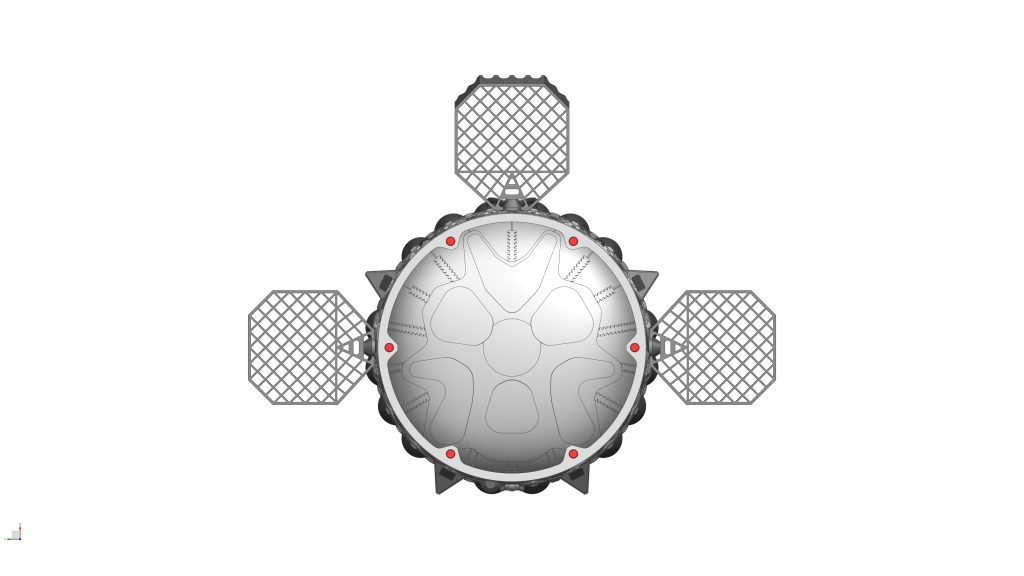

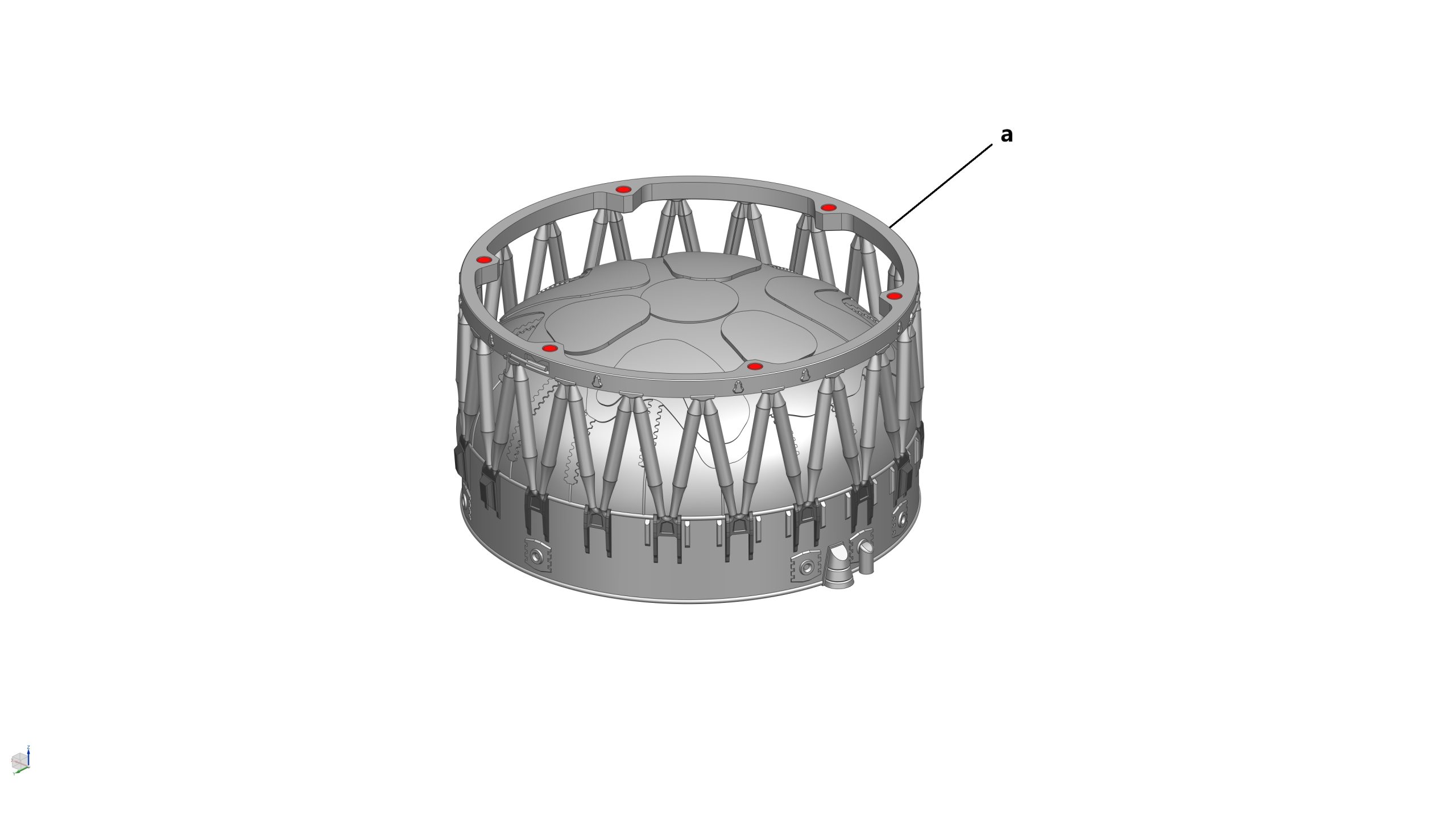

STEP 9a: Glue 6x magnets (3mm dia x 2mm thick) into their pockets at the top of the Booster Interstage
STEP 9b: Glue 4x magnets (5mm dia x 3mm thick) into their pockets at the bottom of the Booster Interstage

STEP 9

STEP 9a

STEP 9b

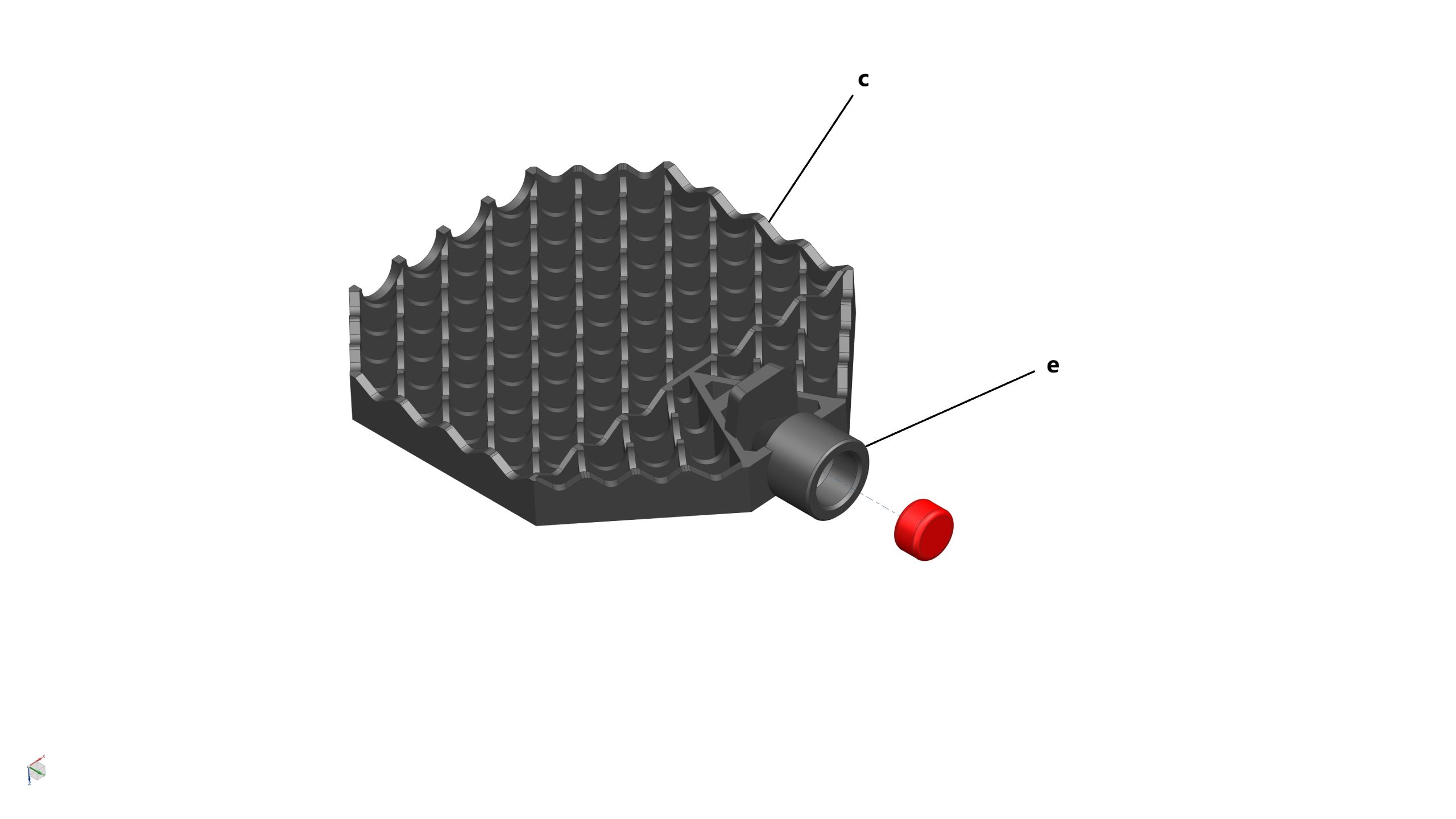

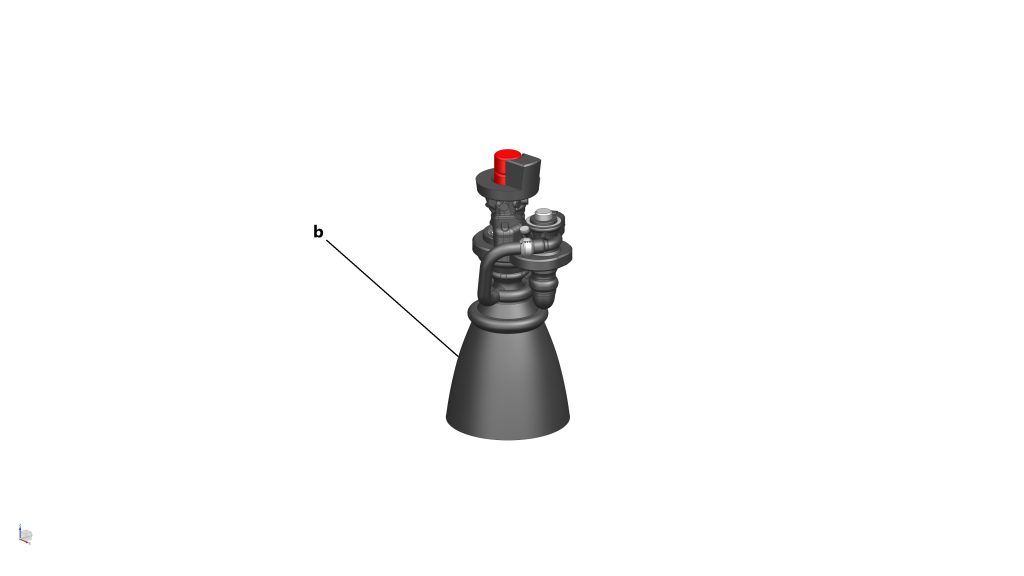

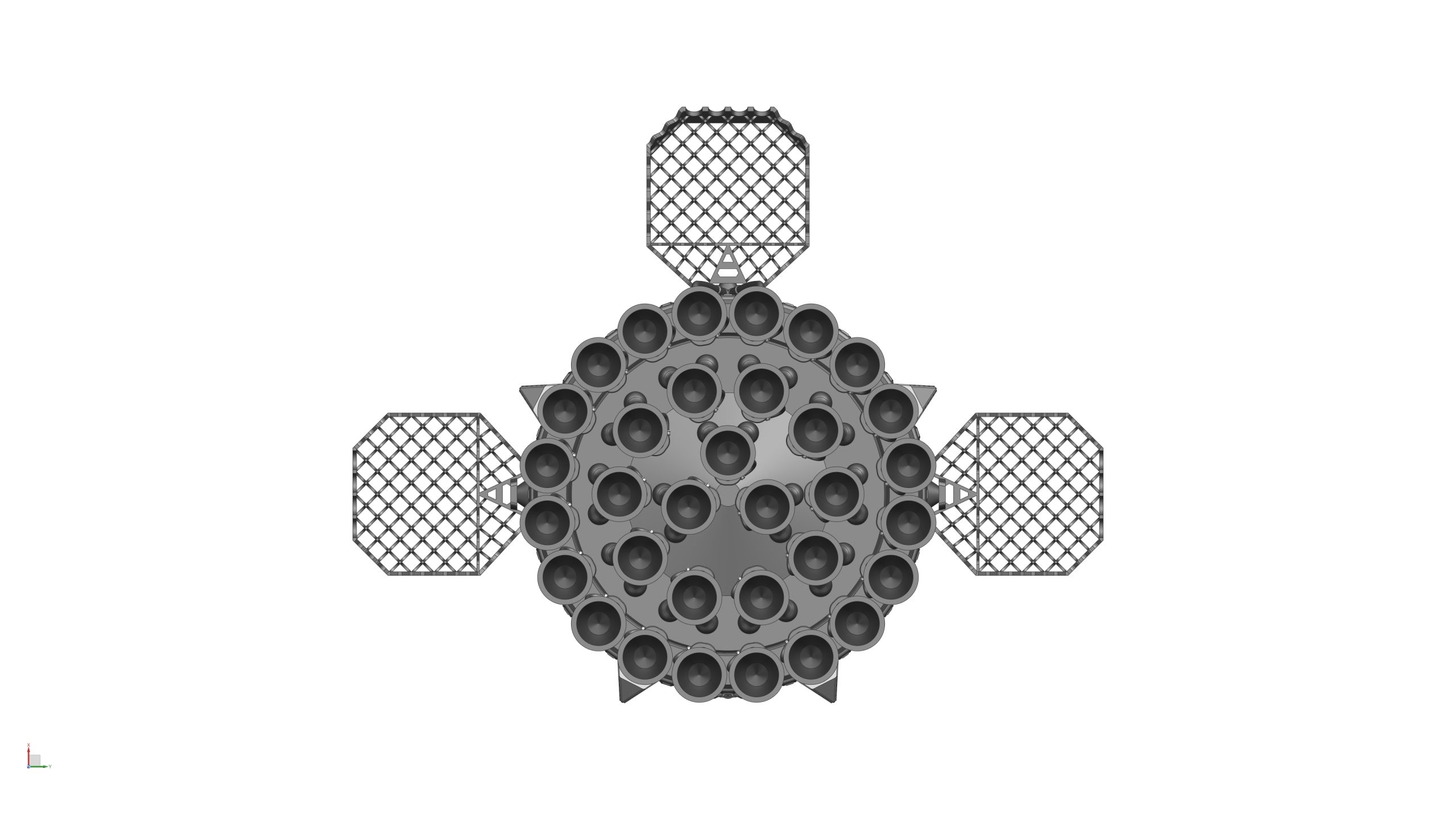

STEP 10: Assemble the Raptor Engines, and Grid Fins

Parts required (refer to the photos below)

13x Raptor 3_Central (a)

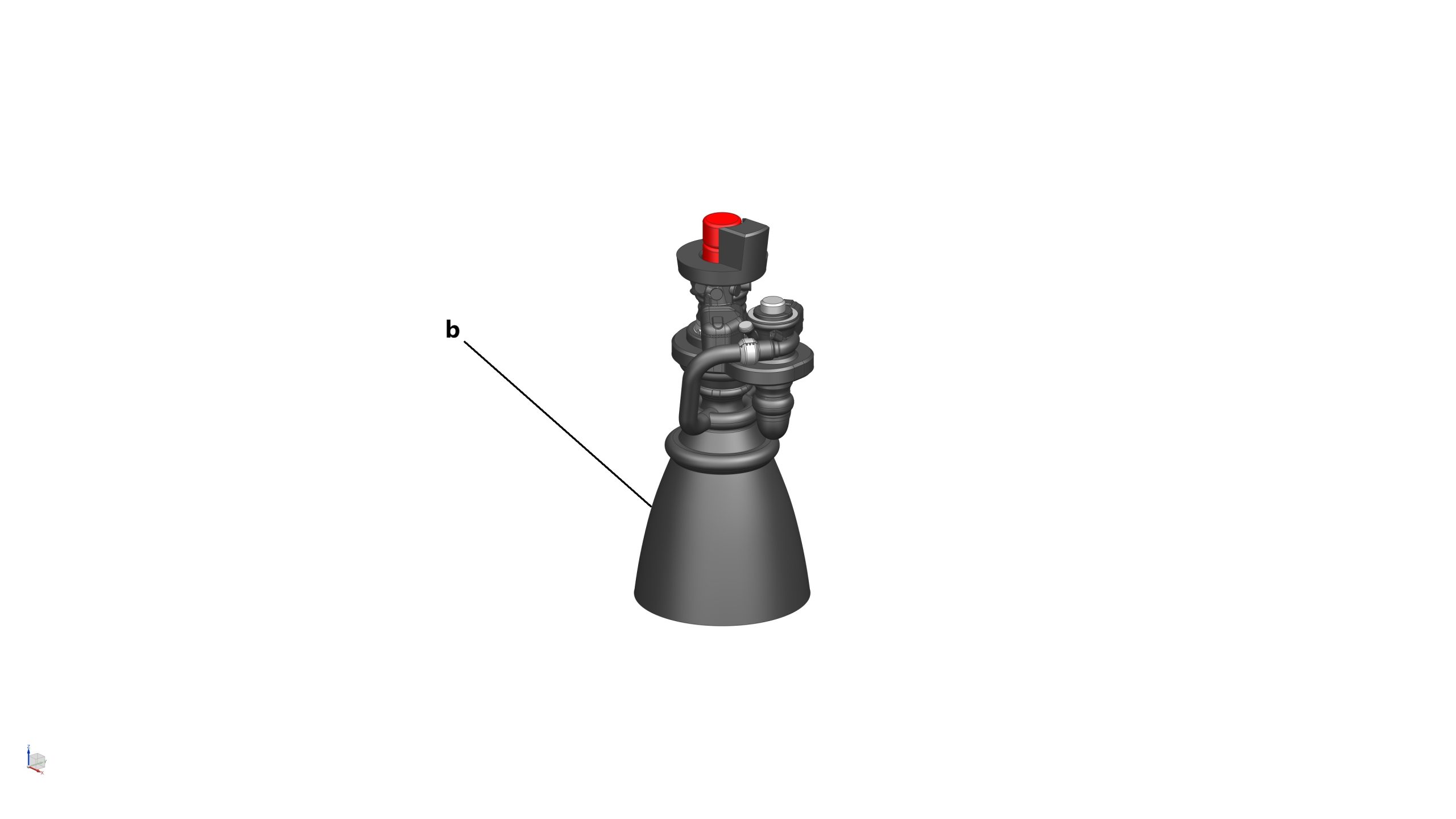

20x Raptor 3_Outer (b)
2x Booster Grid Fin (c)
1x Booster Grid Fin (Slanted) (d)
3x Booster Grid Fin Base (e)
79x Magnet (3mm dia x 2mm thick) (highlighted in red)
3x Magnet (5mm dia x 3mm thick) (highlighted in red)

Assembly process

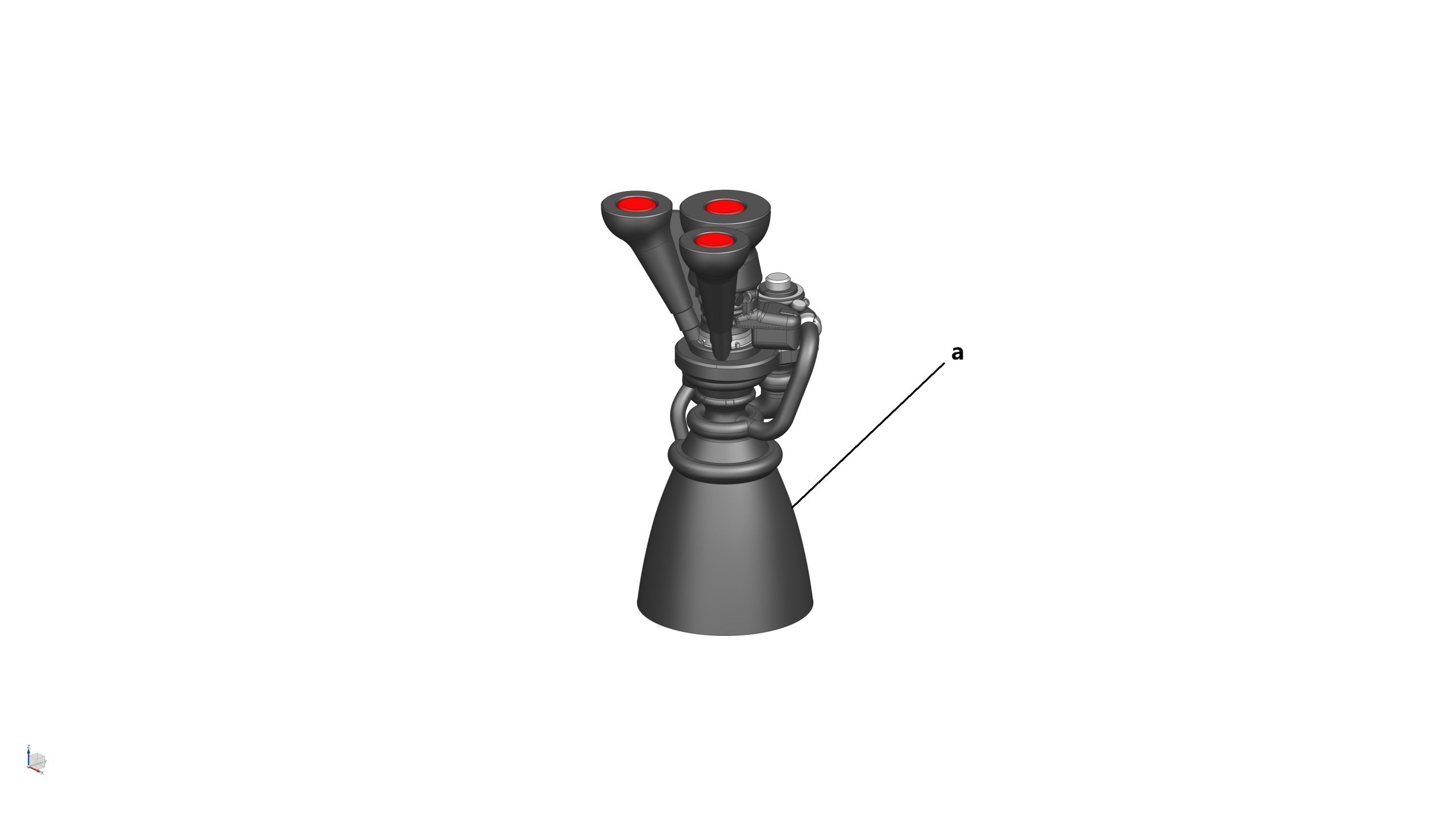

STEP 10a: Glue 3x magnet (3mm dia x 2mm thick) into their pockets at the top of each Raptor 3 Central engines. Repeat until you have 13x Raptor 3 Central engines
STEP 10b: Glue 2x magnet (3mm dia x 2mm thick) into the magnet hole at the top of each Raptor 3 Outer engines. Repeat until you have 20x Raptor 3 Outer engines

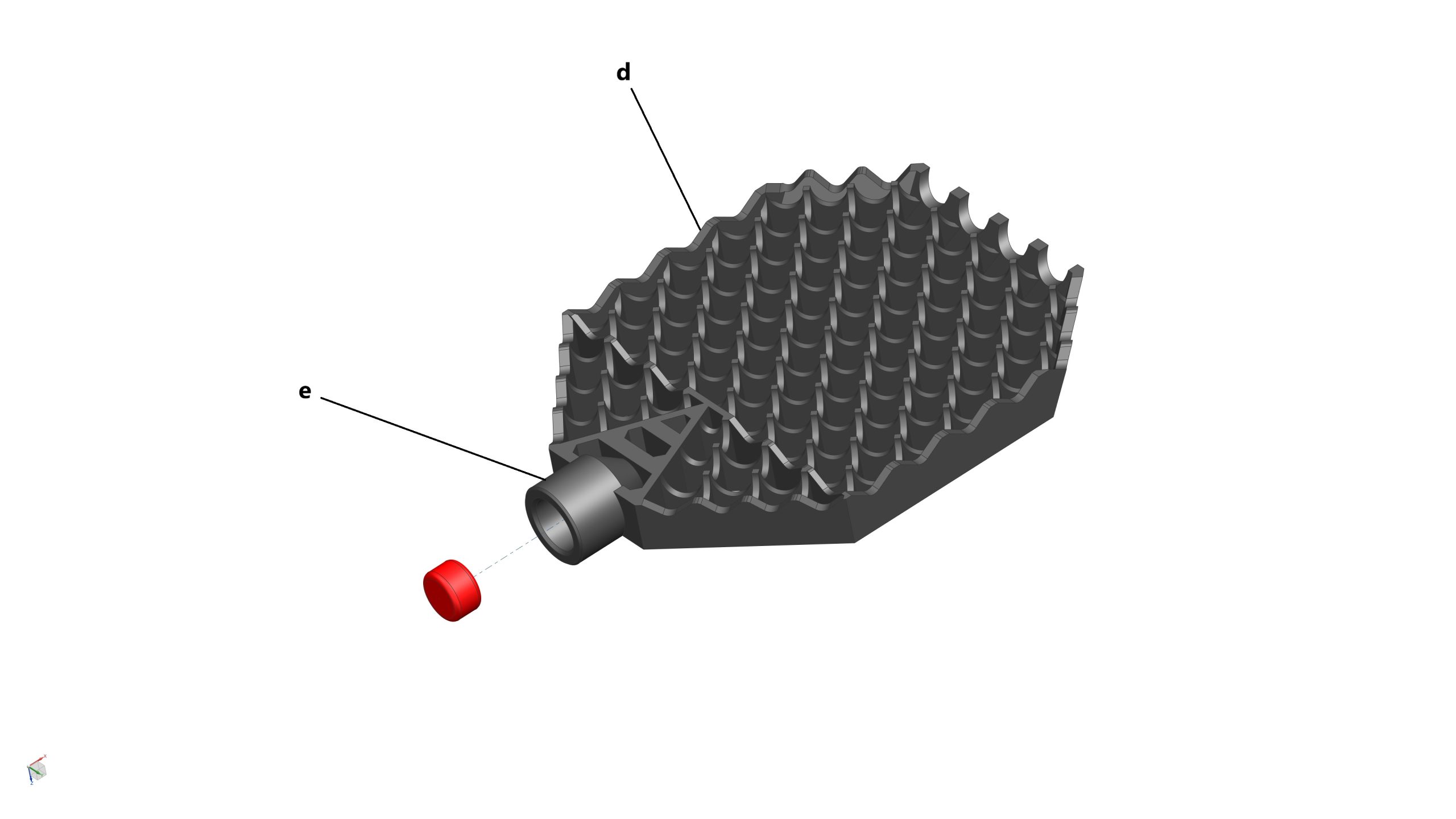

STEP 10c: Glue 1x Grid Fin Base, and 1x magnet (5mm dia x 3mm thick) into its pocket on each Grid Fin
STEP 10c: Glue 1x Grid Fin Base, and 1x magnet (5mm dia x 3mm thick) into its pocket on the Grid Fin (Slanted)

STEP 11: Install Raptor Engines to Booster Aft Section

Parts required (refer to the photos below)

13x Raptor 3_Central (a)
20x Raptor 3_Outer (b)
1x Booster Aft (Bottom) Section from STEP 2 (c)

Assembly process

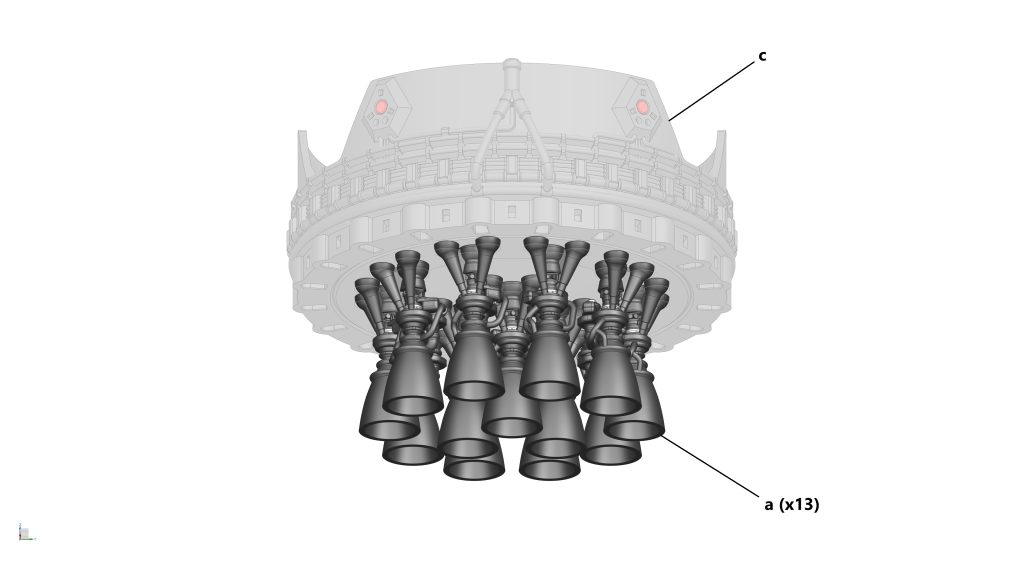

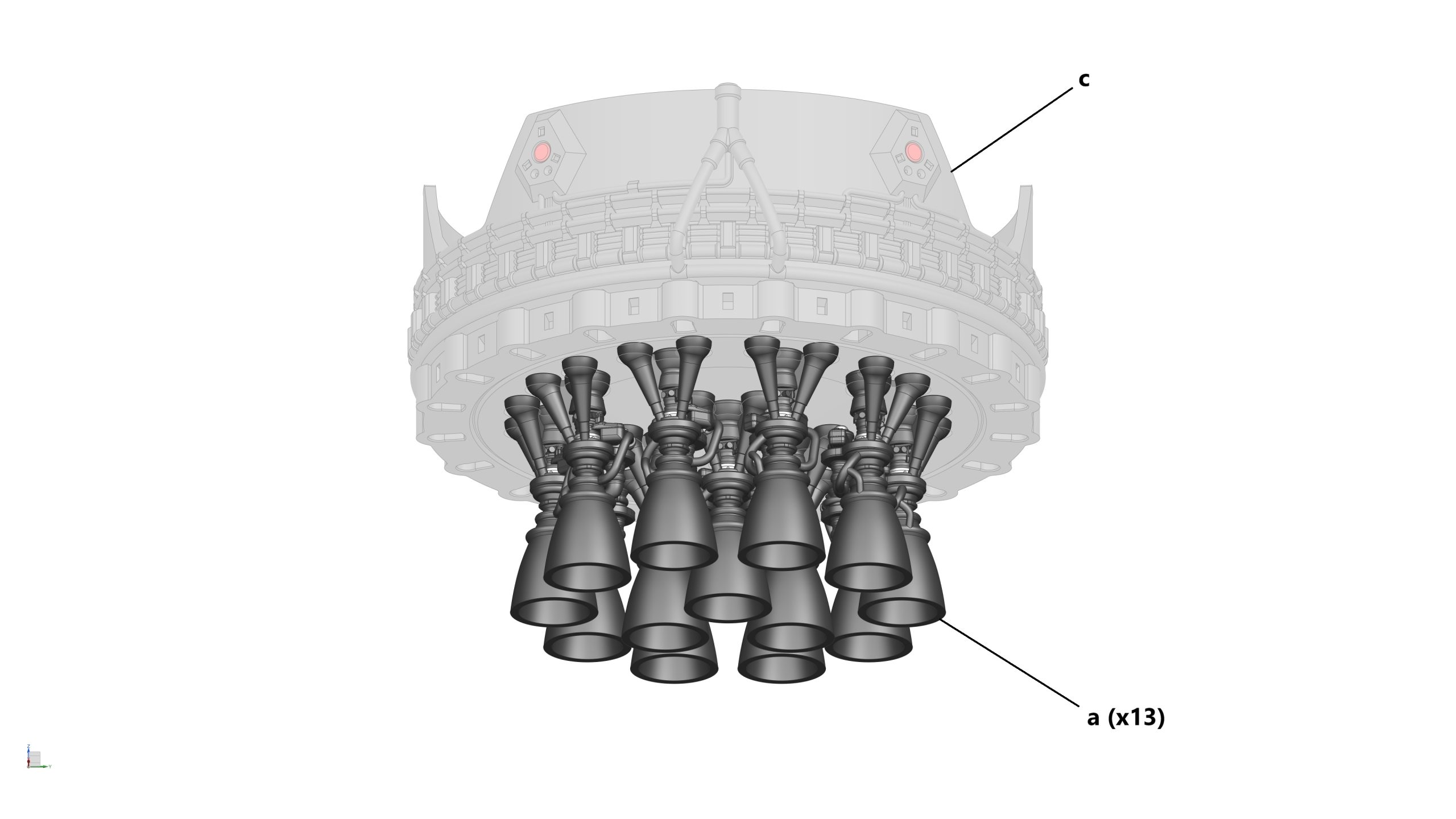

STEP 11a: Install 13x Raptor 3_Central engines to the Booster Aft (Bottom) Section

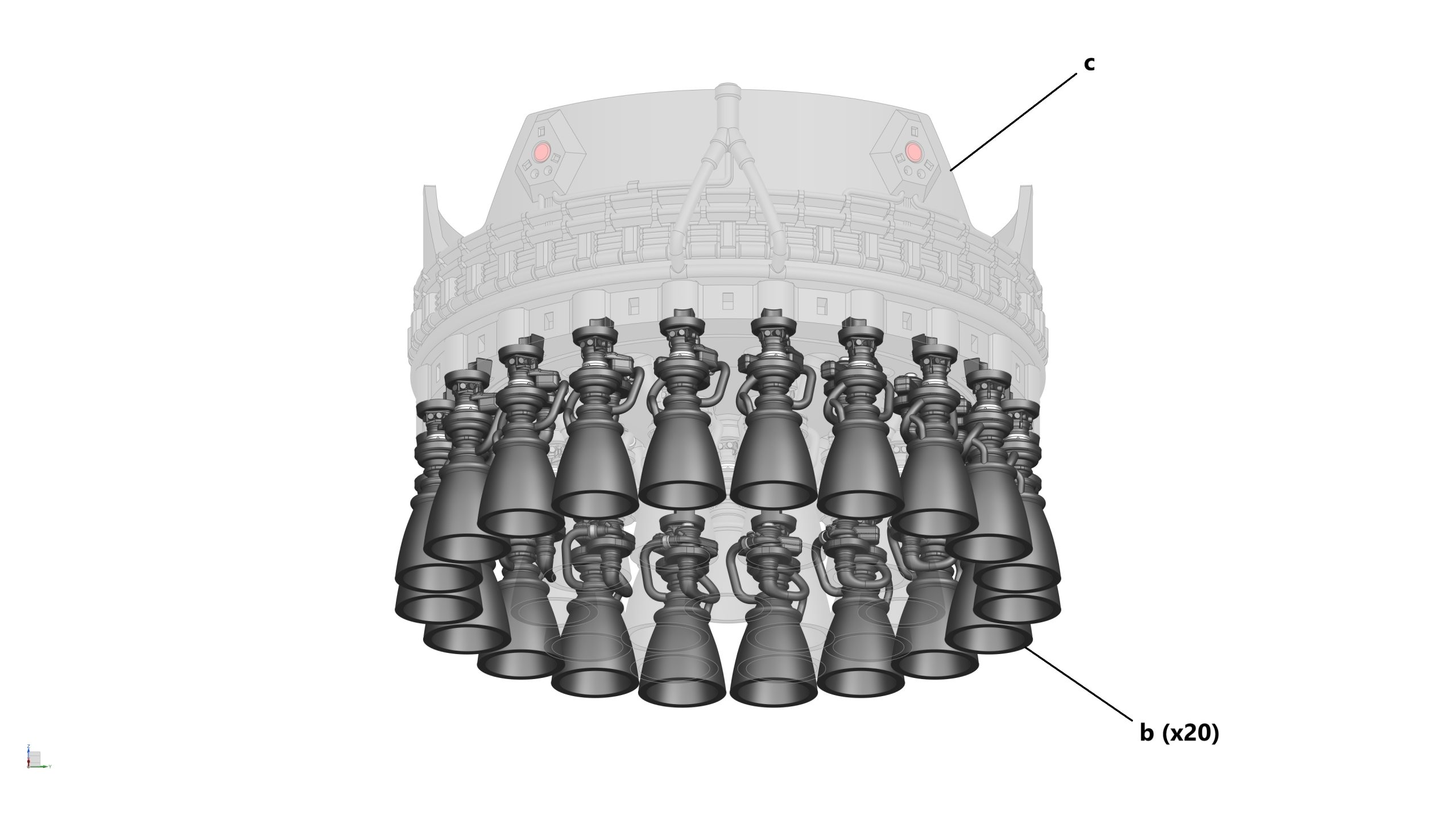

STEP 11b: Install 20x Raptor 3_Outer engines to the Booster Aft (Bottom) Section

STEP 11a

STEP 11b

STEP 12: Install CH4 Landing Tank to Booster Aft Section

Parts required (refer to the photos below)

1x CH4 Landing Tank (Top) (a)
1x CH4 Landing Tank (Bottom) (b)
1x Sub-assembly from STEP 11 (c)
1x Booster Stand from STEP 17 (OPTIONAL)
9x Magnets (5mm dia x 3mm thick) (highlighted in red)

Assembly process

STEP 12a: Glue 5x magnets (5mm dia x 3mm thick) into their pockets on the side (x2) and bottom (x3) faces of the CH4 Landing Tank (Top)

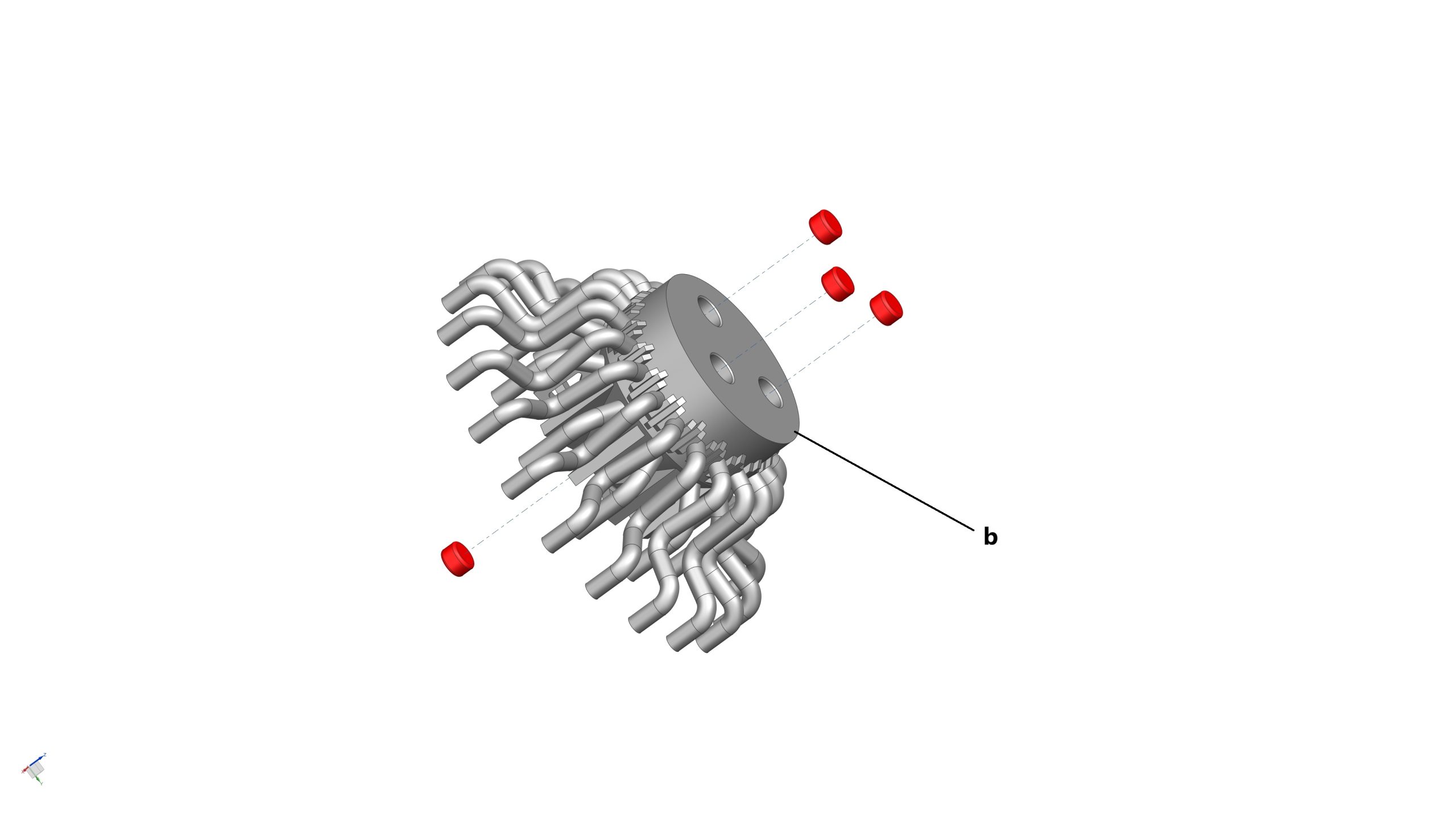

STEP 12b: Glue 4x magnets (5mm dia x 3mm thick) into their pockets on the top (x3) and bottom (x1) faces of the CH4 Landing Tank (Bottom)

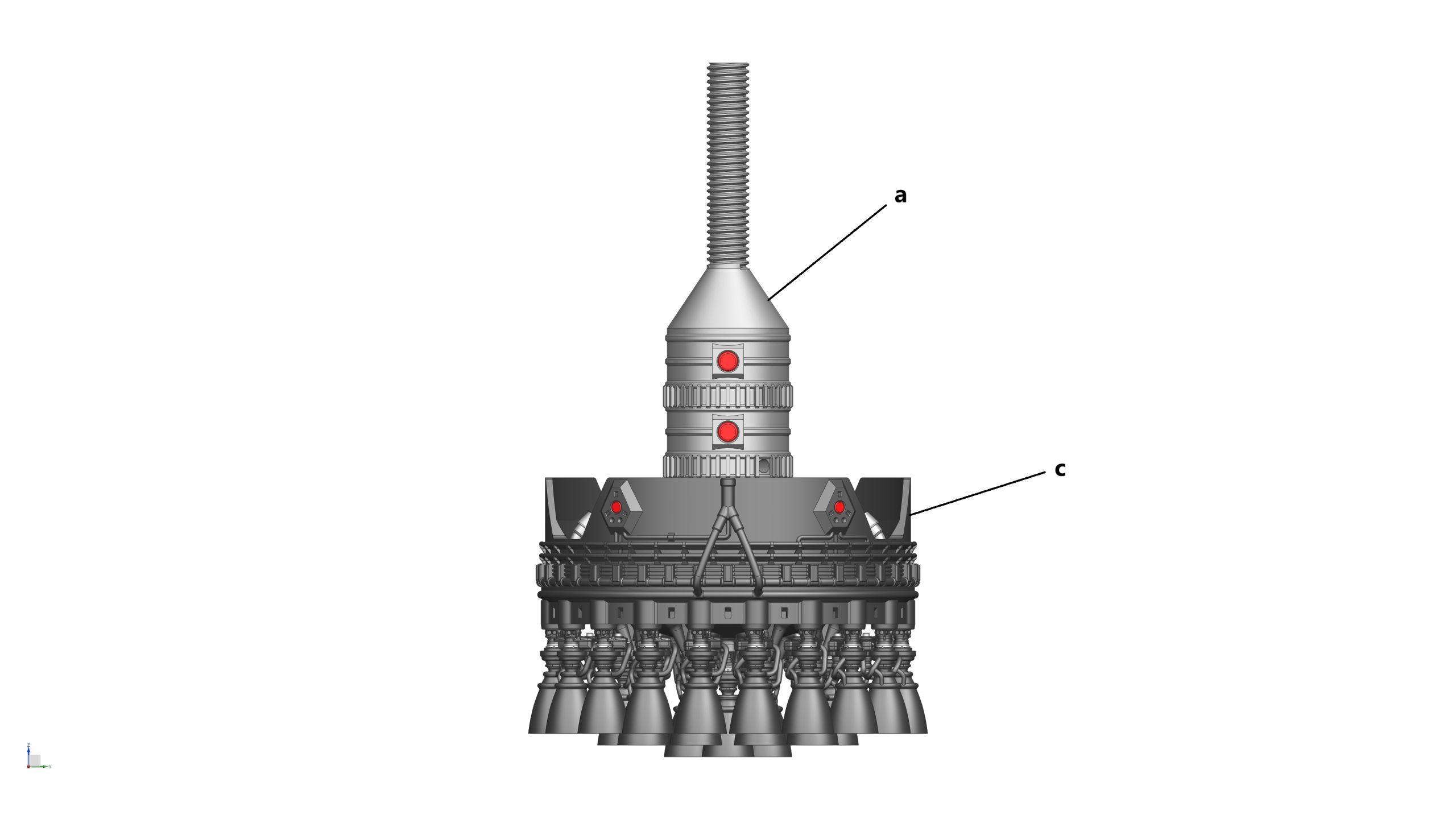

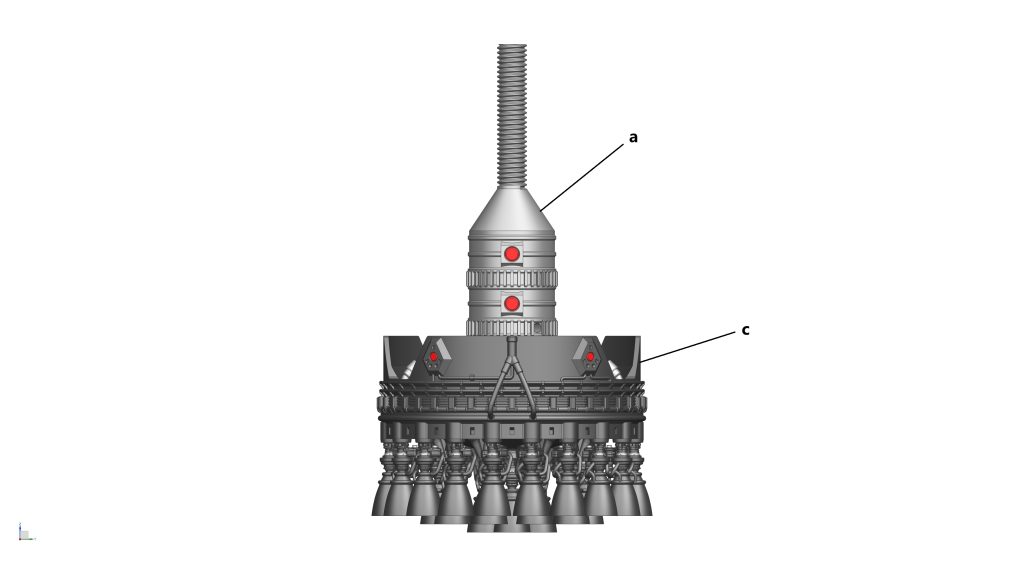

STEP 12c: Assemble the CH4 Landing Tank (Top) and (Bottom) together
STEP 12d: Install the CH4 Landing Tank into the Booster Aft (Bottom) assembly from STEP 11

IMPORTANT: Ensure the the CH4 Landing Tank is correctly oriented in relation to the Booster Aft (Bottom) assembly – see pic below.

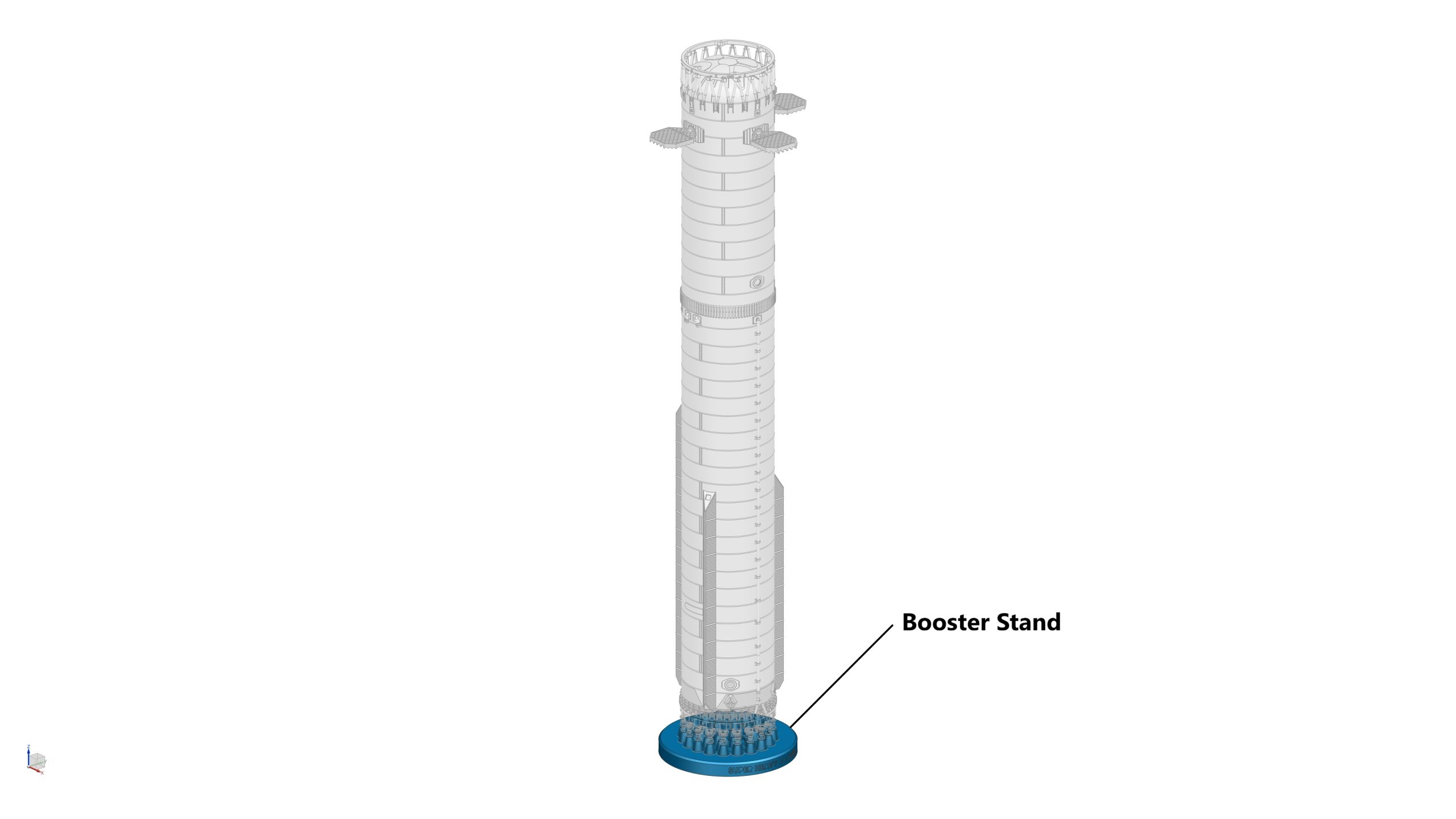

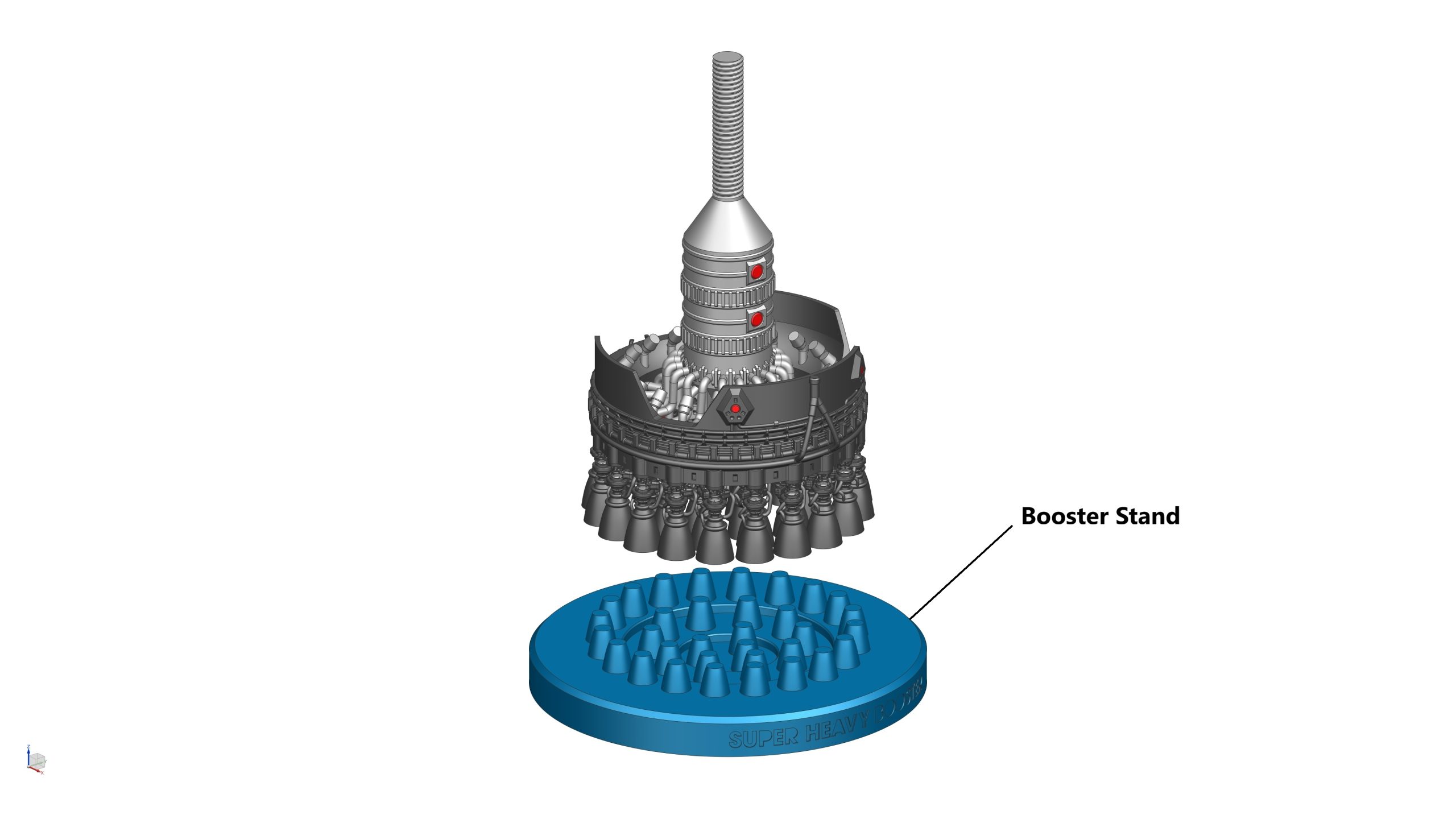

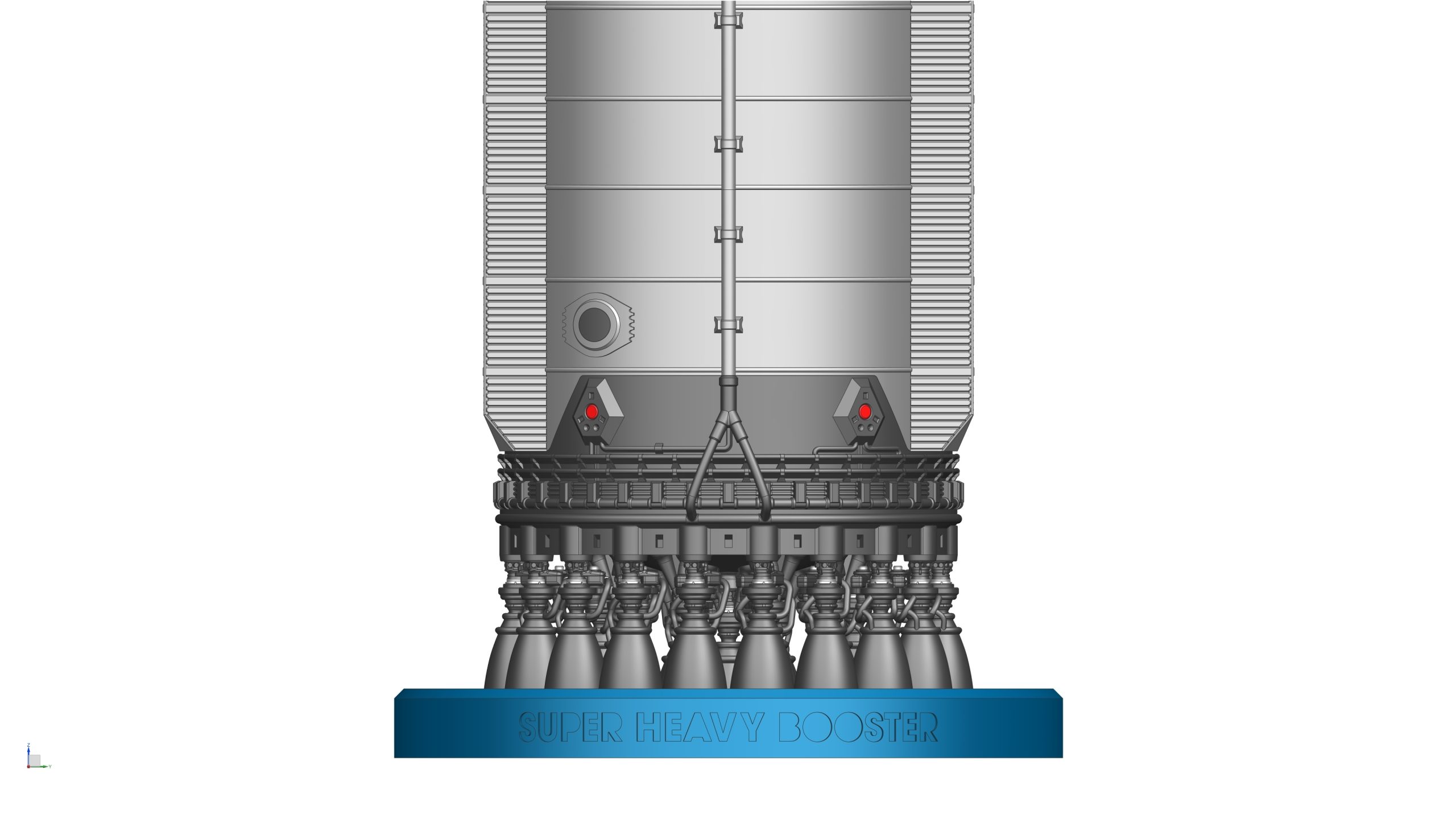

TIP: You can print the Booster Stand from STEP 17 and use it to help stabilize the Booster Aft (Bottom) whilst assembling the CH4 Landing Tank at this STEP

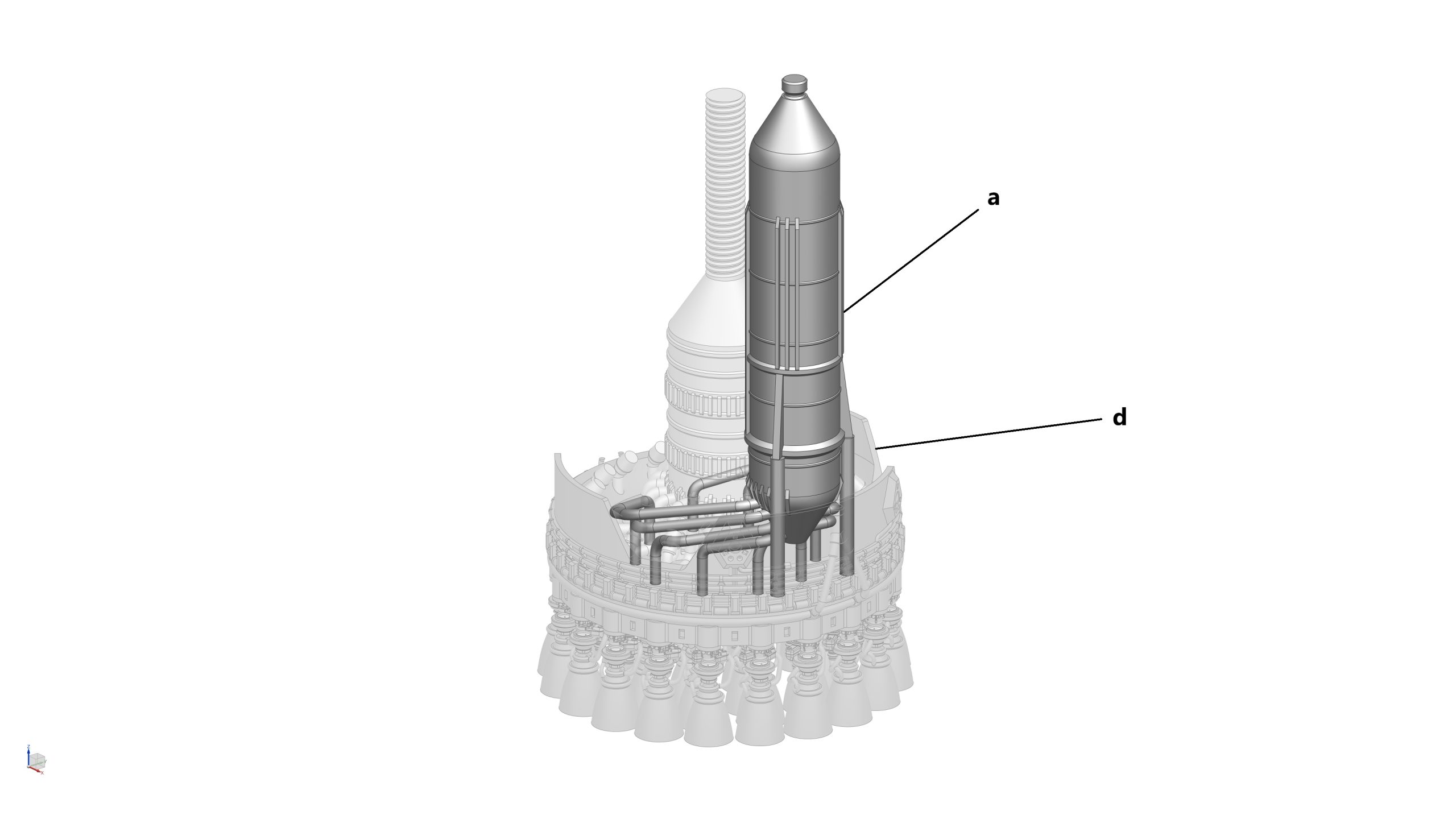

STEP 13: Install LOX Landing Tank to Booster Aft Section

Parts required (refer to the photos below)

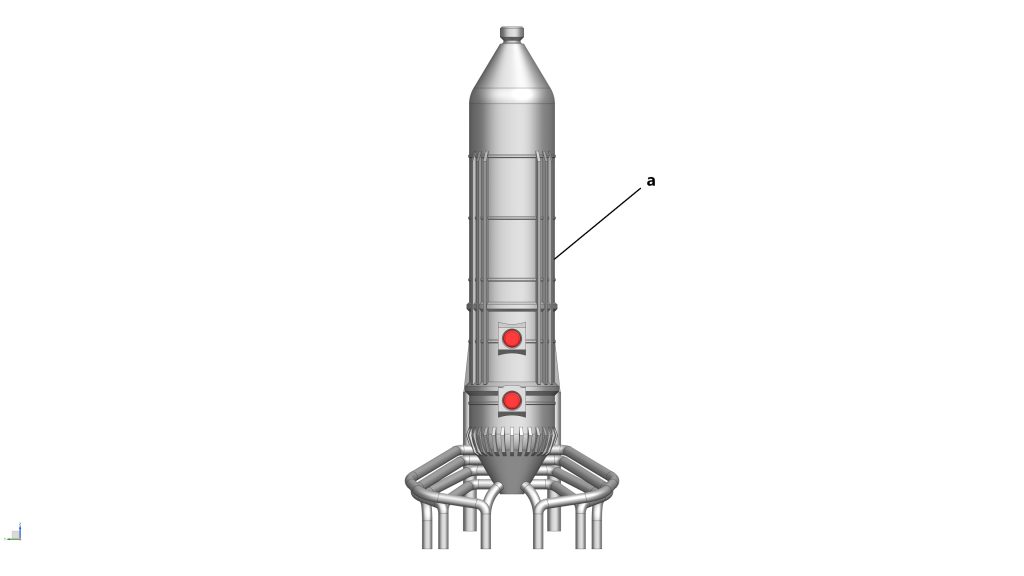

1x LOX Landing Tank (a)
1x LOX Feed Pipe (b)
1x CH4 Feed Pipe (c)
1x Sub-assembly from STEP 12 (d)
2x Magnet (5mm dia x 3mm thick) (highlighted in red)

Assembly process

STEP 13a: Glue 2x magnets (5mm dia x 3mm thick) into their pockets on the side (x2) of the LOX Landing Tank

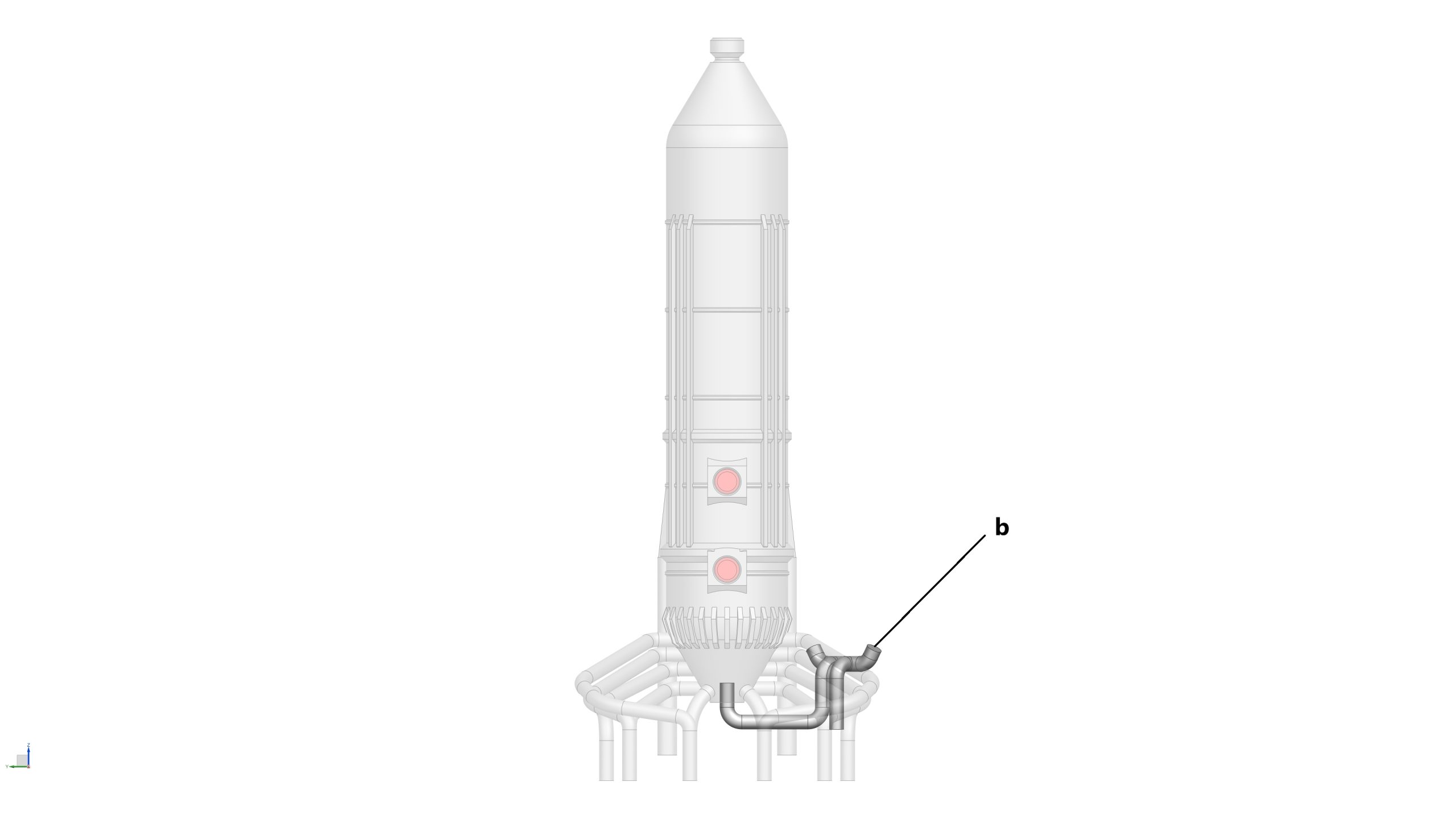

STEP 13b: Install the LOX Feed Pipe to the bottom of the LOX Landing Tank
STEP 13c: Install the LOX Landing Tank to the Booster Aft (Bottom) assembly from STEP 12

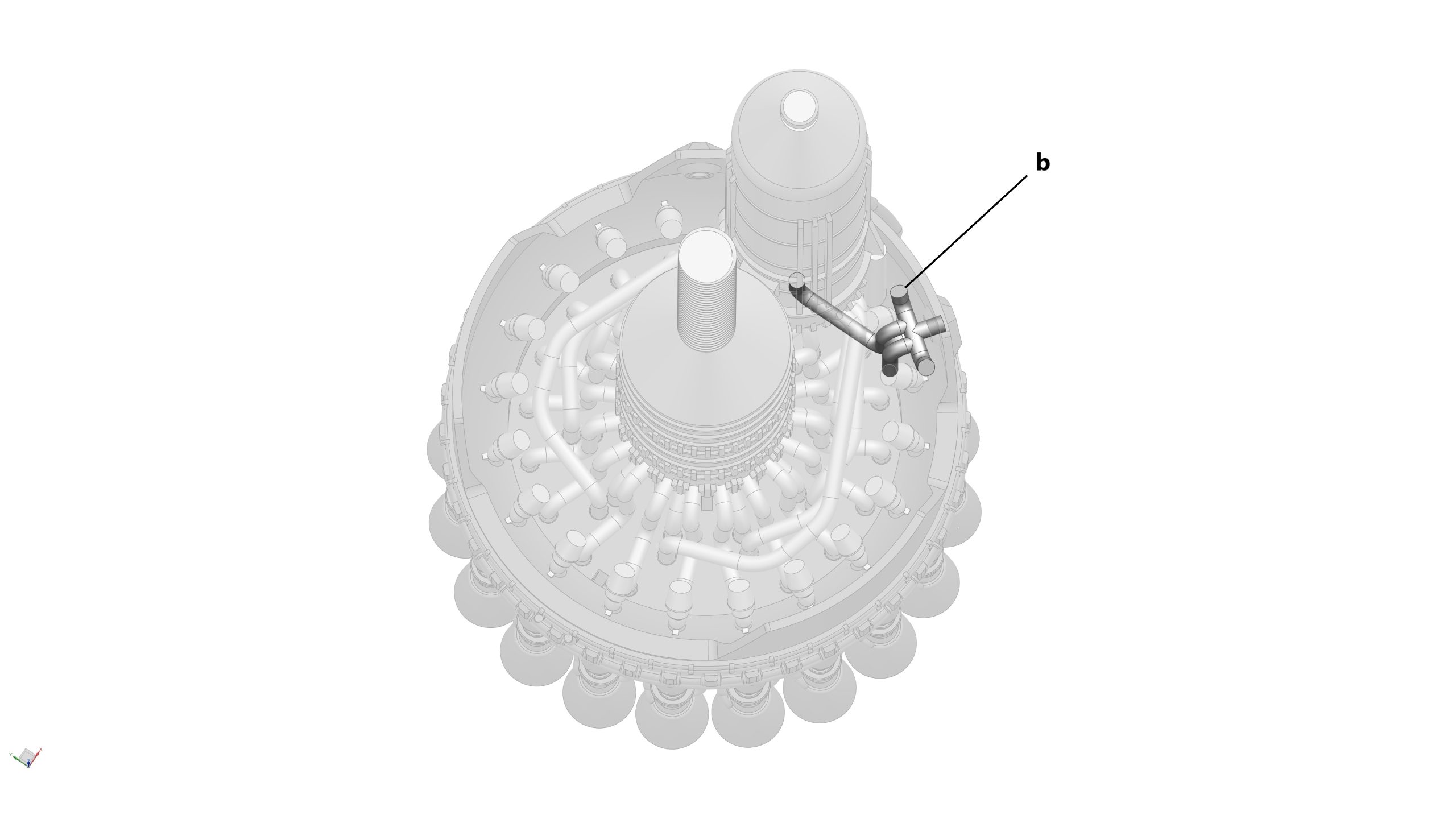

STEP 13d: Connect the other end of the LOX Feed Pipe to the back of the QD Panel of the Booster Aft (Bottom)

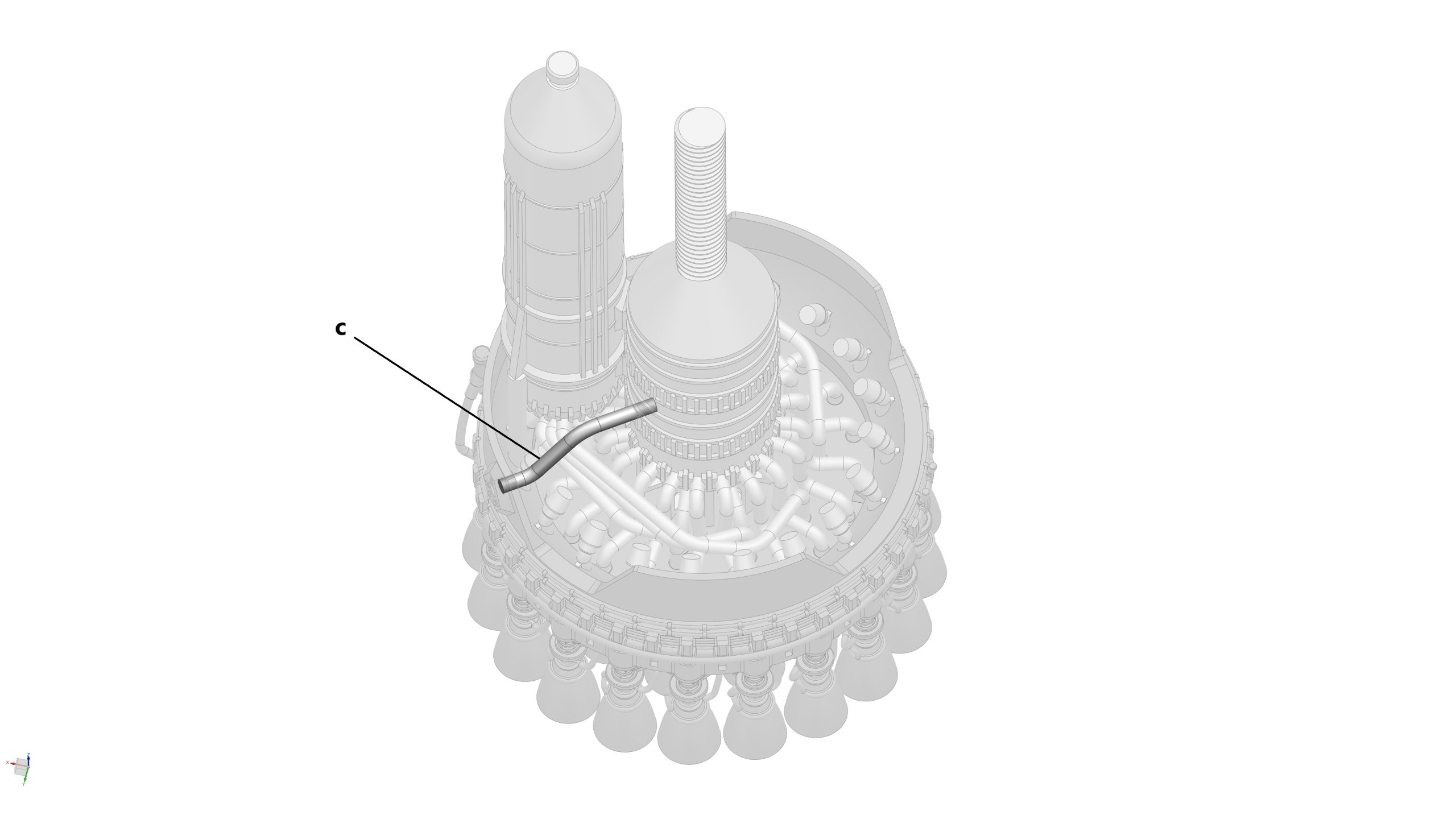

STEP 13e: Connect the CH4 Feed Pipe from the CH4 Landing Tank to the back of the other QD Panel of the Booster Aft (Bottom)

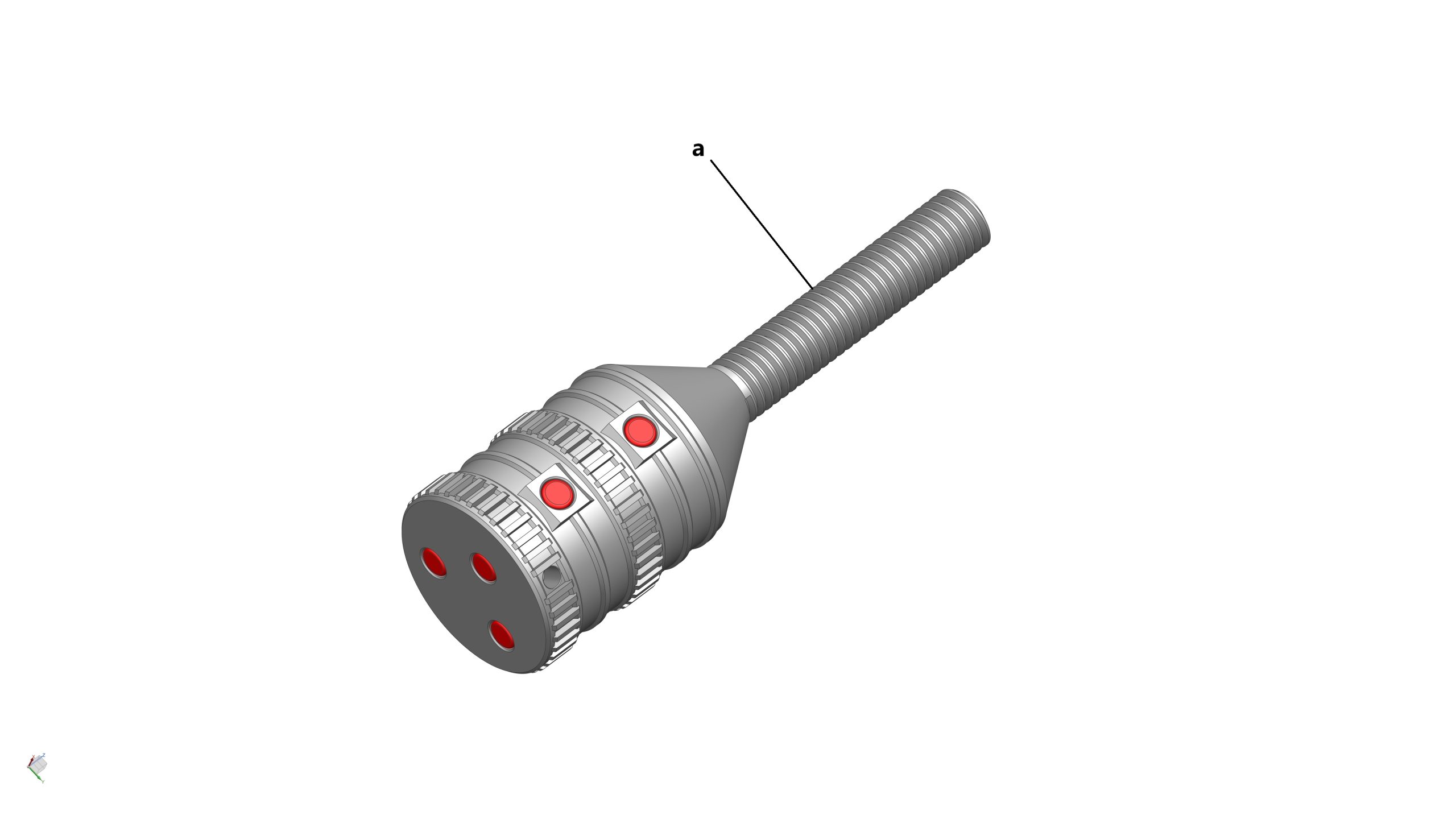

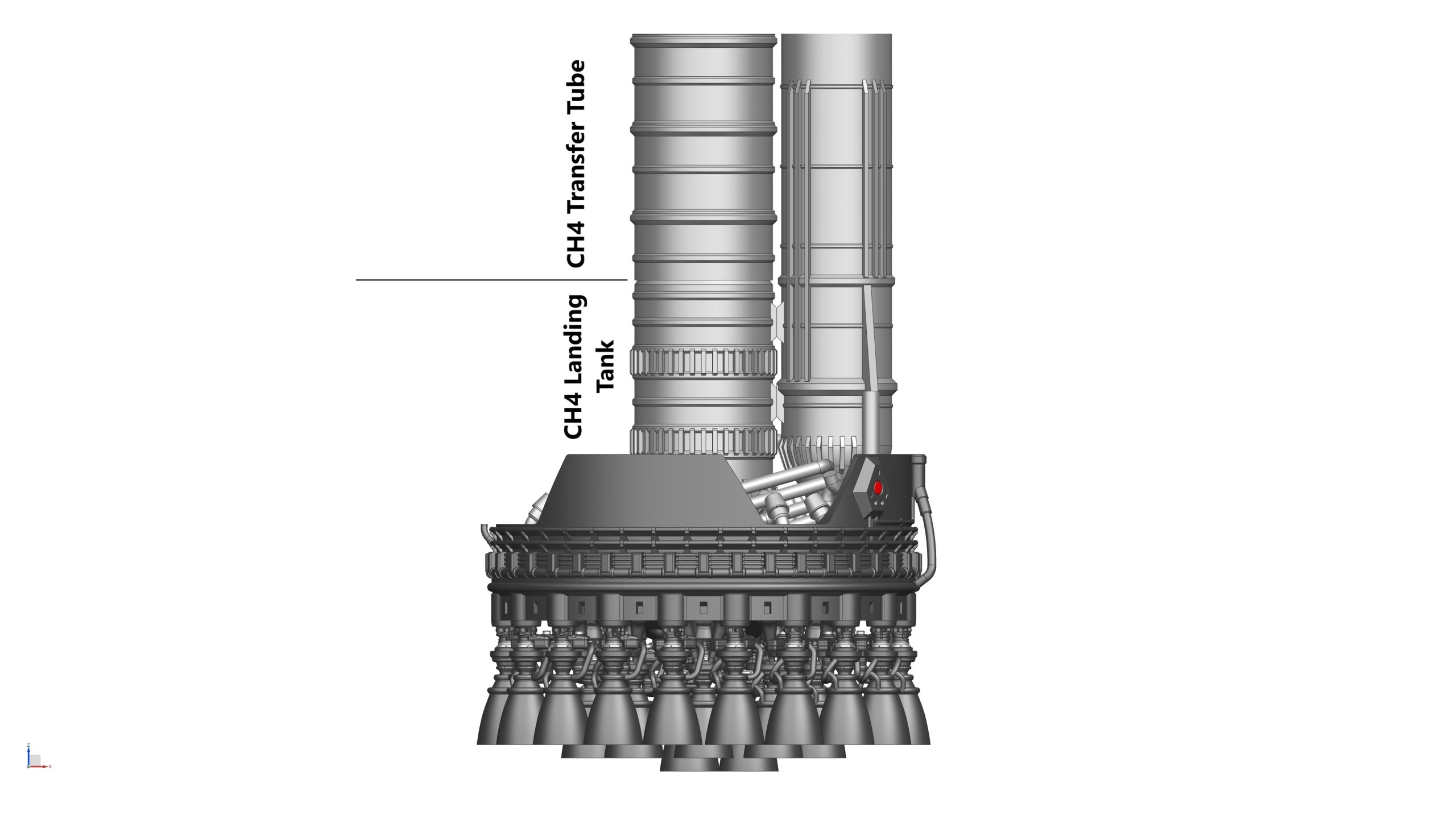

STEP 14: Install CH4 Transfer Tube

Parts required (refer to the photos below)

1x CH4 Transfer Tube (Top) (a)
1x CH4 Transfer Tube (Bottom) (b)
1x CH4 Transfer Tube Connector (c)
1x Sub-assembly from STEP 13 (d)

Assembly process

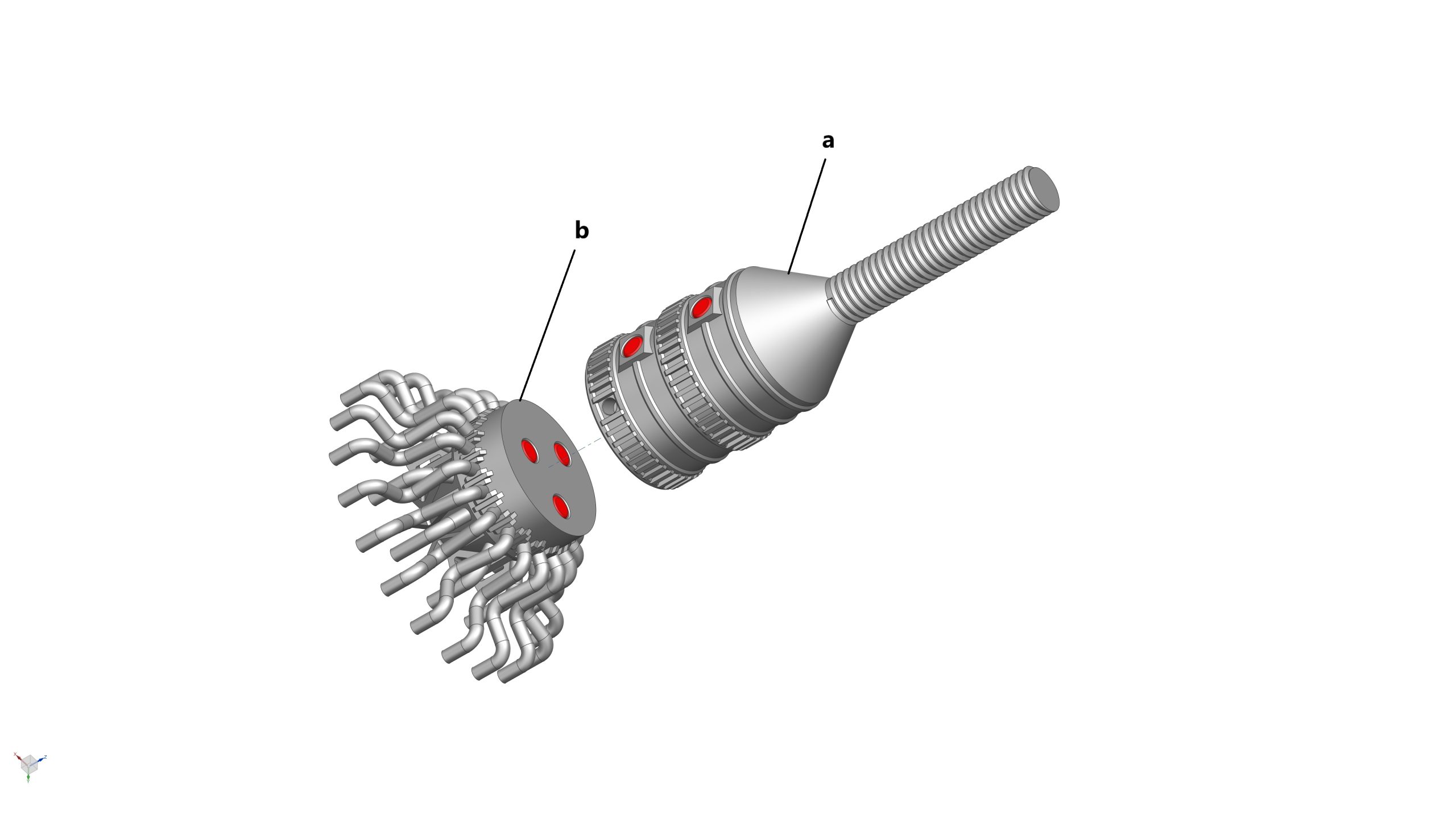

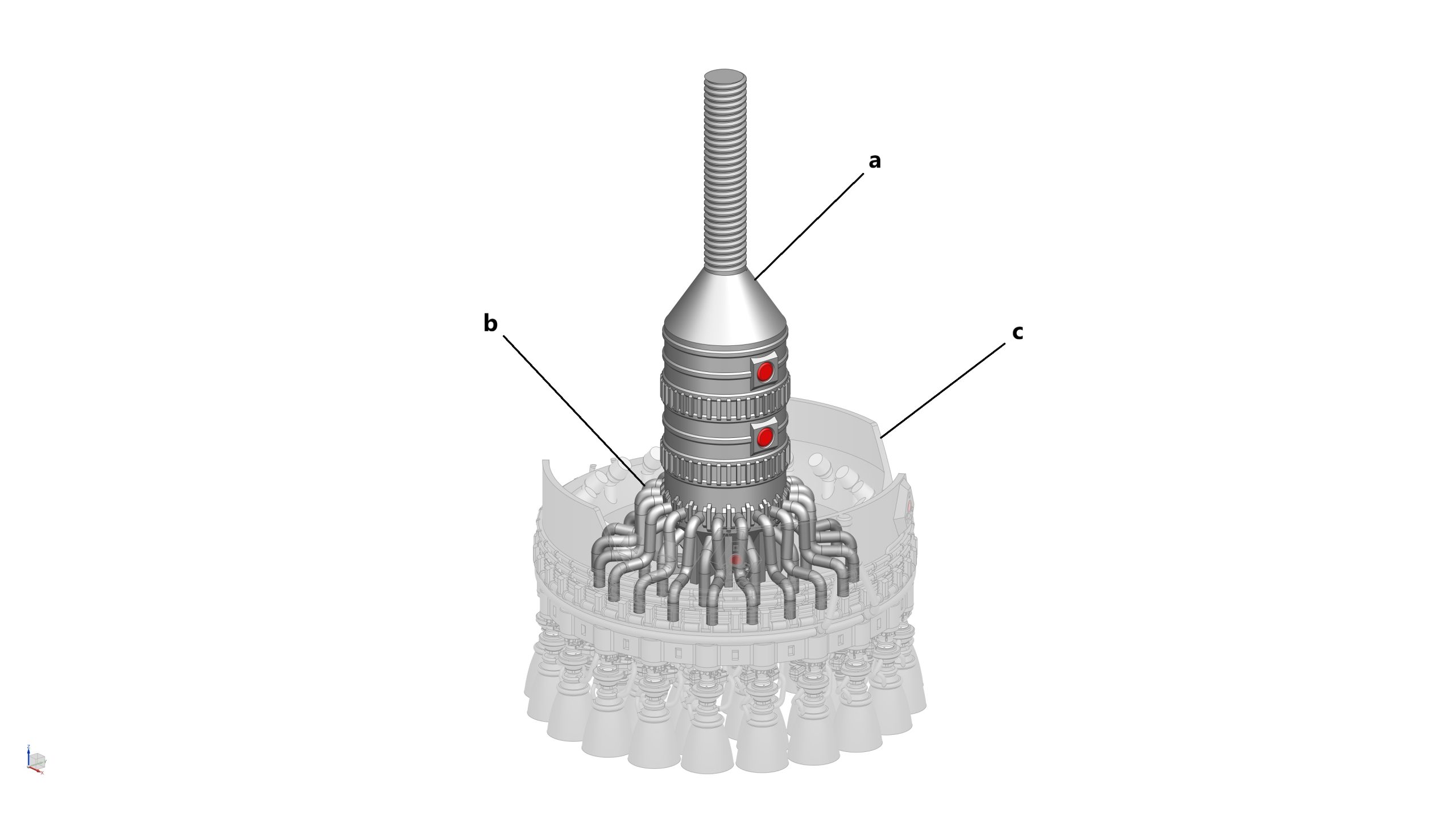

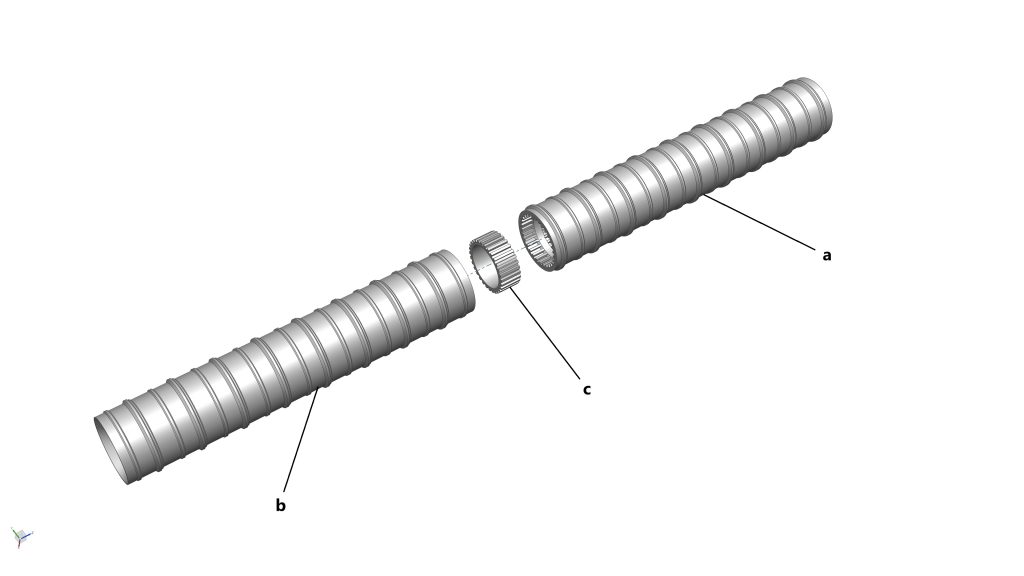

STEP 14a: Connect the CH4 Transfer Tube (Top) & (Bottom) together using the Connector

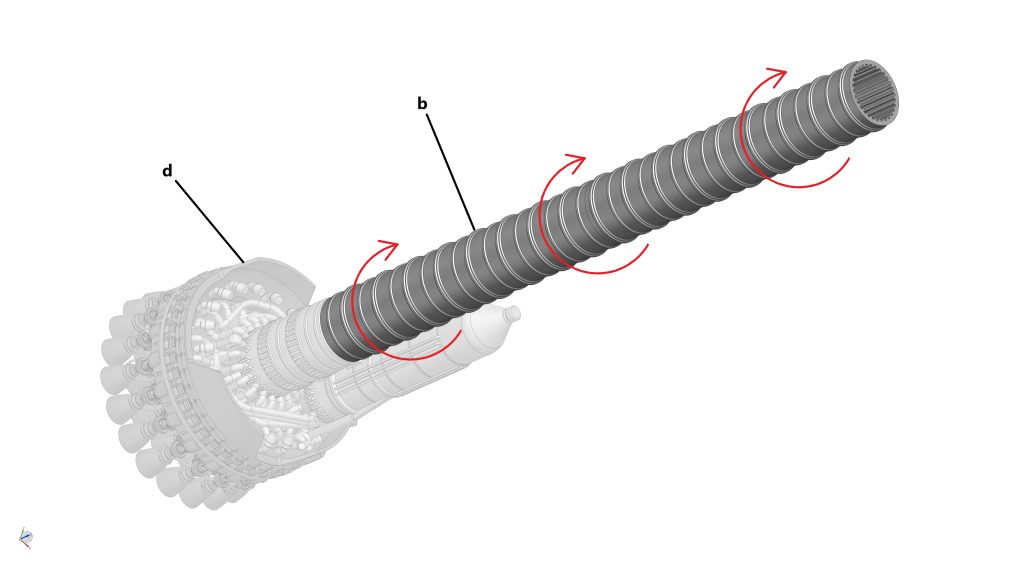

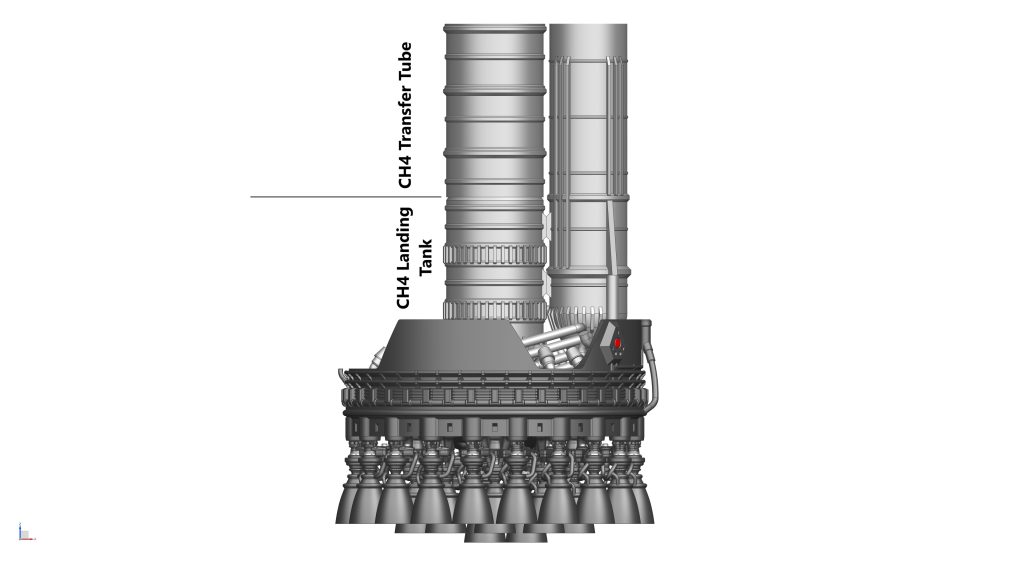

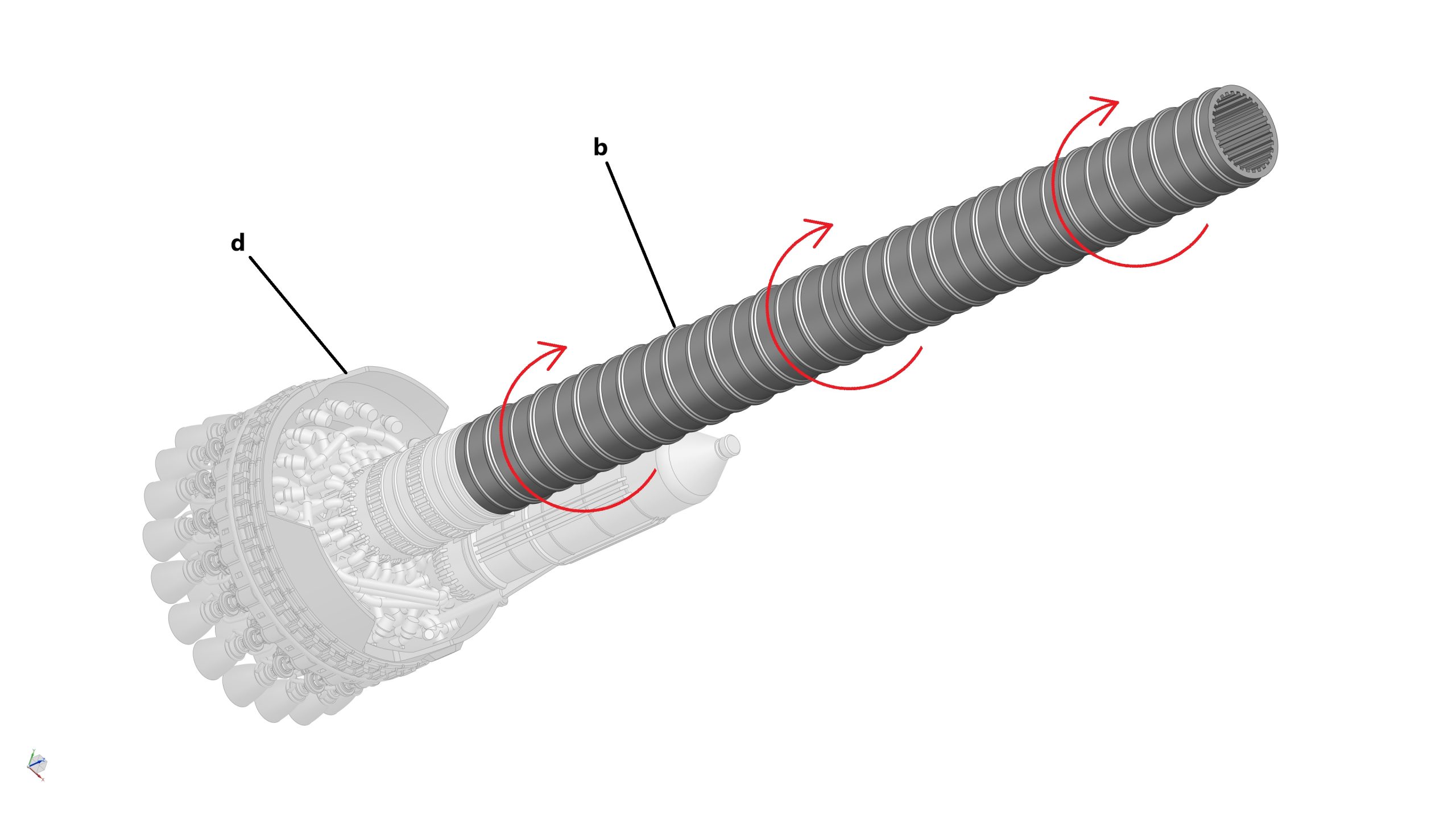

STEP 14b: Screw the CH4 Transfer Tube to the CH4 Landing Tank

IMPORTANT: Ensure the CH4 Transfer Tube is fully screwed to the CH4 Landing Tank – see pic below.
TIP: You can temporarily detach the CH4 Landing Tank (Top) to screw it into the CH4 Transfer Tube first, and then reinstall it to the CH4 Landing Tank (Bottom)

STEP 14a

STEP 14b

STEP 15: Stack Booster Sections

Parts required (refer to the photos below)

All parts & sub-assemblies from STEP 2 to STEP 14

Assembly process

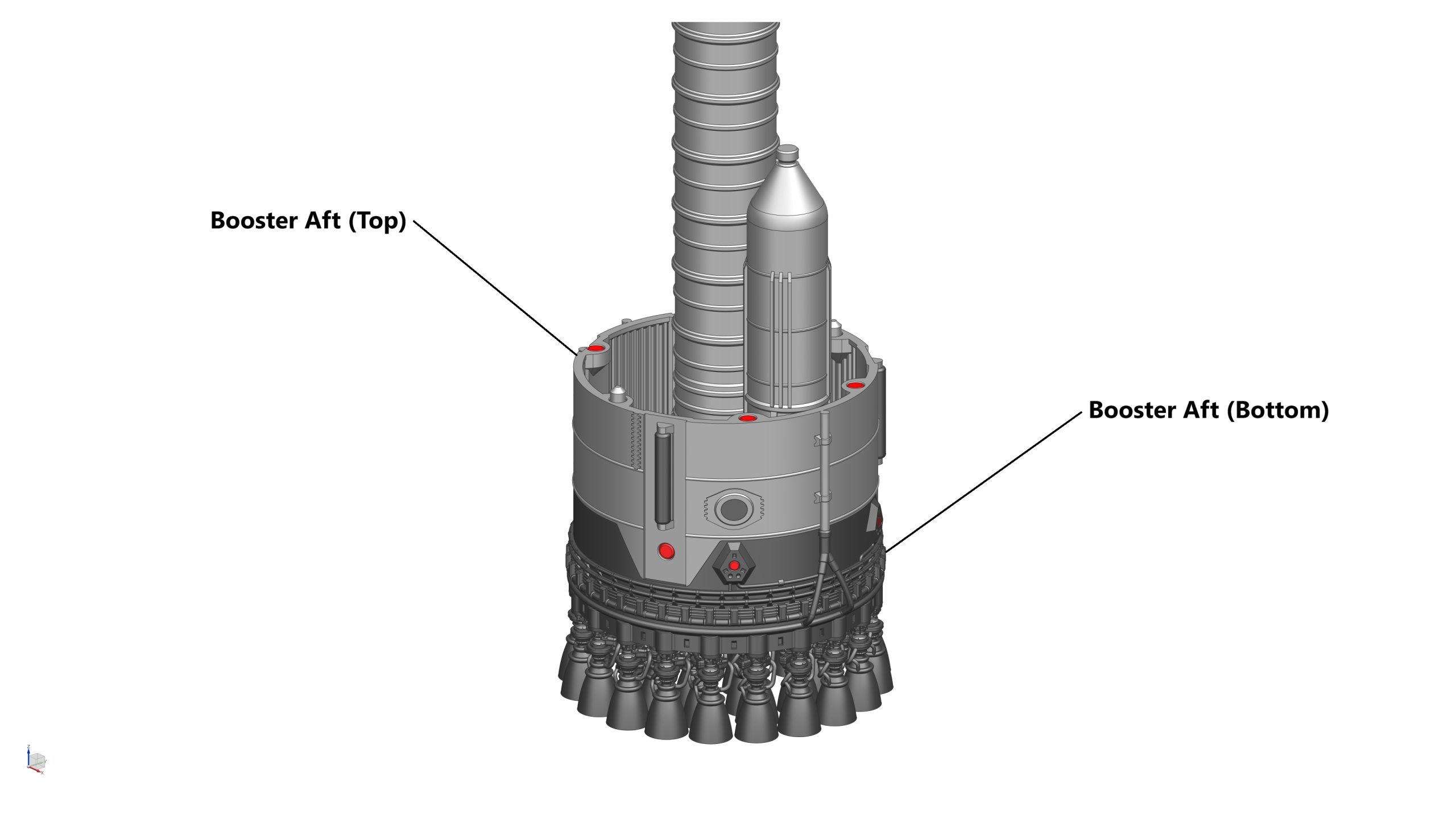

STEP 15a: Glue the Booster Aft (Top) to the Booster Aft (Bottom) sub-assembly from STEP 14

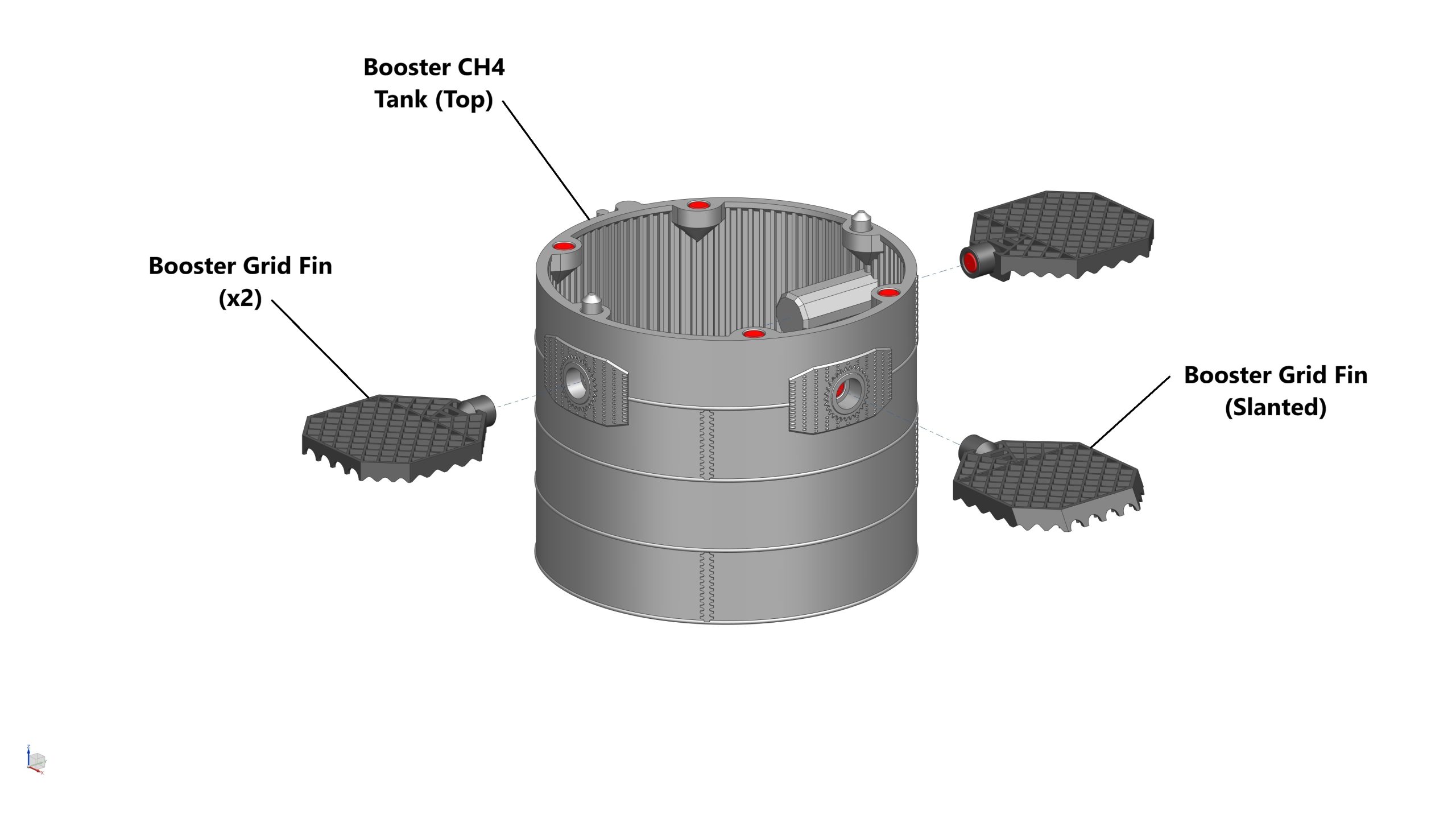

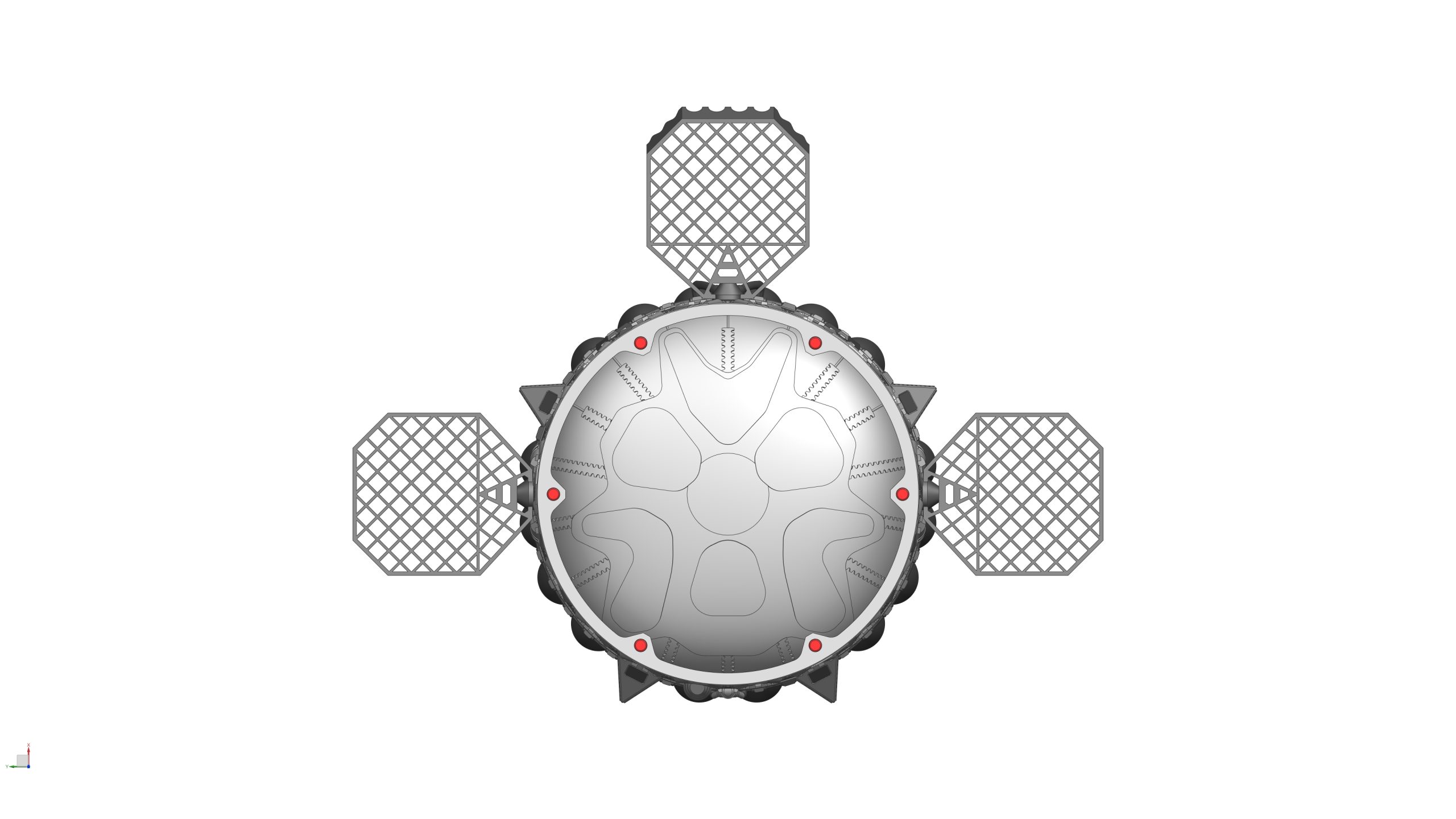

STEP 15b: Install the Grid Fins to the Booster CH4 Tank (Top)
STEP 15c: Stack all the Booster sections together – see pic below

STEP 15a

STEP 15b

STEP 15c

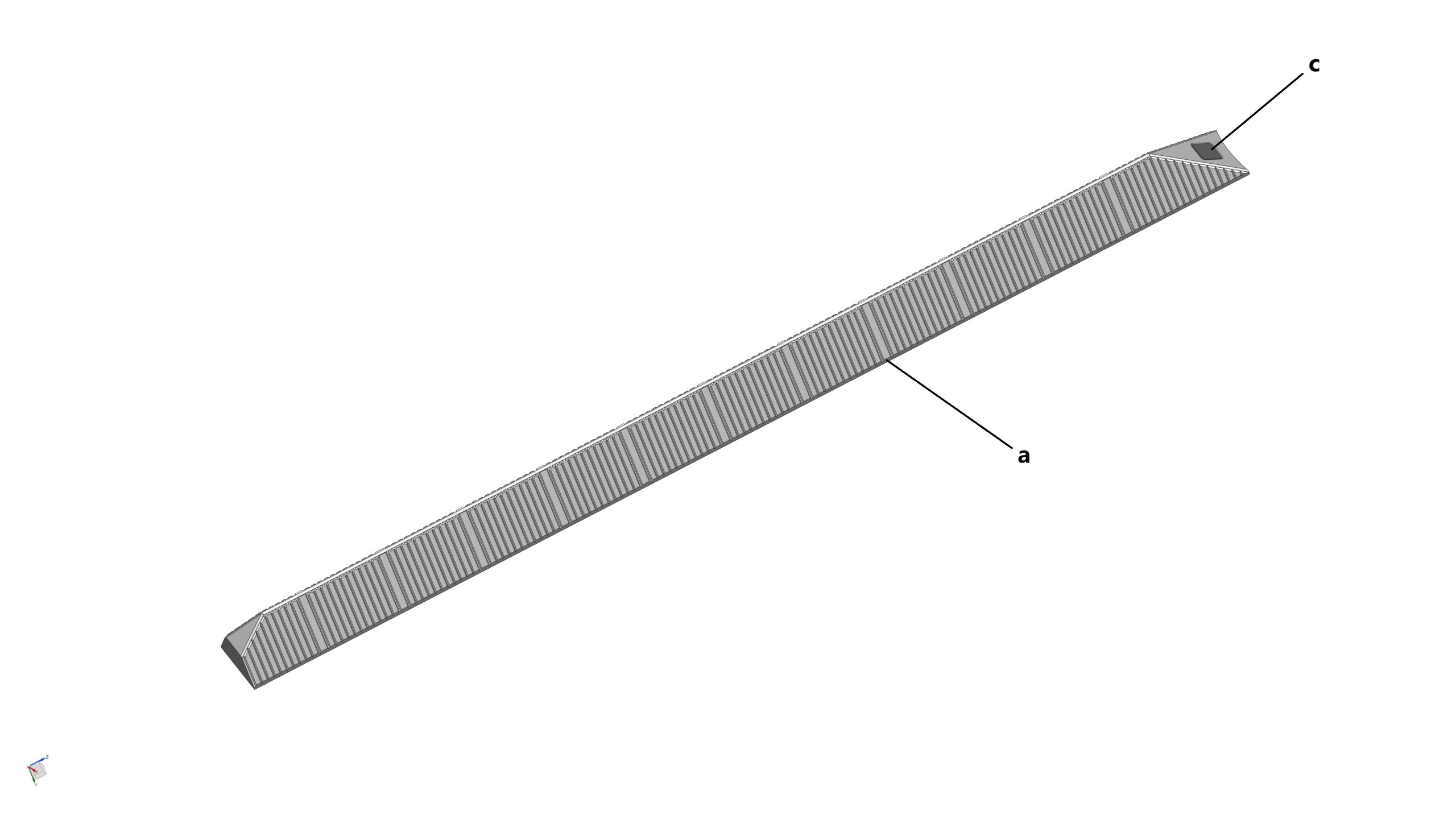

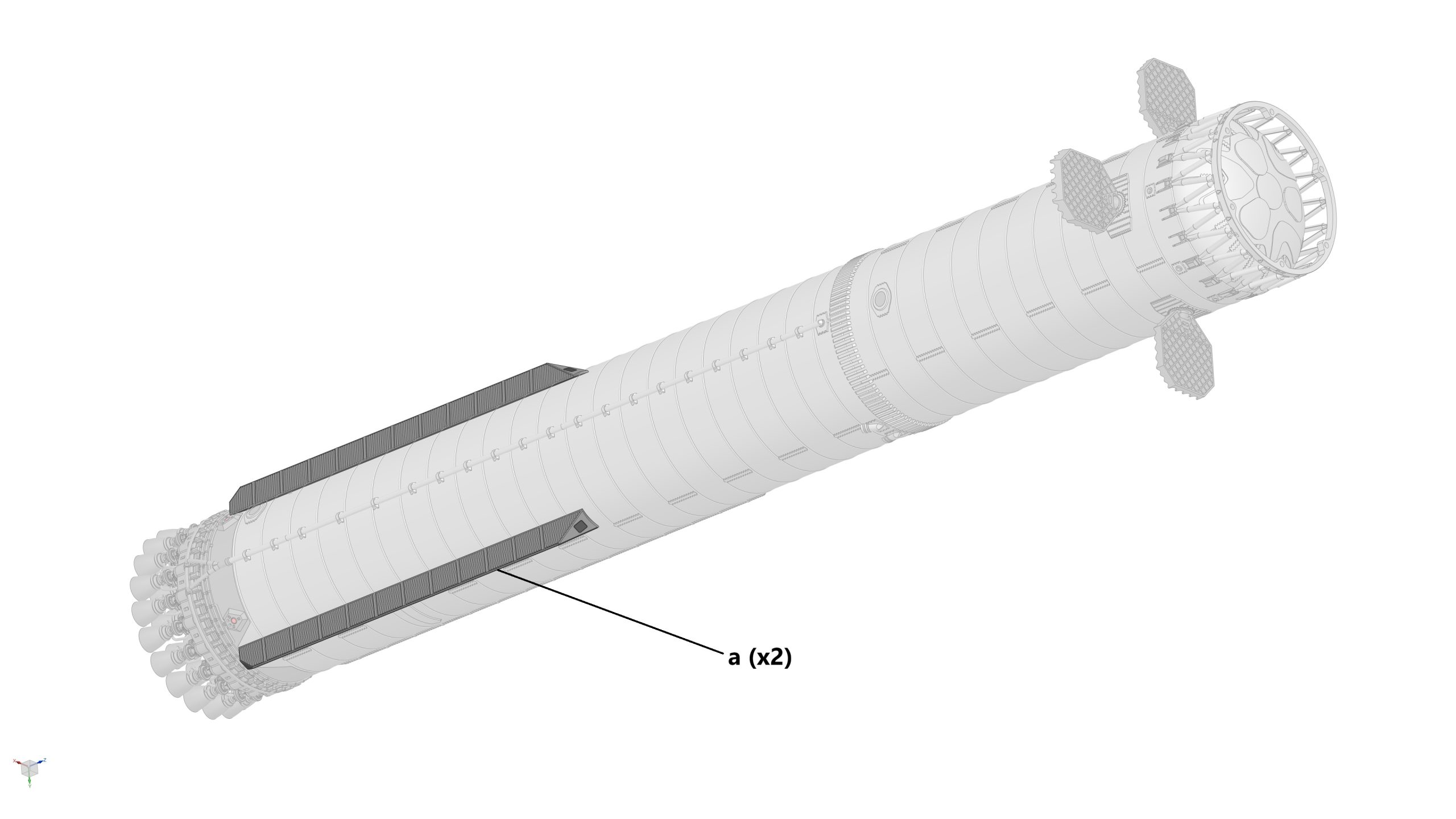

STEP 16: Install the Chines

Parts required (refer to the photos below)

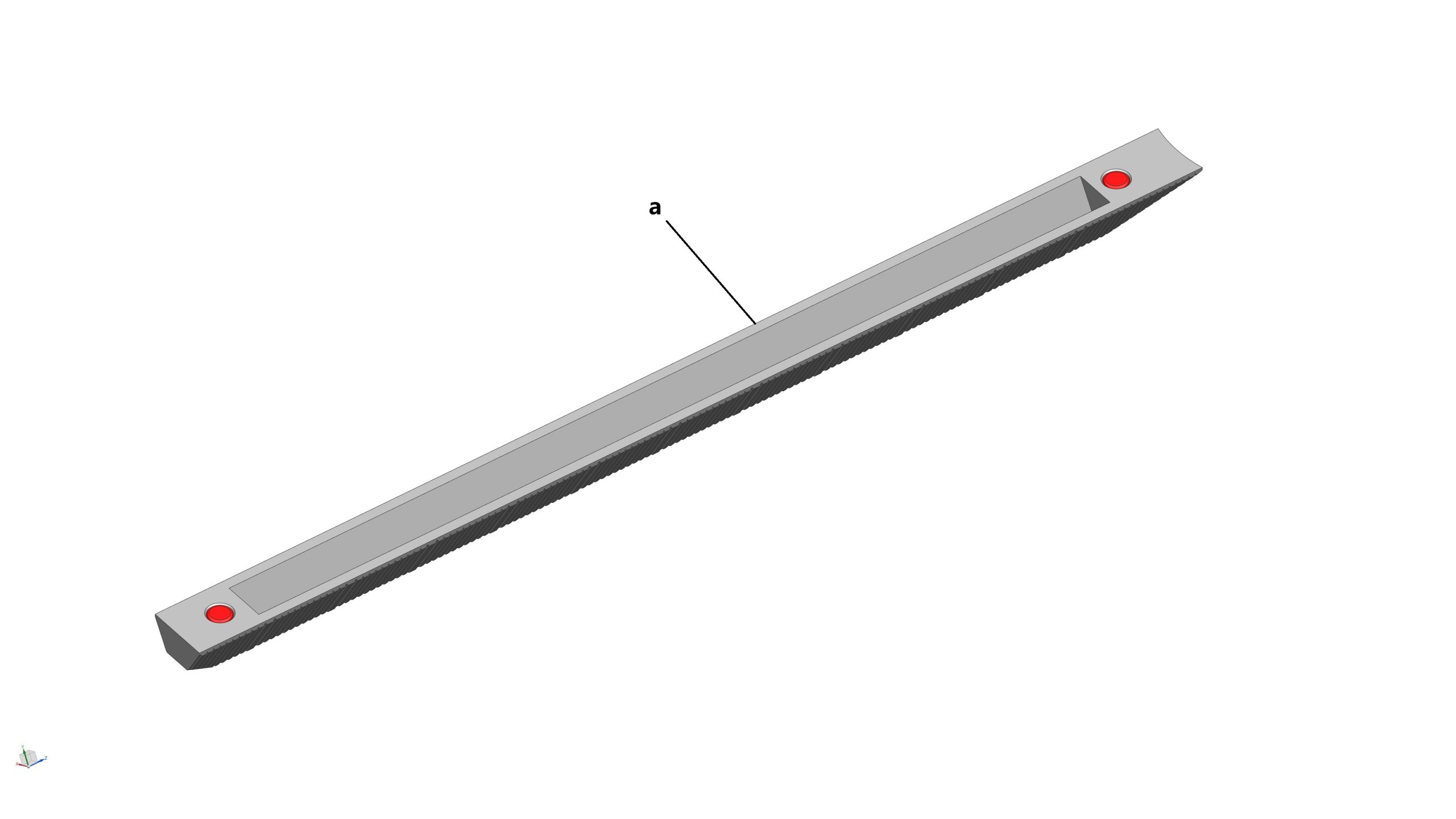

2x Chines (Short) (a)

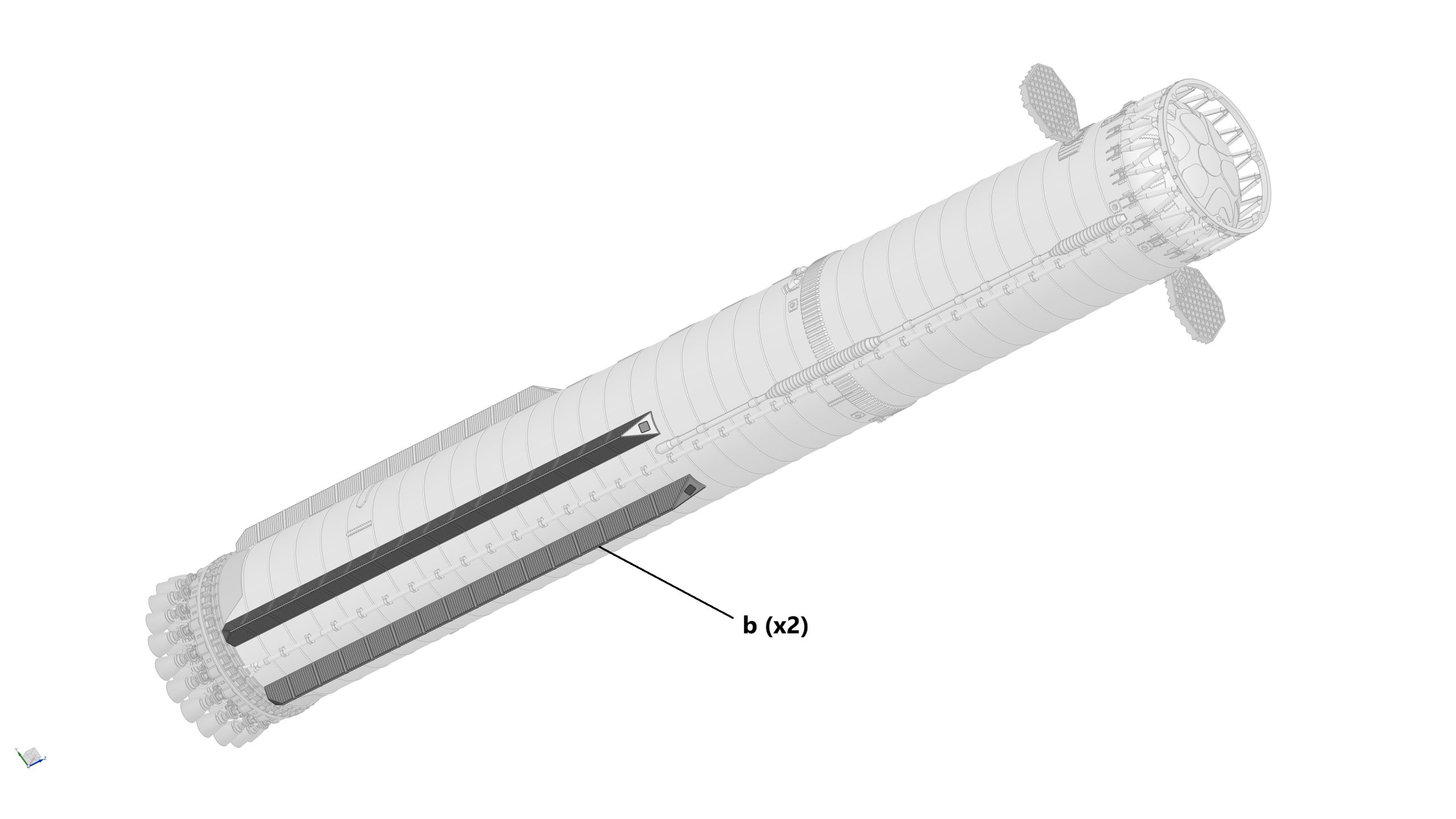

2x Chines (Long) (b)
4x Booster Starlink Terminal (c)
1x Booster Assembly from STEP 15
8x Magnet (5mm dia x 3mm thick) (highlighted in red)

Assembly process

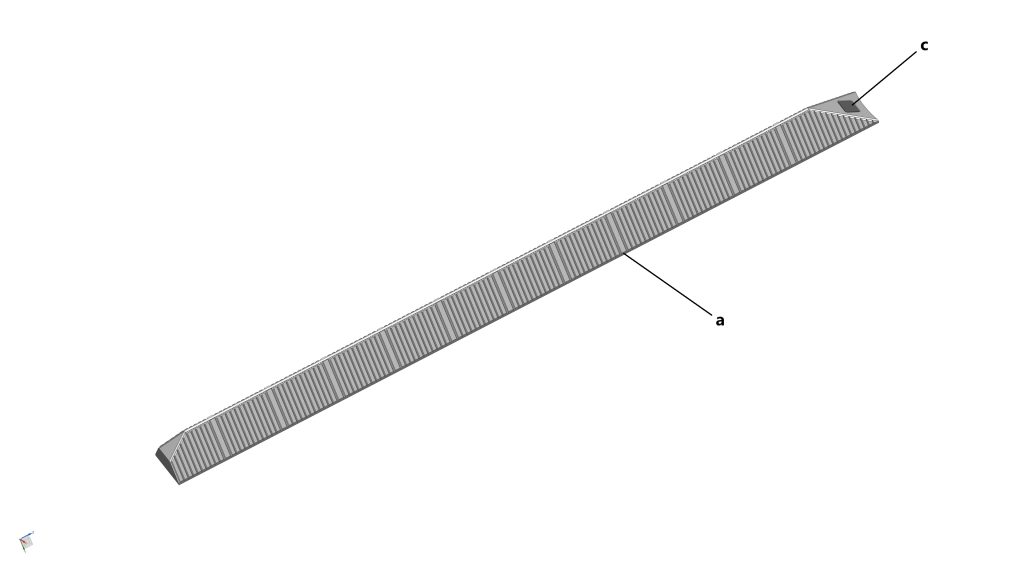

STEP 16a: Glue 1x Booster Starlink Terminal to the top of each Chine
STEP 16b: Glue 2x magnets (5mm dia x 3mm thick) into their pockets on the back of each Chine
STEP 16c: Install 2x Chines (Short) to the Booster Assembly from STEP 15
STEP 16d: Install 2x Chines (Long) to the Booster Assembly from STEP 15
